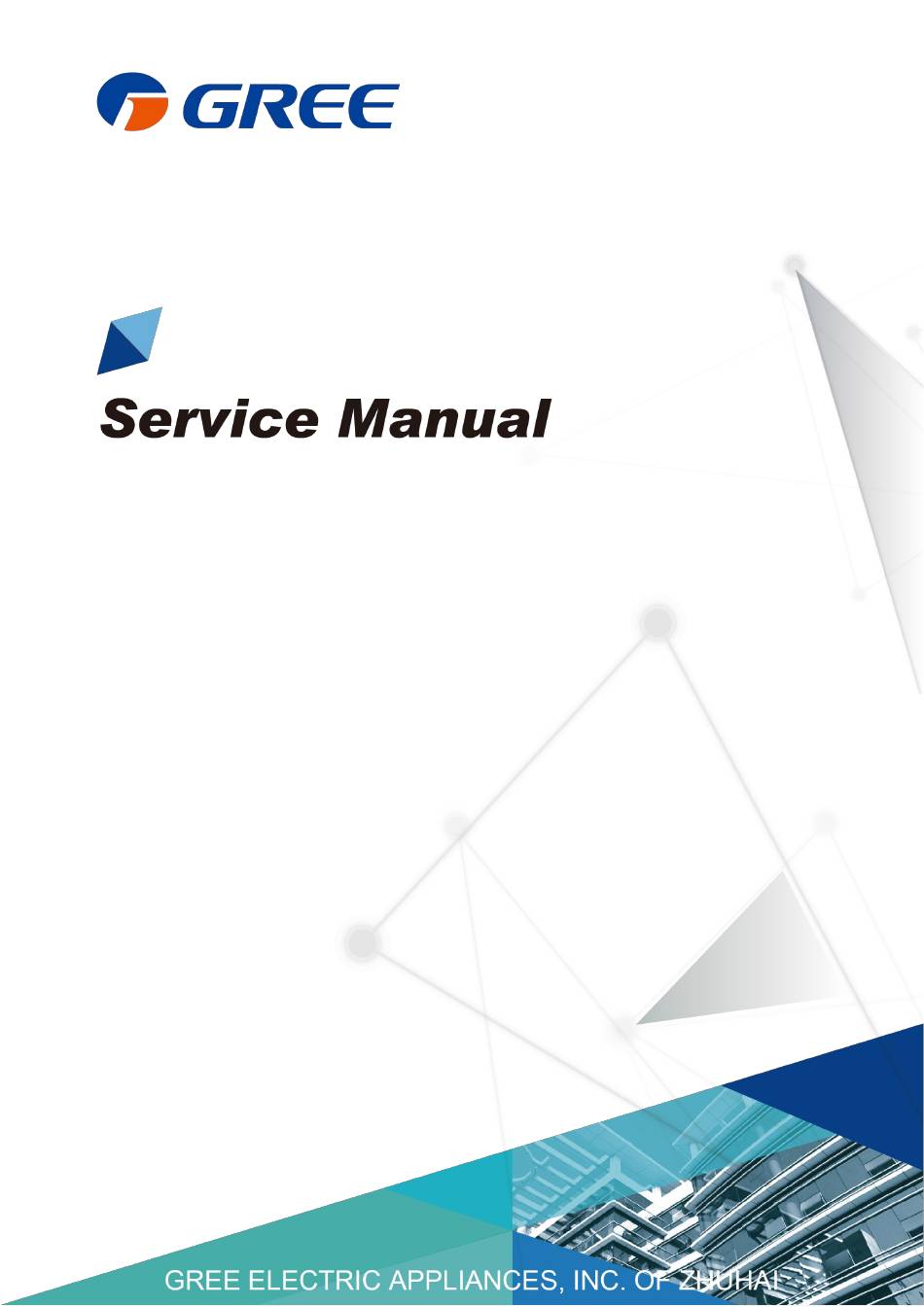

Page 1 Multi Variable Air Conditioners Indoor Units (GC201912-IX) Capacity: 5600Btu/h~96000Btu/h Rated Frequency: 60 Hz...
Page 2: Table Of Contents
CONTENTS PRODUCT........................1 CHAPTER 1 PRODUCT.....................2 1 Product List......................2 1.1 Low Static Pressure Duct Type Indoor Unit..................2 1.2 Slim Duct Type Indoor Unit........................2 1.3 Four-way Cassette Type Indoor Unit....................2 1.4 Wall Mounted Type Indoor Unit......................3 1.5 Console Type Indoor Unit........................4 1.6 High Static Pressure Duct Type Indoor Unit..................4 1.7 Two-way Cassette Type Indoor Unit....................4 1.8 Floor Ceiling Type Indoor Unit......................
Page 3 3.16 Features of 360°Air Discharge Compact Cassette Type Indoor Unit........14 4 Specifications......................15 4.1 Low Static Pressure Duct Type Indoor Unit..................15 4.2 Slim Duct Type Indoor Unit........................ 17 4.3 Four-way Cassette Type Indoor Unit....................19 4.4 Wall Mounted Type Indoor Unit......................21 4.5 Console Type Indoor Unit........................24 4.6 High Static Pressure Duct Type Indoor Unit...................
Page 4 1.2 Installation Key Points and Importance................... 90 2 Installation Materials Selection................91 2.1 Refrigerant Piping..........................92 2.2 Condensate Water Pipe........................92 2.3 Insulation Material..........................92 2.4 Communication Cable and Control Cable..................93 2.5 Power Cable............................93 2.6 Hanger Rod and Support........................93 3 Installation of Indoor Unit.................. 94 3.1 Installation of Low Static Pressure Duct Type Indoor Unit............94 3.2 Installation of Slim Duct Type Indoor Unit..................
Page 5 1 Malfunction List....................134 1.1 Malfunction List for the Wired Controller..................134 1.2 Display of Light Board (Only for Two-way Cassette Type Indoor Unit)........134 1.3 Exception Analyzing and Troubleshooting..................135 2 After-sales Emergency Masures..............147 3 Wiring Diagram....................148 3.1 Low Static Pressure Duct Type Indoor Unit.................. 148 3.2 Slim Duct Type Indoor Unit......................149 3.3 Four-way Cassette Type Indoor Unit.....................
Page 6 5 Exploded Views And Part List................185 5.1 Low Static Pressure Duct Type Indoor Unit.................. 185 5.2 Slim Duct Type Indoor Unit......................190 5.3 Four-way Cassette Type Indoor Unit..................... 197 5.4 High Static Pressure Duct Type Indoor Unit................. 202 5.5 Two-way Cassette Type Indoor Unit....................207 5.6 Floor Ceiling Type Indoor Unit......................209 5.7 Fresh Air Processing Type Indoor Unit..................
Page 7: Product
GREE Multi Variable Air Conditioners Indoor Unit PRODUCT...
Page 8: Chapter 1 Product
GREE Multi Variable Air Conditioners Indoor Unit CHAPTER 1 PRODUCT 1 Product List 1.1 Low Static Pressure Duct Type Indoor Unit Cooling Heating Product Power Capacity Capacity Model Refrigerant Appearance Code Supply kW(Btu/h) kW(Btu/h) GMV-ND07PLS/A-T(U) CM810N0080 (7500) (8500) GMV-ND09PLS/A-T(U) CM810N0090...
Page 9: Wall Mounted Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 1.4 Wall Mounted Type Indoor Unit Cooling Heating Capacity Capacity Product Power Model Refrigerant Appearance Code Supply (Btu/h) (Btu/h) GMV-N07G/A3A-D(U) CM100N1480 (7500) (8500) GMV-N09G/A3A-D(U) CM100N1490 (9500) (11000) 208/230V GMV-N12G/A3A-D(U) CM100N1500 R410A (12000) (13500)
Page 10: Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 1.5 Console Type Indoor Unit Cooling Heating Product Capacity Capacity Power Model Refrigerant Appearance Code Supply (Btu/h) (Btu/h) GMV-ND07C/A-T(U) CM400N0110 (7500) (8500) GMV-ND09C/A-T(U) CM400N0120 (9500) (11000) 208/230V R410A ~60Hz GMV-ND12C/A-T(U) CM400N0100 (12000) (13500)
Page 11: Floor Ceiling Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 1.8 Floor Ceiling Type Indoor Unit Cooling Heating Product Capacity Capacity Power Model Refrigerant Appearance Code Supply (Btu/h) (Btu/h) GMV-ND09ZD/A-T(U) CM600N0420 (9500) (10500) GMV-ND12ZD/A-T(U) CM600N0430 (12000) (13500) GMV-ND18ZD/A-T(U) CM600N0440 (18000) (20000) GMV-ND24ZD/A-T(U) CM600N0450...
Page 12: Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 1.11 Super High Static Pressure Duct Type Indoor Unit Cooling Heating Product Capacity Capacity Power Model Refrigerant Appearance Code Supply (Btu/h) (Btu/h) GMV-ND07PHS/B-T(U) CM810N0830 (7500) (8500) 208/230V R410A ~60Hz GMV-ND09PHS/B-T(U) CM810N0790 (9500) (10500)
Page 13: Ahu-Kit
GREE Multi Variable Air Conditioners Indoor Unit 1.13 AHU-KIT Cooling Heating Product Capacity Capacity Power Model Refrigerant Appearance Code Supply (Btu/h) (Btu/h) 3.52 3.96 GMV-N12U/A-T(U) CN750N0101 (12000) (13500) 7.03 7.91 GMV-N24U/A-T(U) CN750N0061 (24000) (27000) 14.07 15.83 208/230V GMV-N48U/A-T(U) CN750N0071 R410A...
Page 14: 360°Air Discharge Compact Cassette Type Indoor Unit
□ □ □ □ □ □ □ Description Options Product code GMV-Gree Multi VRF Units indoor unit code indoor unit-N D-DC motor Motor type NULL-AC motor X-fresh air Function code W-double thermal source Cooling capacity/air volume Indoor unit: nominal cooling capacity /1000(Btu/h)
Page 15: Product Features
GREE Multi Variable Air Conditioners Indoor Unit 3 Product Features 3.1 Features of Low Static Pressure Duct Type Indoor Unit Low static pressure, low noise  Especially suitable for rooms of compact structure or small installation space. Also it provides you with a comfortable and quiet living environment.
Page 16: Features Of Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit CAN Bus Communication Technology.  System response speed is faster and communication is more reliable. Auto addressing,  non-polar communication, free wire matching. Convenient Operation & Maintenance.  Electric control box is attached independently so that it can be detached as a whole, which is ...
Page 17: Features Of Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Panel is removable.  The panel of indoor unit can be removed easily for convenient maintenance. The response of the system is quicker with more reliable communication; auto addressing, non-polar communication and free wiring are available.
Page 18: Features Of Fresh Air Processing Type Indoor Unit
Less investment.  Fresh Air DC Inverter Multi VRF System can be combined with Gree GMV5. For a same room, if the same amount of fresh air is to be taken, then the cost of GMV5+Fresh air unit is equivalent to the cost of GMV+Air exchange fan.
Page 19: Features Of Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit work under ante quiet mode via wired controller. Intelligent drainage device  Water height difference up to Which can effectively drain out condensing water and save 3.3ft. space. 3.11 Features of Super High Static Pressure Duct Type Indoor Unit High static pressure design.
Page 20: Features Of 1-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Error signal is connected for reliable installation and operation.  Error signal of air handling unit is connected to AHU-KIT. Where there’s malfunction, the unit will stop operation, same and reliable. 3.14 Features of 1-way Cassette Type Indoor Unit Beautiful Appearance ...
Page 21: Specifications
GREE Multi Variable Air Conditioners Indoor Unit Water height difference up to which can effectively drain out condensing water and save space. 1.2m, Adopting high-lift DC quiet type drainage pump for lower power consumption and better sound quality; the maximum lifting height is 1200mm; installation is more flexible and the drainage pipe layout is more convenient.
Page 22 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND14PLS/A-T(U) GMV-ND18PLS/A-T(U) GMV-ND22PLS/A-T(U) Product Code CM810N0120 CM810N0070 CM810N0110 Btu/h 15000 18000 24000 Cooling Capacity Btu/h 17000 20000 27000 Heating Capacity Casing Finish Galvanized Steel plate 900×615×200 1100×615×200 1100×615×200 Outline inch 35-7/16×24-3/16×7-7/8 43-5/16×24-3/16×7-7/8 43-5/16×24-3/16×7-7/8 Dimensions (W×D×H)
Page 23: Slim Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.2 Slim Duct Type Indoor Unit GMV-ND06PLS/B GMV-ND07PLS/B GMV-ND09PLS/B GMV-ND12PLS/B Model -T(U) -T(U) -T(U) -T(U) Product Code CM810N1980 CM810N1720 CM810N1710 CM810N1700 Btu/h 6000 7500 9500 12000 Cooling Capacity Btu/h 6000 8500 10500 13500...
Page 24 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND14PLS/B-T(U) GMV-ND18PLS/B-T(U) GMV-ND24PLS/A-T(U) Product Code CM810N1690 CM810N1680 CM810N1670 Btu/h 15000 18000 24000 Cooling Capacity Btu/h 17000 20000 27000 Heating Capacity Casing Finish Galvanized Steel plate 1010×462×200 1010×462×200 1310×462×200 Outline 39-12/16×18-3/16 39-12/16×18-3/16 51-9/16×18-3/16...
Page 25: Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.3 Four-way Cassette Type Indoor Unit GMV-ND07T GMV-ND09T GMV-ND12T GMV-ND15T GMV-ND18T Model /A-T(U) /A-T(U) /A-T(U) /A-T(U) /A-T(U) Product Code CM500N0520 CM500N0530 CM500N0540 CM500N0670 CM500N0510 Btu/h 7500 9500 12000 15000 18000 Cooling Capacity Btu/h...
Page 26 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND07T GMV-ND09T GMV-ND12T GMV-ND15T GMV-ND18T Model /A-T(U) /A-T(U) /A-T(U) /A-T(U) /A-T(U) Refrigeration Control Device Protection Device Fuse Fuse Fuse Fuse Fuse Panel Name TC01 TC01 TC01 TC01 TC01 GMV-ND24T GMV-ND30T GMV-ND36T GMV-ND42T GMV-ND48T...
Page 27: Wall Mounted Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND24T GMV-ND30T GMV-ND36T GMV-ND42T GMV-ND48T Model /A-T(U) /A-T(U) /A-T(U) /A-T(U) /A-T(U) Sound Pressure Level(H/M/L) dB(A) 38/36/33 40/38/35 41/38/36 43/41/38 43/41/38 Heat Exchanger Fenestrate plain film --hydrophilic film Air Filter Foamed Foamed Foamed Foamed...
Page 28 GREE Multi Variable Air Conditioners Indoor Unit GMV-N07G/ GMV-N09G/ GMV-N12G/ GMV-N18G/ GMV-N24G/ Model E3A-D(U) E3A-D(U) E3A-D(U) E3A-D(U) E3A-D(U) Product Code CM100N2330 CM100N2340 CM100N2350 CM100N2360 CM100N2370 Btu/h 7500 9500 12000 18000 24000 Cooling Capacity Btu/h 8500 11000 13500 20000 25500 Heating Capacity...
Page 29 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND06 GMV-ND07 GMV-ND09 GMV-ND12 GMV-ND14 Model G/B4B-T(U) G/B4B-T(U) G/B4B-T(U) G/B4B-T(U) G/B4B-T(U) 845×209×289 845×209×289 845×209×289 845×209×289 970×300×224 38-3/16 Outline 33-1/4×8-1/4 33-1/4×8-1/4 33-1/4×8-1/4 33-1/4×8-1/4 inch ×11-13/16 ×11-3/8 ×11-3/8 ×11-3/8 ×11-3/8 Dimensions ×8-13/16 (W×D×H) 976×281×379 976×281×379 976×281×379 976×281×379 1096×383×320...
Page 30: Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND18G/B4 GMV-ND24G/B4 GMV-ND30G/B4 GMV-ND36G/B4 Model B-T(U) B-T(U) B-T(U) B-T(U) lbs. Gross Weight 23.5 23.5 Φ9.52 Φ9.52 Φ9.52 Φ9.52 Liquid Side inch Φ3/8 Φ3/8 Φ3/8 Φ3/8 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Pipe Gas Side Connections inch Φ5/8...
Page 31: High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND07C/A- GMV-ND09C/A- GMV-ND12C/A- GMV-ND18C/A- Model T(U) T(U) T(U) T(U) Type × Quantity Centrifugal×1 Centrifugal×1 Centrifugal×1 Centrifugal×1 Driving Mechanism Direct-driven Motor Type BLDC Motor Power Input MotorA Running Current Airflow Rate(H/M/L) Sound Pressure Level(H/M/L)
Page 32 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND18 GMV-ND24 GMV-ND30 GMV-ND36 GMV-ND42 GMV-ND48 Model PHS/A-T(U) PHS/A-T(U) PHS/A-T(U) PHS/A-T(U) PHS/A-T(U) PHS/A-T(U) Type × Quantity Centrifugal×2 Centrifugal×2 Centrifugal×2 Centrifugal×2 Centrifugal×2 Centrifugal×2 Driving Mechanism Direct-driven Direct-driven Direct-driven Direct-driven Direct-driven Direct-driven Motor Type BLDC...
Page 33: Two-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND72PH/A-T(U) GMV-ND96PH/A-T(U) Type × Quantity Centrifugal×2 Centrifugal×2 Driving Mechanism Direct-driven Motor Type BLDC Motor Power Input Motor Running Current 2355/2120/1885 2590/2355/2120 Airflow Rate(H/M/L) 4000/3600/3200 4400/4000/3600 inchW.G Default External Static inchW.G 0.2~0.8 0.2~0.8...
Page 34: Floor Ceiling Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND09T GMV-ND12T GMV-ND15T GMV-ND18T GMV-ND24T Model S/A-T(U) S/A-T(U) S/A-T(U) S/A-T(U) S/A-T(U) Φ6.35 Φ6.35 Φ6.35 Φ9.52 Φ9.52 Liquid Side inch Φ1/4 Φ1/4 Φ1/4 Φ3/8 Φ3/8 Φ9.52 Φ12.7 Φ12.7 Φ15.9 Φ15.9 Pipe Gas Side Connection inch Φ3/8...
Page 35 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND09ZD/A GMV-ND12ZD/A GMV-ND18ZD/A GMV-ND24ZD/A Model -T(U) -T(U) -T(U) -T(U) Power Supply 1-phase 208/230V 60Hz 1-phase 208/230V 60Hz Type × Quantity Centrifugal×4 Centrifugal×4 Centrifugal×4 Centrifugal×3 Driving Mechanism Direct-driven Direct-driven Motor Type BLDC BLDC Motor Power...
Page 36: Fresh Air Processing Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND30ZD/A GMV-ND36ZD/A GMV-ND42ZD/A GMV-ND48ZD/A Model -T(U) -T(U) -T(U) -T(U) Sound Pressure Level(H/M/L) dB(A) 50/47/43 51/47/42 52/49/45 52/49/45 Heat Exchanger Air Filter Insulation Material Foamed polystyrene Refrigeration Control Device Protection Device Fuse Fuse Fuse Fuse 4.9 Fresh air Processing Type Indoor Unit...
Page 37 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-NDX42P/A-T(U) GMV-NDX48P/A-T(U) GMV-NDX54P/A-T(U) Air Filter Insulation Material Foamed polystyrene Refrigeration Control Device Protection Device Fuse Model GMV-NDX72P/A-T(U) GMV-NDX96P/A-T(U) Product Code CM810N0480 CM810N0470 Btu/h 72000 96000 Cooling Capacity 21.1 28.1 Btu/h 55000 68000 Heating Capacity*1 16.1...
Page 38: Compact Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit NOTICE! Rated cooling capacity test conditions: indoor 95.0°F DB/82.4°F WB, outdoor 95.0°F DB; connection pipe length: 24-5/8ft., without height drop between units. The default air outlet temperature of the unit is 64.4°F. Rated heating capacity test conditions: *1. indoor 44.6°F DB, outdoor 44.6°F DB/42.8 °F WB, *2 indoor 32°F DB, outdoor 32°F DB/26.8°F WB, connection pipe length: 24-5/8ft., without...
Page 39: Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND07T/ GMV-ND09T/ GMV-ND12T/ GMV-ND15T/ GMV-ND18T/ Model B-T(U) B-T(U) B-T(U) B-T(U) B-T(U) Type × Quantity Centrifugal×1 Centrifugal×1 Centrifugal×1 Centrifugal×1 Centrifugal×1 Driving Mechanism Direct-driven Direct-driven Direct-driven Direct-driven Direct-driven Motor Type BLDC BLDC BLDC BLDC BLDC...
Page 40 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND07PHS/B GMV-ND09PHS/ GMV-ND12PHS/B GMV-ND15PHS/B Model - T(U) B- T(U) -T(U) -T(U) Sound Pressure Level(H/M/L) dB(A) 35/33/31 35/33/31 36/34/32 40/37/34 Heat Exchanger Fenestrate plain film -- hydrophilic film Air Filter Insulation Material Foamed polystyrene...
Page 41 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND36PHS/B GMV-ND42PHS/B GMV-ND48PHS/B GMV-ND54PHS/B Model -T(U) -T(U) -T(U) -T(U) Product Code CM810N0740 CM810N0750 CM810N0820 CM810N0760 Btu/h 36000 42000 48000 54000 Cooling Capacity 10.6 12.3 14.1 15.8 Btu/h 40000 47000 54000 60000 Heating Capacity 11.7...
Page 42 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND72PH/B-T(U) GMV-ND96PH/B-T(U) Product Code CM810N1600 CM810N1590 Btu/h 72000 96000 Cooling Capacity 21.1 28.1 Btu/h 81000 108000 Heating Capacity 23.7 31.7 Casing Finish Galvanized Steel plate 1240X1040X470 1240X1040X470 Outline inch 48-3/4×41×18-1/2 48-3/4×41×18-1/2 Dimensions (W×D×H)
Page 43: Air Handler Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.12 Air Handler Type Indoor Unit GMV-ND09A/ GMV-ND12A/ GMV-ND18A/ GMV-ND24A/ GMV-ND30A/ Model A-T(U) A-T(U) A-T(U) A-T(U) A-T(U) Product Code CM810N1900 CM810N1910 CM810N1890 CM810N0660 CM810N0670 Btu/h 9500 12000 18000 24000 30000 Cooling Capacity Btu/h...
Page 44 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND36A/A GMV-ND42A/A GMV-ND48A/A GMV-ND54A/A Model -T(U) -T(U) -T(U) -T(U) Product Code CM810N0700 CM810N0690 CM810N0680 CM810N0710 Btu/h 36000 42000 48000 54000 Cooling Capacity 10.6 12.3 14.1 15.8 Btu/h 40000 47000 54000 60000 Heating Capacity 11.7...
Page 45: Ahu-Kit
GREE Multi Variable Air Conditioners Indoor Unit 4.13 AHU-KIT Model GMV-N12U/A-T(U) GMV-N24U/A-T(U) GMV-N48U/A-T(U) Capacity Cooling 3.52 7.03 14.07 Defaulted Capacity Cooling kBtu/h 12.0 24.0 48.0 of ex-factory Heating 3.96 7.91 15.83 Heating kBtu/h 13.5 27.0 54.0 Capacity Cooling 2.64 3.52 4.40...
Page 46: 1-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Model GMV-N96U/A-T(U) GMV-N192U/A-T(U) 203×326×85 246×500×120 Outline Dimension inch 8×12-7/8×3-3/8 9-5/8×19-5/8×4-3/4 (W×D×H) 334×284×111 334×284×111 Control inch 13-1/8×11-1/8×4-3/8 13-1/8×11-1/8×4-3/8 Net Weight Model(Combined) GMV-N48U/A-T(U)+GMV-N192U/A-T(U) Capacity 48+288 Cooling 98.48 Cooling kBtu/h Heating 110.79 Heating kBtu/h Power Input 5.0+5.0...
Page 47: Low Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND07TD/A-T(U) GMV-ND09TD/A-T(U) GMV-ND12TD/A-T(U) Φ6.35 Φ6.35 Φ6.35 Liquid Side inch Φ1/4 Φ1/4 Φ1/4 Φ9.52 Φ9.52 Φ12.7 Pipe Gas Side Connections inch Φ3/8 Φ3/8 Φ1/2 Φ25 Φ25 Φ25 Drain Pipe inch Φ1 Φ1 Φ1...
Page 48: 360°Air Discharge Compact Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND30PLS/C-T GMV-ND36PLS/C-T GMV-ND42PLS/C-T GMV-ND48PLS/C-T Model Centrifugal*3 Centrifugal*3 Centrifugal*3 Centrifugal*3 Type × Quantity Direct-driven Driving Mechanism BLDC Motor Type Motor Power Input Motor Running Current 880/735/530 1000/880/650 1180/1000/825 1180/1000/825 Airflow Rate(H/M/L) 1500/1250/900 1700/1500/1100 2000/1700/1400 2000/1700/1400 in.W.
Page 49 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND05T/E-T(U) GMV-ND07T/E-T(U) GMV-ND09T/E-T(U) Φ6.35 Φ6.35 Φ6.35 Liquid Side inch Φ1/4 Φ1/4 Φ1/4 Φ9.52 Φ9.52 Φ9.52 Pipe Gas Side Connections inch Φ3/8 Φ3/8 Φ3/8 Φ25 Φ25 Φ25 Drain Pipe inch Φ1 Φ1 Φ1...
Page 50 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND12T/E-T(U) GMV-ND15T/E-T(U) GMV-ND18T/E-T(U) Φ6.35 Φ6.35 Φ9.52 Liquid Side inch Φ1/4 Φ1/4 Φ3/8 Φ12.7 Φ12.7 Φ15.9 Pipe Gas Side Connections inch Φ1/2 Φ1/2 Φ5/8 Φ25 Φ25 Φ25 Drain Pipe inch Φ1 Φ1 Φ1...
Page 51: Control
GREE Multi Variable Air Conditioners Indoor Unit CONTROL...
Page 52: Chapter 2 Control
GREE Multi Variable Air Conditioners Indoor Unit CHAPTER 2 CONTROL 1 Operation Flowchart...
Page 53: Wired Controller
GREE Multi Variable Air Conditioners Indoor Unit 2 Wired Controller 2.1 Control Panel 2.1.1 XK46 Wired Controller Fig.2.1.1 Appearance of wired controller Fig.2.1.2 LED graphics of wired controller...
Page 54 GREE Multi Variable Air Conditioners Indoor Unit Table 2.1 LED display instruction Symbols Instructions Up and down swing function Left and right swing function It's valid under Save mode and displays during setting process Temperature lower limit for Cooling: Limit the minimum temperature value under...
Page 55 GREE Multi Variable Air Conditioners Indoor Unit Symbols Instructions Health function, Indoor unit optional function Reserved function Out function Outdoor unit defrosting status Gate-control function Shielding status Child Lock status One wired controller controls multiple indoor units Save status of indoor unit...
Page 56 GREE Multi Variable Air Conditioners Indoor Unit Function instruction of buttons Buttons Instructions ENTER/CANCEL Select and cancel function Set operating temperature of indoor unit Set Timer Switch Quiet mode, Air grade, Clean grade, set upper and lower temperature limit under Save mode...
Page 57 GREE Multi Variable Air Conditioners Indoor Unit LED graphics of wired controller Table LCD display instruction Symbols Instructions Auto mode (Under Auto mode, the indoor units will automatically select their operating mode as per the temperature change so as to make the ambient comfortable.)
Page 58 GREE Multi Variable Air Conditioners Indoor Unit Symbols Instructions It indicates the current wired controller is the slave wired controller (address of wired controller is 02) Invalid operation Remind to clean the filter X-fan function Outdoor unit operates under Save mode/upper limit of system capacitor less...
Page 59: Installation And Removal
GREE Multi Variable Air Conditioners Indoor Unit Table Function instruction of buttons Buttons Instructions Set vertical air swing SWING/ENTER Select and cancel functions TIMER Timer setting Set operating temperature of indoor unit ▲ Set Timer Switch Quiet mode, Air grade, Clean grade, set upper and lower temperature limit under Save mode ▼...
Page 60 GREE Multi Variable Air Conditioners Indoor Unit 2.2.2 Installation Method (1) Wired Controller XK46 Installation Method: Fig. 2.2.3 Installation diagram for wired controller XK46 Fig. 2.2.3 is the simple installation process of wired controller; please pay attention to the following items: Before installation, please cut off the power for indoor unit.
Page 61 GREE Multi Variable Air Conditioners Indoor Unit (2) Wired Controller XK79 Installation Method: Fig. 2.2.4 Installation diagram for wired controller XK79 Fig.2.2.4 is the simple installation process of wired controller XK79; please pay attention to the following items: Before installation, please cut off the power for indoor unit.
Page 62 GREE Multi Variable Air Conditioners Indoor Unit When connecting to terminals, the wire-stripping length for the conducting wire of twisted pair line should be no more than 6mm and the cores of conduction wire can’t be exposed to terminal to preventing short-circuit or electric leakage.
Page 63 GREE Multi Variable Air Conditioners Indoor Unit Fig. 2.2.9 One wired controller controls multiple indoor units simultaneously. Fig. 2.2.10 Two wired controllers control multiple indoor units simultaneously.
Page 64: Remote Controller
GREE Multi Variable Air Conditioners Indoor Unit 3 Remote Controller 3.1 Remote Controller YAP1F Button name and function introduction Button name Function ON/OFF Turn on or turn off the unit TURBO Set turbo function MODE Set operation mode Set up&down swing status...
Page 65: Remote Controller Yv1L1
GREE Multi Variable Air Conditioners Indoor Unit 3.2 Remote Controller YV1L1 Button name Function ON/OFF Turn on or turn off the unit Set fan speed ▲/▼ Set temperature and time MODE Set operation mode Set quiet function Set health function and air function Set left&right swing status...
Page 66: Introduction To Unit Functions
GREE Multi Variable Air Conditioners Indoor Unit 4 Introduction to Unit Functions Function Application of IDUs Indoor unit functions cover user operation functions and engineering application functions. For user operation functions, refer to operating instructions of the IDU, wired controller, and remote controller.
Page 67 GREE Multi Variable Air Conditioners Indoor Unit Step 3: Check whether the setting is successful. If it is, "MASTER" on the wired controller will be on. Otherwise, repeat steps 1 and 2. Method 2: Step 1: Press and hold the “FUNCTION” button for five seconds in power-on or power-off status to enter the parameter query interface.
Page 68 GREE Multi Variable Air Conditioners Indoor Unit 4.1.3 Project Number Query and Settings (1) Project number query of a single IDU. Press and hold the “FUNCTION” button for five seconds in power-on or power-off status to enter the parameter query interface "C00". The timer area of the wired controller displays the project number of the current IDU.
Page 69 GREE Multi Variable Air Conditioners Indoor Unit 4.1.4 User Parameter Query User parameters can be queried in power-on or power-off status. (1) Press and hold the “FUNCTION” button for five seconds to enter the user parameter query interface. The temperature area displays “C00” and “View” is on.
Page 70 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter Name View Method Code Range Indoor unit quantity Timer area: displays the number of IDUs controlled by the query in 1-16 wired controller. one-to-many mode Outdoor Timer area: displays the temperature value of the environment environment temperature sensor of the master ODU.
Page 71 GREE Multi Variable Air Conditioners Indoor Unit In parameter query status, signals of the remote controller are invalid. 4.1.5 User Parameter Settings User parameters can be set in power-on or power-off status. (1) Press and hold the “FUNCTION” button for five seconds. The temperature area displays “C00”.
Page 72 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Default Parameter Range Remark Code Name Value After identifying the IDU type, the wired controller only displays the available static pressure levels. The static pressure levels fall into five levels and nine levels for VRF IDUs. Wired controller can be adapted to the different Type 1: 03.04.05.06.07...
Page 73 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Default Parameter Range Remark Code Name Value After union function is set, Fresh Air Indoor Unit will be turned on/off following the on/off Union setting of status of common indoor unit. Besides,...
Page 74 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter View Method Code Name Range Project 1-255: project number number Timer area: displays the project number of the master IDU/00. query of 00: no master master IDU Operation method: In “C05” status, press the “MODE” button to enter the historical fault query interface.
Page 75 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter View Method Code Name Range Operation method: In “C16” status, press the “MODE” button to enter electronic expansion valve opening degree query of IDU. Press " " or " " to switch the IDU SN.
Page 76 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter View Method Code Name Range Operation method (n7 query is not supported for the slave wired controller): In “n7” status, the timer area is not displayed. Press the “MODE” button to enter parameter query of ODU. The first bit in the temperature area (display bit of the ODU module ID) blinks.
Page 77 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter View Method Code Name Range Operation method (nb query is not supported for the slave wired controller): In “nb” status, the timer area is not displayed. Press the “MODE” button to enter bar code query. The temperature area displays “nb”...
Page 78 GREE Multi Variable Air Conditioners Indoor Unit NOTICE! In parameter query status, "FAN", “TIMER”, "SLEEP", and "SWING" are invalid. By pressing the “ON/OFF” button, users can return to the main interface but not power on/off the unit. In parameter query status, signals of the remote controller are invalid.
Page 79 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter Range Default Value Remark Code Name Corrected value Temperature of environment sensor of unit: temperature 0°C; Press “ ” or “ ” to add or sensor of IDU -15 to +15 temperature reduce by 1°C.
Page 80 GREE Multi Variable Air Conditioners Indoor Unit Parameter Parameter Parameter Range Default Value Remark Code Name Minimum After the default minimum opening degree opening degree for heating setting for 00: automatically controlled breakdown is manually heating 1-500 modified, the opening degree...
Page 81 GREE Multi Variable Air Conditioners Indoor Unit 4.1.8 Failure Display When a fault occurs during the system operation, the temperature area of wired controller displays the fault code. When multiple faults occur, fault codes are circularly displayed. When a fault occurs, power off the unit and ask for professional maintenance personnel for help.
Page 82: Engineering Application Functions Operated Through The Xk49 Wired Controller
GREE Multi Variable Air Conditioners Indoor Unit 4.2 Engineering Application Functions Operated through the XK49 Wired Controller XK49 Wired Controller 4.2.1 Master IDU Settings Method 1: In power-off status, press and hold the “MODE” button for five seconds to set the IDU connected with the current wired controller to master IDU.
Page 83 GREE Multi Variable Air Conditioners Indoor Unit 4.2.2 User Parameter Query User parameters can be queried in power-on or power-off status. (1) Press and hold the “MODE” button and "SWING" simultaneously for five seconds to enter the user parameter query interface. The temperature area displays “C00” and “View” is on.
Page 84: Engineering Application Functions Operated Through The Xk79 Wired Controller
GREE Multi Variable Air Conditioners Indoor Unit 4.2.5 Engineering Parameter Settings Engineering parameters can be set in power-on or power-off status. (1) Press and hold the “MODE” and "SWING" button simultaneously for five seconds. The temperature area displays “C00”. Continuously press the “MODE” button for three times, and then press and hold the “MODE”...
Page 85 GREE Multi Variable Air Conditioners Indoor Unit 4.3.1 Master IDU Settings The master IDU can be set through the wired controller or remote controller. The methods for setting the master IDU through the wired controller are as follows: Method 1: Step 1: Set an IDU to power-off status.
Page 86 GREE Multi Variable Air Conditioners Indoor Unit button. If the setting is successful, "MASTER" on the wired controller will be on. Master IDU Display (1) For IDUs connected with wired controllers, "MASTER" on the wired controller connected with the master IDU will be on.
Page 87: Engineering Application Functions Operated Through The Yv1L1 Remote Controller
GREE Multi Variable Air Conditioners Indoor Unit (2) In "C00" status, continuously press the “MODE” button for three times to enter engineering parameter query. (3) Select a parameter code by pressing “▲” or “▼”. (4) Press the “SWING/CANCEL” button to return to the upper-level menu till quitting parameter query.
Page 88 GREE Multi Variable Air Conditioners Indoor Unit Button name Function ON/OFF Turn on or turn off the unit Set fan speed ▲/▼ Set temperature and time MODE Set operation mode Set quiet function Set health function and air function Set left & right swing status Set up &...
Page 89 GREE Multi Variable Air Conditioners Indoor Unit Step 1: Set an IDU to air-supply status and set the temperature to 30°C. Step 2: Continuously press “—” and “+” for three times within five seconds. Step 3: Check whether the setting is successful. If it is, the LED panel of the IDU will display "UC" for five seconds and "MASTER"...
Page 90 GREE Multi Variable Air Conditioners Indoor Unit Query Code Query Content Query Sub-item Level 2 Query Content Indoor unit quantity query in one-to-many control mode Temperature query for outdoor environment temperature sensor CAN2 bus line ID query Inlet-tube temperature query of IDU...
Page 91 GREE Multi Variable Air Conditioners Indoor Unit Setting Setting Content Setting Value Code 01: temperature sensor of air return vent 02: temperature sensor of wired controller 03: temperature sensor of air return vent for cooling, dehumidifying, Indoor environment temperature and air supply; temperature sensor of wired controller for heating...
Page 92 GREE Multi Variable Air Conditioners Indoor Unit Setting Setting Content Setting Value Code 00: no cleaning prompt settings 10-39: The first digit indicates the pollution degree of the using place and the second digit indicates the accumulated operating time of IDU.
Page 93: Engineering Application Functions Operated Through The Yap1F Remote Controller
GREE Multi Variable Air Conditioners Indoor Unit 4.5 Engineering Application Functions Operated through the YAP1F Remote Controller 4.5.1 The method for setting the master IDU through the YAP1F remote controller is as follows Button name Function ON/OFF Turn on or turn off the unit...
Page 94 GREE Multi Variable Air Conditioners Indoor Unit Perform settings by pressing “▲” and “▼” in air supply mode: (1) Set the temperature to 30°C. (2) Press “▼” and then “▲” in five seconds. Repeat this operation for three times. After successful settings, “UC” is displayed on the receiving indicator panel of the remote controller for five seconds and “MASTER”...
Page 95: Installation
GREE Multi Variable Air Conditioners Indoor Unit INSTALLATION...
Page 96: Chapter 3 Installation
GREE Multi Variable Air Conditioners Indoor Unit CHAPTER 3 INSTALLATION 1 Engineering Installation Preparation and Notice 1.1 Installation Notice Personnel and property safety are highly concerned during the entire installation process. Installation implementation must abide by relevant national safety regulations to ensure personnel and property safety.
Page 97: Installation Materials Selection
GREE Multi Variable Air Conditioners Indoor Unit Installation Problem Possible Consequence Water drainage from the Residual water in IDUs can affect the normal operation of the system. The possible condensate water pipe is water leakage can damage the IDU's decoration.
Page 98: Refrigerant Piping
GREE Multi Variable Air Conditioners Indoor Unit 2.1 Refrigerant Piping (1) Material requirement: Dephosphorization drawing copper pipe for air conditioners. (2) Appearance requirement: The inner and outer surface of pipe should be smooth without pinhole, crack, peeling, blister, inclusion, copper powder, carbon deposition, rust, dirt or severe oxide film, and without obvious scratch, pit, spot and other defects.
Page 99: Communication Cable And Control Cable
GREE Multi Variable Air Conditioners Indoor Unit 2.4 Communication Cable and Control Cable NOTICE! For air conditioning units installed in places with strong electromagnetic interference, shielded wire must be used as the communication cables of the IDU and wired controller, and shielded twisted pairs must be used as the communication cables between IDUs and between the IDU and ODU.
Page 100: Installation Of Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3 Installation of Indoor Unit 3.1 Installation of Low Static Pressure Duct Type Indoor Unit 3.1.1 Outline and Installation Dimension The following diagram is applicable for units with the cooling capacity ranging from 7k Btu/h to 22kBtu/h.
Page 101 GREE Multi Variable Air Conditioners Indoor Unit 3.1.2 Installation Space Unit: mm(inch) 3.1.3 Installation Notice (1) Installation dimension (refer to the outline dimension in the figure). (2) Installation foundation. (3) Make sure the top hanging rod, ceiling and building structure have sufficient strength to withstand the weight of unit.
Page 102: Installation Of Slim Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.2 Installation of Slim Duct Type Indoor Unit 3.2.1 Outline and Installation Dimension The following diagram is applicable for units with the cooling capacity ranging from 06kBtu/h to 24kBtu/h. The following table lists the detailed dimensions.
Page 103 GREE Multi Variable Air Conditioners Indoor Unit Keep the unit from fire, flammable objects, corrosive gap or exhaust gas. Please reserve ventilation space. Please reserve sufficient space for maintenance. Please take proper measures to reduce noise and vibration. (5) Electrical installation of unit.
Page 104: Installation Of Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.3 Installation of Four-way Cassette Type Indoor Unit 3.3.1 Requirements for External Dimensions and Installation and Maintenance Spaces ≥ 1500 (59) ≥ 1500 (59) Unit: mm (inch) Model GMV-ND07T/A-T(U) (37-3/8) (35) (33) (26-3/4)
Page 105 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 106: Installation Of Wall-Mounted Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.4 Installation of Wall-mounted Indoor Unit 3.4.1 Outline and Installation Dimension mm(inch) Unit: Model GMV-N07G/A3A-D(U) GMV-N09G/A3A-D(U) GMV-N07G/E3A-D(U) (33-3/16) (10-13/16) (7-1/16) GMV-N09G/E3A-D(U) GMV-N12G/A3A-D(U) GMV-N18G/A3A-D(U) GMV-N12G/E3A-D(U) (37) (11-3/4) (7-7/8) GMV-N18G/E3A-D(U) GMV-N24G/A3A-D(U) 1008 GMV-N24G/E3A-D(U) (39-11/16) (12-9/16)
Page 107 GREE Multi Variable Air Conditioners Indoor Unit 3.4.2 Installation Space >150(6) >150(6) >3000(118-1/9) 3.4.3 Installation Notice (1) Installation dimension (refer to the outline dimension in the figure shown above). (2) Installation foundation. Make sure the top hanger has sufficient strength to withstand the weight of unit.
Page 108: Installation Of Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.5 Installation of Console Type Indoor Unit 3.5.1 Outline and Installation Dimension Unit: mm(inch) Location for securing the installation pane Schematic drawing of hooks 3.5.2 Installation Space...
Page 109 GREE Multi Variable Air Conditioners Indoor Unit 3.5.3 Installation Notice (1) Installation dimension (refer to the outline dimension in the figure). (2) Installation foundation. Make sure building structure have sufficient strength to withstand the weight of unit. (3) Installation site and environment.
Page 110: Installation Of High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit the chassis. Please connect the power connection cord with the breaker. If the power cord is not long enough, please prolong it with terminal block. (6) Reinstall the wiring cover on the original place and tighten the bolt;...
Page 111 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND30PHS/A-T(U) GMV-ND36PHS/A-T(U) 1011 1115 1229 (39-3/4) (29-1/2) (32-1/4) (43-7/8) (48-3/8) (30-1/2) (38-1/2) (6-1/4) (9-1/8) (11-3/8) GMV-ND42PHS/A-T(U) GMV-ND48PHS/A-T(U) The following diagram is applicable for units with the cooling capacity 72/96 kBtu/h. Below are dimensions of A, B, C, etc. for different models:...
Page 112 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 113: Installation Of Two-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.7 Installation of Two-way Cassette Type Indoor Unit 3.7.1 Outline and Installation Dimension Unit: mm (inch) Unit: mm (inch) Model Indoor unit(A) Suspension bolt pitch(B) Ceiling opening(C) Decoration panel(D) GMV-ND09TS/A-T(U) 1200(47-1/4) 1252(49-5/16) 1403(55-1/4)
Page 114: Installation Of Floor Ceiling Type Indoor Unit
Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 115 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 116: Installation Of Fresh Air Processing Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Make sure all the installation work completed before energizing.  3.8.4 Selection of Air Switch and Power Cord Air Switch Minimum Sectional Minimum Sectional Model Power Cord Size apacity Area of Ground Wire...
Page 117 GREE Multi Variable Air Conditioners Indoor Unit The table below lists the detailed dimensions. Unit: mm(inch) Item Model 1353 1150 1483 GMV-NDX54P/A-T(U) (53-1/4) (24-7/8) (39) (45-1/4) (7-1/2) (12-7/8) (58-3/8) (31-1/8) (15-3/16) 1353 1150 1483 GMV-NDX72P/A-T(U) (53-1/4) (24-7/8) (39) (45-1/4) (7-1/2)
Page 118: Installation Of Compact Four-Way Cassette Type Indoor Unit
Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 119 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 120: Installation Of Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.11 Installation of Super High Static Pressure Duct Type Indoor Unit 3.11.1 Outline and Installation Dimension Below are dimensions of A, B, C, etc. for different models: Unit: mm(inch) Model GMV-ND07~09PHS/B-T(U) (29-1/8) (19-11/16)
Page 121 GREE Multi Variable Air Conditioners Indoor Unit Below are dimensions of A, B, C, etc. for different models: Unit: mm(inch) Model 1240 1452 1280 1040 1071 GMV-ND72~96PH/B-T(U) (48-3/4) (57-1/8) (50-3/8) (38) (41) (42-1/8) (18-1/2) 3.11.2 Installation space Unit: mm(inch) GMV-ND07 ~ 54PHS/B-T(U)
Page 122 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 123: Installation Of Air Handler Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.11.4 Selection of air switch and power cord Air Switch Minimum Sectional Minimum Sectional Model Power Cord Size apacity Area of Ground Wire Area of Power Cord /AWG) /AWG) GMV-ND07PHS/B-T(U) 208-230V~60Hz 1.0/AWG18 1.0/AWG18...
Page 124 GREE Multi Variable Air Conditioners Indoor Unit DIMENSION MODEL 1105 GMV-ND30A/A-T(U) (18-1/8) (21-1/4) (43-1/2) (11-5/8) (16-3/4) 1224 GMV-ND36A/A-T(U) (21-1/4) (21-1/4) (48-1/4) (11-5/8) (20) 1224 GMV-ND42A/A-T(U) (21-1/4) (21-1/4) (48-1/4) (11-5/8) (20) 1224 GMV-ND48A/A-T(U) (24-7/8) (21-1/4) (48-1/4) (11-5/8) (20) 1224 GMV-ND54A/A-T(U) (24-7/8)
Page 125: Installation Of Ahu-Kit
GREE Multi Variable Air Conditioners Indoor Unit 3.12.3 Selection of air switch and power cord Circuit Minimum Sectional Minimum Sectional Model Power Supply Breaker Area of Ground Wire Area of Power Cord Capacity (A) /AWG) /AWG) GMV-ND09A/A-T(U) 208/230V~60Hz 1.0/AWG18 1.0/AWG18...
Page 126 GREE Multi Variable Air Conditioners Indoor Unit Size of EXV box for GMV-N12U/A-T(U) / GMV-N24U/A-T(U) / GMV-N48U/A-T(U) / GMV-N96U/A-T(U): Unit: mm(inch) 200(7-7/8) (3-3/8) 203(8) 174(6-7/8) 4×Φ6 4×Φ12 150(6) Size of EXV box for GMV-N192U/A-T(U): Unit: mm(inch) (4-3/4) 246(9-5/8) 4×Φ12 4×Φ6...
Page 127 GREE Multi Variable Air Conditioners Indoor Unit Maintenance space of control space: Unit: mm(inch) Maintenance space of EXV box: Unit: mm(inch) 3.13.2 Installation notice The EXV box can be installed inside and outside. The control box should be installed inside.
Page 128: Installation Of 1-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit inside the option boxes and may reduce its lifetime and influence its operation. Choose a flat and strong mounting surface.  Make sure there is enough free space in front and in the side of the AHU-KIT unit for future ...
Page 129 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 130: Installation Of Low Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.15 Installation of Low Static Pressure Duct Type Indoor Unit 3.15.1 Outline and Installation Dimension The following diagram is applicable for units with the cooling capacity ranging from 30kBtu/h to 48kBtu/h. The following table lists the detailed dimensions.
Page 131: Installation Of 360°Air Discharge Compact Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.15.3 Installation Notice (1) Installation dimension (refer to the outline dimension in the figure). (2) Installation foundation. (3) Make sure the top hanging rod, ceiling and building structure have sufficient strength to withstand the weight of unit.
Page 132 Please contact the local Gree appointed service center before installation. Any malfunction  caused by the unit that is not installed by the Gree appointed service center would probably not be dealt with on time because of the inconvenience of the business contact.
Page 133: Installation Of Connection Pipe
GREE Multi Variable Air Conditioners Indoor Unit 3.16.4 Selection of Air Switch and Power Cord Minimum Sectional Minimum Sectional Air Switch Area of Area of Power Model Power Cord Size apacity Ground Wire Cord (AWG) (AWG) GMV-ND05T/E-T(U) 208/230V~,60Hz AWG18 AWG18...
Page 134: Indoor Pipe Connection
GREE Multi Variable Air Conditioners Indoor Unit Fig. 4.2 Fig. 4.3 4.3 Indoor Pipe Connection (1) Remove pipe cover and pipe plug. (2) Direct the flared part of copper pipe to the center of screwed joint. Twist on the flared nut tightly by hand, as in Fig.
Page 135: Installation Of Drain Pipe
GREE Multi Variable Air Conditioners Indoor Unit 5 Installation of Drain Pipe 5.1 Precautions When Doing the Piping Work Keep piping as short as possible and slope it downwards at a gradient of at least 1/100 so that  air may not remain trapped inside the pipe.
Page 136 GREE Multi Variable Air Conditioners Indoor Unit Insulate the pipe clamp and the drain hose using heat insulation sponge.  Install water trap as shown below.  Install one water trap for each unit.  Installation of water trap shall consider easy cleaning in the future.
Page 137: Precautions When Doing Riser Piping Work
GREE Multi Variable Air Conditioners Indoor Unit When unifying multiple drain pipes, install the pipes as shown below. Select converging drain  pipes whose gauge is suitable for the operating capacity of the unit.(take the cassette type unit for example) Unit: mm (inch) 5.3 Precautions When Doing Riser Piping Work...
Page 138: Testing Of Drain Piping
GREE Multi Variable Air Conditioners Indoor Unit (2) Secure a downward gradient of 1/100 or more for the drain pipe. To accomplish this, mount supporting brackets at an interval of 1 -1.5 m (39-3/8~59in). Unit: mm (inch) 5.4 Testing of Drain Piping After piping work is finished, check if drainage flows smoothly.
Page 139: Maintenance
GREE Multi Variable Air Conditioners Indoor Unit MAINTENANCE...
Page 140: Chapter 4 Maintenance
GREE Multi Variable Air Conditioners Indoor Unit CHAPTER 4 MAINTENANCE 1 Malfunction List 1.1 Malfunction List for the Wired Controller Error Error Error Content Content Content Code Code Code Indoor Units Indoor Unit Error Jumper Cap Error Incompatibility Error Indoor Unit Network...
Page 141: Exception Analyzing And Troubleshooting
GREE Multi Variable Air Conditioners Indoor Unit 1.3 Exception Analyzing and Troubleshooting 1.3.1 “d1” Indoor circuit board error Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: Check if the reading of address chip and memory chip of IDU mainboard is normal. If the data of...
Page 142 GREE Multi Variable Air Conditioners Indoor Unit 1.3.3 “d4” Inlet pipe temperature sensor error Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: Sample the AD value of temperature sensor through temperature sensor detecting circuit and judge the range of AD value.
Page 143 GREE Multi Variable Air Conditioners Indoor Unit Possible reason: Poor contact between outlet pipe temperature sensor and terminal in mainboard interface  Outlet pipe temperature sensor is abnormal  Detecting circuit is abnormal  1.3.5 “d7” Humidity sensor error Error display: IDU wired controller and IDU receive light board will display...
Page 144 GREE Multi Variable Air Conditioners Indoor Unit Troubleshooting: 1.3.6 “d9” Jumper cap error Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: Possible reason: If jumper cap model doesn’t match with mainboard, report the error ...
Page 145 GREE Multi Variable Air Conditioners Indoor Unit Through testing the IDU address chip and IP address, if address chip cannot be read, IDU IP is 0 or IP is in conflict, report the error. Possible reason: ODU allocated address is wrong ...
Page 146 GREE Multi Variable Air Conditioners Indoor Unit If capacity DIP switch is set to the wrong position, report the error. Possible reason: Capacity DIP switch is set to the wrong position  Detecting circuit is abnormal  Troubleshooting: 1.3.10 “dL” Air outlet temperature sensor error...
Page 147 GREE Multi Variable Air Conditioners Indoor Unit 1.3.11 “db” Project debugging Error display: ODU mainboard, IDU wired controller and IDU receive light board will display Error judgment condition and method: This is a status code of project debugging, not an error code. When IDU or ODU displays this code, it means the unit is under debugging status and the IDU cannot be operated.
Page 148 GREE Multi Variable Air Conditioners Indoor Unit Troubleshooting: 1.3.13 “L3” Water full protection Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method:...
Page 149 GREE Multi Variable Air Conditioners Indoor Unit Check the status of IDU float switch. When water level is too high, float switch is activated, so water full protection happens. Possible reason: IDU is installed improperly  Drainage pump is broken ...
Page 150 GREE Multi Variable Air Conditioners Indoor Unit 1.3.14 “L4” Power supply overcurrent protection Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: Check if the power supply current from IDU to wired controller is normal. If power supply current is too big, it is judged that the current is abnormal.
Page 151 GREE Multi Variable Air Conditioners Indoor Unit Troubleshooting: 1.3.16 “L7” No master IDU Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: No master IDU error will happen when there is no master IDU in the system...
Page 152 GREE Multi Variable Air Conditioners Indoor Unit Troubleshooting: 1.3.17 “L9” Group-controlled IDU quantity inconsistency Error display: IDU wired controller and IDU receive light board will display Error judgment condition and method: If the IDU quantity connected with wired controller exceeds 16 sets or actually connected IDU quantity is inconsistent with the set group-controlled IDU quantity.
Page 153: After-Sales Emergency Masures
GREE Multi Variable Air Conditioners Indoor Unit Make sure the IDUs connected with one wired controller belong to the same series. 1.3.19 “LC” Mismatch of IDU and ODU models Error display: IDU wired controller and IDU receive light board will display...
Page 154: Wiring Diagram
GREE Multi Variable Air Conditioners Indoor Unit 3 Wiring Diagram NOTICE! This drawing is just for reference; please always refer to the electric wiring stuck to the unit for actual wiring. 3.1 Low Static Pressure Duct Type Indoor Unit Model: GMV-ND07PLS/A-T(U) ~ GMV-ND22PLS/A-T(U)
Page 155: Slim Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.2 Slim Duct Type Indoor Unit Model: GMV-ND06PLS/B-T(U) ~ GMV-ND24PLS/B-T(U) 3.3 Four-way Cassette Type Indoor Unit Model: GMV-ND07T/A-T(U) ~ GMV-ND48T/A-T(U)
Page 156: Wall Mounted Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.4 Wall Mounted Type Indoor Unit Model: GMV-N07G/A3A-D(U) ~ GMV-N24G/A3A-D(U); GMV-N07G/E3A-D(U)~ GMV-N24G/E3A-D(U): Model: GMV-ND06G/B4B-T(U) ~ GMV-ND24G/B4B-T(U):...
Page 157: Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Model: GMV-ND30G/B4B-T(U), GMV-ND36G/B4B-T(U): 3.5 Console Type Indoor Unit Model: GMV-ND07C/A-T(U) ~ GMV-ND18C/A-T(U):...
Page 158: High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.6 High Static Pressure Duct Type Indoor Unit Model: GMV-ND18PHS/A-T(U) ~ GMV-ND48PHS/A-T(U) Model: GMV-ND72PH/A-T(U) / GMV-ND96PH/A-T(U)
Page 159: Two-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.7 Two-way Cassette Type Indoor Unit Model: GMV-ND09TS/A-T(U) ~ GMV-ND24TS/A-T(U) 3.8 Floor Ceiling Type Indoor Unit Model: GMV-ND09ZD/A-T(U) ~ GMV-ND48ZD/A-T(U)
Page 160: Fresh Air Processing Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.9 Fresh Air Processing Indoor Unit Model: GMV-NDX42P/A-T(U) / GMV-NDX48P/A-T(U) Model: GMV-NDX54P/A-T(U) / GMV-NDX72P/A-T(U) / GMV-NDX96P/A-T(U)
Page 161: Compact Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.10 Compact Four-way Cassette Type Indoor Unit Model: GMV-ND07T/B-T(U) ~ GMV-ND18T/B-T(U) 3.11 Super High Static Pressure Duct Type Indoor Unit Model: GMV-ND07PHS/B-T(U) ~ GMV-ND24PHS/B-T(U)
Page 162 GREE Multi Variable Air Conditioners Indoor Unit Model: GMV-ND30PHS/B-T(U) ~ GMV-ND42PHS/B-T(U) Model: GMV-ND48PHS/B-T(U) ~ GMV-ND54PHS/B-T(U)
Page 163: Air Handler Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Model: GMV-ND72PH/B-T(U) / GMV-ND96PH/B-T(U) 3.12 Air Handler type Indoor Unit Model: GMV-ND09A/A-T(U) / GMV-ND12A/A-T(U) / GMV-ND18A/A-T(U) / GMV-ND24A/A-T(U) / GMV-ND30A/A-T(U) / GMV-ND36A/A-T(U) / GMV-ND42A/A-T(U) / GMV-ND48A/A-T(U) / GMV-ND54A/A-T(U)
Page 164: Ahu-Kit
GREE Multi Variable Air Conditioners Indoor Unit 3.13 AHU-KIT Model: GMV-N12U/A-T(U) / GMV-N24U/A-T(U) / GMV-N48U/A-T(U) / GMV-N96U/A-T(U) / GMV-N192U/A-T(U) 3.14 1-way Cassette Type Indoor Unit Model: GMV-ND07TD/A-T(U) / GMV-ND09TD/A-T(U) / GMV-ND12TD/A-T(U)
Page 165: Low Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 3.15 Low Static Pressure Duct Type Indoor Unit Model: GMV-ND30PLS/C-T(U) ~ GMV-ND48PLS/C-T(U) 3.16 360°Air Discharge Compact Casssette Type Indoor Unit Model: GMV-ND05T/E-T(U) / GMV-ND07T/E-T(U) / GMV-ND09T/E-T(U) / GMV-ND12T/E-T(U) / GMV-ND15T/E-T(U) / GMV-ND18T/E-T(U)
Page 166: Disassembly And Assembly Procedure Of Main Parts
GREE Multi Variable Air Conditioners Indoor Unit 4 Disassembly And Assembly Procedure of Main Parts 4.1 Low Static Pressure Duct Type Indoor Unit NOTICE! The following steps are specific for GMV-ND09PLS/A-T(U) units. For other units, the assembly and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Page 167: Slim Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.2 Slim Duct Type Indoor Unit NOTICE! The following steps are specific for GMV-ND24PLS/B-T(U) units. For other units, the assembly and disassembly procedure is similar except the numbers of louvers and motors. Motor and fan Precondition: The power supply has been disconnected.
Page 168: Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.3 Four-way Cassette Type Indoor Unit Motor and fan Step Diagram Operation Procedure Loosen the screws (1) Unscrew Use a screwdriver to unscrew  the water the water tray. tray. Water tray (2) Remove the water Remove the water tray.
Page 169 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure (8) Install and Install the centrifugal fan and  screw the use a wrench to screw the centrifugal centrifugal fan. fan. Tighten the screws (9) Install and Use a screwdriver to screw the ...
Page 170: Wall Mounted Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Pump Step Diagram Operation Procedure Tighten the screws (6) Install and Use a screwdriver to screw the  screw the water tray. water tray. 4.4 Wall Mounted Type Indoor Unit Removal of Fan Motor Remark: before removing, making sure power is disconnected.
Page 171 GREE Multi Variable Air Conditioners Indoor Unit Removal of Fan Motor Remark: before removing, making sure power is disconnected. Step Diagram Operation Procedure (6) Remove Release the wiring terminals  the main connected to the main board. board. Remove the main board.
Page 172: Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.5 Console Type Indoor Unit Removal of Fan Motor Remark: before removing, making sure power is disconnected. Step Diagram Operation Procedure (1) Open the Press clasps at both sides to  panel. “OPEN” position.
Page 173: High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Removal of Fan Motor Remark: before removing, making sure power is disconnected. Step Diagram Operation Procedure (6) Remove Remove 4 screws fixing the  reversion reversion loop and then remove loop and the reversion loop’ remove nuts...
Page 174 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure (4) Disassemble Use a screwdriver to unscrew  the centrifugal the centrifugal fan. fan. Use a screwdriver to unscrew ...
Page 175: Two-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.7 Two-way Cassette Type Indoor Unit NOTICE! The following steps are specific for GMV-ND09TS/A-T(U) units. For other units, the assembly and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Page 176: Floor Ceiling Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 4.8 Floor Ceiling Type Indoor Unit NOTICE! The following steps are specific for GMV-ND48ZD/A-T(U) units. For other units, the assembly and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Page 177: Fresh Air Processing Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure (7) Remove Use a screwdriver to unscrew  the front the front volute casing and then volute remove the volute casing.
Page 178 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure Remove the motor from the  (4) Remove support and remove the louver the motor. from the motor axle. Then, remove the motor.
Page 179: Compact Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure Assemble units based on the  (5) Install a new reverse order of this procedure motor. and power on the units for test.
Page 180 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure (5) Unscrew Use a screwdriver to unscrew  the motor. the motor. (6) Replace the Replace the motor with a new  motor with a one.
Page 181 GREE Multi Variable Air Conditioners Indoor Unit Pump Step Diagram Operation Procedure (1) Unscrew Use a screwdriver to unscrew  the water the water tray. tray. (2) Remove the water Replace the water tray.  tray. (3) Remove Remove the drainage duct and ...
Page 182: Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Pump Step Diagram Operation Procedure (6) Install and Use a screwdriver to screw the  screw the water tray. water tray. 4.11 Super High Static Pressure Duct Type Indoor Unit Note: The following steps are specific for GMV-ND24PHS/B-T(U) units. For other units, the assembly and disassembly procedure is similar except the specifications of centrifugal fans and motors.
Page 183 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure Remove the motor from the  support and remove the centrifugal fan from the motor (5) Remove the axle. Then, remove the motor.
Page 184: Air Handler Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure Remove the motor from the  support and remove the centrifugal fan from the motor (5) Remove the axle. Then, remove the motor.
Page 185: 1-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Procedures Diagrams Operating Instructions Place the motor at the proper  position. Tighten screws fixing the motor  (4) Reinstall and fan blades.
Page 186 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure (6) Remove Remove the evaporator.  evaporator. (7) Unscrew the motor Use a screwdriver to unscrew  pressing the motor pressing board. board. (8) Remove pressing Remove the pressing board and ...
Page 187: Low Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure (12) Put the volute Put the volute tongue back to tongue position. back to position. (13) Screw the Use a screwdriver to screw the volute volute tongue.
Page 188: 360°Air Discharge Compact Casssette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Precondition: The power supply has been disconnected. Step Diagram Operation Procedure ●Loosen the fasteners that 4. Remove the rear volute connect the rear volute casing casing. with the front volute casing and remove the rear volute casing.
Page 189 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure 2. Remove the cover of electric ●Remove the motor wire and water box and the clamp pump of the electric box. of power cord. 4. Remove the ●Loosen the screws in the 4 corners...
Page 190 GREE Multi Variable Air Conditioners Indoor Unit Motor and fan Step Diagram Operation Procedure ●Use a screwdriver to unscrew the 4 6. Remove motor. screws of motor. Then remove the motor. ●Remove the motor from motor support and then replace with a new 7.
Page 191: Exploded Views And Part List
GREE Multi Variable Air Conditioners Indoor Unit 5 Exploded Views and Part List 5.1 Low Static Pressure Duct Type Indoor Unit Exploded View of GMV-ND07PLS/A-T(U) / GMV-ND09PLS/A-T(U) / GMV-ND12PLS/A-T(U): For the following unit For the following unit Unit Product Code...
Page 192 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND07PLS/A-T(U) CM810N0080 GMV-ND09PLS/A-T(U) CM810N0090 GMV-ND12PLS/A-T(U) CM810N0100 Part code Quantity Part code Quantity Electric Box Cover 01424100035...
Page 193 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND14PLS/A-T(U) CM810N0120 Part code Quantity Filter Sub-Assy 11725210 Rotary Axis Sub-Assy 73018020 Joint Slack 73018731 Brushless DC Motor 15704100001 Front Volute Casing 26905205...
Page 194 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND18PLS/A-T(U) / GMV-ND22PLS/A-T(U): For the following unit Unit Product Code Name of part GMV-ND18PLS/A-T(U) CM810N0070 GMV-ND22PLS/A-T(U) CM810N0110 Part code Quantity Lower Cover Plate Sub-Assy 01265339 Water Tray Assy 01285334 Supporter...
Page 195 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18PLS/A-T(U) CM810N0070 GMV-ND22PLS/A-T(U) CM810N0110 Part code Quantity Bottom Cover Plate 01265337 Cover board (Fan motor) 01265338 Terminal Board 4201115402 Main Board 30226000029 Terminal Board...
Page 196: Slim Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.2 Slim Duct Type Indoor Unit Exploded View of GMV-ND06PLS/B-T(U) / GMV-ND07PLS/B-T(U) / GMV-ND09PLS/B-T(U) / GMV-ND12PLS/B-T(U): For the following unit For the following unit Unit Product Code Unit Product Code GMV-ND06PLS/B-T(U) CM810N1980 Name of part...
Page 197 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code GMV-ND06PLS/B-T(U) CM810N1980 Name of part GMV-ND07PLS/B-T(U) CM810N1720 GMV-ND12PLS/B-T(U) CM810N1700 GMV-ND09PLS/B-T(U) CM810N1710 Part code Quantity Part code Quantity Bottom Cover Plate Assy...
Page 198 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND14PLS/B-T(U) / GMV-ND18PLS/B-T(U) For the following unit Unit Product Code Name of part GMV-ND14PLS/B-T(U) CM810N1690 Part code Quantity Air Outlet Frame Assy 000141000011 Evaporator Assy 01100100036201 Electric Expand Valve Fitting...
Page 199 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND14PLS/B-T(U) CM810N1690 Part code Quantity Electric Box Assy 100002062875 Main Board 300002060297 Main Board 300002060289 Terminal Board 42200006000401 Terminal Board 4201110602 Filter Sub-Assy...
Page 200 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18PLS/B-T(U) CM810N1680 Part code Quantity Terminal Board 42200006000401 Terminal Board 4201110602 Filter Sub-Assy 111253038 Fan Bearing 76512210 Rotary Axis Sub-Assy 73018761 Centrifugal Fan...
Page 201 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND24PLS/B-T(U) 2 3 4 5 6 7 8 9 10 10 11 1112 12 13 13 14 14 15 15 16 16 17 17 18 18 19 For the following unit...
Page 202 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND24PLS/B-T(U) CM810N1670 Part code Quantity Left Side Plate Assy 000080060035 Electric Box Assy 100002063018 Main Board 300002060300 Terminal Board 42200006000401 Terminal Board 4201110602...
Page 203: Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.3 Four-way Cassette Type Indoor Unit Exploded View of GMV-ND07T/A-T(U): For the following unit Unit Product Code Name of part GMV-ND07T/A-T(U) CM500N0520 Part code Quantity Electric Box cover 0142410004801 Electric Box Assy 01394100434...
Page 204 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND07T/A-T(U) CM500N0520 Part code Quantity Front Side Plate 01302731 Water Level Switch 45020216 Water Pump 43138000068 Pump Drainpipe 05232721 Right Side Plate 01302734...
Page 205 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND09T/A-T(U) / GMV-ND12T/A-T(U) / GMV-ND15T/A-T(U) / GMV-ND18T/A-T(U) / GMV-ND24T/A-T(U) / GMV-ND30T/A-T(U) / GMV-ND36T/A-T(U) / GMV-ND42T/A-T(U) / GMV-ND48T/A-T(U): For the following unit For the following unit Unit Product Code Unit Product Code...
Page 206 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code GMV-ND09T/A-T(U) CM500N0530 GMV-ND15T/A-T(U) CM500N0670 Name of part GMV-ND12T/A-T(U) CM500N0540 GMV-ND18T/A-T(U) CM500N0510 GMV-ND24T/A-T(U) CM500N0550 Part code Quantity Part code Quantity...
Page 207 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND30T/A-T(U) CM500N0560 Name of part GMV-ND36T/A-T(U) CM500N0570 GMV-ND42T/A-T(U) CM500N0580 GMV-ND48T/A-T(U) CM500N0590 Part code Quantity Corrugated Pipe 4304413215 Strainer 0741410000601 Electronic Expansion Valve 07334468 Left Side Plate...
Page 208: High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.4 High Static Pressure Duct Type Indoor Unit Exploded View of GMV-ND18PHS/A-T(U) / GMV-ND24PHS/A-T(U): For the following unit Unit Product Code Name of part GMV-ND18PHS/A-T(U) CM810N0140 GMV-ND24PHS/A-T(U) CM810N0150 Part code Quantity Filter Sub-Assy...
Page 209 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18PHS/A-T(U) CM810N0140 GMV-ND24PHS/A-T(U) CM810N0150 Part code Quantity Main Board 30226000027 Terminal Board 4201800002601 Terminal Board 4201115402 Inductance 43128000014 Electric Box Cover 01424100132 Centrifugal fan assy...
Page 210 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND30PHS/A-T(U) / GMV-ND36PHS/A-T(U) / GMV-ND42PHS/A-T(U) / GMV-ND48PHS/A-T(U): For the following unit Unit Product Code GMV-ND30PHS/A-T(U) CM810N0160 Name of part GMV-ND36PHS/A-T(U) CM810N0170 GMV-ND42PHS/A-T(U) CM810N0180 GMV-ND48PHS/A-T(U) CM810N0190 Part code Quantity Filter Sub-Assy...
Page 211 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND30PHS/A-T(U) CM810N0160 Name of part GMV-ND36PHS/A-T(U) CM810N0170 GMV-ND42PHS/A-T(U) CM810N0180 GMV-ND48PHS/A-T(U) CM810N0190 Part code Quantity Right Side Plate Sub-Assy 01315200100 Electric Box Assy 01394100501 Main Board 30226000027...
Page 212 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND72PH/A-T(U) / GMV-ND96PH/A-T(U): For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND72PH/A-T(U) CM810N0280 GMV-ND96PH/A-T(U) CM810N0290 Part code Quantity Part code Quantity...
Page 213: Two-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND72PH/A-T(U) CM810N0280 GMV-ND96PH/A-T(U) CM810N0290 Part code Quantity Part code Quantity Terminal Board 42010259 42010259 Main Board...
Page 214 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND09TS/A-T(U) CM500N0890 GMV-ND24TS/A-T(U) CM500N0930 Part code Quantity Part code Quantity Remote Controller 30510589 30510589 Drain Hose Sub-Assy...
Page 215: Floor Ceiling Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND18TS/A-T(U) CM500N0920 GMV-ND24TS/A-T(U) CM500N0930 Part code Quantity Part code Quantity Terminal Board 4201800002601 4201800002601 Main Board...
Page 216 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND09ZD/A-T(U) CM600N0420 GMV-ND12ZD/A-T(U) CM600N0430 Part code Quantity Part code Quantity Sensor Sub-assy 39008000101G 39008000101G Connection Board...
Page 217 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND09ZD/A-T(U) CM600N0420 GMV-ND12ZD/A-T(U) CM600N0430 Part code Quantity Part code Quantity Front Volute Casing 26905205 26905205 Rear Volute Casing...
Page 218 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18ZD/A-T(U) CM600N0440 Part code Quantity Installation Supporting 01809401 Frame Left Side Plate Sub-Assy 01319428 Electric Box Assy 01394100587 Main Board 30226000029 Electric Box Cover...
Page 219 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND24ZD/A-T(U) / GMV-ND30ZD/A-T(U): For the following unit Unit Product Code Name of part GMV-ND24ZD/A-T(U) CM600N0450 GMV-ND30ZD/A-T(U) CM600N0460 Part code Quantity Remote Controller 30510589 Sensor Sub-assy 39008000100G Water Tray Assy 01289405...
Page 220 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND24ZD/A-T(U) CM600N0450 GMV-ND30ZD/A-T(U) CM600N0460 Part code Quantity Plate Board of Water 26909442 Releasing Flume Water Releasing Flume 26909441 connected board 01344108 (evaporator) Strainer...
Page 221 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND24ZD/A-T(U) CM600N0450 GMV-ND30ZD/A-T(U) CM600N0460 Part code Quantity Front volute casing 26905208 Rear Connection board 01349418 Rotary Axis Sub-Assy 73018052 Joint Slack 73018731 Motor Support Sub-Assy...
Page 222 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND36ZD/A-T(U) CM600N0470 Name of part GMV-ND42ZD/A-T(U) CM600N0480 GMV-ND48ZD/A-T(U) CM600N0490 Part code Quantity Remote Controller 30510589 Sensor Sub-assy 39008000100G Water Tray Assy 01289401 Air Louver 26909418 Connection Board...
Page 223 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND36ZD/A-T(U) CM600N0470 Name of part GMV-ND42ZD/A-T(U) CM600N0480 GMV-ND48ZD/A-T(U) CM600N0490 Part code Quantity Main Board 30226000027 Terminal Board 42011106 Terminal Board 4201800002601 Inductance 43128000014 Support Of Motor Bearing...
Page 224: Fresh Air Processing Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.7 Fresh Air Processing Type Indoor Unit Exploded View of GMV-NDX42P/A-T(U) / GMV-NDX48P/A-T(U) For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-NDX42P/A-T(U) CM810N1250 GMV-NDX48P/A-T(U)
Page 225 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-NDX42P/A-T(U) CM810N1250 GMV-NDX48P/A-T(U) CM810N1030 Part code Quantity Part code Quantity Electric Box Assy 100002003006 100002003006 Air Outlet Frame Assy...
Page 226 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit For the following unit Product Product Product Unit Unit Unit Code Code Code Name of part GMV-NDX CM810N GMV-ND CM810N GMV-ND CM810N 54P/A-T(U) 1240 X72P/A-T(U)
Page 227: Console Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.8 Console Type Indoor Unit Exploded View of GMV-ND07C/A-T(U) / GMV-ND09C/A-T(U) / GMV-ND12C/A-T(U) / GMV-ND18C/A-T(U) For the following unit Unit Product Code GMV-ND07C/A-T(U) CM400N0110 Name of part GMV-ND09C/A-T(U) CM400N0120 GMV-ND12C/A-T(U) CM400N0100 GMV-ND18C/A-T(U) CM400N0130...
Page 228 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND07C/A-T(U) CM400N0110 Name of part GMV-ND09C/A-T(U) CM400N0120 GMV-ND12C/A-T(U) CM400N0100 GMV-ND18C/A-T(U) CM400N0130 Part code Quantity Electric Expand Valve 4304000102 Fitting Electric Box Assy 01394100489 Centrifugal Fan 01394100489...
Page 229: Wall Mounted Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.9 Wall Mounted type Indoor Unit Exploded View of G GMV-N07G/A3A-D(U) / GMV-N09G/A3A-D(U) For the following unit Unit Product Code Name of part GMV-N07G/A3A-D(U) CM100N1480 GMV-N09G/A3A-D(U) CM100N1490 Part code Quantity Receiver Window 22432230...
Page 230 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-N07G/A3A-D(U) CM100N1480 GMV-N09G/A3A-D(U) CM100N1490 Part code Quantity Lower Shield Sub-Assy of 01592072 Electric Box Electric Box Assy 01394100451 Main Board 30226000061 Terminal Board...
Page 231 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-N12G/A3A-D(U) CM100N1500 GMV-N18G/A3A-D(U) CM100N1510 Part code Quantity Receiver Window 22432173 Guide Louver 10512115 Front Panel Assy 20012260 Filter Sub-Assy 1112208901 Front Case Sub-assy...
Page 232 GREE Multi Variable Air Conditioners Indoor Unit GMV-N24G/A3A-D(U) For the following unit Unit Product Code Name of part GMV-N24G/A3A-D(U) CM100N1520 Part code Quantity Receiver Window 22432230 Guide Louver 10512157 Front Panel B1 20012122S Filter Sub-Assy 1112220403 Front Case Sub-assy 2001213931...
Page 233 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-N24G/A3A-D(U) CM100N1520 Part code Quantity Remote Controller 30510589 Lower Shield Sub-Assy of 01592072 Electric Box Electric Box Assy 01394100451 Main Board 30226000061 Terminal Board...
Page 234 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND06G/B4B-T(U), GMV-ND07G/B4B-T(U), GMV-ND09G/B4B-T(U), GMV-ND12G/B4B-T(U), GMV-ND14G/B4B-T(U), GMV-ND18G/B4B-T(U), GMV-ND24G/B4B-T For the following unit Unit Product Code GMV-ND06G/B4B-T(U) CM100N2950 Name of part GMV-ND07G/B4B-T(U) CM100N2960 GMV-ND09G/B4B-T(U) CM100N2970 GMV-ND12G/B4B-T(U) CM100N2980 Part code Quantity Front Panel 20000300027T Filter Sub-Assy...
Page 235 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND06G/B4B-T(U) CM100N2950 Name of part GMV-ND07G/B4B-T(U) CM100N2960 GMV-ND09G/B4B-T(U) CM100N2970 GMV-ND12G/B4B-T(U) CM100N2980 Part code Quantity Stepping Motor 1521210710 Crank 73012005 Rubber Plug(WaterTray) 76712012 Electric Expand Valve 4304413216...
Page 236 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND14G/B4B-T(U) CM100N2990 Part code Quantity Crank 73012005 Rubber Plug(WaterTray) 76712012 Electric Expand 4304413216 ValveFitting Cross Flow Fan 10352060 Electric Box Assy 100002061356 Display Board...
Page 237 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18G/B4B-T(U) CM100N3000 GMV-ND24G/B4B-T(U) CM100N3010 Part code Quantity Electric Expand 4304413216 ValveFitting Cross Flow Fan 10352057 Electric Box Assy 100002061356 Display Board 30565260 Termina lBoard...
Page 238 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND30G/B4B-T(U)、GMV-ND36G/B4B-T(U)
Page 239 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND30G/B4B-T(U) CM100N3020 GMV-ND36G/B4B-T(U) CM100N3030 Part code Quantity Receiver Window 22432164 Front Panel 209007060019 Stand Bar 2421212001 Filter Sub-Assy 1112210601 Front Case Sub-assy 209007060019...
Page 240: Compact Four-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND30G/B4B-T(U) CM100N3020 GMV-ND36G/B4B-T(U) CM100N3030 Part code Quantity Electric Box Cover 201022523 Electric Box Cover 2011204404S Remote Controller 30510589 Electric Expand Valve 4304413217 Fitting...
Page 241 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND07T/B-T(U) CM500N0940 GMV-ND12T/B-T(U) CM500N0960 GMV-ND09T/B-T(U) CM500N0950 GMV-ND15T/B-T(U) CM500N0970 Part code Quantity Part code Quantity Water Pump...
Page 242: Super High Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND18T/B-T(U) CM500N0980 Part code Quantity Terminal Board 42011106 Terminal Board 4201800002601 Electric Box Assy 100002001831 Electric Box Cover 01429400002 Left Side Plate Sub-Assy...
Page 243 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part CM810N0830 GMV-ND09PHS/B-T(U) GMV-ND07PHS/B-T(U) CM810N0790 Part code Quantity Part code Quantity Display Board 30296000040 30296000040 Drain Hose Sub-Assy...
Page 244 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND12PHS/B-T(U) / GMV-ND15PHS/B-T(U) / GMV-ND18PHS/B-T(U) / GMV-ND22PHS/B-T(U) / GMV-ND24PHS/B-T(U): GMV-ND12PHS/B-T(U) / GMV-ND15PHS/B-T(U) / Model GMV-ND18PHS/B-T(U) / GMV-ND22PHS/B-T(U) / GMV-ND24PHS/B-T(U) Qty. CM810N0800/CM810N0770/CM810N0810/CM810N0720/CM810 Product Code N0730 Part Name Part Code Centrifugal Fan Assy...
Page 245 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND12PHS/B-T(U) / GMV-ND15PHS/B-T(U) / Model GMV-ND18PHS/B-T(U) / GMV-ND22PHS/B-T(U) / GMV-ND24PHS/B-T(U) Qty. CM810N0800/CM810N0770/CM810N0810/CM810N0720/CM810 Product Code N0730 Part Name Part Code Bottom Cover Plate 01265200131 Seal plate Assy 01495200079 Water Level Switch 45020216 Water Pump...
Page 246 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND30PHS/B-T(U) / GMV-ND36PHS/B-T(U) / GMV-ND42PHS/B-T(U): 27 26 25 严禁在潮湿场所使用 20 21 22 15 16 17 18 19 9 10 11 13 14 GMV-ND30PHS/B-T(U) / GMV-ND36PHS/B-T(U) /...
Page 247 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND30PHS/B-T(U) / GMV-ND36PHS/B-T(U) / Model GMV-N42PHS/B-T(U) Qty. Product Code CM810N0780/CM810N0740/CM810N0750 Part Name Part Code Left Side Plate Assy 01315200147 Hook 02112466 Water Level Switch 45020216 Water Pump 43138000058 Seal Plate 01495200078 Reactor 43138000047...
Page 248 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND48PHS/B-T(U) / GMV-ND54PHS/B-T(U): 27 26 25 严禁在潮湿场所使用 21 22 23 9 10 11 13 14 15 16 17 18 19 Model GMV-ND48PHS/B-T(U) / GMV-ND54PHS/B-T(U)
Page 249 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND48PHS/B-T(U) / GMV-ND54PHS/B-T(U) Product Code CM810N0820/CM810N0760 Qty. Part Name Part Code Reactor 43138000047 Main Board 30226000092 Terminal board 4201115402 Terminal Board 4201800002601 Electric Box Assy 100002001512 Water Level Switch 45020216 Water Pump...
Page 250 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-ND72PH/B-T(U) / GMV-ND96PH/B-T(U): 22 21 20 2 3 4 9 10 11 13 14 15 16 Model GMV-ND72PH/B-T(U) Product Code CM810N1600 Qty. Part Name Part Code Front Side Plate Sub-Assy...
Page 251 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-ND72PH/B-T(U) Qty. Product Code CM810N1600 Part Name Part Code Reactor 43130189 Main Board 30221000023 Terminal Board 4201800002601 Terminal Board 420001000002 Electric Expand Valve 4304413205 Fitting Electronic Expansion 43044100190 Valve Strainer 0741410000601 Filter Sub-Assy...
Page 252: Air Handler Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.12 Air Handler type Indoor Unit 13 14 15 16 17 2 3 4 6 7 8 9 10 Exploded View of GMV-ND09A/A-T(U) / GMV-ND12A/A-T(U) GMV-ND09A/A-T(U) Model GMV-ND12A/A-T(U) CM810N1900 Qty. Product Code CM810N1910...
Page 253 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND09A/A-T(U) Model GMV-ND12A/A-T(U) CM810N1900 Qty. Product Code CM810N1910 Part Name Part Code Choke Plug 76718209 Main water Tray 2690220000101 Filter Sub-Assy 1172220202 Motor for Centrifugal Fan 1570220101 Fan Motor 150104000014 Right Side Plate Sub-Assy...
Page 254 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND18A/A-T(U) Model GMV-ND24A/A-T(U) GMV-ND30A/A-T(U) CM810N1890 Qty. Product Code CM810N0660 CM810N0670 Part Name Part Code Fan Motor 150104000014 Right Side Plate Sub-Assy 01312200007 Rear Side Plate Sub-Assy 01312200009 Blower Mounting Plate 0132220000801 Electric cabinet board...
Page 255 GREE Multi Variable Air Conditioners Indoor Unit GMV-ND36A/A-T(U) Model GMV-ND42A/A-T(U) CM810N0700 Qty. Product Code CM810N0690 Part Name Part Code Terminal Board 4201115402 Terminal Board 4201800002601 Terminal Board 42011147 Main Board 300002000321 Terminal Board 42011103 Transformer 43110286 Top Cover Plate Sub-assy...
Page 256: Ahu-Kit
GREE Multi Variable Air Conditioners Indoor Unit GMV-ND48A/A-T(U) Model GMV-ND54A/A-T(U) CM810N0680 Qty. Product Code CM810N0710 Part Name Part Code Left Side Plate Sub-assy 01312200030 Sensor Sub-assy 39008000103G Display Board 30296000040 Above data is subject to change without notice, please refer the SP in global service website.
Page 257 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-N12U/A-T(U) Product Code CN750N0101 Qty. Part Name Part Code Electronic Expansion 030174000026 Valve assy Strainer 0741410000601 Electronic Expansion 07334463 Valve Electric Expand Valve 4304413239 Fitting Display Board 30296000040 Sensor Sub-assy 39008000130G Exploded View of GMV-N24U/A-T(U)
Page 258 GREE Multi Variable Air Conditioners Indoor Unit Model GMV-N48U/A-T(U) Product Code CN750N0071 Qty. Part Name Part Code Electric Expand Valve 4304413239 Fitting Display Board 30296000040 Sensor Sub-assy 39008000130G Exploded View of GMV-N96U/A-T(U) Model GMV-N96U/A-T(U) Product Code CN750N0081 Qty. Part Name...
Page 259 GREE Multi Variable Air Conditioners Indoor Unit Exploded View of GMV-N192U/A-T(U) Model GMV-N192U/A-T(U) Product Code CN750N0091 Qty. Part Name Part Code Electronic Expansion 43044100220 Valve assy Cover Plate 01264100063P Electric Expand Valve 4304413239 Fitting Electronic Expansion 07331139 Valve Bidirection Strainer...
Page 260: 1-Way Cassette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.14 1-way Cassette Type Indoor Unit Exploded View of GMV-ND07TD/A-T(U) / GMV-ND09TD/A-T(U) / GMV-ND12TD/A-T(U) For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND07TD/A-T(U) CM502N0151...
Page 261 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND07TD/A-T(U) CM502N0151 GMV-ND09TD/A-T(U) CM502N0161 Part code Quantity Part code Quantity Tube Exit Plate Assy 01344100020 01344100020...
Page 262: Low Static Pressure Duct Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code Name of part GMV-ND12TD/A-T(U) CM502N0181 Part code Quantity Helicoid Tongue sub-assy 02224100007 O-Gasket of Cross Fan 76512203 Bearing Chassis Assy 01194100007 Left Side Plate Sub-Assy 01314100022 Above data is subject to change without notice, please reference the SP in global service website.
Page 263 GREE Multi Variable Air Conditioners Indoor Unit For the following unit For the following unit Unit Product Code Unit Product Code Name of part GMV-ND30PLS/C-T(U) CM810N2020 GMV-ND42PLS/C-T(U) CM810N2000 GMV-ND36PLS/C-T(U) CM810N2010 GMV-ND48PLS/C-T(U) CM810N1990 Part code Quantity Part code Quantity Filter Sub-Assy...
Page 264: 360°Air Discharge Compact Casssette Type Indoor Unit
GREE Multi Variable Air Conditioners Indoor Unit 5.16 360°Air Discharge Compact Casssette Type Indoor Unit Exploded View of GMV-ND05T/E-T(U) / GMV-ND07T/E-T(U) / GMV-ND09T/E-T(U) / GMV-ND12T/E-T(U) / GMV-ND15T/E-T(U) / GMV-ND18T/E-T(U)
Page 265 GREE Multi Variable Air Conditioners Indoor Unit For the following unit Unit Product Code GMV-ND05T/E-T(U) CM500N1600 GMV-ND07T/E-T(U) CM500N1590 Name of part GMV-ND09T/E-T(U) CM500N1620 GMV-ND12T/E-T(U) CM500N1580 GMV-ND15T/E-T(U) CM500N1610 GMV-ND18T/E-T(U) CM500N1570 Part code Quantity Flow Guide Loop 200150060003 Centifugal Fan 103003060008 Brushless DC Motor...
Page 266 JF00302921...

This manual is also suitable for:

Gmv-nd09pls/a-t(u)Gmv-nd12pls/a-t(u)Gmv-nd14pls/a-t(u)Gmv-nd18pls/a-t(u)Gmv-nd22pls/a-t(u)Gmv-nd06pls/b-t(u) ... Show all

Gree GMV-ND07PLS/A-T(U) Service Manual

Chapter 1 Product

Chapter 2 Control

Chapter 3 Installation

Chapter 4 Maintenance

Quick Links

Related Manuals for Gree GMV-ND07PLS/A-T(U)

Summary of Contents for Gree GMV-ND07PLS/A-T(U)

This manual is also suitable for:

Table of Contents
