Chapter 2 - Installing the Yamaha CRW4260t Drive
Note: When you are using Windows 95, and if the SCSI ID setting on the rear
panel is the same as the number assigned to another SCSI device, the
Plug and Play component of Windows 95 will automatically assign an
unused number to the CRW4260t (SCAM protocol level 1).
Parity setting
Parity ON (with a jumper)
— Parity Check will be performed. Normally, use this setting.
Parity OFF (without a jumper)
— Parity Check will not be performed.
6
1 2 4
1 2 4
SCSI ID 0
SCSI ID 1
1 2 4
1 2 4
SCSI ID 4
SCSI ID 5
Parity ON
ID SELECT
PARITY
TERMINATOR
BLOCK SIZE
1 2 4

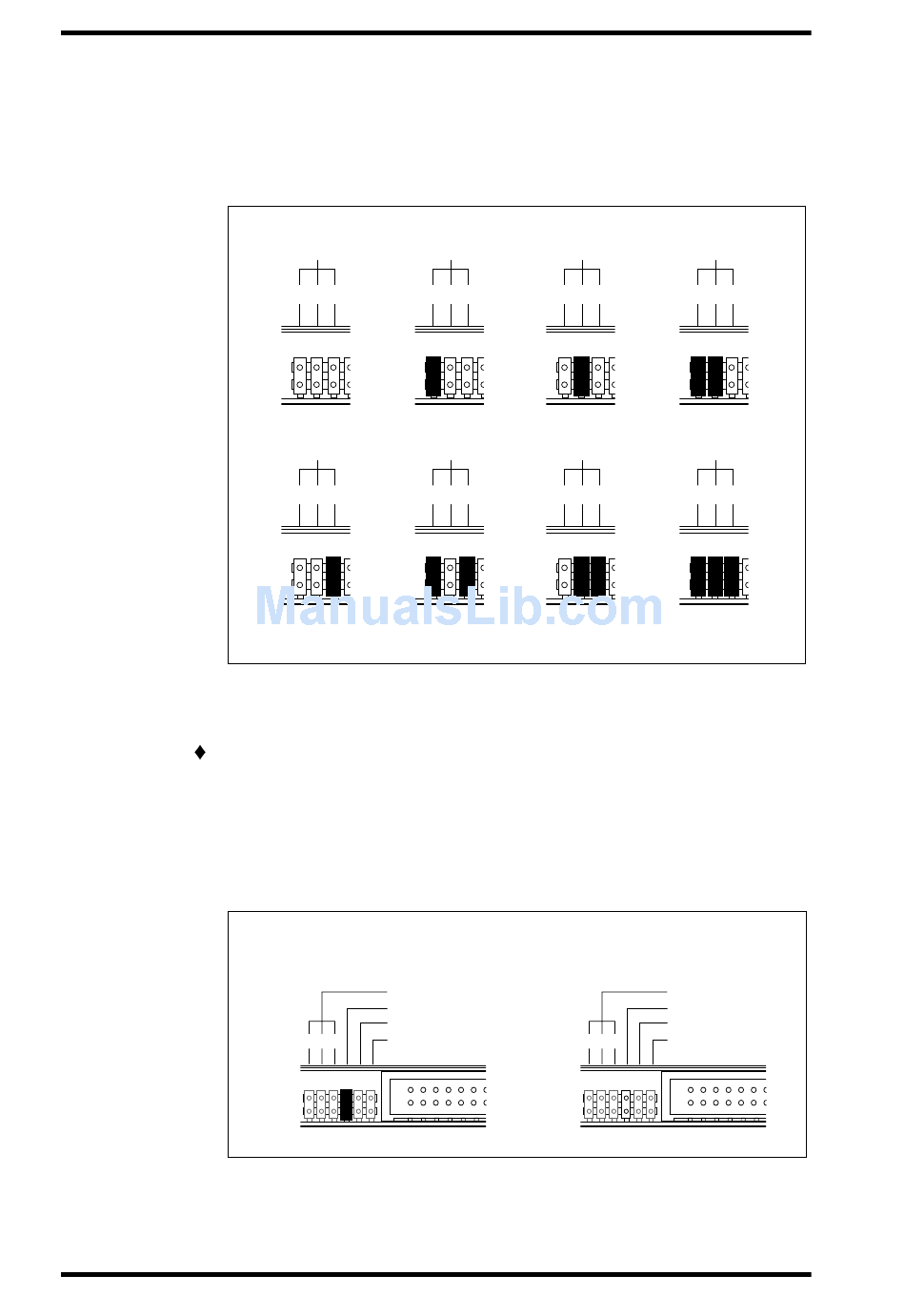

SCSI ID Setting
1 2 4
SCSI ID 2
1 2 4
SCSI ID 6
* Use jumper connectors to short the locations shown in black.
Parity OFF
1 2 4
* Use jumper connectors to short the locations shown in black.
1 2 4
SCSI ID 3
1 2 4
SCSI ID 7
ID SELECT
PARITY
TERMINATOR
BLOCK SIZE
