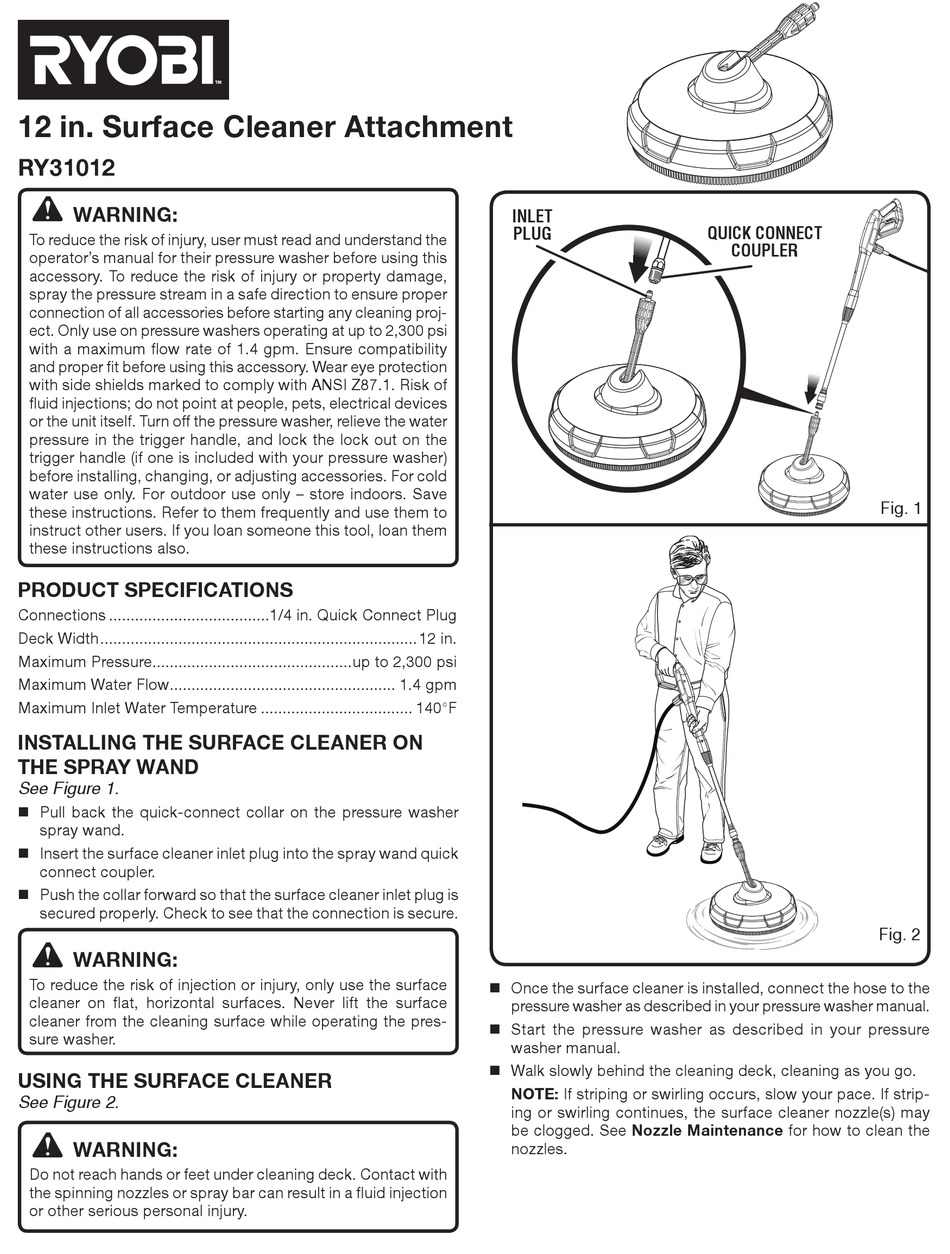

Ryobi RY31012 Manual

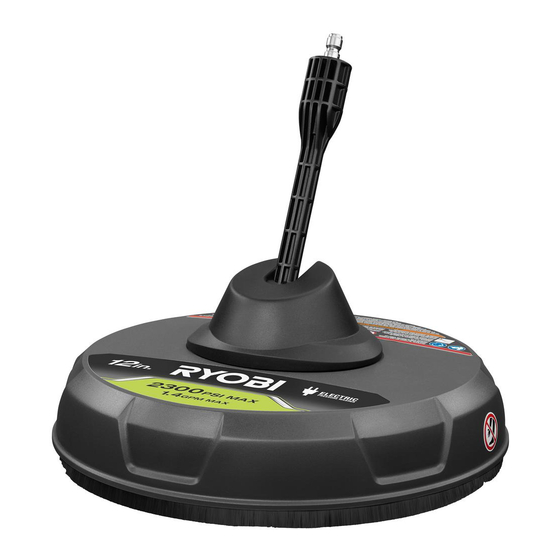

12 in. Surface Cleaner Attachment
RY31012
WARNING:
To reduce the risk of injury, user must read and understand the
operator's manual for their pressure washer before using this
accessory. To reduce the risk of injury or property damage,
spray the pressure stream in a safe direction to ensure proper
connection of all accessories before starting any cleaning proj-
ect. Only use on pressure washers operating at up to 2,300 psi
with a maximum flow rate of 1.4 gpm. Ensure compatibility
and proper fit before using this accessory. Wear eye protection
with side shields marked to comply with ANSI Z87.1. Risk of
fluid injections; do not point at people, pets, electrical devices
or the unit itself. Turn off the pressure washer, relieve the water
pres sure in the trigger handle, and lock the lock out on the
trigger handle (if one is included with your pressure washer)
before installing, changing, or adjusting accessories. For cold
water use only. For outdoor use only – store indoors. Save
these instructions. Refer to them frequently and use them to
instruct other users. If you loan someone this tool, loan them
these instructions also.
PRODUCT SPECIFICATIONS
Connections .....................................1/4 in. Quick Connect Plug
Deck Width .........................................................................12 in.
Maximum Pressure ..............................................up to 2,300 psi
Maximum Water Flow .................................................... 1.4 gpm
Maximum Inlet Water Temperature ................................... 140°F
INSTALLING THE SURFACE CLEANER ON
THE SPRAY WAND
See Figure 1.
n Pull back the quick-connect collar on the pressure washer
spray wand.
n Insert the surface cleaner inlet plug into the spray wand quick
connect coupler.
n Push the collar forward so that the surface cleaner inlet plug is
secured properly. Check to see that the connection is secure.
WARNING:
To reduce the risk of injection or injury, only use the surface
cleaner on flat, horizontal surfaces. Never lift the surface
cleaner from the cleaning surface while operating the pres-
sure washer.
USING THE SURFACE CLEANER
See Figure 2.
WARNING:
Do not reach hands or feet under cleaning deck. Contact with
the spinning nozzles or spray bar can result in a fluid injection
or other serious personal injury.
INLET
PLUG
n Once the surface cleaner is installed, connect the hose to the
pressure washer as described in your pressure washer manual.
n Start the pressure washer as described in your pressure
washer manual.
n Walk slowly behind the cleaning deck, cleaning as you go.
NOTE: If striping or swirling occurs, slow your pace. If strip-
ing or swirling continues, the surface cleaner nozzle(s) may
be clogged. See Nozzle Maintenance for how to clean the
nozzles.
QUICK CONNECT
COUPLER
Fig. 1
Fig. 2
