Lorex ACCWIFI1 User Manual

Wifi remote connection cradle
Hide thumbs Also See for ACCWIFI1:
Table of Contents

Advertisement

Quick Links

Download this manual
WIFI REMOTE
CONNECTION CRADLE
USER'S GUIDE
ACCWIFI1
Version 1.0
www.lorextechnology.com

Advertisement

Table of Contents
loading

Related Manuals for Lorex ACCWIFI1

Summary of Contents for Lorex ACCWIFI1

  • Page 1 WIFI REMOTE CONNECTION CRADLE USER’S GUIDE ACCWIFI1 Version 1.0 www.lorextechnology.com...
  • Page 2 Safety Precautions • Adult assembly is required. Keep small parts away from children when assembling. • This product is not a toy. Do not allow children or infants to play with it. • Keep the cords out of reach from children and infants. • Only use the chargers and power adapters provided.

  • Page 3: Table Of Contents

    Table of Contents: Product Includes ......2 Cradle Overview ......2 Supported Mobile Devices ....2 Getting Started .......3 iPhone®/iPad® Ethernet Setup ..4 iPhone/iPad WiFi Setup ....5 Using the iPhone®/iPad® App ..7 Live View ..........7 Zooming in Live View ......7 Changing the Cradle Password ....8 Changing the Video Quality .....

  • Page 4: Product Includes

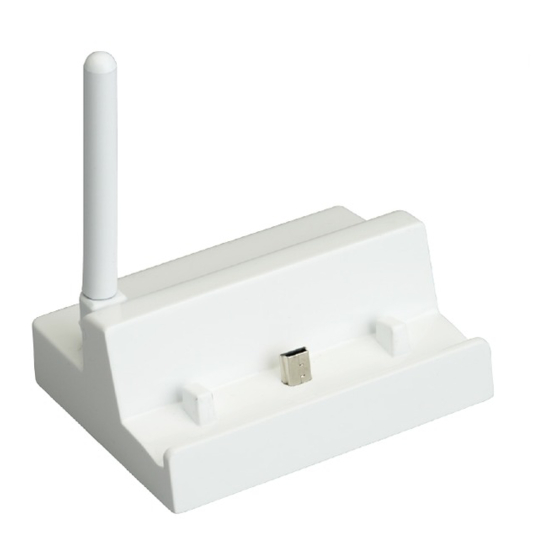

    Product Includes Ethernet Cable WiFi Cradle Power Adapter Handheld monitor and camera(s) are sold separately. Cradle Overview Power/network connector Stand-up guides Antenna Ethernet Port Power Port Service Only Supported Mobile Devices...

  • Page 5: Getting Started

    Use the stand-up guides to help place the monitor. Power/network connector On your smartphone or tablet, download Lorex Care for free from the App Store (iPhone®/iPad®) or the Google Play Store (Android™). The monitor will charge when connected to the cradle.

  • Page 6: Iphone®/Ipad® Ethernet Setup

    Ethernet Setup Touch the Lorex Care icon to launch the app. Enter the ID code for the cradle in one of the following ways: A. Tap QRCode and scan the QR code on the side of the cradle using your device’s camera.

  • Page 7: Iphone/Ipad Wifi Setup

    To connect the cradle to your Wi-Fi network, see below. iPhone/iPad WiFi Setup Open the Camera List screen in Lorex Care. Press Back if you are currently connected to a camera. next to the Wi-Fi cradle...
  • Page 8 Enter the password for your Wi-Fi network Tap Join • • • • • • Press 3 times to return to the Camera List. Remove the Ethernet cable from the cradle. Tap the monitor to connect Congratulations! You have successfully connected the cradle to your Wi-Fi network. You can now place the cradle in any location with good signal to your Wi-Fi network.

  • Page 9: Using The Iphone®/Ipad® App

    Using the iPhone®/iPad® App Live View You can view your camera in either portrait or landscape mode. Return to Select Camera List channel Take Listen to snapshot camera View/share Mute Talk to snapshots audio camera NOTE: The controls above are only shown in portrait mode.

  • Page 10: Changing The Cradle Password

    The default password is 000000. It is recommended to create your own password to ensure that no one may access your video. To change the password: Open the Camera List screen in Lorex Care. Press if you are currently connected to a camera.

  • Page 11: Changing The Video Quality

    If the video is choppy or slow, it is recommended to reduce the video quality setting. To change the video quality: Open the Camera List screen in Lorex Care. Press if you are currently connected to a camera.

  • Page 12: Android Ethernet Setup

    Android Ethernet Setup Touch the Lorex Care icon to launch the app. Tap Click here to add camera. Tap Scan Notes • If your device does not have a camera, you must enter the UID printed on the back of the cradle under UID.
  • Page 13 Under Password, enter the default password 000000. Under Name, enter a name for your monitor. Tap OK The monitor will show up in your device list with an Online status. Tap the monitor to connect The app will connect to your monitor and stream live video from your cameras.

  • Page 14: Android Wi-Fi Setup

    Ethernet cable before you can connect it to your Wi-Fi network. Complete the Ethernet setup as described in “Android Ethernet Setup” on page 10. Open the Camera List screen in Lorex Care. Press if you are currently connected to a camera.
  • Page 15 The cradle scans for available Wi-Fi networks. Then, select your Wi-Fi network Enter your Wi-Fi network’s password Tap OK The cradle will connect to your Wi-Fi network. Once connected, it will say Connected below the network name. Connected...
  • Page 16 Tap OK twice to return to the Camera List. Remove the Ethernet cable from the cradle. Tap to connect to the cradle Congratulations! You have successfully connected the cradle to your Wi-Fi network. You can now place the cradle in any location with good signal to your Wi-Fi network.

  • Page 17: Using The Android App

    Using the Android App Live View You can view your camera in either portrait or landscape mode. Take snapshot Mute audio View/share Change channel snapshots Exit live view Zooming in Live View You can zoom in on the video in landscape or portrait mode.

  • Page 18: Viewing And Sharing Snapshots

    Viewing and Sharing Snapshots You can take snapshots of live video from your cameras by pressing . You can view or share snapshots using the app. Snapshots are saved in .jpg format. They are saved to the /DCIM/P2PIPCAM/Snapshot folder on your device’s memory. To view snapshots: In live view, tap to view snapshots...

  • Page 19: Changing The Cradle Password

    Select the app you would like to share the snapshot with and use the app to share the file Lorex does not provide support for apps not published by Lorex. Changing the Cradle Password The default password is 000000. It is recommended to create your own password to ensure that no one may access your video.

  • Page 20: Changing The Video Quality

    If the video is choppy or slow, it is recommended to reduce the video quality setting. To change the video quality: Open the Camera List screen in Lorex Care. Press if you are currently connected to a camera.
  • Page 21 Tap Edit Camera Tap, then select the desired video quality Tap OK Tap OK to return to Camera List.

  • Page 22: Technical Specifications

    Technical Specifications Cradle Compatible Lorex BB4300 / BB3500 Series Products LW3400 Series Wi-Fi IEEE 802.11 b / g / n Wi-Fi Encryption WEP / WPA / WPA2 / WPA2 PSK Wi-Fi Frequency 2.4GHz Ethernet 10/100M Ethernet port DHCP DHCP Client / Server Mobile Apps iOS (v.

  • Page 23: Troubleshooting

    Troubleshooting Problem Solution Cannot connect to • Monitor is not placed on the the monitor on my cradle. The monitor must be smartphone or tablet on the cradle to enable remote connectivity. • Cradle is not connected to power. Connect the power adapter to the Wi-Fi cradle.
  • Page 24 CLEANING Clean the product with a slightly damp cloth or an anti-static cloth. Never use cleaning agents or abrasive solvents. • Do not clean any part of the product with cleaners with thinners or other solvents and chemicals. This may cause permanent damage to the product, which is not covered by the Warranty.
  • Page 25 USER’S GUIDE ACCWIFI1 Version 1.0 www.lorextechnology.com Copyright © Lorex Technology Inc. 2013...
