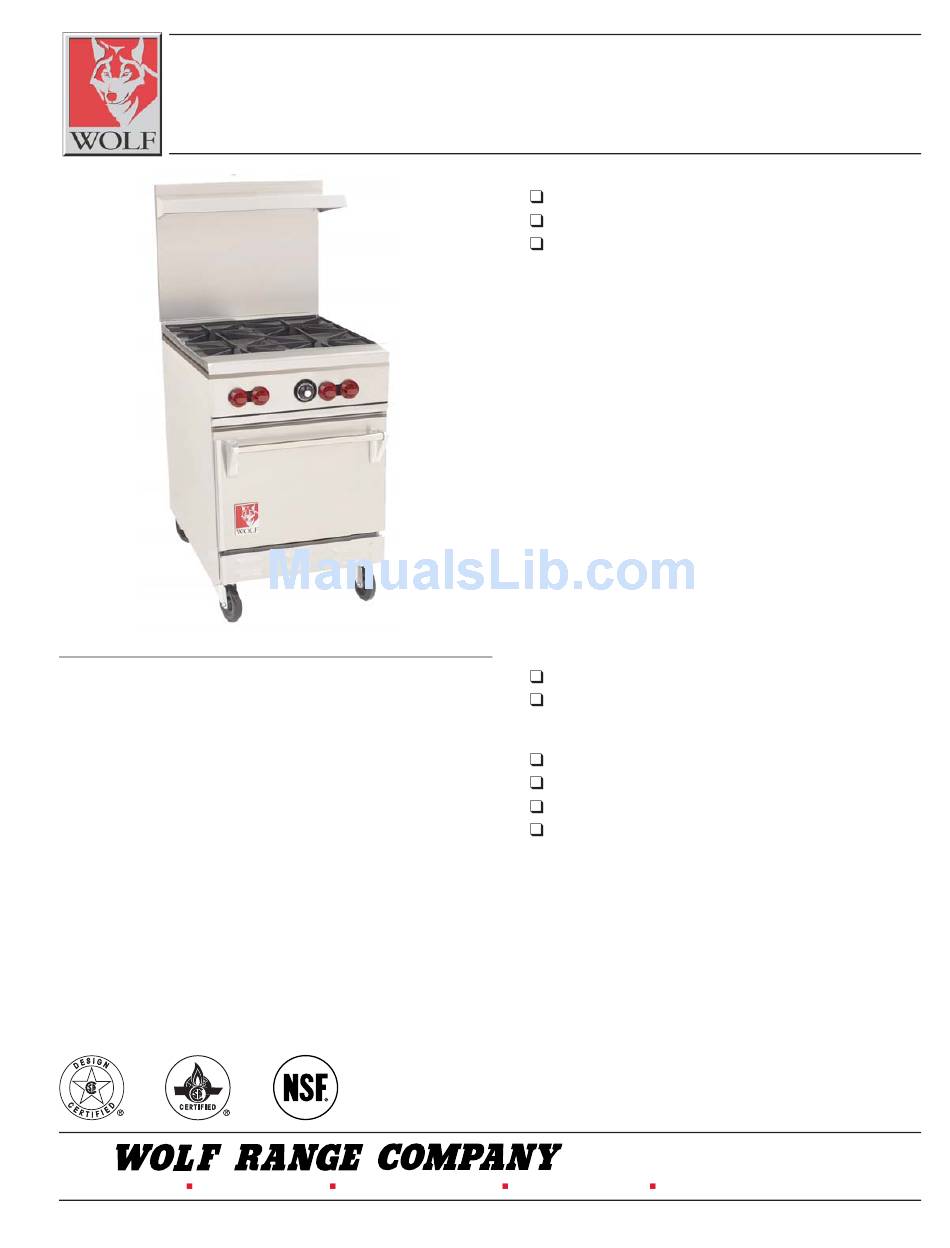

Wolf C24S-2FT12 Installation Instructions

Model C24S-4 shown with optional casters
SPECIFICATIONS
24" wide gas restaurant range, Wolf Model No. C24S-4.
Fully MIG welded aluminized steel frame for added durability.
Stainless steel front, sides, backriser, highshelf and 6" adjustable
legs. Extra deep crumb tray with welded corners. Four 30,000
BTU/hr cast burners with lift-off burner heads. Energy saving
fl ashtube open burner ignition system (one pilot for every two
burners) shrouded for reliability. Heavy duty cast grates, easy
lift-off 12" x 12 1/2" in the front and 12" x 14 1/2" in the back to
better accommodate stock pots or large pans. Grates have a
built in aeration bowl for greater effi ciency. Burner knobs are
cool to the touch, high temperature material. One oven: 20,000
BTU/hr space-saver standard oven with porcelain oven bottom
and door panel, measures 26 1/4"d x 20"w x 14"h. Sheet pans
(18" x 26") fi t front to back. Oven thermostat adjusts from 250°F
to 500°F with a low setting. Each oven is supplied with two racks,
two rack guide sets, and four rack positions. Oven door is heavy
duty with an integrated door hinge spring mechanism requiring
no adjustment. 3/4" rear gas connection and pressure regulator.
Total input 140,000 BTU/hr.
Exterior Dimensions:
34 3/4"d x 24"w x 58"h on 6" adjustable legs
P.O. Box 696 Louisville, KY 40201
F-37372 (07/08)
CHALLENGER XL
24" GAS RESTAURANT RANGE
OPEN BURNERS / FRY TOPS
Toll-free: 1-800-814-2028
Item # __________________ C.S.I. Section 11420
™ SERIES
C24S-4 1 Standard Oven
C24S-2FT12 1 Standard Oven
C24S-FT24 1 Standard Oven
STANDARD FEATURES
■
Fully MIG welded frame
■
Stainless steel front, sides, backriser, lift-off high shelf
■
6" Stainless steel adjustable legs
■
30,000 BTU/hr open top burners with lift-off heads
■
Shrouded fl ash tube pilot system (one pilot per
two burners)
■
Heavy duty cast grates, easy lift-off 12" x 12 1/2" in
front and 12" x 14 1/2" in the rear
■
Extra deep pull out crumb tray with welded corners
■
20,000 BTU/hr space-saver standard oven cavity
measures 26 1/4"d x 20"w x 14"h
■
Sheet pans (18" x 26") fi t front to back
■
Oven thermostat adjusts from 250°F to 500°F
■
Two oven racks and four rack positions
■
One year limited parts and labor warranty
OPTIONAL FEATURES (Factory Installed)
6" stainless steel stub back
Hot top section in lieu of one open burner
ACCESSORIES (Packaged & Sold Separately)
Extra oven rack
Extra rack guides (set of two)
Casters (set of four)
Flanged feet (set of four)
This appliance is manufactured for commercial
use only and is not intended for home use.
