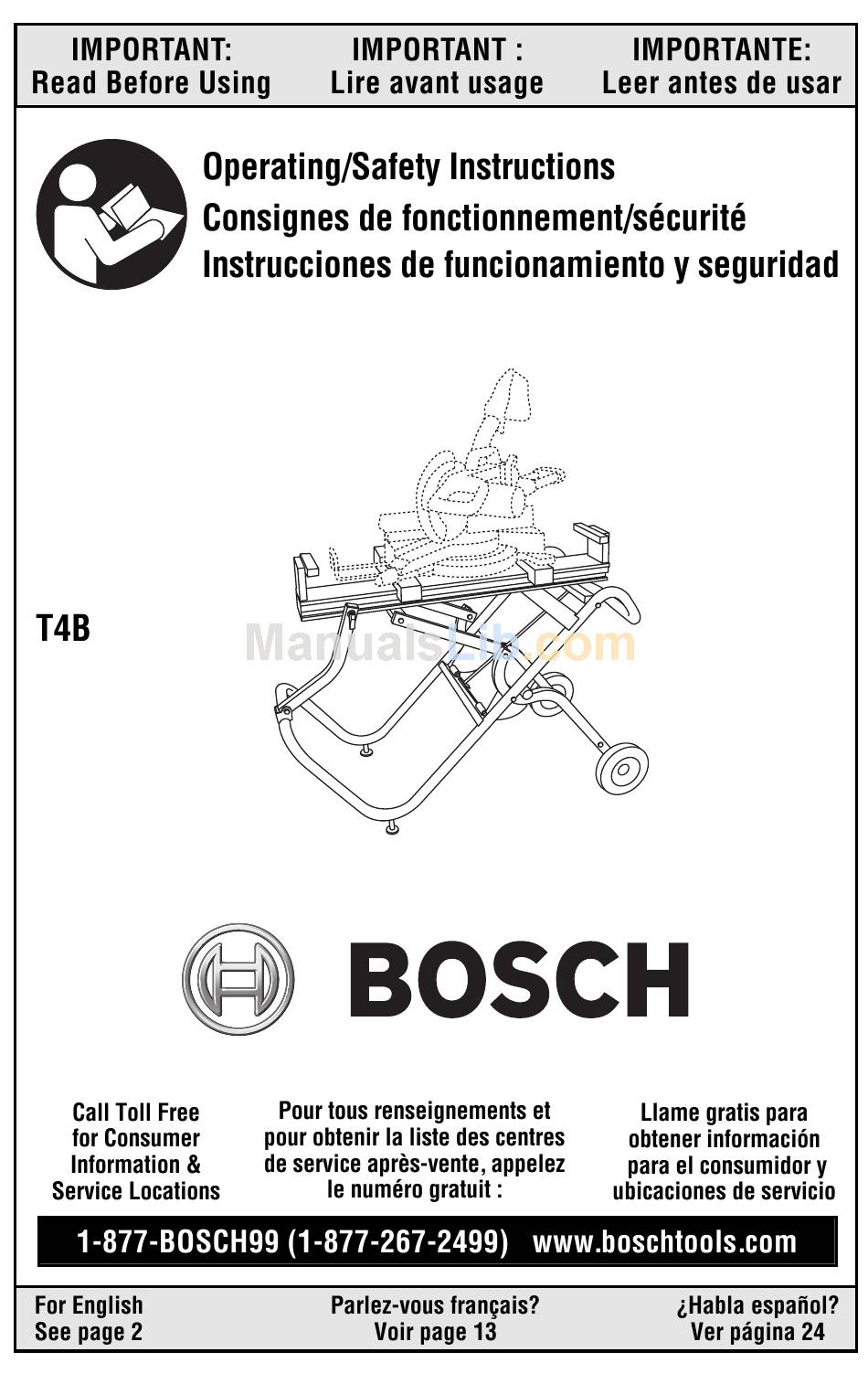

Bosch T4B Operating/Safety Instructions Manual

Miter saw stand
Hide thumbs Also See for T4B:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Bosch T4B

Summary of Contents for Bosch T4B

  • Page 2 Miter Saw per the instruction manual. This T4B Gravity-Rise Miter Saw Stand is designed to be used Other units may be compatible, but have not been verified for use with the T4B system. Bosch 4212, 4212L, 4410, 4410L,...
  • Page 3 You have purchased a Bosch T4B Miter Saw Stand, designed for job site use. This unit sets up and folds quickly, and is easily loaded or unloaded by one person into a truck. TOOLS REQUIRED: Phillips screwdriver, 10 MM open end wrench, 13 MM open end wrench, 17 MM open end wrench, and adjustable wrench.

  • Page 4: Stand Assembly Hardware

    STAND ASSEMBLY HARDWARE Item Qty. (packaged in one bag) Part Description 10mm x 100mm Hex Head Bolts 10mm x 55mm Hex Head Bolt 10mm x 50 mm Nylock Hex Head Bolts 8mm x 45mm Hex Head Bolts 6mm x 45mm Hex Head Bolts 8mm x 50 mm Phillips Head Screws 10mm x 29mm OD Flat Washers 10mm Flat Washers...

  • Page 5: Assembly

    Step 1 Attach Main Frame and Base Tube 1. Position base tube on a flat surface as shown in figure 1. 2. Insert ends of main frame into the base tube and push downward as far as it will 3. Insert four (4) 8 mm x 50 mm Phillips Head Screws (N) through the holes of the main frame and base tube, and securely tighten with four (4) 8 mm lock nuts (T) as shown.
  • Page 6 Step 3 Attach kick Bar 1. Locate the kick bar and position it between the left and right wheel/leg assemblies as shown in figure 3. 2. Place one (1) 10mm x 29mm OD flat washer (O) onto one (1) 10mm x 50mm Nylock hex head bolt (K).
  • Page 7 Step 5 Attach Rail Assembly 1. Locate the rail assembly and assemble as shown in figure 5. 2. Fold stand upright: Rotate release lever down to clear locking pins. With both hands on the handle, pull up and push forward on the stand until it locks into the upright position (see page 9).

  • Page 8: Mounting Miter Saw To Stand

    8, and push the release lever to the locked position. 3. Place miter saw on top of the tool mounts, figure 9, align mounting holes by adjusting rear sliding nuts and front swivel nuts, figure 10.

  • Page 9: Operating Instructions

    Fold Stand Keep fingers clear of hinge points when folding or unfolding the stand. 1. Unlock support leg cam lock, figure 11. 2. Rotate release lever down to clear locking pins, figure 11. 3. With both hands on the handle, pull up and push forward on the stand, figure 12, until it locks in the upright position, figure 13.
  • Page 10 3. Line up the left tool mount next to the red secondary stop on the rail assembly as close as possible. 4. Tilt the saw until the front jaws of both tool mounts are engaged to the rail. With both hands on the saw handles, guide the saw back to its level position on the rail (see fig.
  • Page 11 1. Loosen the locking knob located at the end of the expansion rail, as shown in figure 16, and raise the work height support so it is level with the table top of the attached miter saw. 2. Retighten knob and repeat on opposite side. Repetitive Stop Adjustment To raise the repetitive stop: Lift up and in place as shown in figure 17.
  • Page 12 To ensure the proper engagement of the locking pins for safe and stable operation, the following adjustment is made at the factory prior to your T4B shipping. In the event further adjustment is necessary, the user can quickly and easily do so.
  • Page 13 Bosch 4212, 4212L, 4410, 4410L, 4412, 4405, 5412L, 3912, 3915, 3918, 3924 Delta 36-255, 36-255L, 36-240, MS450 DeWalt DW712, DW705S, DW703, DW708, DW706, DW718, DW715, DW716, DW709 Makita LS1214, LS1221, LS1013, LS1212, MS1214F Milwaukee 6497-6 Ridgid MS1065LZ, MS1250LZ Ryobi TS1353DXL, TS1341, TS1552...
  • Page 14 Préassemblage...
  • Page 16 Assemblage...
  • Page 18 PIED DE SOUTIEN...
  • Page 20 Instructions d'utilisation...
  • Page 23 Entretien...
  • Page 24 Bosch 4212, 4212L, 4410, 4410L, 4412, 4405, 5412L, 3912, 3915, 3918, 3924 Delta 36-255, 36-255L, 36-240, MS450 DeWalt DW712, DW705S, DW703, DW708, DW706, DW718, DW715, DW716, DW709 Makita LS1214, LS1221, LS1013, LS1212, MS1214F Milwaukee 6497-6 Ridgid MS1065LZ, MS1250LZ Ryobi TS1353DXL, TS1341, TS1552...
  • Page 25 Preensamblaje...
  • Page 27 Ensamblaje...
  • Page 29 PATA DE SOPORTE...
  • Page 31 Instrucciones de utilización...
  • Page 34 Mantenimiento...
  • Page 36 2 610 953 393 10/09 Printed in China...
