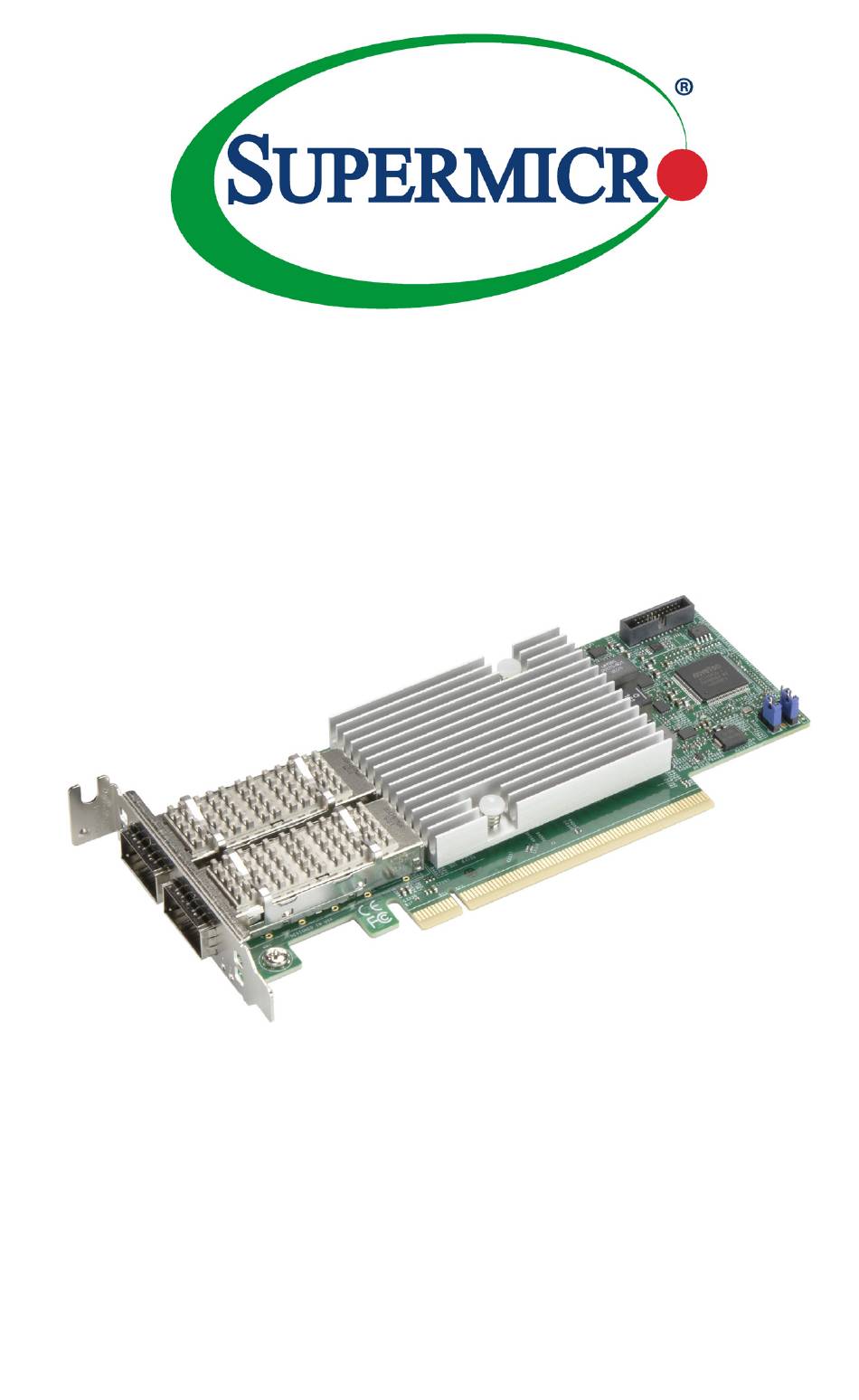

- Page 1 AOC-S100G-b2C User's Guide Revision 1.0...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: An Important Note To The User
Preface Preface About this User's Guide This user's guide is written for system integrators, IT professionals, and knowledge- able end users. It provides information for the installation and use of the AOC- S100G-b2C add-on card. An Important Note to the User All graphic images and layout drawings shown in this user's guide are based upon the latest PCB revision available at the time of publishing of this user's guide. -
Page 4: Important Links
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@ supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. -
Page 5: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 6: Table Of Contents
Super AOC-S100G-b2C Add-On Card User's Guide Table of Contents Preface About this User's Guide ....................3 An Important Note to the User ..................3 Returning Merchandise for Service ................3 Conventions Used in the User's Guide ................. 3 Important Links ......................4 Contacting Supermicro .................... -
Page 7: Chapter 1 Introduction
Introduction Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. About this Add-on Card The Supermicro AOC-S100G-b2C is the most advanced Network-Controller Sideband Interface (NC-SI) Ethernet LAN card on the market today. -
Page 8: Additional Features
Super AOC-S100G-b2C Add-On Card User's Guide • Stateless offloads • RoCE (RDMA over Converged Ethernet) • Network overlay: VXLAN and NVGR • NPAR (NIC partitioning) • Dual QSFP28 connectors • PXE support • Asset management (for Supermicro systems only) •... - Page 9 Chapter 1: Overview • Virtual LANs — IEEE 802.1q VLAN tagging Performance Features • Low-chip latency < 1 μs TX and RX combined • Maximum 100 million packets per second Stateless Offload Features • TCP, UDP, IP checksum offloads • Large Send Offload (LSO) •...
- Page 10 Super AOC-S100G-b2C Add-On Card User's Guide • PCIe SIG SR-IOV compliant • Edge Virtual Bridging (EVB) — VEB/VEPA support • Support for 1K Virtual Functions (VFs) • VxLAN-aware stateless offloads • NVGRE-aware stateless offloads • Geneve-aware stateless offloads • IP-in-IP-aware stateless offloads •...
- Page 11 Chapter 1: Overview • Network Direct Service Provider Interface (NDSPI) 2.0 Flow Processing • Exact match flow lookup • Wildcard match flow lookup • Flexible key selection • Packet recycling • Connection tracking • VLAN insertion/deletion • NAT/NAPT • Tunnel encapsulation/decapsulation •...
-
Page 12: Supported Platforms
PCI-E 4.0 x 16 ex- ® pansion slot • NC-SI feature is only supported by Supermicro motherboards with correspond- ing NC-SI connectors Note: This product is intended to be used with Supermicro server systems or motherboards as an integrated solution package. -
Page 13: Chapter 2 Hardware Components

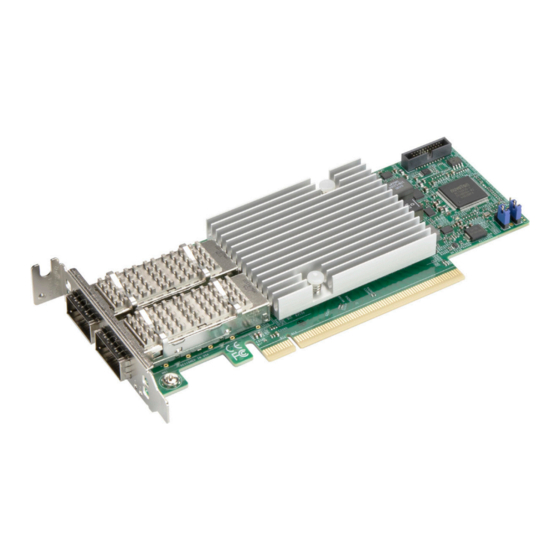

Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout Figure 1 AOC-S100G-b2C REV:1.01 DESIGNED IN USA QSFP28 BCM57508 QSFP28 Figure 2... -
Page 14: Major Onboard Components
JP4: 1-2 (default): Disable STBY Mode, 2-3: Enable STBY Mode QSFP28: Quad Small Form-Factor Pluggable 28 QSFP28: Quad Small Form-Factor Pluggable 28 LED4: QFSP28 Port 1 Link/Active LED LED5: QFSP28 Port 2 Link/Active LED JGF1: PCI-E 4.0 x16 BCM57508: Broadcom Note: Please consult with Supermicro before enabling JP4. -
Page 15: Qsfp28 Ethernet Connections
The QSFP28 ports operate at up to 100Gb/s. Plug the Direct Attached Copper (DAC) cable into the QSFP28 ports for network connections. See the layout below for the location. 1. QSFP28 2. QSFP28 AOC-S100G-b2C REV:1.01 DESIGNED IN USA QSFP28 BCM57508... -
Page 16: Nc-Si Header & Pci-E 4.0 X16 Connector
Super AOC-S100G-b2C Add-On Card User's Guide NC-SI Header & PCI-E 4.0 x16 Connector NC-SI Header A Network-Controller Sideband Interface (NC-SI) header is located at JNCSI1 on the add-on card. Connect an appropriate cable from this header to a motherboard to provide an out-of-band (sideband) connection between the onboard Baseboard Management Controller (BMC) and a Network Interface Controller (NIC) for remote management. -
Page 17: Jumper Settings
Standby Power flow when it is standby power to AOC NIC in standby mode to AOC NIC (S5 state). Please consult Supermicro before enabling it. 1. JP1 2. JP4 AOC-S100G-b2C REV:1.01 DESIGNED IN USA QSFP28 BCM57508... -
Page 18: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Note: Your system came with the AOC-S100G-b2C add-on card which is designed as a part of an integrated solution. We do not recommend that any part of your system components be removed and re-installed. -
Page 19: Before Installation
Super AOC-S100G-b2C Add-On Card User's Guide Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on page 3-1 to avoid damage caused by ESD. -
Page 20: Installing Drivers (For Broadcom ® Bcm57508)
Chapter 3: Installation Installing Drivers (for Broadcom BCM57508) ® To install drivers for the AOC-S100G-b2C add-on card for either Linux and Windows, please follow the instructions below. Before Installing the Drivers for the Linux Operating System Only Infiniband-diags is a set of utilities designed to help configure, debug, and maintain infiniband fabrics. -
Page 21: Installing 100G Drivers For The Windows Operating System
RoCE, please follow the additional steps below: 1. Download the Linux driver package file: libbnxt_re-<ver>.tar.gz. Note: This driver can be found on either the Supermicro website or by going to the RoCE_Lib directory from the FTP site (ftp://ftp.supermicro. - Page 22 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
