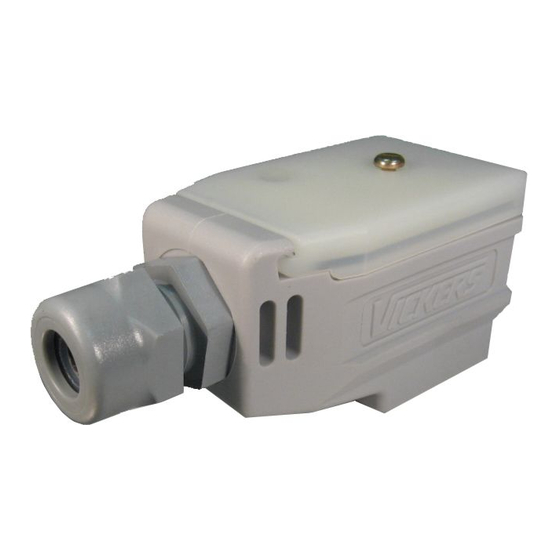

- Page 1 Set-Up Procedure ® Vickers Valves Proportional Power Plug EHH-AMP-702-D/E-10 Released 5/93...
- Page 2 Ensure that the plastic cover seats signal deadband firmly and correctly on the center input compensation body post. current. ground R2 – Gain adjustment. Turn clockwise to decrease gain. Figure 2. Power plug connections E Eaton Hydraulics, Incorporated, 2000 All rights reserved...
- Page 3 Adjustment Procedures Figure 1 shows the set-up for one Ramp rate adjustment solenoid. If the valve contains two For most applications: solenoids, the set-up and the following Set R1 fully clockwise procedure should be repeated. (minimum ramp rate). Run CAUTION the actuator for different increasing counter- Applying more than 10 volts at input C...
- Page 4 Wiring Preparation Use single cable with round outer Attachment screw jacket such as: 3 x 0,5–1,0 mm Alpha #1952/3 (20AWG-18AWG) Belden #8770 5 (0.2) Cover Stretch cable grommet over outer jacket O5 – 10 (0.197–0.394 dia.) GCenter body post gasket GCover gasket Electronic module Power input...
