MICROWAVE OVEN
MW1129-BLACK
1. READ these instructions carefully before installing and operating the oven. Keep
them for further reference.
2. Record in the space below the "SERIAL NO." found on the nameplate on your
oven and retain this information for future reference.
SERIAL NO:
Please save sales receipt for warranty.
Advertisement
Table of Contents
Related Manuals for Curtis MW1129-BLACK
Summary of Contents for Curtis MW1129-BLACK

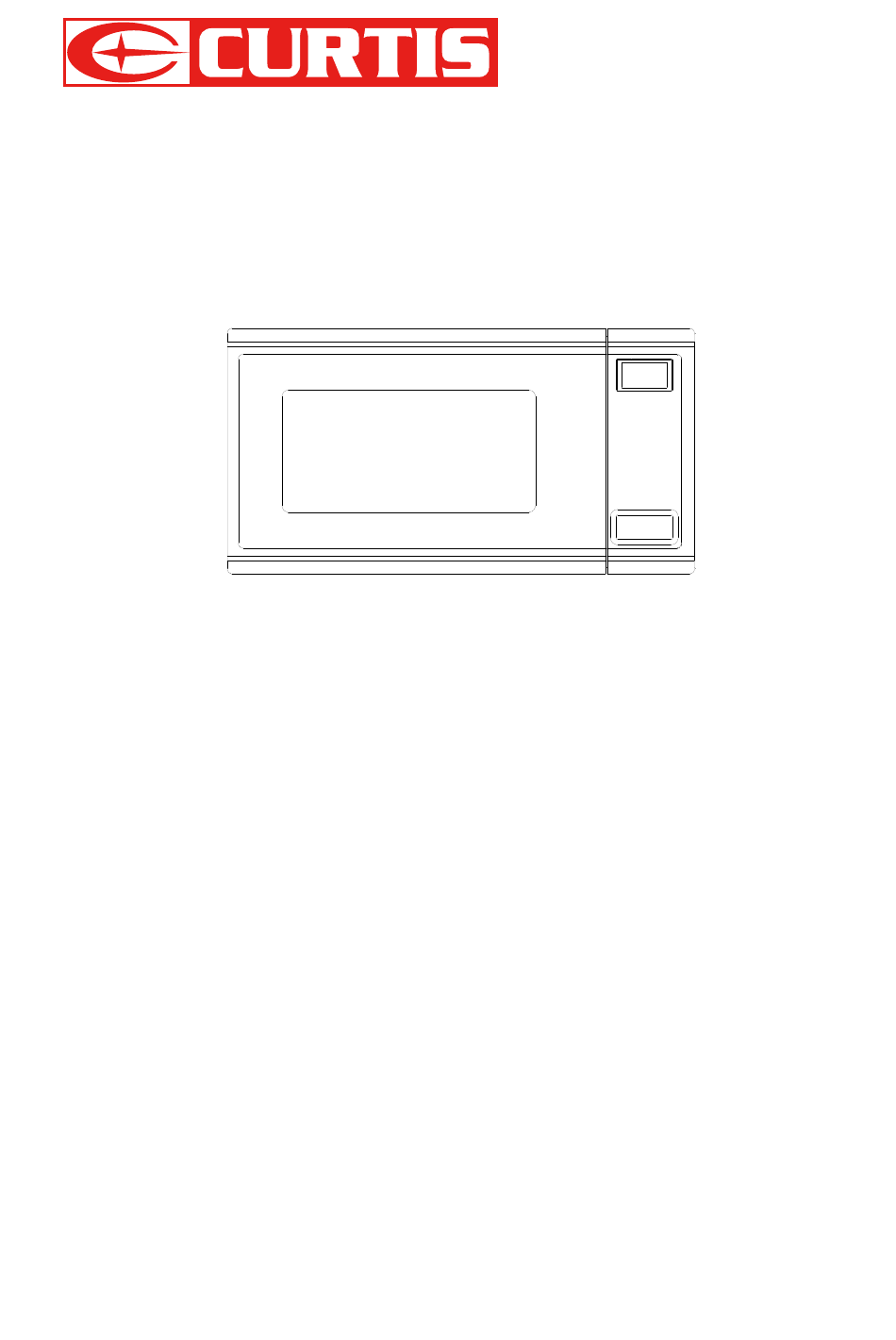

- Page 1 MICROWAVE OVEN MW1129-BLACK 1. READ these instructions carefully before installing and operating the oven. Keep them for further reference. 2. Record in the space below the “SERIAL NO.” found on the nameplate on your oven and retain this information for future reference.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliance basic safety precautions should be followed, including the following: WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. - Page 4 12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. 13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
-
Page 5: Installation Guide
INSTALLATION GUIDE 1. Make sure that all the packing materials are removed from the inside of the door. 2. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. -
Page 6: Utensils Guide
Electrical Requirements The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It is recommended that a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet properly installed and grounded. Power Cord A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. - Page 7 Paper towels and napkins — Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite. Glass and glass-ceramic bowls and dishes — Use for heating or cooking. Paper plates and cups —...
-
Page 8: Cooking Techniques
COOKING TECHNIQUES Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind: STIRRING Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the center. -
Page 9: Specifications
SPECIFICATIONS Power Consumption: 120V~60Hz, 1500W (MICROWAVE) Output: 1000W Operation Frequency: 2450MHz Outside Dimensions(H×W×D): 11 13/16×21 1/4×16 5/16 in. Oven Cavity Dimensions(H×W×D): 9 7/16×13 15/16×14 1/8 in. Oven Capacity: 1.1cu.ft Cooking Uniformity: Turntable System Net Weight: Approx. 35.3lb. PRODUCT DIAGRAM Door Safety Lock System Oven Window Roller Ring Shaft... -
Page 10: Control Panel
CONTROL PANEL MENU ACTION SCREEN Cooking time, power, indicators and present time are displayed QUICK COOK BUTTONS Instant settings to cook popular foods. EXPRESS COOK Number Pads (1-6) NUMBER PADS(0-9) Touch to set time or amount. CLOCK ... -
Page 11: Operation Instructions
OPERATION INSTRUCTIONS When the oven is first plugged in or when power resumes after a power interruption, the display will show “ENTER”,“CLOCK”,“TIME”, you can use the number pads to enter the correct time, then press CLOCK pad, the clock begin to timing, or you can not set the time, directly press RESET pad to enter next operation. - Page 12 Touch number pad Time Minutes 1 Minute 2 Minutes 3 Minutes 4 Minutes 5 Minutes 6 Minutes ICROWAVE COOKING In standby mode, touch POWER to enter the power level. Touch POWER Cooking power 100% PL10 PL-9 PL-8 PL-7 PL-6 PL-5 PL-4 PL-3 PL-2...
- Page 13 OOK WEIGHT ouch COOK WEIGHT. Use the number pads (1 to 3) to select the type of food. Use the number pads to set desire weight. Touch START/STOP. Cook Weight Code Description CODE TYPE MAX POIDS Beef 5 lb. 16 oz. Mutton 5 lb.
- Page 14 EIGHT DEFROST Touch WEIGHT DEFROST pad. Use the number pads to set desire weight. Touch START/STOP pad. NOTE: ·Weight must be in pounds and ounces. Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces using the chart given above.
-
Page 15: Quick Cook Settings
QUICK COOK SETTINGS The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time. For smaller portions, simply touch the applicable pad and start. For larger portions, push the pad twice. FROZEN DINNER, BAKED POTATO and BEVERAGE allow you to cook multiple amounts of the same food. Simply touch pad once, and ENTER AMT appears In the display. - Page 16 BEVERAGE For 5 to 7 oz. cups: Touch BEVERAGE once. Enter number of cups by touching number pads from 1 to 4. Touch START/STOP. For the larger 9 to 11 oz. cups: Touch BEVERAGE twice. Enter number of mugs by touching number pads from 1 to 4. Touch START/STOP.
-
Page 17: Cleaning And Care
Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities. CURTIS INTERNATIONAL LTD. 315 ATTWELL DR., TORONTO, ON, M9W 5C1 CANADA www.curtisint.com...
