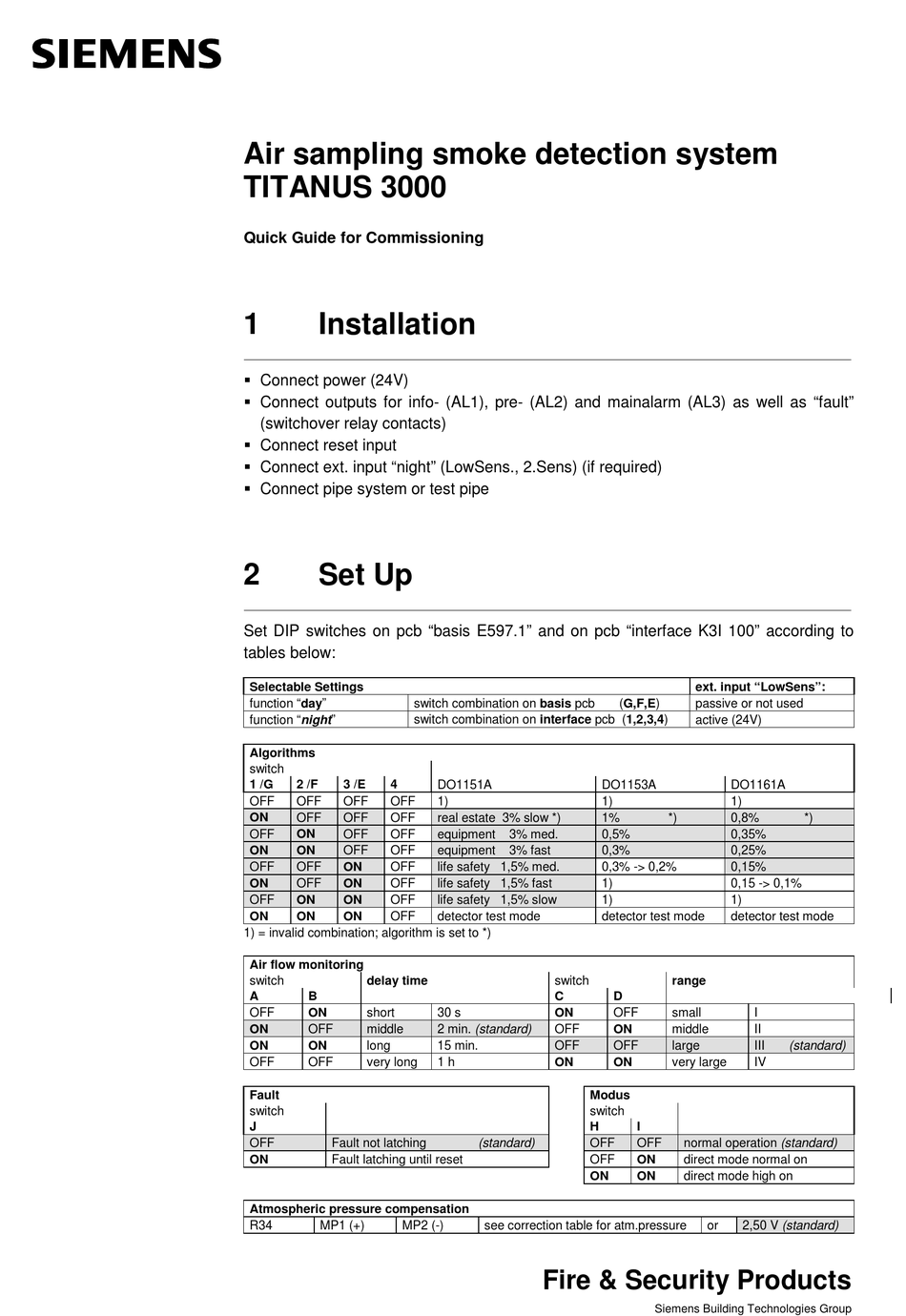

Air sampling smoke detection system
TITANUS 3000
Quick Guide for Commissioning
1 Installation
§ Connect power (24V)
§ Connect outputs for info- (AL1), pre- (AL2) and mainalarm (AL3) as well as "fault"
(switchover relay contacts)
§ Connect reset input
§ Connect ext. input "night" (LowSens., 2.Sens) (if required)
§ Connect pipe system or test pipe
2 Set Up
Set DIP switches on pcb "basis E597.1" and on pcb "interface K3I 100" according to
tables below:
Selectable Settings
function "day" switch combination on basis pcb
function "night" switch combination on interface pcb (1,2,3,4)
Algorithms
switch
1 /G 2 /F 3 /E 4
OFF OFF OFF OFF
ON
OFF OFF OFF
OFF ON OFF OFF
ON ON OFF OFF
OFF OFF ON OFF
ON ON
OFF OFF
OFF ON ON OFF
ON ON ON OFF
1) = invalid combination; algorithm is set to *)
Air flow monitoring
delay time
switch
A B
OFF ON short
ON OFF middle
ON ON long
OFF OFF very long
Fault
switch
J
OFF Fault not latching
ON Fault latching until reset
Atmospheric pressure compensation
R34 MP1 (+) MP2 (-)
DO1151A DO1153A
1) 1)
real estate 3% slow *) 1%
equipment 3% med. 0,5%
equipment 3% fast 0,3%
life safety 1,5% med. 0,3% -> 0,2%
life safety 1,5% fast 1)
life safety 1,5% slow 1)
detector test mode detector test mode
switch
C
30 s ON
2 min. (standard) OFF
15 min. OFF
1 h ON
Modus
switch
H
(standard) OFF
OFF
ON
see correction table for atm.pressure
Fire & Security Products
ext. input "LowSens":
(G,F,E) passive or not used
active (24V)
DO1161A
1)
*) 0,8%
0,35%
0,25%
0,15%
0,15 -> 0,1%
1)
detector test mode
range
D
OFF small I
ON middle II
OFF large III
ON very large IV
I
OFF normal operation (standard)
ON direct mode normal on
ON
direct mode high on
or 2,50 V (standard)
Siemens Building Technologies Group
*)
(standard)
