3Com Router 5000 Family
Installation Guide
Where, "128M bytes SDRAM" means that the router is installed with a 128 MB SDRAM.
Note:
There is a limit on the times that you can install the SDRAM.
I. Checking position of the SDRAM
The following table describes the memory types and their requirements.
Table 6-2 Memory types available
Item
Memory type
Acceptable
maximum size
of a single
memory (MB)
Extension

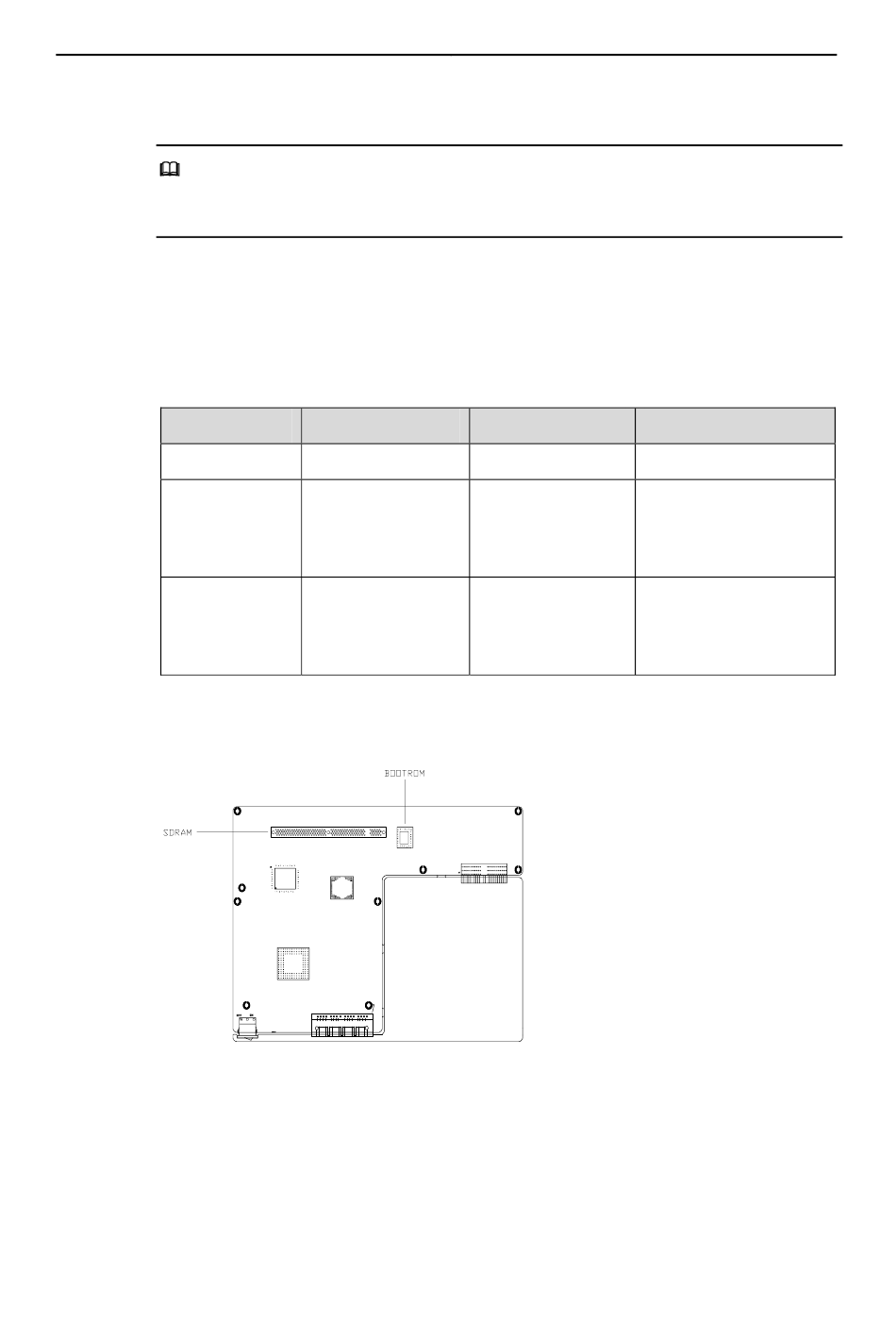

The following figure illustrates the position of the SDRAM on the 3COM ROUTERS.
Figure 6-4 Position of the SDRAM on the 3COM ROUTER
Figure 6-5 The following figure illustrates the position of the SDRAM on the 3COM
ROUTER 5232.
5009
SDRAM SDRAM
128 256
Extendable to
256MB at the
Not extendable
original memory
slot
3Com Corporation
6-14
Chapter 6 Router Maintenance
5012A/5013/5014
SDRAM
128
Extendable to 256MB
at any or both of the
memory slots
5232
