- Page 1 CABINET PARTS REFRIGERATOR For Model: GB9SHKXMQ03 (White) 3−08 Litho In U.S.A. (CJJ) Part No. W10193125 Rev.B...
-
Page 2: Cabinet Parts

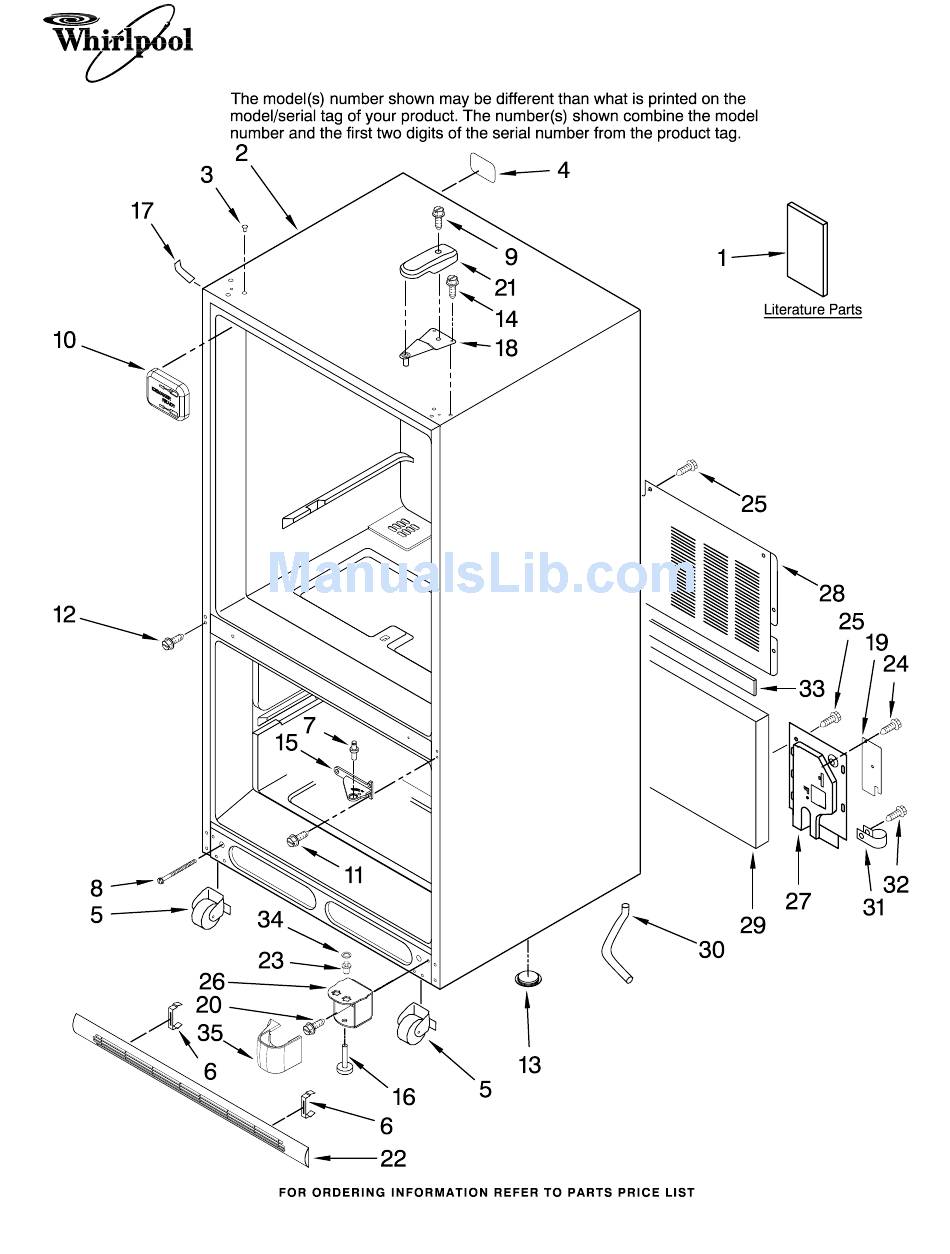

CABINET PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Literature Parts W10137645 Owners Manual 67004741 Energy Tag W10169671 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67005064 Label, Fill Tube 67006118 Roller Assembly 12627302 Clip, Grille... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 4 REFRIGERATOR LINER PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67002083 Bracket, Control and Lights 67001040 Belt, Damper 67001034 Tensioner, Belt 67001036 Timer, Defrost C3680310 Switch, Light 67002512 Knob, Front 67001035 Housing, Light 67003568 Bulb, Light (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 6 FREEZER LINER PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam (2) 67001045 Panel, Fz Control 67001285 Cover, Light 67003568 Bulb, Light 67001035 Housing 67005868 Cover, Evaporator 67005822 Screw (8) 67001046 Control, Fz Temp...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 8 REFRIGERATOR DOOR PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67001138 White Plug, Vent 10712401 White 67003819 Door, Compartment 67001279 Tray, Dairy 67003777 Bucket (2) (Medium) 67002684 Nameplate Plug, Button (2) 67001130 White Gasket, Door Magnetic...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 10 FREEZER DOOR PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10176974 White Handle, Door 67005140 White Gasket, Door W10130150 White 67006831 Screw 12246601 Plug, Hole White Plug, Vent (2) 10712401 White 67004977 Bushing (4) Stop, Door...
-
Page 11: Shelf Parts
SHELF PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 12 SHELF PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION 67002690 Ladder, Side 67006400 Screw (6) 67002689 Ladder, Center 67006360 Screw (2) 67002686 Shelf, Meatkeeper 12204810 Glass, Crisper 67004380 Frame, Crisper 67002688 Pan, Meatkeeper 12227101 Knob, Control 67001747 Tray, Ice Cube...
-
Page 13: Unit Parts
UNIT PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 14 16 W10158508 Shroud, Condenser 17 W10131991 Clip, Capacitor 67006133 Condenser 19 W10174591 Tube, Discharge 67001133 Tray, Drip 10623002 Clip, Evaporator 12002051 Evaporator UNIT PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION 67001084 Right Side 67001083 Left Side 67004432 Motor, Fan...
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Model: GB9SHKXMQ03 (White) W10193125... - Page 16 ICEMAKER PARTS For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q)
- Page 17 350939 Black 350942 Primer, White Important: The spray paint is not to be used where the paint may make contact with the door gaskets. W10193125 For Model: GB9SHKXMQ03 (White) Illus. Part DESCRIPTION PAINT, BULK (1 qt.) 799344 White (Uncut) 799340 Black (Uncut)
