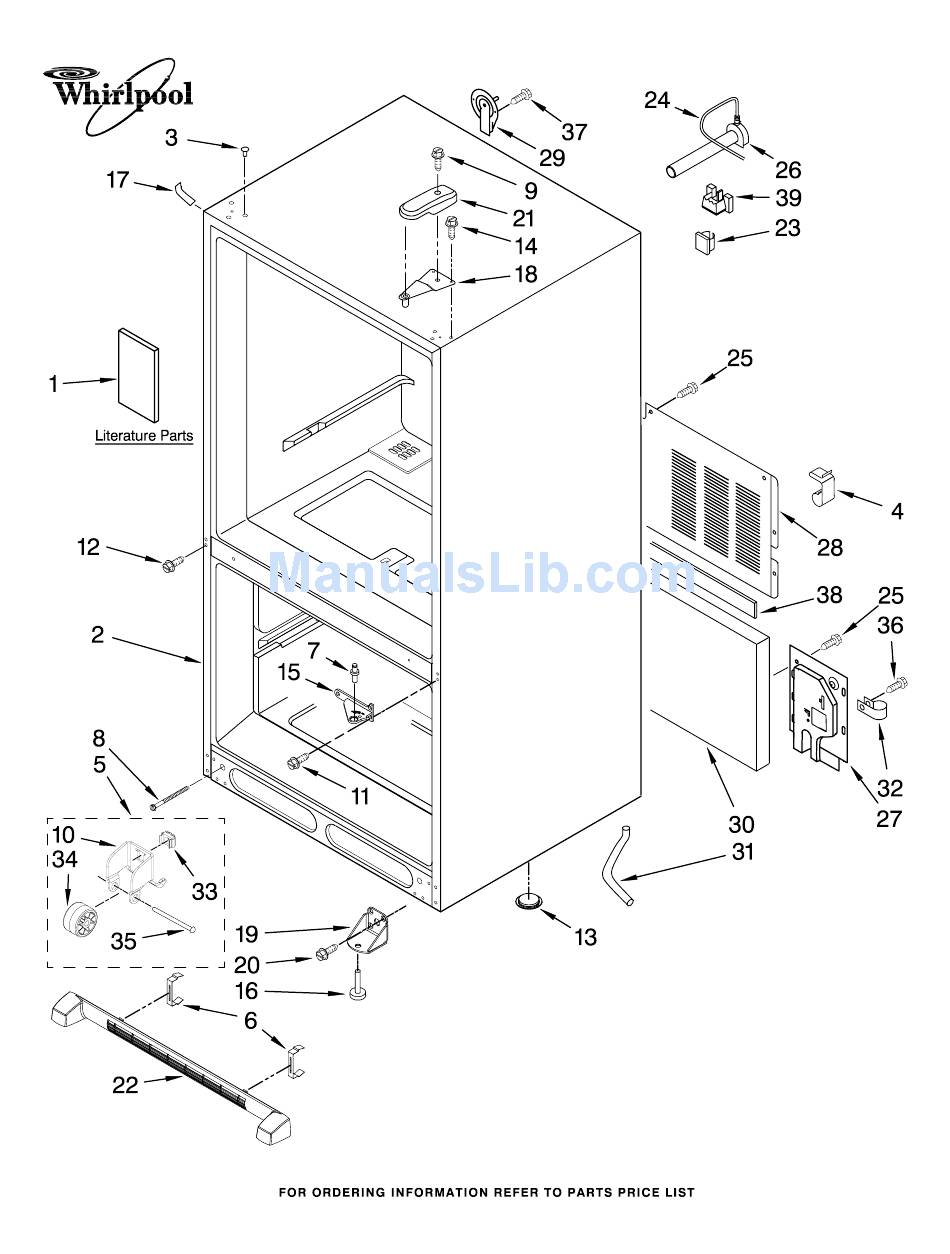

- Page 1 CABINET PARTS REFRIGERATOR For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) Part No. W10188467 Rev.B 3−08 Litho In U.S.A. (cjj)
-
Page 2: Cabinet Parts
For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) Illus. Part DESCRIPTION Literature Parts W10137645 Owners Manual W10179469 Energy Tag W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67001131 Black M0310738 Bisque 67002816 Clip, Water Line 67006118 Roller Assembly 12627302 Clip, Grille 67006642 Pin, Center Hinge... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 4 REFRIGERATOR LINER PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) Illus. Y67003896 Bracket, Control 67005190 Overlay 4 W10185244 Housing, 5 W10165748 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67003900 Insert, 67006602 Screw 67003899 Cover, Damper...
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 6 FREEZER LINER PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) Illus. 67001291 Gasket, Foam 12002497 Gear 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 12002497 Gear 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz. Light 67005872 Cover, Evaporator 67006425 Screw W10122147 Left W10122148 Right...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 8 REFRIGERATOR DOOR PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) Illus. 67004777 White 67004775 Black W10187674 Stainless Steel 67004776 Bisque W10187675 Satina 10712401 White 67004838 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67003777 Bucket (2) 67001130 White 67001131 Black 12246606 Stainless Steel 67001132 Bisque 67002684 Nameplate...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 10 FREEZER DOOR PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) Illus. W10168778 White W10168779 Black W10170543 Stainless Steel W10187676 Satina W10188475 Bisque 2254600W White 2254600B Black 2254600S Stainless Steel 2254600T Bisque W10130894 White W10130587 Black (Stainless Steel) (Bisque) Part DESCRIPTION Freezer Door...
-
Page 11: Unit Parts
UNIT PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 12 For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 67005744 Basepan 67006425 Screw 67004954 Screw 6 W10130129 Compressor 7 W10119856 Harness, Evap. Heater 67004713 Drain Pan 61004743 Grommet (3) 67001794 Evaporator Heater 2164017 Capacitor (See Item #12) 12 W10136414 Start−Dev...
-
Page 13: Shelf Parts
SHELF PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) (Stainless Steel) (Bisque) (Satina) W10188467... - Page 14 SHELF PARTS For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) (Black) Illus. 67001317 Ladder, Side 67006400 Screw (6) 67001073 Ladder, Center 67006360 Screw (2) 12463302 Shelf, Glide (3) 67006878 Glass (2) 67001056 Frame, Crisper 67001289 Rack, Can 67005864 Slide, 67001053 Right 67001054 Left 67006400 Screw 67001059 Support,...
-
Page 15: Icemaker Parts
For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 95100−1 Cup, Fill 95101−1 Ejector 95102−1 Ice Stripper 95103−1 Support & Motor Assembly 95104−1 Retainer, Thermostat Thermostat (Not Available Order D7824706Q) W10188467 ICEMAKER PARTS... - Page 16 OPTIONAL PARTS (NOT INCLUDED) For Models: GB2SHTXTQ01, GB2SHTXTB01, GB2SHTXTS01, GB2SHTXTT01, GB2SHTXTL01 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350939 Black 350942 Primer, White Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
