Page 25
Using the toothbrush ���������������������35 Specifications ���������������������������������45 Tips on usage ���������������������������������37 Changing the brush head (Sold After use ������������������������������������������39 separately)���������������������������������������45 Thank you for purchasing this Panasonic product. Before operating this unit, please read these instructions completely and save them for future use�...
Safety precautions This symbol is used to alert users to a specific operating procedure that must not be performed. To reduce the risk of injury, loss of life, electric shock, This symbol is used to alert users to a specific fire, and damage to property, always observe the operating procedure that must be followed in following safety precautions.
Page 27
WARNING ►In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or failure� Do not use anything other than the supplied AC ‑ Failure to do so may cause fire, electric shock, adaptor and the charging stand for any purpose�...
Page 28
WARNING CAUTION Never disassemble except when disposing of ►Preventing damage to teeth and gums the product� Do not use the brush with toothpaste that ‑ Doing so may cause fire, electric shock, or injury. contains a high abrasive content, such as ►Take care of the following precautions toothpaste for removing tar or for whitening�...
Page 29
CAUTION Disconnect the adaptor from the household outlet when not charging� ‑ Failure to do so may cause electric shock or fire ►This product due to electrical leakage resulting from Never use for a purpose other than cleaning insulation deterioration. your teeth�...
Page 30
Handling of the removed battery when WARNING disposing After removing the rechargeable battery, do DANGER not keep it within reach of children and infants. ‑ The battery will harm the body if accidentally swallowed. • The rechargeable battery is exclusively for If this happens, consult a physician immediately.
If the top case has come off Insert the adaptor into the household 1. Align the mounting outlet� section of the top case • Charging is completed after approx. and the bottom case 1 hour. 2 2 2 2 (2 locations) as shown The charging time may differ with the charging in the figure.
Page 33
Display while charging About battery capacity display ( :Glows/ :Blinks/ :Turns off) ( :Glows/ :Blinks/ :Turns off) While 5 seconds High battery Low battery After charging While later after capacity capacity charging is (Low battery charging charging is completed capacity) completed •...
Before cleaning your teeth • Divide your teeth into 4 parts (upper and lower, left The Sonic Vibration Toothbrush is an electric toothbrush and right), and brush one with sonic vibration* of approximately 31 000 horizontal part in order such as “ and 12 000 vertical brush strokes/minute.
Press the power switch to turn on the Using the toothbrush main unit� • The appliance may not operate in an ambient • When first using this appliance, some temperature approximately 5 °C or lower. people may experience a tickling or •...
Page 36
Brush for each use and recommended mode Mode storage function The mode used last is stored. Brush Mode Page The toothbrush operates in the mode last used when Extra fine the power switch is turned on. brush (Small) Periodontal Example) When the power switch is turned off after NORMAL pocket care Extra fine...
How to apply/move the toothbrush Tips on usage Apply the bristles of the brush lightly against the teeth Dental plaque removal/Periodontal pocket and move the toothbrush slowly. care/Stain care Front surface and the biting surface of teeth • Apply the brush head at a 90° Extra fine brush angle.
Page 38
Brush difficult ‑ to ‑ reach areas Gum care Point brush Silicone brush For the gap between teeth, the rear of the When you want to clean the gums. back teeth or misaligned teeth. • Do not use toothpaste. How to apply/move the toothbrush How to apply/move the toothbrush Apply the bristles of the brush lightly against your teeth.
Wash the brush head under Tongue care running water� Wash the following parts thoroughly: Stain care brush (Back) • Soiling on the inside and bottom When you want to clean Tongue cleaner areas of the brush head the tongue. Observe caution regarding the following points: How to apply/move the toothbrush •...
Page 40
If the identification ring comes off ►Carrying case As shown in the diagram at right, 1. Remove the inner frame. attach by aligning the indentation in Hold the right end of the the brush head with the raised part of carrying case.
Question Answer The battery will deteriorate if Will the battery not used for over 6 months, deteriorate if not used so make sure to perform a for an extended full charge at least once period of time? every 6 months. The battery used is a Can I charge the lithium‑ion, so charging after...
Troubleshooting Problem Possible cause Action The charge status lamp ( ) may not glow for several minutes after starting to You have just purchased the The charge status lamp charge it, but it will glow if you continue to toothbrush or have not used it for ) does not glow when charge it.
Page 43
(See page 34.) The toothbrush shaft This is not a malfunction. moves. (See page 35.) If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Battery life • Follow the procedure below, using a screwdriver to disassemble the appliance. Approximately 3 years. The battery may have reached Perform steps to and lift the battery, and then its operating life if the usage frequency decreases remove it.

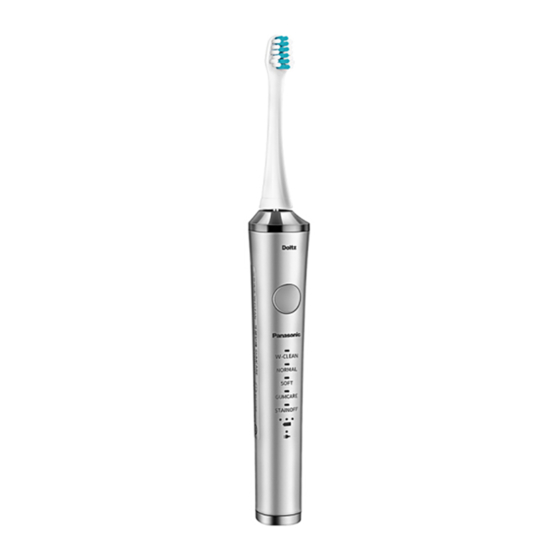

Specifications Changing the brush head (Sold separately) Product name Sonic Vibration Toothbrush • The brush should be replaced with a new one every Product model EW‑PDP51 3 months or so due to hygiene reasons, even if its 100‑240 V 50‑60 Hz shape is unchanged.
