- Page 1 CABINET PARTS REFRIGERATOR For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) 4−01 Litho In U.S.A. (mdg) Part No. 8197651...
-
Page 2: Cabinet Parts

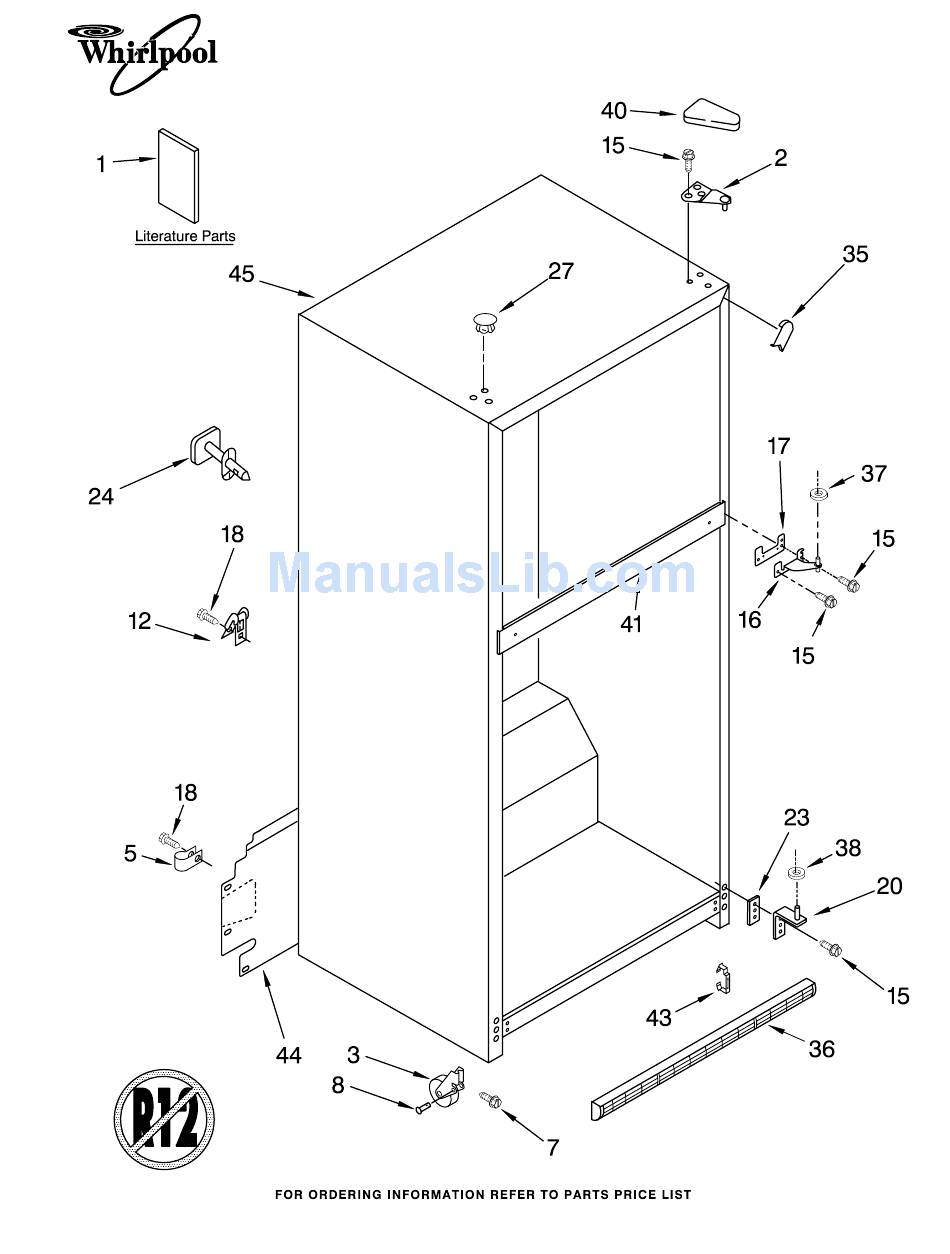

CABINET PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION Literature Parts LIT2213196 Service & Wiring Sheet LIT2218150 Energy Label LIT2205266 Use & Care Guide LIT628370 Modular Icemaker Service Sheet Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT677969 Do−It−Yourself Manual, Ref./Fzr. -
Page 3: Door Parts
DOOR PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) 8197651... - Page 4 489357 Screw 8281146 Screw Door Gasket, Magnetic 2159057 Mist Beige 2183003 Thimble Cover, Screw 2202819W White 2202819T Biscuit DOOR PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION Nameplate 2157907 White 2205769 Biscuit 2180027 Trim, Door Shelf 8281206 Screw...
- Page 5 LINER PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) 8197651...
- Page 6 LINER PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 531933 Grommet (2) 2189268 Gasket, Evaporator Cover (Side) 2213100 Control, Adaptive Defrost 2204640 Thermostat Tube Barrier 98129 Screw 2187350 Wire Assy. Control Box 2162085 Socket, Light (2)
-
Page 7: Unit Parts
UNIT PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) 8197651... - Page 8 (Includes Relay) Grommet (4) 1100826 Production 4387558 Service 2213106 Start−Device, Combination (Start Relay and Overload)for Production Compressor Only UNIT PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION 2201184 Support Block 2150304 Roller (2) 981126 Rivet 2182338 Clip, Heater Capacitor...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) 8197651... - Page 10 ICEMAKER PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181943 Tube Water 489478 Screw 2182104 Valve Solenoid 627018 Nut Compression 489385 Clamp, Tube 2210484 Cover 3400881 Screw 628228 Mold & Heater...
-
Page 11: Shelf Parts
8197651 SHELF PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION 2176219 Ice Cube Pan 2163856 Shelf (2) 2195342 Cover, Crisper 2201023 Crisper Pan 2163762 Shelf, Cup Mtg. 2172541 Support, Crisper Cover 2163835 Track, Crisper 2189453 Shelf 2201022 Crisper Pan... -
Page 12: Optional Parts
(36−5/8" x 46") 799833 Kit, Evaporator Repair (Aluminum Epoxy) 799832 Kit, Porcelain Repair (White) 503695 Cork Sealer (1/4 Pound) OPTIONAL PARTS For Models: ET8WTMXKQ00, ET8WTMXKT00 (White) (Biscuit) Illus. Part DESCRIPTION Customer Touch−Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz.
