- Page 1 CABINET PARTS REFRIGERATOR For Models: ER2MHKXPL05 (Stainless−VCM) Part No. W10114188 08−06 Litho In U.S.A. (rrm)
-

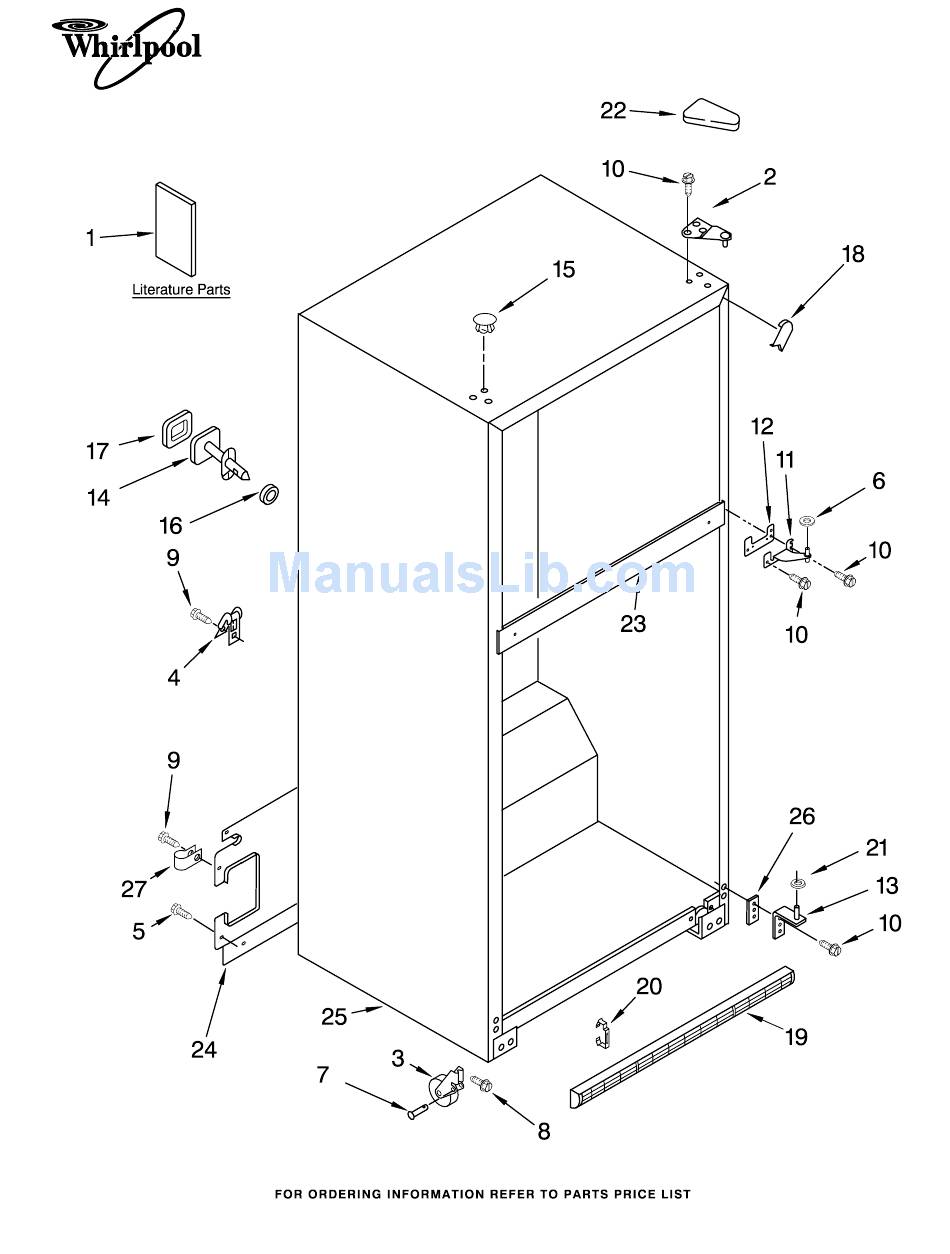

Page 2: Cabinet Parts
CABINET PARTS For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION Literature Parts 2314274 Service & Wiring Sheet 2319928 Energy Label 2314472 Use & Care Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./Fzr. 2189410 Hinge (Top) 2166108 Roller, Front (2) 549193 Clamp−Service Cord... -
Page 3: Door Parts
DOOR PARTS For Models: ER2MHKXPL05 (Stainless−VCM) W10114188... - Page 4 DOOR PARTS For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION 2218505 Refrigerator Door (Includes Illus. 7 & 12) 2195388 Tray, Door 2204840 Hole Plug, Endcap 2221644 Endcap, Handle (Refrigerator) 489276 Screw 2202882 Door Gasket, Magnetic 2210566 Housing Compartment 2262218 Nameplate 2159306 Trim, Door Shelf...
- Page 5 LINER PARTS For Models: ER2MHKXPL05 (Stainless−VCM) W10114188...
- Page 6 LINER PARTS For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION Liner (Not a Serviceable Part) 2197380 Grommet (2) 2254360 Gasket, Evaporator Cover (2) 2304099 Defrost Timer 2204640 Thermostat, Tube Barrier 941839 Hole Plug 2310077 Wire Assembly Control Box 2162085 Socket, Light...
-
Page 7: Unit Parts
UNIT PARTS For Models: ER2MHKXPL05 (Stainless−VCM) W10114188... - Page 8 4387731 Cover (Service Only) 2162358 Production 4387938 Overload (Service Only) 2302290 Production Grommet (4) 1100826 Production 4387558 Service UNIT PARTS For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION 2258450 Start−Device 2150304 Roller (2) 2221797 Rivet 2182338 Clip, Heater 489373 Screw 2201185 Support Block...
-
Page 9: Shelf Parts
W10114188 SHELF PARTS For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2200988 Glass, Full Shelf 2163762 Cup, Shelf Mtg. 489478 Screw 2188687 Trim Shelf, Rear 2201102E Shelf, Cantilever 2188685 Trim, Shelf Front 2314502 Crisper Cover... - Page 10 606755 Bag, Insulation (36−5/8" x 46") 799833 Kit, Evaporator Repair (Aluminum Epoxy) 799832 Kit, Porcelain Repair (White) 503695 Cork Sealer (1/4 Pound) For Models: ER2MHKXPL05 (Stainless−VCM) Illus. Part DESCRIPTION Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz.
