Installation

Only qualified service personnel should perform this installation. Always wear a wrist
strap and follow standard ESD prevention measures when handling any printer
CAUTION
circuit card assembly.

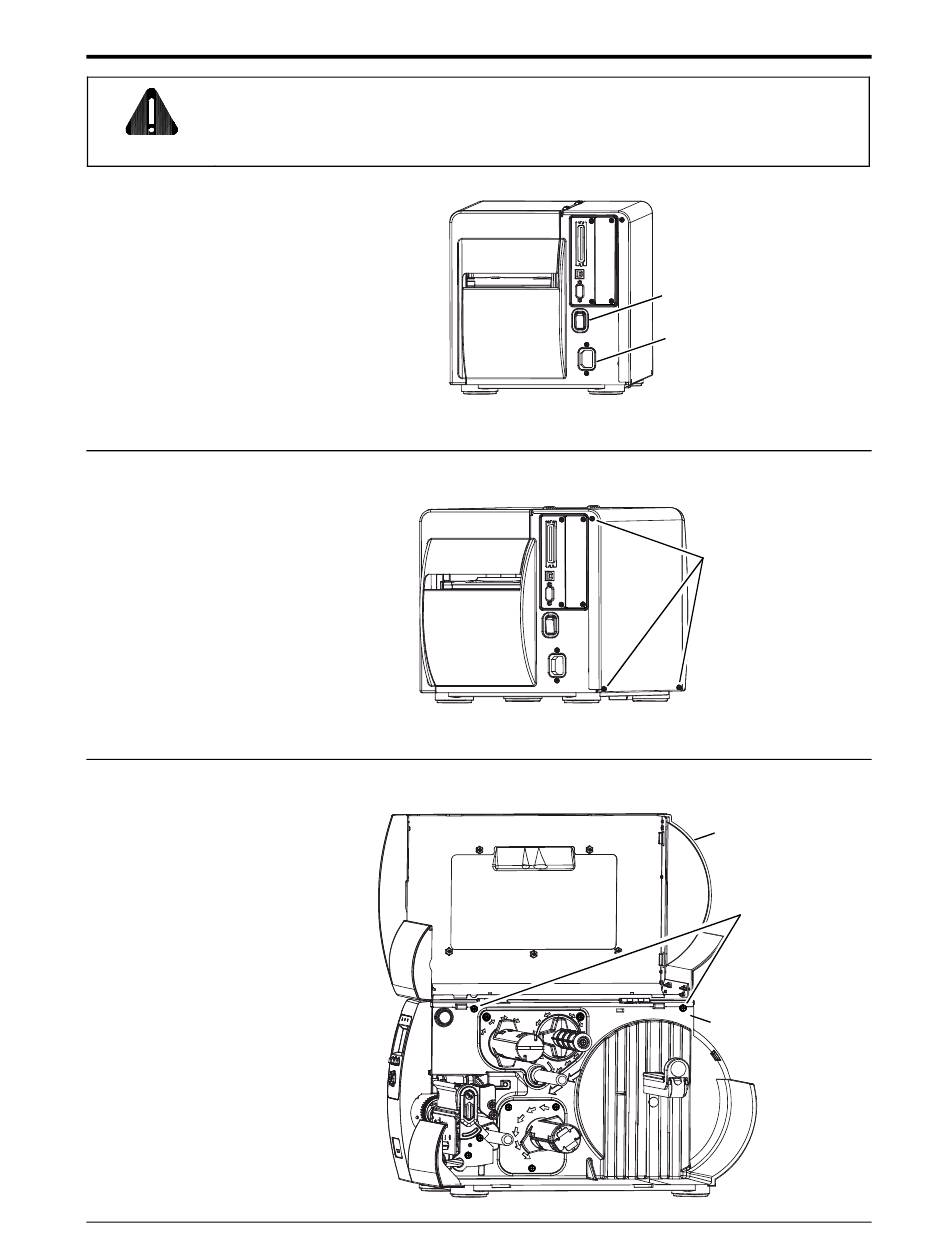

A) Turn OFF the Power Switch
and unplug the power cord
from the AC Receptacle.
Disconnect the interface
cable(s).
B) Remove the Cover Screws
on the outside of the printer.
C) Raise the Cover. Loosen the
Cover Screws on the
Centerplate then remove the
Cover.
3
Power Switch
AC Receptacle
Cover Screws
Cover
Cover Screws
Centerplate
