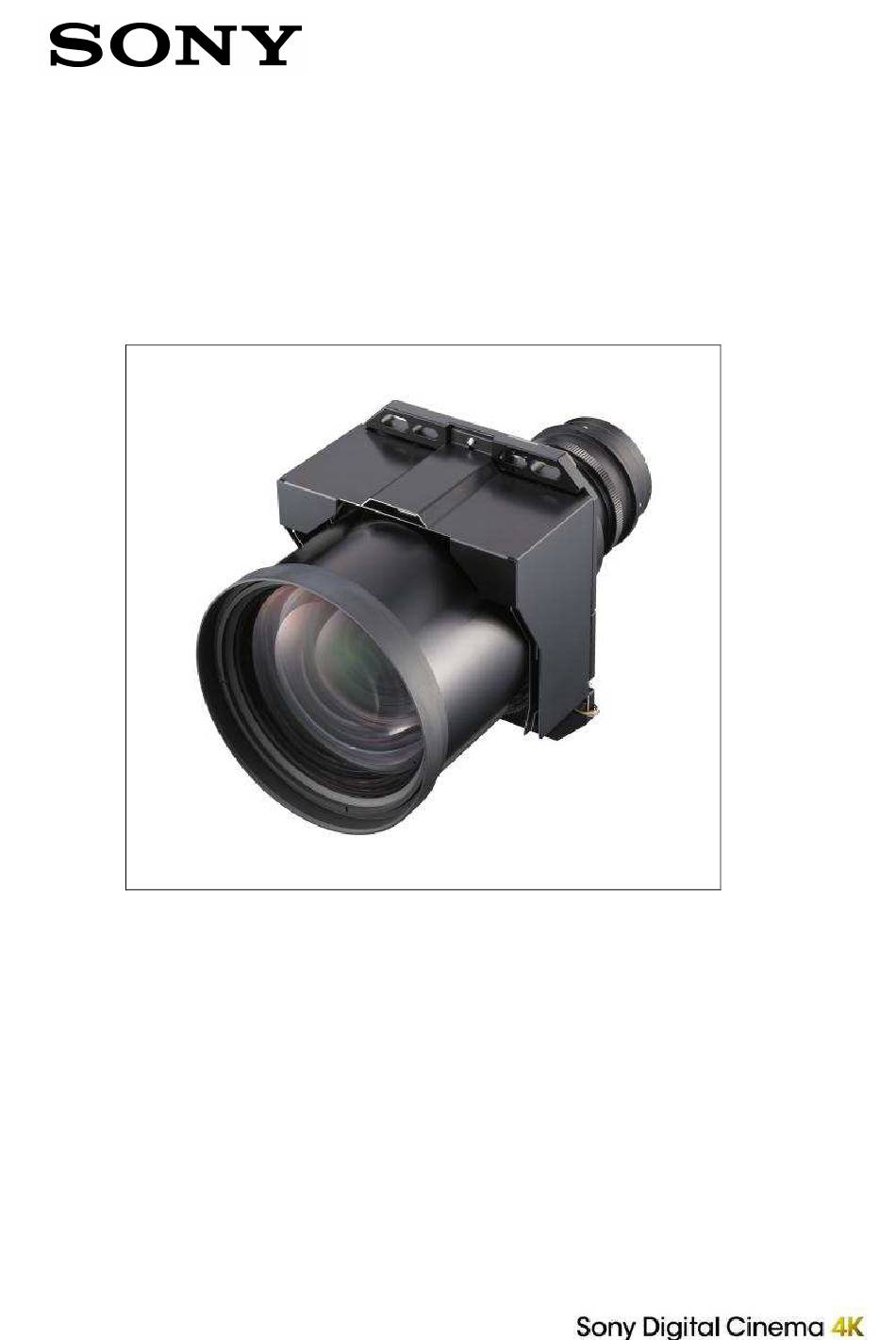

- Page 1 - Product Information- LKRL-Z200 Series 2D Lenses for SRX-R320 and SRX-R220 Projectors Edition...
-
Page 2: Table Of Contents
Notice: Features and specifications are subject to change without notice. Values for mass and dimensions are approximate. Sony is a registered trademark of Sony Corporation. All other trademarks are the property of their respective owners. Published April, 2013 © Sony Professional Solutions Europe, 2013... -
Page 3: Introduction
1. Introduction Sony provides a comprehensive range of ultra high quality lenses for its Digital Cinema 4K projector models to accommodate most common theatre auditorium throw ratios (see table below). The DCI’s 4K image resolution format of 4096 x 2160 pixels offers the potential to display four times more detail than the 2K image resolution format of 2048 x 1080 pixels. -
Page 4: Projector And Lens Compatibility
LKRL-Z500 Series lenses SRX-R220 is discontinued but in the event of needing to replace an LKRL-Z100 lens due to relocation or the unlikely event of irreparable damage/failure please use LKRL-Z200 Series counterpart described in Section 8 3. Price, Availability and Ordering information... -
Page 5: Features
4. Features True 4K quality Sony Digital Cinema 4K projectors are manufactured to meet the highest image resolution specified by the DCI: 4K at 4096 x 2160 pixels. The lenses are manufactured from ELD (Extra Low Dispersion) glass to create a superfine... - Page 6 Save the settings in the Function memory along with masking etc. • Switch to the 2.39:1 test pattern, adjust the zoom and focus to fill the height of the screen. Adjust the Electric V shift to align the image centre with the screen centre of necessary www.pro.sony.eu/dcinema...
-
Page 7: H Shift Plate
H shift plate The H shift plate is a new facility introduced on the LKRL-Z200 series lenses to simplify H shift adjustment when swapping between 2D and 3D lenses where the projector. The H shift plate is preset at the factory at the centre position (no H shift). If H shift is needed during installation, the lens is adjusted for the required H shift and then the the H shift plate is locked in position using the two adjustment screws. -
Page 8: Lens Memory Function
Lens Memory Function The Lens Memory function enables Sony 4K digital cinema projectors to meet the single lens requirement of the DCI specification for digital cinema so that the projector can re-frame an image automatically when going between different aspect ratios such as 1.85:1 aspect ratio during commercials and Scope 2.39:1 aspect ratio for the main feature movie. -
Page 9: Installation
2. Connect the three cable harnesses; Focus, Zoom and Potentio; to their respective connectors on the projector chassis. 3. Perform the lens alignment procedure as detailed in the SRX-R320 installation manual www.pro.sony.eu/dcinema... -
Page 10: Specifications
Operating humidity 0% to 90% without condensation) Storage humidity 0% to 90% (without condensation) Dimensions (W x H x L) Approx. 187 x 222 x 381 (mm) Mass Approx. 9 Kg Shipping carton size 760L x 360W x 440H approx.. www.pro.sony.eu/dcinema... -
Page 11: Dimensions
7. Dimensions 7.1 LKRL-Z211 dimensions www.pro.sony.eu/dcinema... -
Page 12: Lkrl-Z214 Dimensions
7.2 LKRL-Z214 dimensions www.pro.sony.eu/dcinema... -
Page 13: Lkrl-Z219 Dimensions
7.3 LKRL-Z219 dimensions www.pro.sony.eu/dcinema... -
Page 14: Replacement Of Lkrl-Z100 Series Lens
SRX-R220 to a different auditorium with a different throw ratio or in the unlikely event of an irreparable failure/damage to an LKRL-Z100 Series lens. The diagram below highlights the original LKRL-Z100 Series lenses and their LKRL-Z200 Series equivalents. LKRL-Z100 Series Lenses LKRL-Z200 Series Lenses Lens Zoom Range Lens Zoom Range LKRL-Z111C x1.07 ~ x1.70... - Page 15 www.pro.sony.eu/dcinema...
