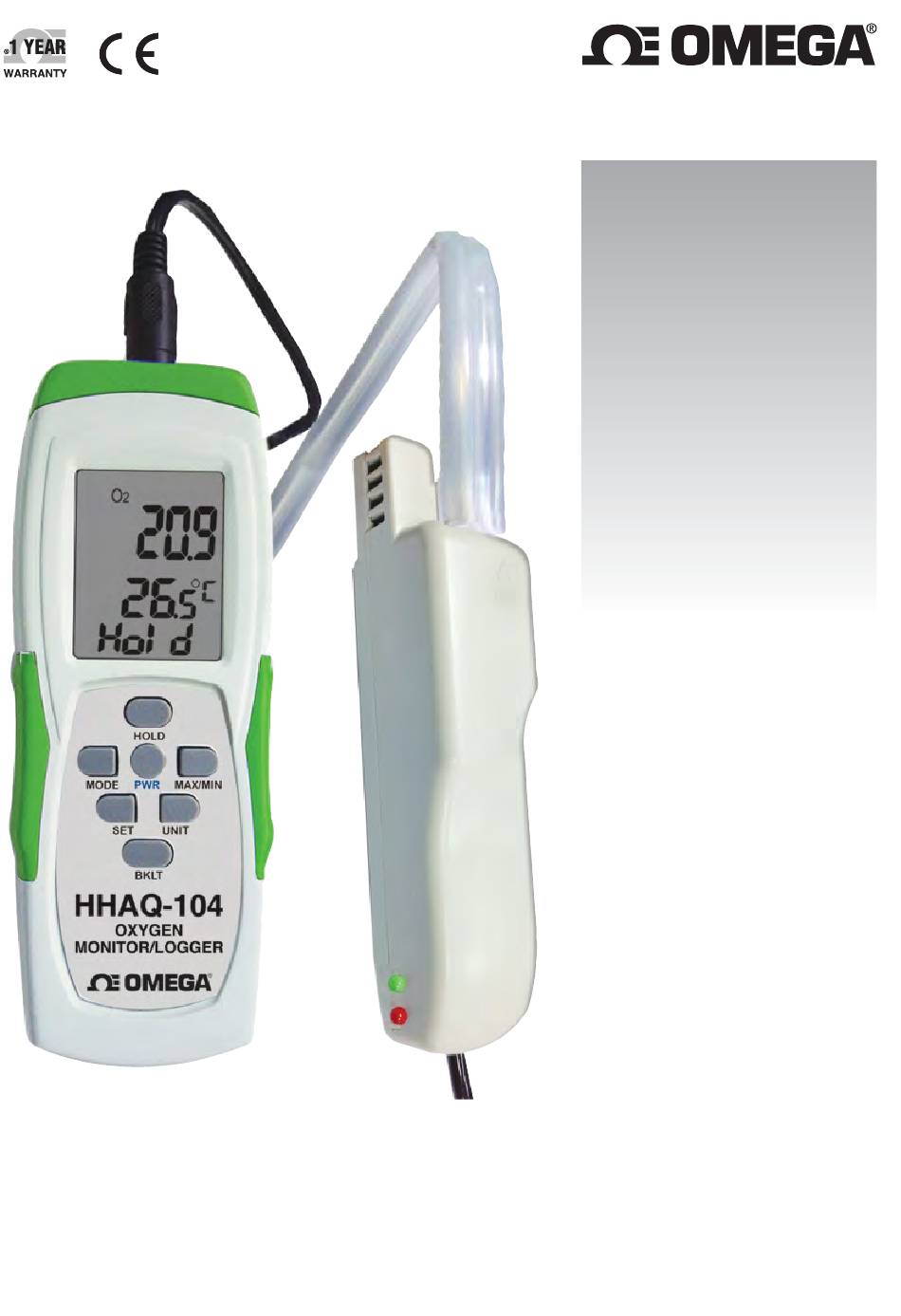

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info HHAQ-104 Oxygen Monitor/Logger...
- Page 2 For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human...
-
Page 3: Specification
, the meter features remote probe and detachable soft in/out tube for reach air-duct or where not suitable to put probe inside simply , easily operate with one hand hold the meter, the other hand place or hold probe. HHAQ-104 may link to PC via USB interface (Cable) off line, logging the reading with user-friendly free software. -
Page 4: Button Description
!! ATTENTION!! Do not attempt to open the meter or sensor probe, or the warrant is expired. In normal measurement mode, turn on the meter, fan activates immediately around every 3 seconds, for first time use, it takes couple minutes to warm up, display shows 00000 means the meter is under warming up status, when warm up finished, display will show current O value automatically. -
Page 5: Operation
Warning: Remove batteries when not use to prevent battery leakage (Out of warranty) and power consumption. OPERATION: 1. For each operation, make sure you are using fresh batteries, same brand, same power of batteries is required, and otherwise meter shows erratic readings or leakage. Warranty is void if not follow the notices. - Page 6 The electric fan is always on to make sure meter is in measurement status until you turn off the meter. If you think ambient is stable enough or you don’t operation in few minutes, you may turn off the fan by short pressing SET button.
- Page 7 NOTE: Only ±9.9C, ±9.9F, ±9.9% are available to be adjusted. Long press HOLD or BKLT button may quick to increase or decrease values. DATALOGGER PC SOFTWARE SCREEN Current date/time Logger status Logger status Temp, RH% Stored date/time Parameter Download button Value and line color Exit Warning message...
- Page 8 There are up to 32,004 points memory capacity, you may select from 1,000 points up to 32,004 points ü from pc software, the total 10 recording status bars are divided by total memory points, you may see the recording status from bars on LCD. ü...
- Page 9 Reminder: Software is installed completed. “Get DataLog’s Identifier” shows as below, then press SETTING button to enter Logger setting from the tool bar. If logger is not plugged in USB port, the warning message “Reminder: Data Logger is not plugged in USB port!”...
-
Page 10: Logger Status
BASIC(Pic 1): 1: ID setting Maximum 20 characters, name your logger press OK button to confirm Please type in capital. Space is unacceptable. 2: Current Date/Time Clock setting, the system automatically shows current date and time of your pc. Press OK to confirm. (Note: Schedule date &... -
Page 11: Retrieve File
the earliest memory. NOTE: Under Key start and Roll-over mode, after downloaded previous data, long press BKLT meter starts recording with same setting. LOGGER FUNCTION DOWLOAD DATA: Press DOWNLOAD button, data download in few seconds, Graph shows automatically, message area shows the downloading points. -
Page 12: Error Message
LINE COLOR SELECTION 1. Choose the color beside the readings (Ex. O , RH humidity), color box shows below the readings. 2. Move mouse to select color 3. Click to save, then chose color appears on line and bar. ERROR MESSAGE: Q1: Erratic readings? A1: Replace with new batteries (AAA x 6 pcs) or AC/DC adaptor and check again. -
Page 13: Warranty Disclaimer
