Page 4
Specifications
TYPE
Power Source
Power Output
Gain
Frequency Response
Tone Controls
Signal to Noise ratio
Product's look may be vary from given actual photo.
Thanks for using amplifiers.
For any assistance/suggestion
visit us at www.5core.com.
M5400913IN
ISO 9001:2015
CERTIFICATE NO.: 16RQ07AY
XLR Electronically balanced discrete signal
AC: 220-240V 50/60Hz
DC: 12V Inbuilt (Rechargeable)
80W Max
60W RMS at 10% THD
50W RMS at 5% THD
+10dB to +60dB
<10Hz-120KHz(-1dB)
<10Hz-180KHz(-3dB)
BASS:- ±10db at 100Hz
TREBLE:±10db at 10kHz
110dB/112dB
MADE IN INDIA
O P E R A T I O N A L M A N U A L

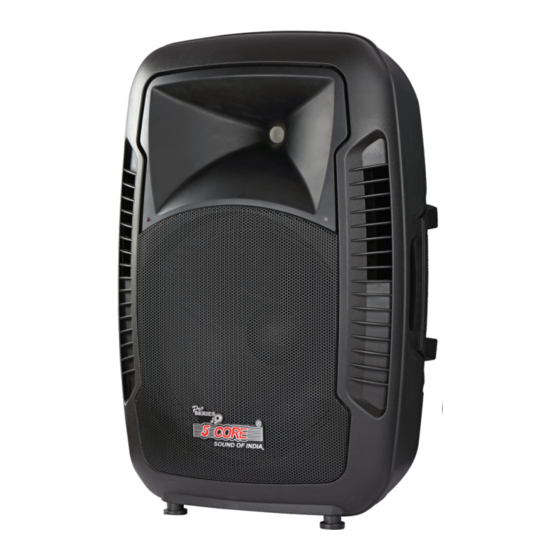

15" Active Amplifier
15"Active Amplifier incorporates high-tech design and
circuitry with high quality performance and
absolute reliability.
• Thank you for purchasing 5CORE PA Amplier.
• Please read this manual thoroughly before making connection and turning on the power. Following
the instructions in this manual will enable you to obtain optimum performance from your new 5CORE
PA Amplier.
• Please retain this manual for future reference.
Page 1
(Rechargeable)
www.5core.com
