- Page 1 Est. Est. 1984 1984 Dear User: ¬ Thank you for purchasing 5 CORE Home Theater You are sincerely recommended to read this manual carefully & completely prior to use for best usage of this device.
-
Page 2: Installation
Main Unit Control Operations 1. VOLUME : Press shortly to volume level+ & volume level-. 2. BASS : Rotate clockwise for Bass level+ & anti clockwise for Bass level-. 3. MODE : To select All Modes (AUX/ /SD/FM). Default setting in AUX mode. 4. TREBLE KNOB: Rotate clockwise for Treble+& anti clockwise for treble-. 5. ST-BY: For Power ON/OFF, Available in all modes. 6. PREVIOUS : Press shortly to select the previous song in /SD mode. Press shortly for 9 and press for 3 second to select the previous channel in FM mode. 7. PLAY/PAUSE : Press shortly to Play/Pause the song in /SD mode. Press for 3 second to auto scanning in FM mode. 8. NEXT : Press shortly to select the next song in /SD mode. Press shortly for : and press for 3 second to select the next channel in FM mode. Note: Due to continuous up gradation, specifications and features may change without intimation of prior notice. Installation Satellite Speaker AC IN AC 220V ~ 240V 50/60Hz Satellite Speaker Satellite Speaker Power Cable Main Speaker Satellite Speaker 1. Connect t he s atellite s peaker c able t o t he o utput p ort o f m ain u nit i n r espective c olour sockets. -
Page 3: Remote Description
Remote Description 1. POWER KEY: Power ON/OFF available in all modes. 2. MUTE KEY: Mute available in all modes. 3. MODE KEY : Press Mode key to select AUX/ /SD /FM Mode. Default setting in AUX mode. 4. EQ : Sound performance in /SD mode. 5 kinds of EQ modes (Normal. Rock. Jazz. Bass. Classic) can be personalized in /SD mode. 5. RPT KEY : Press for repeating songs in /SD mode. In AUX and USB/SD mode no function. 6. SCN KEY: Press for Auto search channels in FM mode. In AUX and /SD mode no function. 7. VOL- KEY : To Decrease sound volume in all modes. 8. VOL+ KEY: To increase sound volume in all modes. 9. NEXT KEY: Press shortly to select the next song in /SD mode. Press shortly for Next Channel in FM mode. - Page 4 ¨ Dear 5 CORE Customer, Congratulations on becoming a proud owner of 5 CORE product. You have now joined ¨ ¨ the fraternity of millions of satisfied 5 CORE customers spread across the globe. 5 CORE is a brand shining its way to success with a strong history of manufacturing of PA ¨ system & Equipments. Besides being an ISO certified company, we are also working on concept of automation and change system which is being supported by latest machineries and tools at our factories. We are exporting our products to over 55 countries today covering almost all of America, Europe, Africa, Asia and Middle-East. Our products are extensively available in countries like India, U.A.E., Saudi Arabia, Iran, South Africa, Kenya, Nigeria, Uganda, Ghana, Sudan, Sri Lanka, Yemen, Ethiopia, Madagascar, Mauritius, Bangladesh, Burma, Columbia, Singapore, etc.
-
Page 5: Specification

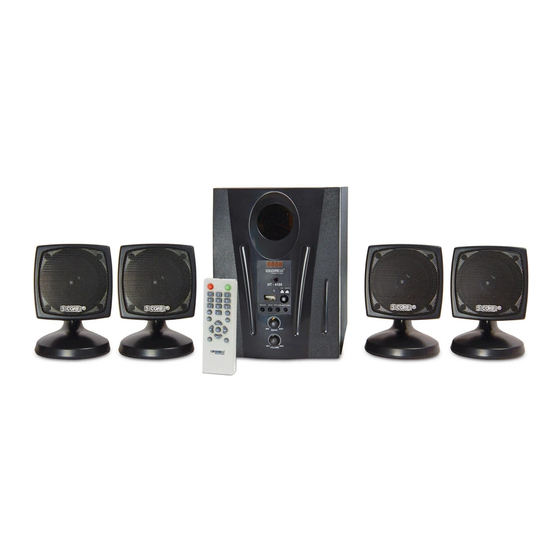

Features 1. 4.1 Channel multimedia speaker with AUX/ /SD/FM. 2. AUX audio input compatible with DVD/PC/LCD TV. 3. Fully function remote control. 4. Digital type volume control & rotary type bass control. 5. Power Indicator LED. Specification Output Power 35W + 12W*4 Speaker Size / Watt Main unit: 10.2cm(4") / 20W, Satellite: 7.6cm(3") / 10Wx4 Impedance Ohm Frequency Response Main Unit: 40H-200Hz. Satellite: 200Hz-20KHz S/N Ratio ³ 55dB Sensitivity 500mV rms@ 1KHz FM Freq. Receiver 88MHz to 108MHz Power Supply AC 220V-240V / 50Hz : 60Hz Controls Provided Rotary Type (Volume/ Bass / Treble )Stand-By Previous , Play/Pause. Next. Input & Output Jack RCA Jack Accessories 1. Main Speaker 4. Audio Cable: 2. Satellite Speaker: 5. Remote Handset: 3. User Manual:...
