Milwaukee 49-20-0001 Manual

IMPORTANT SAFETY INSTRUCTIONS
Read and understand all instructions in this manual and
WARNING
the manual provided with your power tool. Failure to follow
all instructions listed below, may result in electric shock, fire and/or
serious personal injury. Save these instructions.

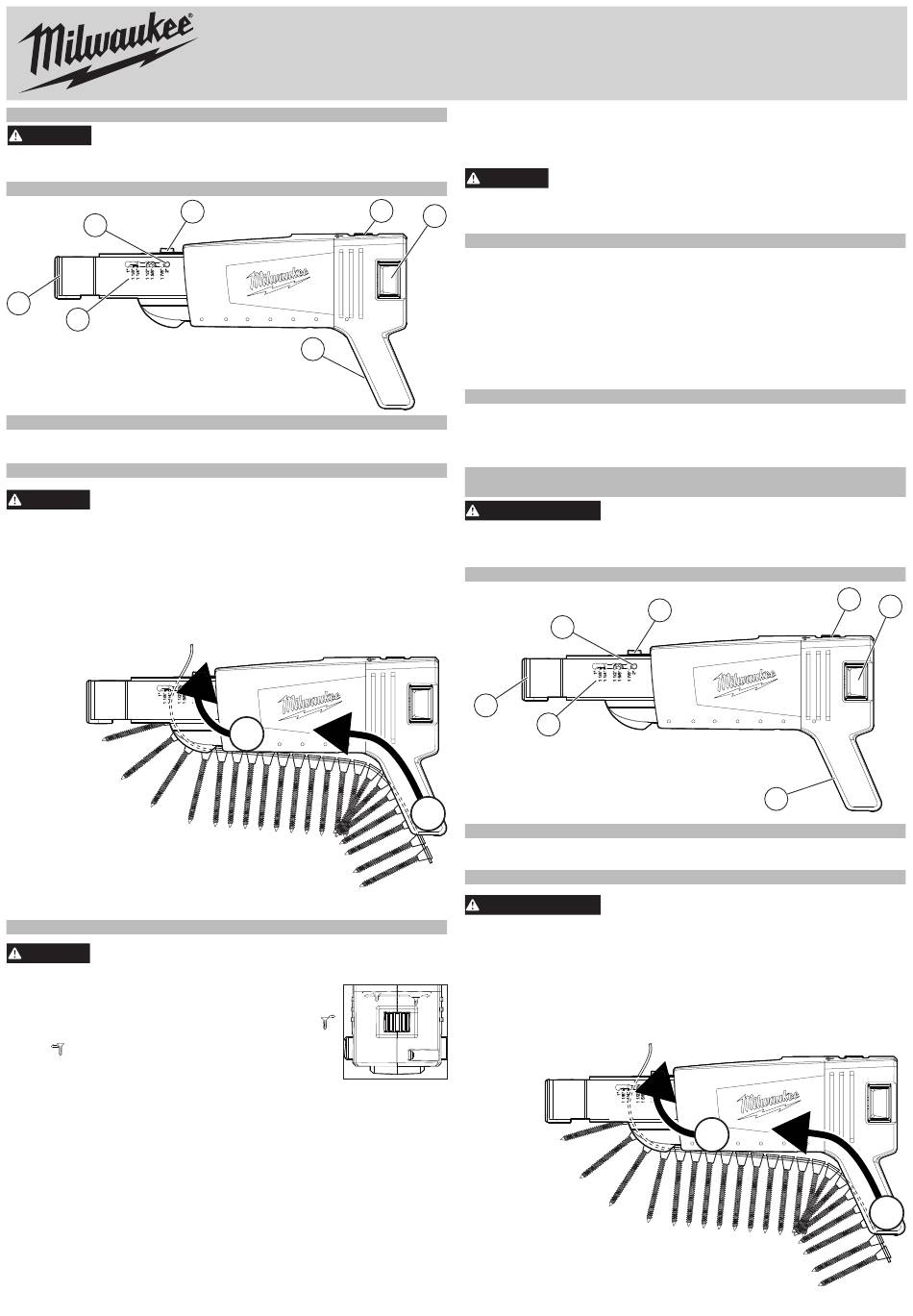

FUNCTIONAL DESCRIPTION
1
7
6
1. Screw length indicator
2. Screw length adjustment lever
3. Depth adjustment dial
4. Tool release buttons
SPECIFICATIONS
Max Capacity .................................. 2" (50 mm)
For use with .................................... 2866-20 M18™ FUEL™ SCREW GUN
Only use accessories specifically recommended
WARNING
for this tool. Others may be hazardous.
Attaching to the Screw Gun
1. Remove the battery from the tool.
2. Remove all bits and accessories from the screw gun.
3. Remove the nose cone from the tool.
4. Install the collator bit into the screw gun.
5. Line up the collator with the screw gun and snap into place.
6. To remove, remove battery pack and screws. Press in the tool release but-
tons and pull the collator off of the tool.
Installing Collated Screw Strips
1. To install, begin
feeding the screw
strip through the screw
strip guide (1).
2. Following the contour of the tool, feed the strip over
the gear wheel, through the nose of the tool (2).
3. The first screw will "click" into position.
4. NOTE: To remove screws, continue to pull forward over
the gear wheel. Do not pull out from the bottom. This will
damage the gear wheel.
To reduce the risk of injury, always wear safety goggles or
WARNING
glasses with side shields.
Adjusting the Depth of Drive
To adjust the depth of drive, rotate the depth of drive dial.
Continue adjusting the depth locator to the desired depth.
1. To increase the driving depth, turn the dial clockwise
2. To decrease the driving depth, turn the dial counterclock-
wise .
Using the Collator
1. Align the nose square against the work surface.
2. Pull the trigger and lock-on the tool according to the screw gun's operator's
manual.
3. Push the tool forward smoothly to sink the screw into the work surface.
4. Lift the tool from the work surface. The next screw in the strip is automati-
cally moved into place.
Maintenance
Keep your tool, battery pack and charger in good repair by adopting a regular
maintenance program. Inspect your tool for issues such as undue noise, mis-
alignment or binding of moving parts, breakage of parts, or any other condition
that may affect the tool operation.
Cleaning
Clean dust and debris from vents. Keep handles clean, dry and free of oil or
grease. Use only mild soap and a damp cloth to clean, since certain cleaning
agents and solvents are harmful to plastics and other insulated parts. Some
of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household detergents containing ammonia.
CAT. NO. / NO DE CAT. 49-20-0001

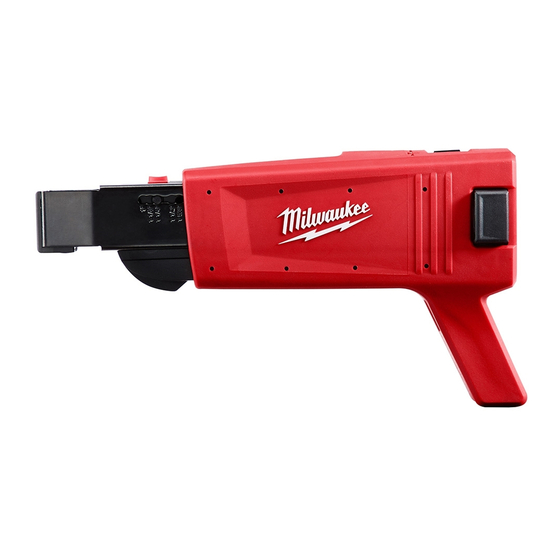

COLLATED DRYWALL ATTACHMENT
ACCESSOIRE EN BANDE POUR PLACOPLÂTRE
ADITAMENTO EN TIRA PARA TABLAROCA
2
5
5. Screw strip guide
6. Screw length scale
7. Nose
ASSEMBLY
2
OPERATION
.
Repairs
For repairs, return the tool, battery pack and charger to the nearest service
center.
Accessories
WARNING
ardous.
3 For a complete listing of accessories, go online to www.milwaukeetool.com
4
or contact a distributor.
1-800-SAWDUST
Contact Corporate After Sales Service Technical Support with technical,
service/repair, or warranty questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at www.milwaukeetool.com to receive
important notifications regarding your tool purchases.
