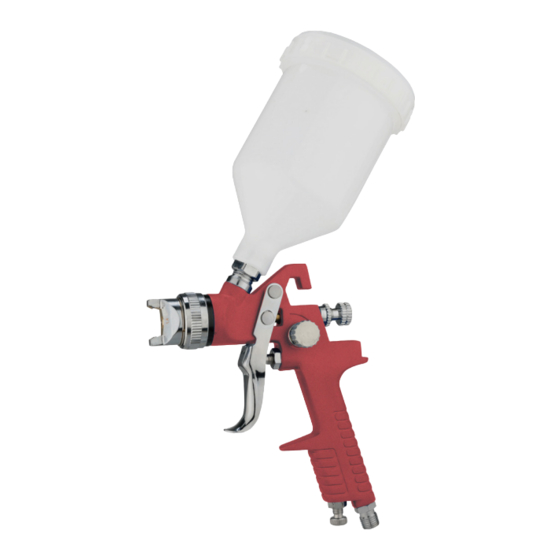

Thunder H827C Manual

20 fl. oz. high volume, low pressure gravity feed spray gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
20 Fl. oz. High Volume,
Low Pressure Gravity
Feed Spray Gun
MODEL: H827C
NOTICE
CLEAN IMMEDIATELY
Clean the spray gun IMMEDIATELY after EVERY
use, in between costs, and when it will be idle for
more than 5 minutes. Delay or inadequate cleaning
will permanently clog the spray gun.
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAIN-
TENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND
ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD
RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.
IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCE A PROBLEM WITH YOUR RED THUNDER
PRODUCT, DO NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR CUSTOMER SER-
VICEDEPARTMENT AT 1-866-355-0018. BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION
AVAILABLE: MODEL No., DATE PURCHASED AND STORE LOCATION. AN RED THUNDER REPRE-
SENTATIVE CAN RESOLVE YOUR PROBLEM OVER THE PHONE. IF YOU WOULD LIKE TO MAKE A
SUGGESTION OR COMMENT, GIVE US A CALL OR EMAIL US AT: INFO@REDTHUNDERSTORE.COM.
YOUR FEEDBACK IS VITAL TO US.
1

Advertisement

Table of Contents
loading

Related Manuals for Thunder H827C

Summary of Contents for Thunder H827C

  • Page 1 ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE. IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCE A PROBLEM WITH YOUR RED THUNDER PRODUCT, DO NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR CUSTOMER SER- VICEDEPARTMENT AT 1-866-355-0018.

  • Page 3: Recognize Safety Symbols, Words And Labels

    CONGRATULATIONS! Thanks for choosing this product. At Red Thunder, our aim is to provide you with quality products at an affordable price, and we want you to be totally satisfied with your product and our Customer Service. If any help and advice is needed, please contact us at 1-866-355-0018.

  • Page 4: Important Safeguards

    This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety mes- sages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 5: General Safety Warnings

    Do not operate this Spray Gun if damaged during shipment, handling or misuse. Damage may result in bursting, which can cause serious injury or property damage. All damaged parts must be repaired or replaced as needed prior to operating this Spray Gun. Check to see that all nuts, bolts and fittings are secure before putting this Spray Gun into service.
  • Page 6 Use the right tool. Use tools properly and for their intended task. Do not force a small tool to do the job of a heavy-duty tool. Using the right tool to do the right job will make doing the job safer. Check damaged parts before use of any air tools or attachments.

  • Page 7: Safety Rules For Spray Guns

    SAFETY RULES FOR SPRAY GUNS RISK TO BREATHING • Spray materials may be harmful if inhaled, or if there is contact with the skin. Adequate exhaust must be provided to keep the air free of accumulations of toxic materials. For toxic vapors produced by spraying certain materials can create intoxica- tion and serious damage to health.

  • Page 8: Risk Of Burns

    • Maintain tools with care. Keep tools clean and oiled for best and safest performance. Follow instructions for lubricating and changing accessories. Wiping or cleaning rags and other flammable waste materials must be placed in a tightly closed metal container and disposed of later in the proper fashion. Do not direct paint stream at body.

  • Page 9: Installation And Location

    INSTALLATION AND LOCATION DO NOT place Spray Gun in an area: • Where there is evidence of oil or gas leaks. • Where flammable gas vapors or materials may be present. • Where air temperatures fall below 32ºF or exceed 104ºF. INSTALLATION AND LOCATION CONTROLS AND COMPONENTS:...

  • Page 10: Before Setup

    BEFORE SETUP TO PREVENT SERIOUS INJURY FROM EXPLOSION: Use only clean, dry, regulated, compressed air to power this tool. Do not use oxygen, carbon dioxide, combustible gases, or any other bottled gas as a power source for this tool. 1. Incorporate a filter, regulator with pressure gauge, in-line shutoff valve, and quick coupler for best service, An in-line shutoff ball valve is an important safety device becauseit controls the air supply even if the air hose is ruptured.

  • Page 11: Preparation And Assembly

    PREPARATION AND ASSEMBLY 1. After unpacking the product, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc., before put- ting unit into service. Tighten the gun to the cup securely using the connector with filter inside.

  • Page 12: Operation

    ADJUSTMENTS • The direction of the fan (horizontal or AIR CAP HORIZONTAL FAN vertical) can be changed by loosening the Air Cap Nut and turning the Air Cap 90 degrees. Hand tighten Air AIR CAP NUT Cap Nut after adjustment. VERTICAL FAN •...

  • Page 13: Maintenance

    4. Trigger the gun properly. Start the gun moving at the beginning of the stroke BEFORE SQUEEZING THE TRIGGER and release the trigger BEFORE STOP- PING GUN MOVEMENT at the end of the stroke. This procedure will blend each stroke with the next without showing an overlap or unevenness. Spray pattern may be infinitely adjusted from round to flat.
  • Page 14 Always exercise extreme care when using any solvent or thinner. Never clean gun near fire, flame, or any source of heat or sparks. Properly dispose of used cleaning materials. DO NOT soak entire spray gun in solvent or thinner for a long period of time as this will destroy lubricants and possibly make motion uneven.

  • Page 16: Specifications

    SPECIFICATIONS SPECIFICATIONS Air Pressure 20-70psi Air Consumption 6CFM @40psi Fluid Nozzle Size 1.4mm (0.057in.) Feed Type Gravity Mix Type External Bleed Type Non-Bleeder Air Inlet 1/4 In.-18 NPS Cup Size 20 fl.oz (600ML)
  • Page 17 Troubleshooting - Spray Pattern Diagnosis Note: The drawings on the left below resemble symptoms of spray pattern problems.Refer to the accompanying possible causes and likely solutions to the right. Problem Possible Causes Likely Solutions Heavy center 1. Pattern Knob partially 1.

  • Page 18: General Troubleshooting Chart

    General Troubleshooting Chart Possible Causes Likely Solutions Sputtering Spray 1. Low paint level. 1. Refill. 2. Cup tipped. 2. Hold upright. 3. Clogged Air Vent on Cup. 3. Clean Air Vent hole. 4. Loose Fluid Inlet connection. 4. Tighten Fluid Inlet connection. 5.

  • Page 19: Limited Warranty

    1. The sales receipt or other evidence of the date and place of purchase. 2. A description of the problem. 3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to: Red Thunder, Inc 7683 SE 27th St, Suite 186 Mercer Island, WA 98040 OUT OF WARRANTY Conditions, malfunctions or damage not resulting from defects in material or workmanship.
  • Page 20 Red Thunder, Inc. Address: 7683 SE 27TH Street, Suite 186 Mercer Island, WA 98040, USA Phone: +1 (866) 355-0018 Email: info@redthunderstore.com www.redthunderstore.com...
