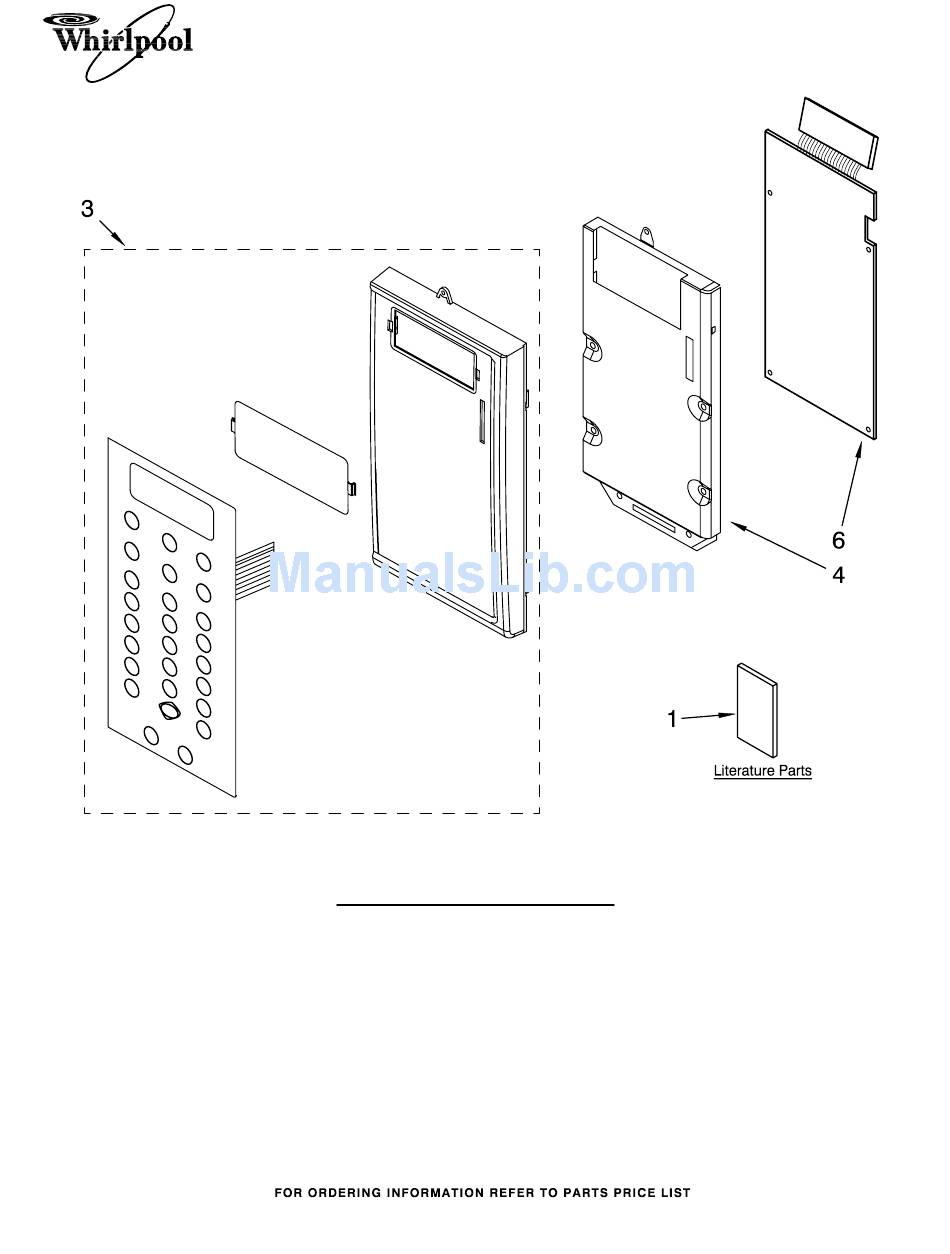

CONTROL PANEL PARTS
For Model: MH3184XPY4
(UNIVERSAL SILVER)
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
8205959 U & C Guide
8205606 Tech Sheet
8205810 Cook Guide Label
3
8205375 Panel Asy, Control
Includes Lens and
Membrane Switch
4
8205378 Bracket, Control
6
8205379 Microcomputer
1
Microwave Oven
1.8 Cu. Ft.
Part No. 8188452
