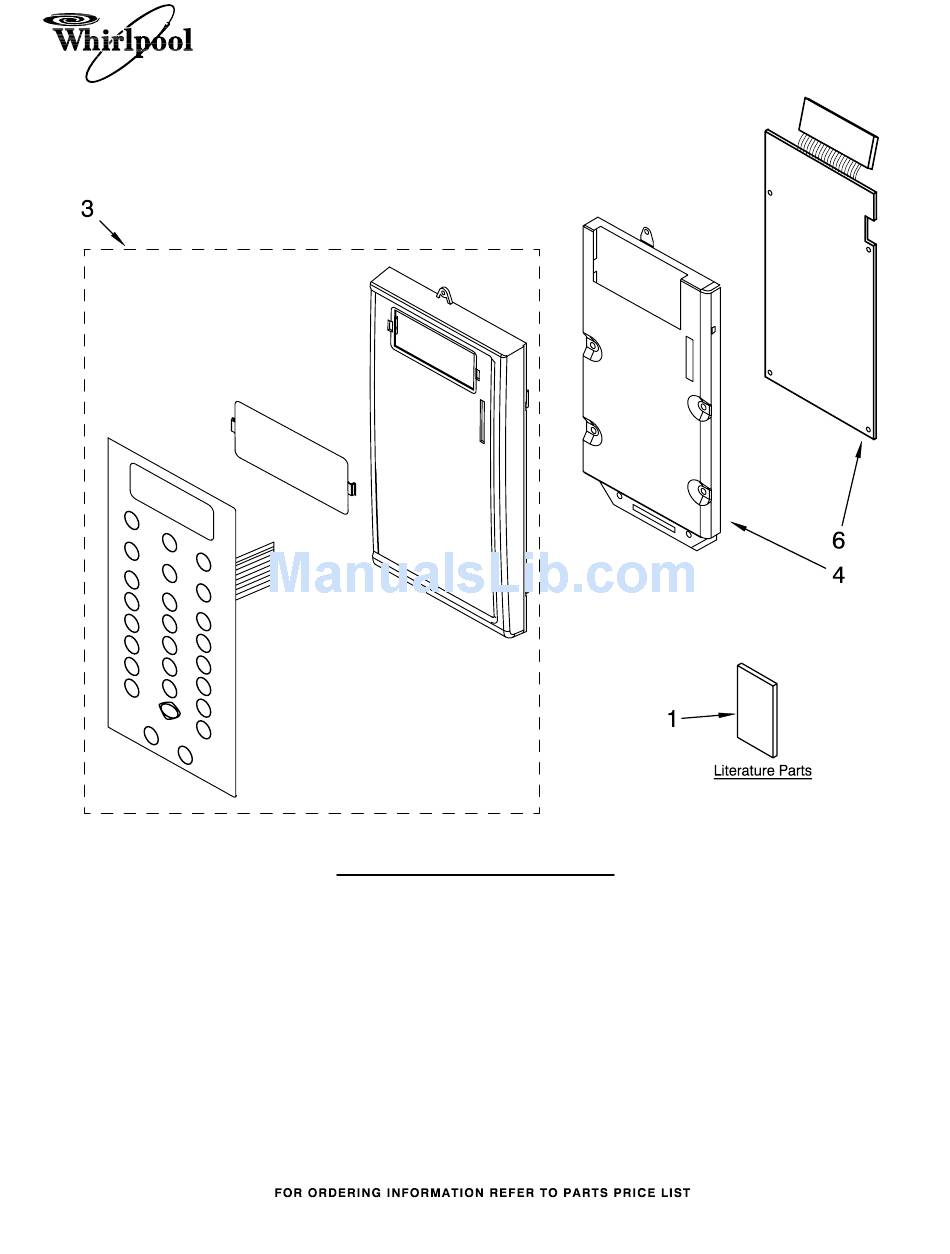

CONTROL PANEL PARTS
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE)
Illus.
No.
1
8204920 U & C Guide
8205606 Tech Sheet
8205621 Tech Sheet,
8205142 Instructn, Install
8204931 Cook Guide Label
3
8205374 White
8205376 Black
8205377 Biscuit
8205375 Stainless
4
8205378 Bracket, Control
6
8205379 Microcomputer
(BLACK)
(BISCUIT)
Part
No.
DESCRIPTION
Literature
Insert
Panel Asy, Control
Includes Lens and
Membrane Switch
1
Microwave Oven
1.8 Cu. Ft.
(STAINLESS)
Part No. 8206260
