For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0
5−06 Litho in U.S.A. (ebk)

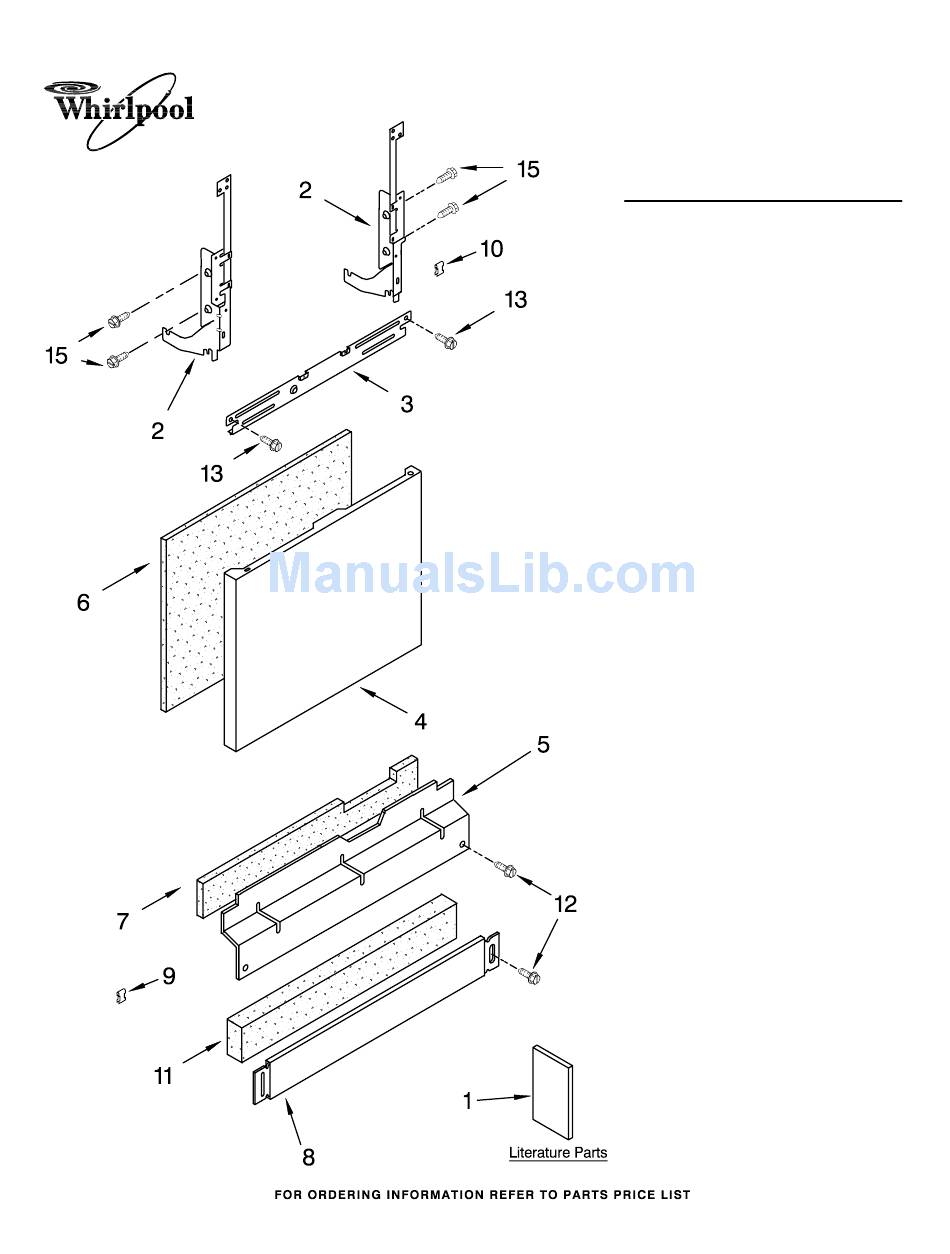

DOOR AND PANEL PARTS
(Black)
(White)
(Biscuit)
(Stainless)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
15
1
(Silver)
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
8575348 Instructions,
Installation
8575901 Energy Guide
8575899 Guide, Use & Care
Tech Sheet
8572216 English/French
Arm, Hinge
8534858 Left
8534857 Right
8268983 Stiffener,
Door
Panel Front
W10073200 Black
W10073210 White
W10073220 Biscuit
8269845 Stainless
Access Panel
(Includes Item 7)
8558260 Black
8558261 White
8558262 Biscuit
8268580 Insulation, Door
8542578 Insulation,
Access Panel
Toe Panel
(Includes Items
9 & 11)
8558252 Black
8558253 White
8558254 Biscuit
8269016 Clip, Grounding
8269740 Clip, Grounding
8268581 Insulation,
Toe Panel
Screw
302868 Black
3400836 White
3400865 Biscuit
304392 Screw
489470 Screw
Part No. 8194419
Advertisement
Related Manuals for Whirlpool GU2700XTSB0
Summary of Contents for Whirlpool GU2700XTSB0
- Page 1 DOOR AND PANEL PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) 5−06 Litho in U.S.A. (ebk) (White) (Biscuit) (Stainless) Illus. (Silver) UNDERCOUNTER DISHWASHER Part DESCRIPTION Literature Parts 8575348 Instructions, Installation 8575901 Energy Guide 8575899 Guide, Use & Care Tech Sheet...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) Illus. Part DESCRIPTION Console Asm. Includes Active Overlay & Insert W10008710 Black W10008720 White W10020990 Biscuit W10021000 Silver 8546546 Clip, BI−Metal 3400412 Screw (White) (Biscuit) Illus. Part DESCRIPTION 4 W10056090 Cover Control... - Page 3 DOOR AND LATCH PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) Illus. Part DESCRIPTION 3369051 Screw, Door 8545608 Harness, Vent Motor 8575895 Inner Door (Also Order Item 6) 8572583 Vent Assembly (Also Order Item 6) 8194419 (White) (Biscuit) Illus.
- Page 4 LOWER WASHARM PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) Illus. 8268333 Wash Arm Assembly 8268343 Cap, Internal 8268340 Seal, Sprayarm 8268342 Hub, Lower (Biscuit) (Stainless) Part DESCRIPTION Rear Feed (Also Order Item 3) Sprayarm (Also Order Item 3)
-
Page 5: Heater Parts
For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) 8194419 HEATER PARTS (White) (Biscuit) Illus. Part DESCRIPTION 8563007 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 8269262 Bracket, Heater Support NOTE: If heater element is removed, it must be replaced. - Page 6 FILL AND OVERFILL PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) (Biscuit) (Stainless) Illus. Part 8531412 Hose, Inlet 8531325 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 8563407 Fill Valve 304392 Screw 8268909 Switch, Overfill 8545881 Standpipe, 304231 Screw 8268895 Float &...
- Page 7 TUB AND FRAME PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) (Biscuit) (Stainless) (Silver) 8194419...
- Page 8 TUB AND FRAME PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) Illus. 8575978 Tub Assembly 8573061 Strain Relief 8268888 Door Seal 8531022 Drain Loop 8533836 Screw (8) 3367670 Screw 8269145 Bracket, 3400924 Retainer, Push−In 8269831 Wheel Leg 8524584 Leveler, Leg 8524473 Spring, Door 8575897 Wheel &...
- Page 9 PUMP AND MOTOR PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) (Biscuit) (Stainless) (Silver) 8194419...
- Page 10 PUMP AND MOTOR PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) Illus. 25 W10055980 Optical Water (Biscuit) (Stainless) Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 8268383 Chopper Assembly...
- Page 11 UPPER RACK AND TRACK PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) (Biscuit) (Stainless) (Silver) 8194419...
- Page 12 UPPER RACK AND TRACK PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) (White) Illus. 8539235 Dishrack, Upper 8531344 Housing, Adjuster 8539122 Right Hand 8539121 Left Hand 8268654 Adjuster Assembly 3385088 Wheel 8268703 Axel, Adjuster 8281156 Screw 9744566 Tine Row...
- Page 13 UPPER WASH AND RINSE PARTS For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) 8194419 (White) (Biscuit) Illus. Part DESCRIPTION 8557695 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Spinner, 3rd Level Wash 3400920 Cover, Screw 8268354 Mount 8268356 Manifold...
- Page 14 For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) Illus. Part DESCRIPTION 8561749 Lower Rack Assembly 8535078 Lid, Small Items 8268713 Wheel & Transport Assembly LOWER RACK PARTS (White) (Biscuit) Illus. Part DESCRIPTION 8562068 Tine Row 8562058 Clip, Silverware Basket 8539112 Retainer, Tine Row...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: GU2700XTSB0, GU2700XTSQ0, GU2700XTST0, GU2700XTSS0, GU2700XTSY0 (Black) Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 4396199 Black 4396200 White 4396201 Biscuit Moisture Barrier Kit...
