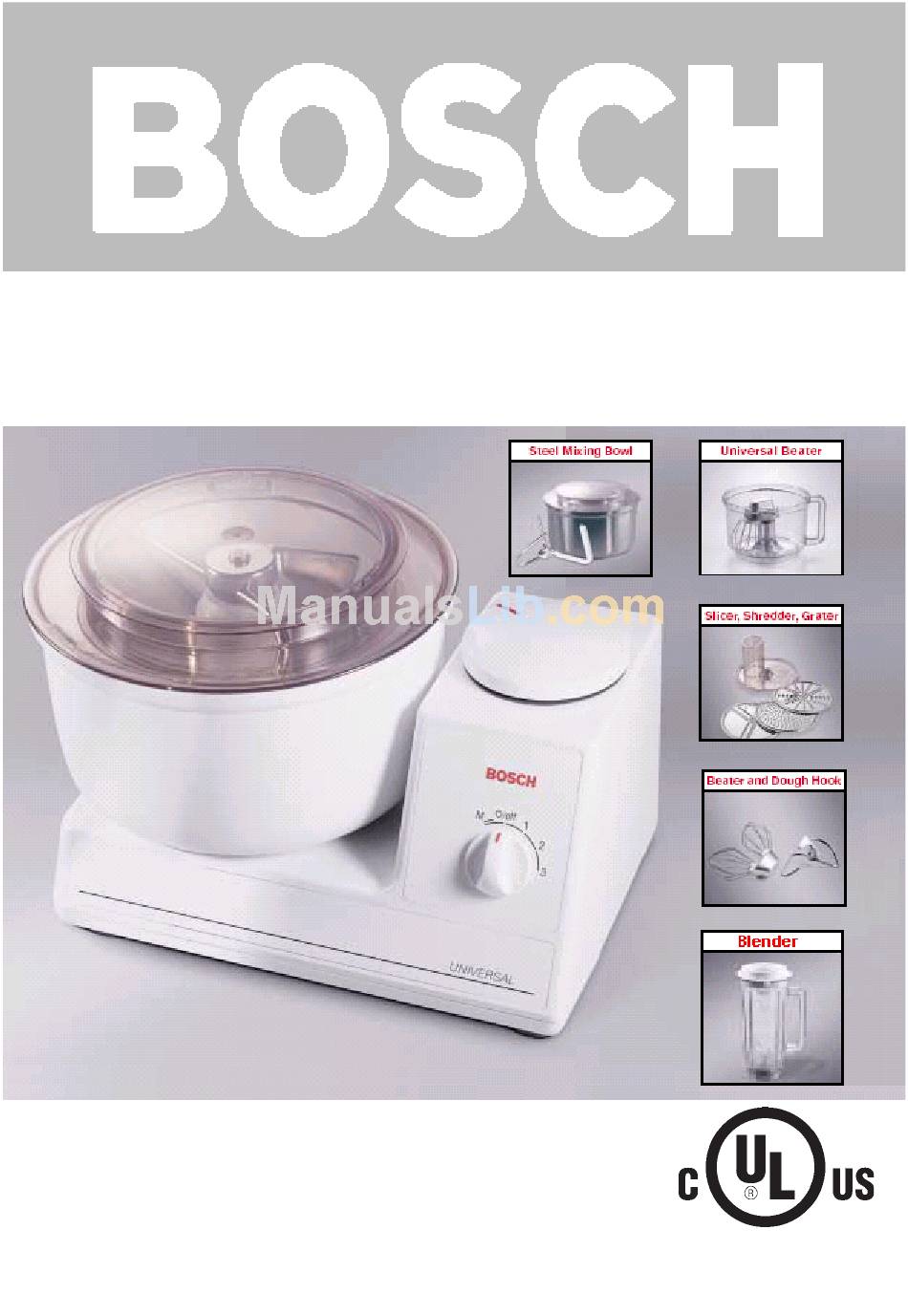

- Page 1 Owner’s Manual Universal Series Kitchen Machines for models: MUM 6610 UC • MUM 6622 UC MUM 6630 UC READ THIS MANUAL thoroughly for important safety and operating instructions before using this appliance.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS WARNING: A risk of fire and electrical shock exists in all electrical appliances and may cause personal injury or death. When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions before using the kitchen machine. 2. -
Page 3: Table Of Contents
Operation with dough hook and whisk assembly ... 12 Placing into operation with twin beating whisks ... 13 Care and cleaning of bowl and its accessories ... 14 Blender with unbreakable plastic jar ... 14 How to use blender ... 15 Placing blender into operation ... 16 Example of use of blender ... -
Page 4: About Your Kitchen Machine
Bosch Universal Series Kitchen Machine The Bosch Universal Series Kitchen Machine is available in 3 models: • The MUM 6610 UC comprised of the electronic power unit with integral cord storage, six-quart capacity mixing bowl, splash ring and cover (MUZ 6 KR3), twin beating whisks, dough hook and motor drive cover. - Page 5 MUM 6610 UC MUM 6622 UC MUM 6630 UC Figure 1...
-
Page 6: Special Accessories
Dual drives The Universal Series Kitchen Machines come with two drives: 1. A high-speed drive directly coupled to the motor, used to drive the blender, food processor accessories. 2. A high-torque drive used to drive the stirring/beating whisks, dough hook, meat grinder and other special accessories. -
Page 7: Getting Started
Integrated hand grips Side recesses molded into each end of the power unit housing provide for easy lifting and carrying of power unit when not in use, see 2e. Four rubber feet Four rubber feet provide the ultimate in stability, while also serving to isolate the power unit from the hard surface to minimize noise and vibration. - Page 8 Specific instructions are located on pages listed below: Attachment Mixing bowl w/dough hook ... 9–11 Mixing bowl w/twin whisks ... 11–14 Blender ... 14–17 Slicer/shredder ... 17–21 Stainless steel bowl ... 22–23 Table 1. 5. Operate unit with rotary switch.
-
Page 9: Standard Attachments
9. Work completed, remove attachment. If the attachment is of the continuous feed type or is the batch type and you have completed the work you wished to perform with the attachment, remove the attachment from the power unit per the instructions for the specific attachment being used. -
Page 10: How To Use Dough Hook
Figure 3. 3a. Bowl with cover and splash ring 3b. Dough hook 3c. Twin beating whisks How to Use Dough Hook The dough hook and mixing bowl are intended to be used to knead yeast doughs and to mix cookie and pastry doughs, and also when adding nuts, chocolate chips, dried fruit, hard butter or shortening, hardened brown sugar, etc. -
Page 11: Placing Into Operation With Dough Hook
clockwise while pushing down until it stops. 4. Place the splash ring on the bowl, making sure the tabs on the bowl fit into the recesses in the splash ring, and turn counterclockwise, see figure 5a. Then place the cover on the splash ring so that the tabs on the splash ring fit into the recesses in the bowl cover and turn the cover counterclockwise to... -
Page 12: Operation With Dough Hook And Whisk Assembly
OPERATION WITH DOUGH HOOK AND WHISK ASSEMBLY Below you will find a table listing examples of how the dough hook and the whisk assembly are to be used for various typical applications. Attachment Ingredients Twin beating Egg whites (2) whisks Whipping cream Sponge cake (any recipe) Combine all ingredients... -
Page 13: Placing Into Operation With Twin Beating Whisks
2. If you have not already done so, move the motor drive cover to the high-speed drive. Place the mixing bowl on the drive of the power unit and turn the bowl counterclockwise with a slight downward pressure until bowl is firmly seated, see figure 4a. -
Page 14: Care And Cleaning Of Bowl And Its Accessories
1. There is a risk of injury from sharp blades when using the blender attachment. 2. Keep hands and utensils out of the blender jar while it is attached to the power unit. 3. Blades are sharp. Handle carefully. 4. To avoid injury, never place blade assembly on power unit without blender jar properly attached. -
Page 15: How To Use Blender
“O/Off,” and that you have removed the motor drive cover. 1. Before using the blender for the first time, it is recommended that the blender jar cover, closure/funnel and blade/base assembly be washed. All components, except the blade/base assembly, are dishwasher safe. -
Page 16: Placing Blender Into Operation
1, then quickly pour the oil in through the opening in the cover in a uniformly thick stream, as shown in figure 14b. Operate the blender at speeds 1 or 4 until mixture is thick and smooth (approximately 10-20 seconds). -
Page 17: Care And Cleaning Of Blender
1/2 cup of material to be blended. If the blender does not start (even after trying the highest speed) and it is humming or not functioning at all, the blade has become blocked by the contents. -
Page 18: Slicer/Shredder, Intended Use
Slicer/shredder, intended use The slicer/shredder attachment has been designed for slicing, shredding and/or grating of vegetables, as well slicing/ shredding of soft cheeses and sausages or meat and grating of vegetables and hard cheese. Use of Slicer/Shredder Before beginning to use this or any other attachment, make sure that the power unit is on a smooth, clean, suitable work surface and switched to the Off position,... -
Page 19: Placing Slicer/Shredder Into Operation
Figure 17. 2. To assemble the slicer/shredder: a. Place slicer/shredder bowl on the power unit by placing over the high- torque drive and, while pressing down, turn it counterclockwise to stop and lock the bowl in place, see figure 17b. c. -
Page 20: How To Use "Universal" Beater
2. Foods that are to be used together may be sliced together. This can be used to your advantage. For example, green onions and celery are often used together, but feeding the green onions into the feeding funnel alone is difficult. Try slicing the green onions at the same time as the celery by interspersing them in the feeding funnel with the... -
Page 21: Placing Into Operation With "Universal" Beater
2. To assemble the slicer/shredder with the “Universal” beater: a. Place slicer/shredder bowl on the power unit by placing over high- torque drive. While pressing down, turn it counterclockwise to stop and lock the bowl in place, see figure 17b. c. -
Page 22: Stainless Steel Bowl With Dough Hook
Stainless Steel Bowl with Dough Hook (MUZ 6 ER1) WARNING 1. There is a risk of injury from rotating tools when using the mixing bowl with the dough hook. 2. Avoid contact with moving parts. Keep hands, hair and clothing, as well as spatulas, bowl scrapers and other utensils away from dough hook and during operation to prevent injury and/... -
Page 23: Placing Into Operation With Dough Hook
CAUTION Failure to make sure that the bowl is properly seated on the drive coupling before the power unit is turned On can result in damage to the bowl and/or coupling. Figure 21. 3. Engage the dough hook on the drive pin by placing it in bowl, as shown in figure 21b, and turning the dough hook clockwise while pushing down until... -
Page 24: Service And Repair
Service and Repair The Bosch Universal Series Kitchen Machines require no special care other than the care and cleaning noted in this manual. If you are having a problem with your machine, before calling our Customer Support group, please refer to the TROUBLESHOOTING section below. -
Page 25: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Power 1.A circuit breaker may have unit does tripped or a fuse has blown in the power supply circuit. function 2.The built-in safety cutout may have tripped. Power 1.The motor has become unit hums blocked; that is, the attachment being used has nothing is become jammed. -
Page 26: Sample Recipes
Sample Recipes Salsa Chop the following ingredients in Bosch blender or food processor, on speed 3 or 4: 1–4 Dried Arabol Chilies (start with one, add more for increased spiciness) clove garlic cup water ounces tomato sauce (add half) Next add:... -
Page 27: Sample Recipes
Oatmeal-Chocolate Chip Cookies cups packed brown sugar cup shortening eggs teaspoon vanilla 1–3/4 cups flour teaspoon baking soda teaspoon salt cups quick-cooking rolled oats cup chocolate chips Cream the brown sugar, shortening, eggs and vanilla in the mixing bowl, on speed 1 or 2. -
Page 28: Special Accessories
SPECIAL ACCESSORIES... - Page 29 Important Notes Important Notes Important Notes Important Notes Important Notes...
- Page 30 Important Notes Important Notes Important Notes Important Notes Important Notes...
-
Page 31: Bosch Small Appliance Warranty
Should you require service of your BOSCH small appliance, please contact customer service at 1-866-44-BOSCH. Repair of BOSCH appliances should only be performed by qualified technicians. - Page 32 Looking for more information about BOSCH products? Visit our Web site: www.boschsmallappliances.com...
