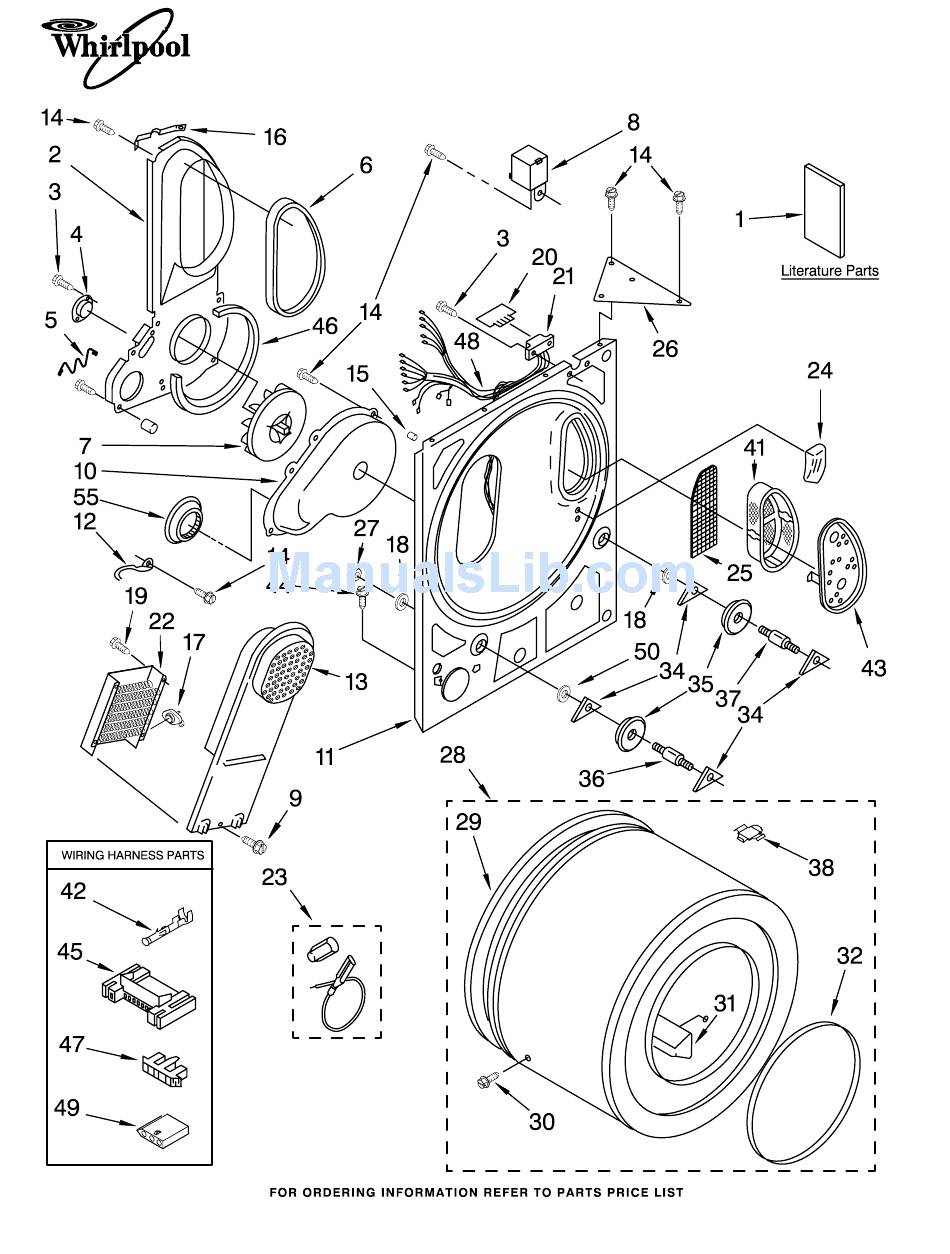

- Page 1 BULKHEAD PARTS COMPACT ELECTRIC DRYER For Model: LDR3822PQ1 (Designer White) Part No. 8181032 11−05 Litho in U.S.A. (LT)
- Page 2 694419 Buzzer, Mini 489463 Screw, 8−18 x 5/8 696419 Scroll, Fan 3394204 Bulkhead 3398161 Clip 3401380 Box, Heater 343641 Screw, 10−16 x 1/2 BULKHEAD PARTS For Model: LDR3822PQ1 (Designer White) Illus. Part DESCRIPTION 359702 Cap, Screw 9830393 Clip 3404153 Thermostat, 180 F...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: LDR3822PQ1 (Designer White) 8181032... - Page 4 CABINET PARTS For Model: LDR3822PQ1 (Designer White) Illus. Part DESCRIPTION 343641 Screw, 10−16 x 1/2 347812 Panel, Rear 348726 Base Assembly 660658 Clamp, Motor(2) 8538265 Motor, 60 Hz. 697776 Screw, Ground (10−32 x 5/8) 696541 Base, Motor 8066084 Bushing, Snap 691366 Idler &...
- Page 5 TOP AND CONSOLE PARTS 8181032 For Model: LDR3822PQ1 (Designer White) Illus. Part DESCRIPTION 345703 Top 3406860 Bracket, Front Panel 307563 Rivet, Pop (2) 8563881 Timer, 60 Hz. (Timer Motor Not Serviceable) 348171 Bracket, Timer 311865 Screw, 8−32 x 7/32 3390646 Screw, 8−18 x 5/16...
- Page 6 OPTIONAL PARTS (NOT INCLUDED) For Model: LDR3822PQ1 (Designer White) Illus. Part PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) DESCRIPTION 8181032...
