ATEN PDU User Manual

PDU Mounting Kit
Bracket Installation:
Select the mounting kit you are installing below. Use
the front side instructions to secure the brackets to the
PDU. Use the back side instructions to install the PDU
on the rack.

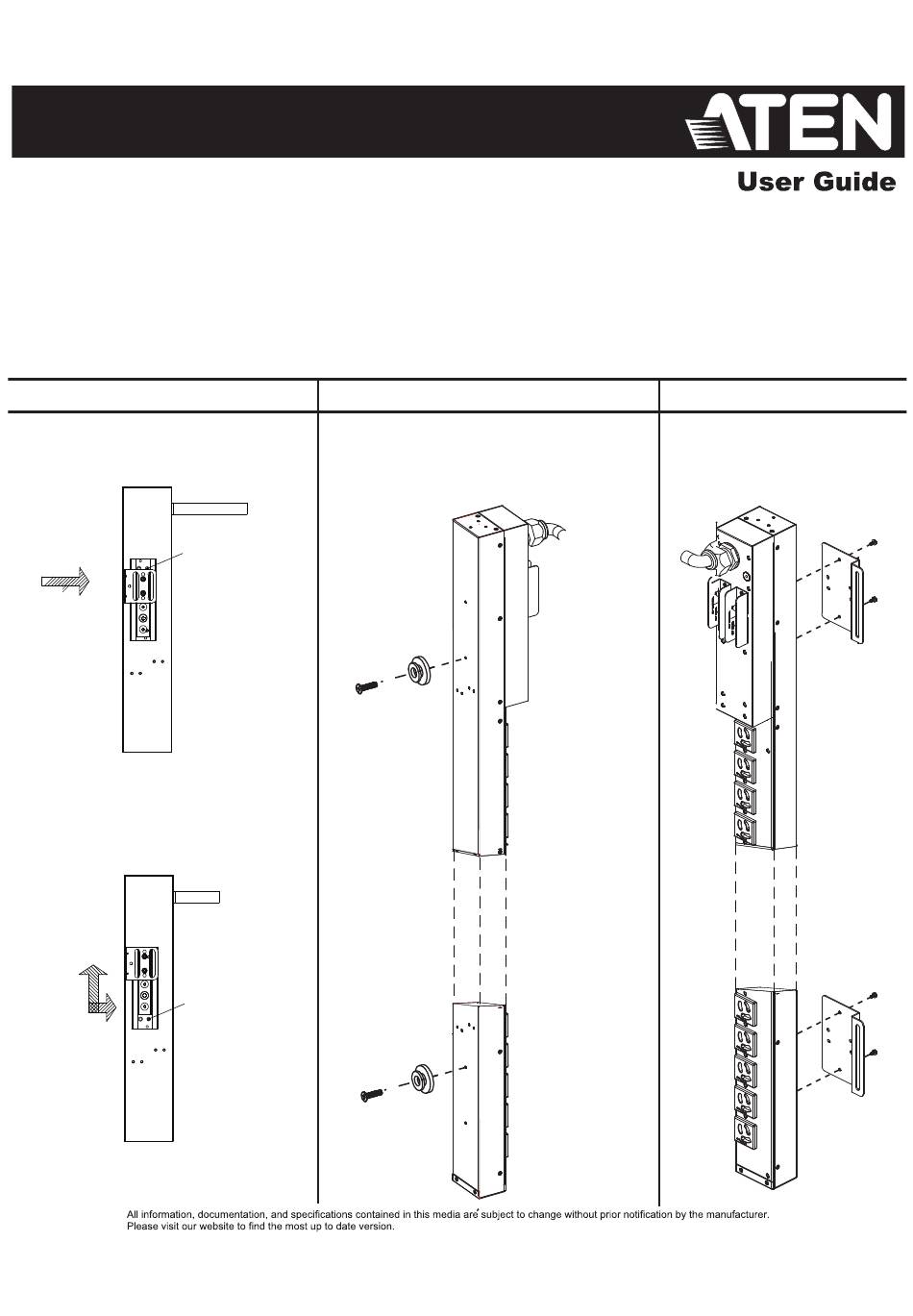

Slide Rail Mount
Step 1 - Turn the PDU over, align the
top center hole, and screw the slide
rail to the PDU.
Step 2 - Push the sliding rail to
expose the second hole and
tighten the second screw.
Push
Slide
Step 3 - Repeat at the other
end of the PDU.
Button Mount
Step 1 - Turn the PDU over and
screw the two round spacers to
the center at each end of the
PDU, as shown below.
Screw
Screw
Side Panel Mount
Step 1 - Using the center holes,
secure the mounting brackets to
both ends of the PDU with the
screws provided, as shown below.
Part No. PAPE-1205-B00G
