TP-Link Archer C58HP Quick Installation Manual

Quick Installation Guide

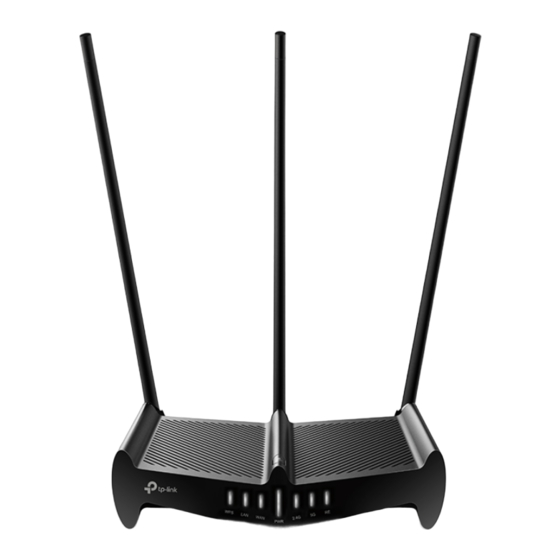

High Power Wireless Dual Band Router
Note: Images may differ from actual products.
Router Mode
This mode enables multiple users to share internet connection via an ADSL/Cable Modem.
If your internet comes from an Ethernet outlet, connect the router's WAN port to it, then skip Step 1, 2 and 3.
Modem
Important
1
Unplug your modem, and
remove the backup battery
if it has one.
3
Power on the modem and
wait about 2 minutes for it
to restart.
Install the Antennas
1.
A. Insert and screw the antenna
into the antenna socket.
2 4
Connect the power-off Connect the power adapter to the router and turn
modem to the router's WAN on the router.
port via an Ethernet cable.
5
Verify that the following LEDs are solid on to
confirm the hardware is connected correctly.
2.
Slide the cap onto the antenna
until it fixes into place.
B. Make sure that the
adjustable elbow is
facing up when
attached.
Please note that the router provides three working modes:
Router, Repeater and Access Point. You can choose the
mode to better suit your network needs and follow the
guide to complete the configuration.
WAN PWR 2.4G 5G
ON ON ON ON
3.
Position the antenna
vertically for best Wi-Fi
performance.
6
Configure the router.
1. Connect your device to the router (wired or wireless).
Wired:
Turn off the Wi-Fi on your computer and connect it to the router via an
Ethernet cable.
Wireless:
a. Find the product label at the bottom of
the router.
b. Use the default network names (SSIDs)
and password to join the 2.4 GHz or 5
GHz network.
Tip: If you are using a smartphone or tablet,
you can also scan the QR code to join the
preset 2.4 GHz network directly.
2. Launch a web browser, and enter http://tplinkwifi.net or
http://192.168.0.1 in the address bar. Create a password to log in.
3. Go to Quick Setup and follow the step-by-step instructions to complete
the setup.
QR Wireless Password/PIN:
XXXXXXXX
Code SSID:TP-Link_XXXX
SSID:TP-Link_XXXX_5G
