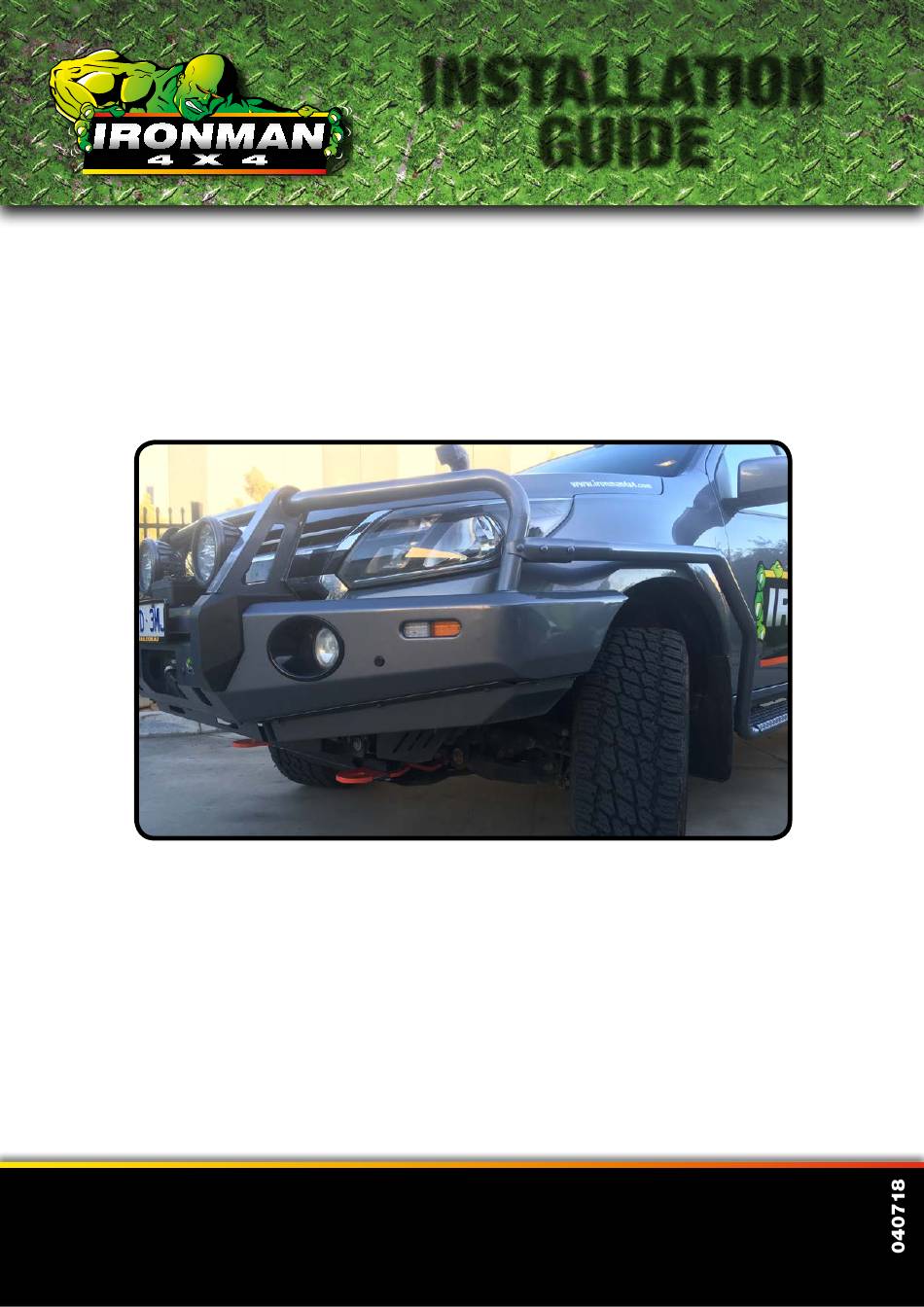

IMPORTANT: MUST BE USED IN CONJUNCTION
WITH AN IRONMAN 4X4 BULL BAR
HOLDEN COLORADO 2016+
•
Ironman 4x4 Recovery Points fit to the chassis
•
It will take about 20 mins to install
•
Below is a list of required tools for installing
your Ironman 4x4 Recovery Points:
-
13, 17, and 19mm socket
IMPORTANT: Recovery Point installations should only be done by a qualified person
and it is the responsibility of this person to ensure correct fitment.
INSTALLATION
GUIDE
IRP057
Advertisement
Related Manuals for Ironman Fitness IRP057
Summary of Contents for Ironman Fitness IRP057
- Page 1 INSTALLATION GUIDE IMPORTANT: MUST BE USED IN CONJUNCTION WITH AN IRONMAN 4X4 BULL BAR IRP057 HOLDEN COLORADO 2016+ • Ironman 4x4 Recovery Points fit to the chassis • It will take about 20 mins to install • Below is a list of required tools for installing...
- Page 2 Before installation check recovery points are compatible with your vehicle. Remove the front factory under trays. Remove the 10 x bolts holding the two factory tie down points, and disregard Lift recovery point into position. Using 4 x M10 bolts, spring washers, and flat washers, loosly attach recovery points using the holes illustrated.
- Page 3 Locate the hole in-between the rear of the recovery point next to the electric steering Feed the 2 x nut plates with the long wire through the hole, to pick up each of the centre holes of the recovery point using M12 bolts, spring washers and flat washers Use the 2 x M10 bolts, spring washers, and flat washers in the remaining 2 holes of the recovery...
- Page 4 Tighten all bolts 10. Cut all excess wire off 11. Refit all the factory under trays Page 4 of 4...
