Program 3 (OFF at 7:00PM Saturday)
Press
key twice
Press h key
Press m key once
Press Day key 9 times
Press Prog. key to enter
Press
key to enter Run Mode
!
IMPORTANT: IF AN "ON" TIME WAS PROGRAMMED THAT IS EARLI-
ER IN THE DAY THAN THE CURRENT TIME, PRESS
TURN THE TIMER "ON". (IT DOES NOT "LOOK BACK" TO DETERMINE
IF IT SHOULD BE ON OR OFF AFTER PROGRAMMING)
NOTE: If 24 hour time control (same schedule every day of the
week) is desired, ignore Day key.
If a ON or OFF symbol is not entered, the ON symbol will flash, and
program will not be accepted.
DAY KEY SELECTIONS
■
Press Day Key
Display Shows
0 times
1 2 3 4 5 6 7
1 time
1 2 3 4 5 6
2 times
1 2 3 4 5
3 times
4 times
1
5 times
2
6 times
3
7 times
8 times
9 times
10 times
REVIEWING PROGRAMS
■
To review the programs at any time, press Prog. key. Programs will
appear in the order they were entered with repeated presses of the
Prog. key. After all programs have been reviewed, the blank display
will appear to allow entering another program. Another press of the
Prog. key will display the number of free programs available, such as
Fr 16 if 4 programs have been entered.
MANUAL OVERRIDE
■
TEMPORARY: While in the Run Mode, pressing the
will reverse the output; ON to OFF or OFF to ON. The
appears in the display to indicate a temporary override. At the next
scheduled switching time, automatic control resumes, eliminating the
override.
CONTINUOUS: While in the Run Mode...
• Pressing the
key twice will turn the output to ON perma-
nently.
symbol appears in display.
• Pressing the
key three times will turn the output OFF perma-
nently.
symbol appears in display.
• To terminate a continuous override, press the
appears in the display.
CHANGING A PROGRAM
■
Select the program to be changed with the Prog. key. A new set of
days may be selected with the Day key just as in initial programming.
Hour and minute can be changed with the h and m keys.
Press Prog. key to store the new program.
DELETING A PROGRAM
■
To delete only one or a few programs: Press Prog. key until the
desired program is displayed.
Press m key to :59 and press once more to blank out.
Press h key to 11PM and press once more to blank out.
Press
key, display will flash for several seconds and then enter
the Run Mode.
Using the reset key will delete ALL programs, the time of day, and
day of the week.
OFF symbol
appears
to 07PM
to 00
until only 6 is displayed
ONCE TO
Days
Every Day
Mon.–Sat.
Mon.–Fri.
6 7
Sat. & Sun.
Monday
Tuesday
Wednesday
4
Thursday
5
Friday
6
Saturday
7
Sunday
key once
symbol
key until
TROUBLESHOOTING
■
PROBLEM: Days are flashing, pressing any key does nothing
except
key turns output ON and OFF.
SOLUTION: Time of Day and Day of Week have not been set. See
"SETTING THE TIME"
NOTE: This is the condition after a reset. If the timer is found in this
condition after it has been installed, programmed and operating for a
while, it may indicate that electrical noise or voltage transients have
disrupted the microprocessor causing a loss of program information.
Call 1-800-391-4555 and request that a no-charge "Snubber Filter" be
sent to you to place across the input to the timer, which may solve the
problem.
A second, but very unlikely cause of loss of program is a power fail-
ure with the backup capacitor low or dead. Check by disconnecting
power and monitoring how long the capacitor keeps the time of day in
the display. Typically, the capacitor will maintain the time and programs
for 5 days.
PROBLEM: Time of day was set while holding the
but days are still flashing.
SOLUTION: Current day of week was not set while holding down
the
key. See "SETTING THE TIME"
PROBLEM: It is 10AM and a ON program for 8AM was entered, but
the output is not ON. Display shows the
SOLUTION: After programming, the timer does not "look back" to
determine if it should be ON. Press the
to turn the output ON;
appears in display. The timer will resume automatic operation at the
next programmed event.
PROBLEM: A program for 8AM Monday thru Friday was entered,
is flashing.
but it will not accept it and
or OFF
SOLUTION: The ON
program. ON or OFF must be selected.

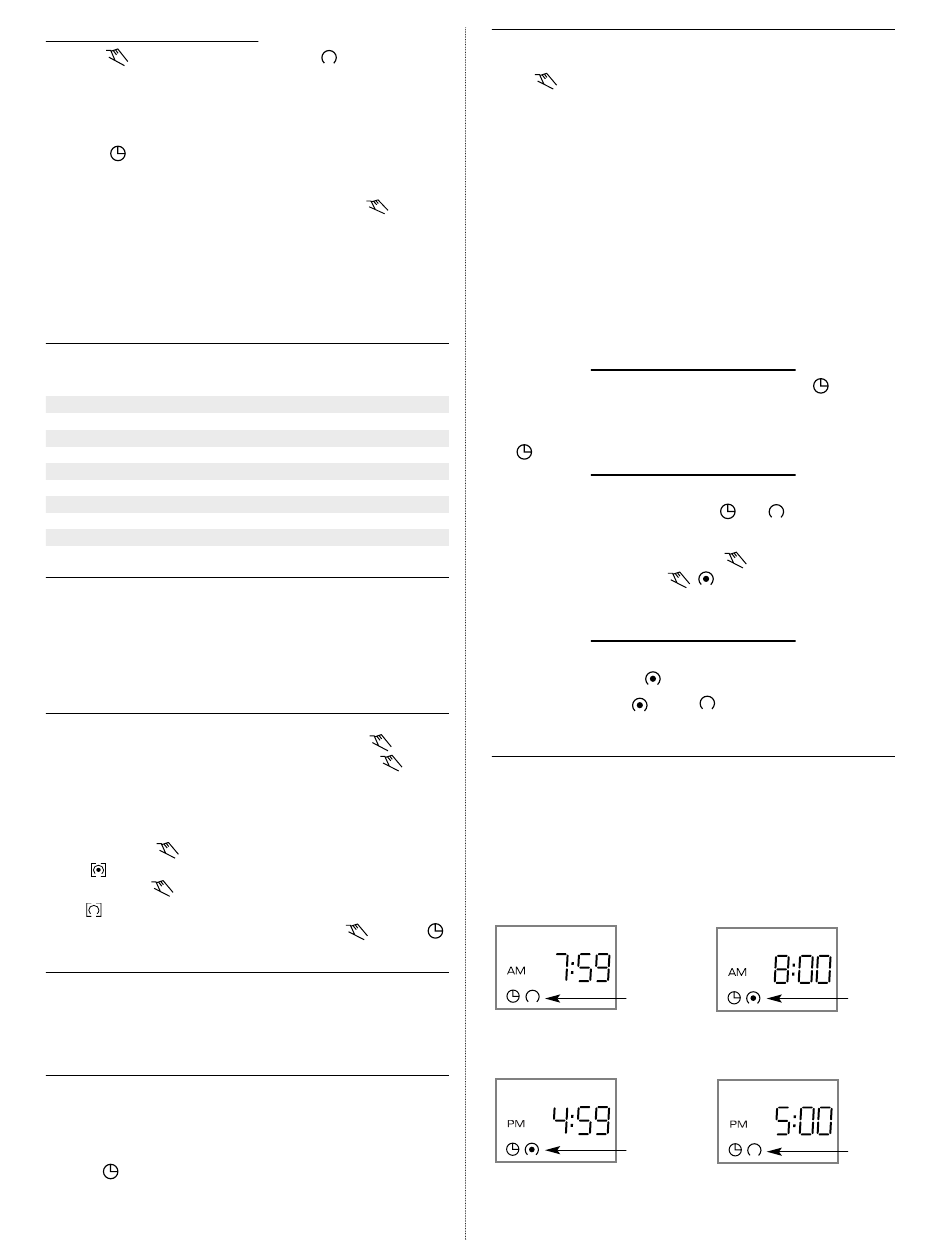

TESTING UNIT
■
After the unit has been programmed you may want to check if it will
perform ON/OFF switching at the correct times. To accomplish this test
simply change the current time to 1 minute before the actual pro-
grammed switching event time. For example if the ON time programmed
is at 8:00AM (MON-SUN) and the OFF time programmed is at 5:00PM
(MON-SUN) then first check the ON event by changing the current time
to 7:59AM. The unit will display as follows (see setting the time section):
1 Minute
Later >>>>
Make sure
the Auto OFF
Symbol
appears.
To check the OFF event change the current time to 4:59PM. The unit will
display as follows (see setting the time section):
1 Minute
Later >>>>
Make sure
the Auto ON
Symbol
appears.
This process verifies that the unit will switch at the proper programmed
times. Now simply change the time to the actual current time.
key down,
and
symbols.
key (temporary override)
was not entered as part of the
Auto ON
Symbol will
appear to indi-
cate the
switching
event occurred
at 8:00AM.
Auto OFF
Symbol will
appear to indi-
cate the
switching
event occurred
at 5:00PM.
