Summary of Contents for MB QUART MBQR-STG5-2

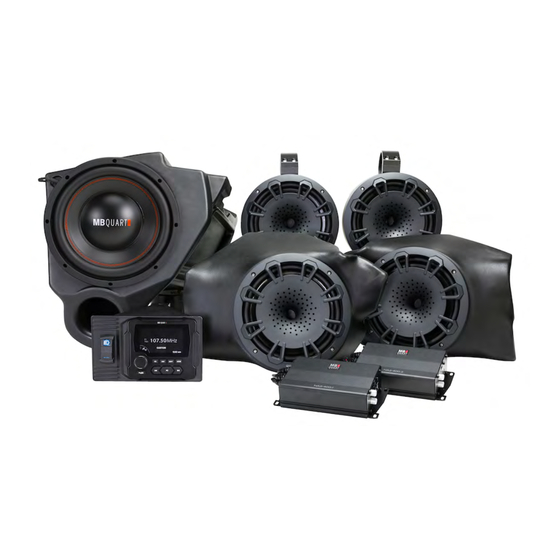

- Page 1 Installation Manual MBQR-STG5-2 MBQR-STG5-RC1 STAGE 5 800 WATT / FIVE SPEAKER RZR-Tuned Audio Package for Polaris Vehicles ® ®...
- Page 2 Thanks for choosing MB QUART! The RZR-Tuned Stage 5 Audio System Kit has been meticulously engineered for your vehicle. The process of installation is simple and straightforward. Installation following these detailed instructions can be completed in about 3.5 hours. INSTALLATION OVERVIEW VIDEO Many of the MB Quart vehicle-specific products feature a “how to”...
- Page 3 You may also own more specialized tools to complete the installation. Please share the pictures of your installation on MB Quart social media channels to help others. In addition to the tools listed, have music ready for the INITIAL TESTING step. MB Quart recommends: ● USB thumb drive with music pre-loaded ●...
- Page 4 MBQR-RAD-2 digital media source unit AUDIO SYSTEM ACCESSORIES FOR YOUR Polaris® RZR® MB Quart offers audio system accessories to further personalize your vehicle. You can find more information at www.MBQuart.com. SR1-120RGB LED RING LIGHT The optional 8-inch SR1-120RGB LED ring light features 16...
- Page 5 DASH AREA DISASSEMBLY 2013-2018 (Non-Turbo S) RZR Please note, separate disassembly instructions for the 2018.5 Turbo S and 2019+ RZR models are found on pages 7-9 in this manual. Figure 5-1 STEP 1 – REMOVE CENTER HOOD Start with removing the hood as shown in Figure 5-1. Twist the tabs at the upper left and right corners.
- Page 6 DASH AREA DISASSEMBLY 2013-2018 (Non-Turbo S) RZR - Continued STEP 5 – REMOVE DASH FASCIA CENTER HARDWARE Remove (4) Torx screws from the front of the dash through the openings shown in Figure 5-6. The first set of Torx screws will come out allowing access to the second (upper) set further back in the dash. Next, pull the only the center of the dash loose as shown in Figure 5-7.
- Page 7 DASH AREA DISASSEMBLY 2018.5 Turbo S & 2019+ RZR (RIDE COMMAND) Please note, separate disassembly instructions for the 2013-2018 RZR models are found on pages 5-6 in this manual. STEP 1 – REMOVE CENTER HOOD Figure 7-1 Remove the center of the hood area as shown in Figure 7-1.
- Page 8 USB cable. If you don’t have Ride Command, the pocket area is where the MB Quart source unit installs. Next, remove (2) plastic push clips in the passenger side cubby as shown in Figure 7-5b. Then remove cubby and set aside.
- Page 9 DASH AREA DISASSEMBLY 2018.5 Turbo S & 2019+ RZR - Continued STEP 7 – PREPARE FINAL ELECTRONICS FOR DASH REMOVAL Gently remove the plastic nut holding the ignition switch to the dash as shown in Figure 7-7a. Next, disconnect wires from back of switches as shown in Figure 7-7b. Take note of plug color and switch location for reassembly purposes.
- Page 10 REMOVE SEATS AND CENTER CONSOLE (ALL MODELS) STEP 1 – REMOVE SEATS Remove driver and passenger seats by pulling on the lock clip shown in Figure 8-1a. This lock clip is located between the bottom and upright portion of the seat. Behind the seats in the center of the machine is the panel where you access the oil filter.
- Page 11 STEP 4 – COMPLETE BUS BAR CONNECTION Complete connections at the bus bar as shown in Figure 9-4. Mount the MB Quart audio harness first, with the OEM RZR connections on top. This allows you to use the red boot on the powerline, keeping your install clean and looking factory installed.
- Page 12 AMPLIFIER PREPARATION AND MOUNTING (2013-2018 Models) Before installing the dual amplifier plate with the amplifier(s) in position, you must prepare the mounting area in the vehicle to accept the plate. NOTE - These instructions assume both amplifiers and all speakers are present in a full Stage 5 System. If not all components are present in your system, this makes upgrading much easier.
- Page 13 AMPLIFIER PREPARATION AND MOUNTING (2018.5 Turbo S & 2019+ Models) Before installing the dual amplifier plate with the amplifier(s) in position, you must prepare the mounting area in the vehicle to accept the plate. The amplifier plate is installed centered, up high under the dash. Use the information in this section to determine which installation steps are specific to your vehicle and options.
- Page 14 AMPLIFIER PREPARATION AND MOUNTING (2018.5 Turbo S & 2019+ Models Continued) STEP 2 – AMPLIFIER MOUNTING Mount the MB Quart amplifier(s) on the dual amplifier plate in the configuration shown in Figure 10.7. This configuration is critical to make sure you can access...
- Page 15 SUBWOOFER ENCLOSURE MOUNTING (ALL MODELS) Prepare to mount the subwoofer into the glove box and grab bar location. 2018.5 Turbo S and 2019 and newer RZR models, use only the rear mounting plate and four 1/2” bolts as shown in Figure 11-1. All other RZR models use both mounting plates and all eight 1/2”...
- Page 16 Plug in the power/ground connector of the two channel and the mono amplifiers respectively. At the same time, if you have (or will later install) optional illuminated MB Quart SR1-120RGB LED light rings, connect the red/black wires as well. Next, connect full range speaker connectors to the two channel amplifier. You should already have connected the subwoofer to the mono amplifier in the previous section.
- Page 17 REAR SPEAKER POD INSTALLATION Every roll cage angle is a bit different; therefore you should take the time to install the swivel mount brackets on the roll cage to ensure a good fit. These brackets are designed to allow 180 degree tilt. This ensures that the speaker points directly forward.
- Page 18 MOUNTING THE KICK PANEL SPEAKERS Through hundreds of installations, we’ve found once mounting holes are drilled, it’s best to start with the driver’s side kick panel and then move on to the passenger’s side kick panel to complete the mounting and wiring of the kick panels.
- Page 19 MOUNTING THE KICK PANEL SPEAKERS (Continued) STEP 6 – PLACE PASSENGER SIDE KICK PANEL Place passenger side kick panel pod in its location as shown in Figure 14-5. Ensure the positioning lines up with the holes you’ve drilled. STEP 7 – PUSH OUTER BOLTS THROUGH FENDER AND MOUNT DRIVER’S SIDE KICK PANEL With the included hardware push (1) bolt and (1) washer through the inner passenger side fender well into the threaded insert of the...
- Page 20 The chart below provides general crossover and bass boost switch settings depending on the RZR tuned package you have. TUNED PACKAGE TWO-CHANNEL AMPLIFIER MONO AMPLIFIER MBQR-STG5-2 ONLY LEVEL SETTING NEEDED Bass Boost to 0dB MBQR-STG5-RC-1 LPF to 100Hz...
- Page 21 See Figure 20-4. Figure 20-3 Note about Ride Command fader operation - front and rear speakers in a MB Quart RZR-tuned Stage 5 system Figure 20-4 are on the “front” of the Ride Command outputs so there is no function for the “rear” on the fader once the system...
- Page 22 MOUNT THE USB & 3.5mm (AUX) DASH ADAPTER (Non-Ride Command) With the non-Ride Command STAGE Tuned Audio packages, a PSAP-2S dual input waterproof dash adapter is included. This means that no matter how you store and play your music, you have plenty of connections.
- Page 23 INSTALLING THE SOURCE UNIT (Non-Ride Command-Equipped) Reassemble part of the front dash around the dash pocket area. Utilize the reverse method of how you removed the center section of the dash pocket. This will allow source unit installation for the non-Ride Command-equipped RZR vehicles.
- Page 24 With the power “ON” use the list here to check the system for all of the following: ● POWER ON - MB Quart source unit lights up and responds to button presses ● USB INPUT (if used) responds when selected.
- Page 25 FINE TUNING When setting up your amplifiers you will refer to the manual inside each amplifier. However, through hundreds of installations, we have determined the settings shown on page 20 are ideal for the STAGE Tuned Audio Packages. NOTE – Gain control, it is important to adjust each amplifier gain as described in the manual. Remember, these settings are NOT volume controls.
- Page 26 FINAL AMPLIFIER MOUNTING (2018.5 Turbo S & 2019 Models) Now that the system is tested and tuned, if you have a 2018.5 Turbo S or 2019+ model RZR, you’ll now be ready to finalize the amplifier mounting and complete the install. This will be much like the earlier trial fitting on pages 13-14, but the hardware will be fully tightened and the wiring zip-tied neatly in place.
- Page 27 ECU or OEM amplifier bracket - Secure the dual amplifier plate. Simply substitute the (2) 10mm screws in Figure 20-4 and use the two (2) T40 screws provided with the MB Quart Stage 5 kit to securely mount the dual amp plate STEP 3 –...
- Page 28 VEHICLE REASSEMBLY Follow along the dual amplifier audio harness and zip-tie the harness to the vehicle to assure it doesn’t come loose during rides. Do not zip-tie the harness to any heat or moisture sources. Also ensure the point at which the harness passes through the firewall grommet is sufficiently sealed with electrical tape, silicone- based caulking or equivalent.
- Page 29 FINAL INSPECTION Here is a checklist to make sure your vehicle is ready to hit the trails. You should pull & tighten everything so that you know your RZR and your audio equipment are secure. ● NUTS ON HARNESS AT THE BUS BAR ●...
- Page 30 COMPLETE WIRING LAYOUT This is a complete wiring harness layout diagram. ©2020 Maxxsonics USA, Inc.
- Page 31 NOTES Use this section to record serial numbers of each product, final gain and crossover settings of amplifiers or any other wiring or installation-related details that will be helpful if you need to add on to the system or troubleshoot any unforeseen issues.
- Page 32 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license. All product names, logos, and brands are property of their respective owners. All company, product and service names used in this literature are for identification purposes only.
