Weslo WLTL29320 User Manual

Weslo user's manual treadmill wltl29320

Hide thumbs

Table Of Contents

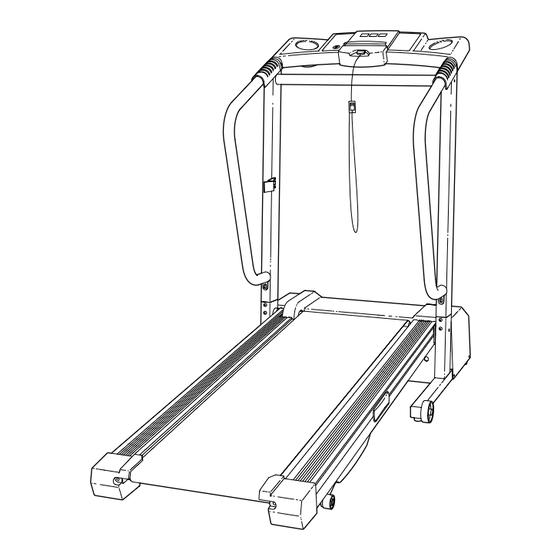

Model No. WLTL29320

Serial No.

Serial Number

Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

Customer Hot Line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for Weslo WLTL29320

Page 1 Model No. WLTL29320 Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, we will guar- antee complete satisfaction through direct assistance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.
Page 2: Table Of Contents
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local WESLO or call 1-800-806-3651 and order part number 146148. 12. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill.
Page 3 35 or persons with pre-existing health problems. Read all instructions before using. WESLO assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
Page 4: Before You Begin
The model number of the treadmill is WLTL29320. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Page 5: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
Page 6 3. Insert a Plastic Shim (97) into each side of the post on the right side of the Base (11). Next, orient the Right Upright (62) as shown, and insert it into the Base. Make sure that the Wire Harness (21) does not fall into the Right Upright.
Page 7 6. Place the Console Base (46) on the Right Handrail (47) and the Left Handrail (not shown). Touch the Right Upright (62) to discharge any static. Hold the Console (10) near the Console Base (46). Insert the Wire Harness (21) through the two indicated plastic ties on the Console Base.
Page 8: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call toll-free 1-800-806- 3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS).
Page 9 CONSOLE DIAGRAM Heart Rate Sensor CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turn- ing on the power. • Always wear the clip (see the drawing below) while operating the treadmill. •...
Page 10 To stop the walking belt, press the Stop button. The Time/Distance display will begin to flash. Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt, and align it if necessary (see page 13). Change the incline of the treadmill as desired.
Page 11: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. 1.
Page 12: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- come damaged.
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physi- cian. This is especially important for individu- als over the age of 35 or individuals with pre- existing health problems. The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings.
Page 15 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
Page 16: Ordering Replacement Parts
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW- ING in the center of this manual) WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
Page 17: Part Identification Chart
PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. Silver Ground 3/4” Screw (13)–13 3/4” Tek Screw Screw (96)–1 (102)–2 1 1/4” Tek Screw (87)–2 1”...
Page 18 PART LIST—Model No. WLTL29320 Qty. Description Left Handrail Key/Clip Incline Leg Pivot Bolt Cover Left Foot Rail Lift Motor Rear Roller 1” Bolt Star Washer Console Insert Base Motor Belt 3/4” Screw Storage Latch Thin Frame Spacer 8” Cable Tie...
Page 19 EXPLODED DRAWING—Model No. WLTL29320 R0902A...
