Version: 1.3
Hisense
Corporation
1

Advertisement

Table of Contents
loading

Related Manuals for Hisense AS-09CR4SVDTD5

Summary of Contents for Hisense AS-09CR4SVDTD5

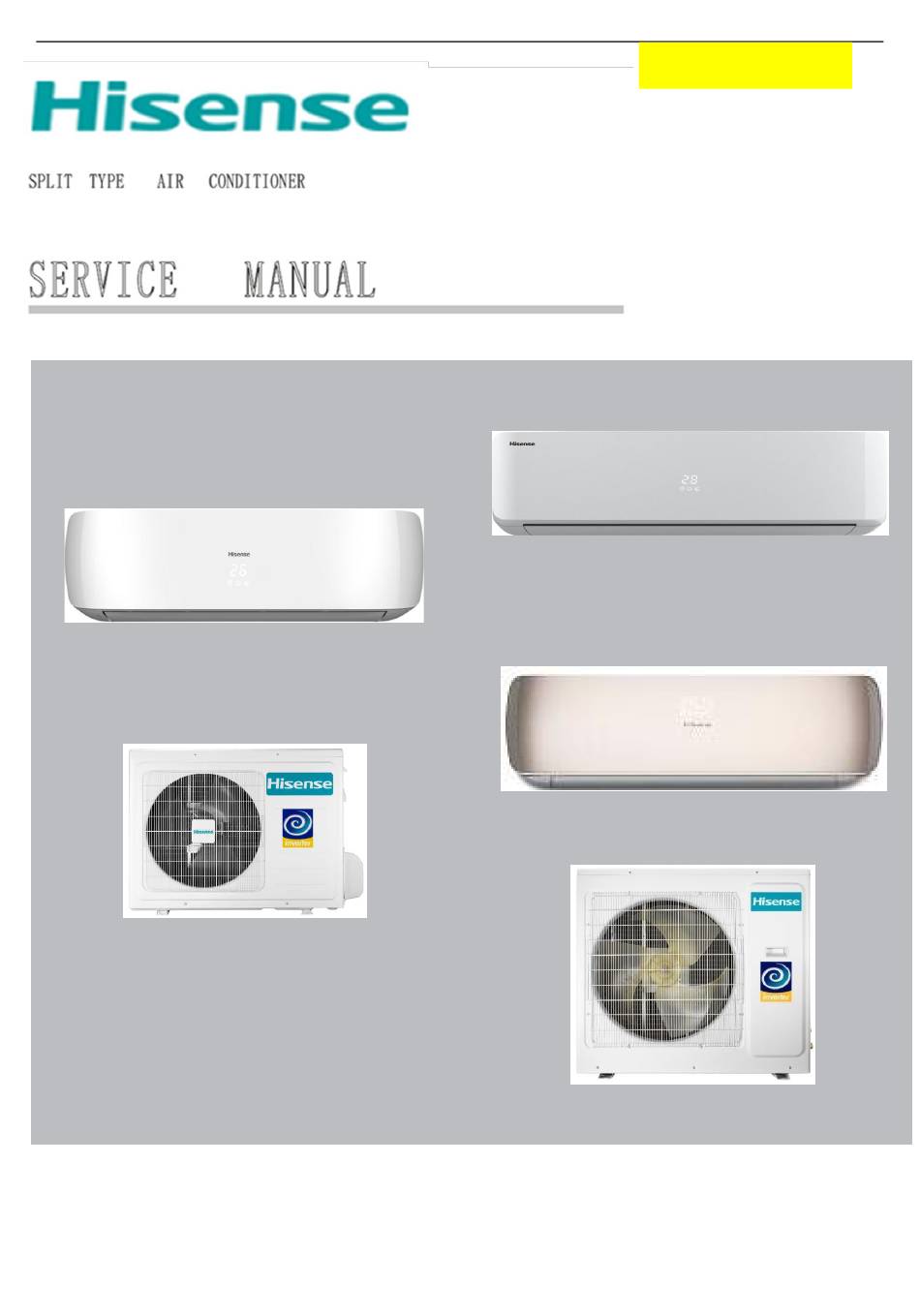

  • Page 1 Version: 1.3 Hisense Corporation...
  • Page 2 MODEL: AS-09CR4SVDTD5 AS-09HR4SVDTD5 AS-12CR4SVETE3 AS-12HR4SVETD2 AS-18CR4SXATE AS-18HR4SXATE AS-22CR4SXBTE AS-22HR4SBBTE AS-30HR4SBBTG00 AS-12CR1FVDTD1 AS-12HR1FVDTD1 AS-12CR5FVDDA AS-12HR5FVDDA AS-12CR5FVETE1 AS-12HR5FVETE1 AS-18CR5FWATE AS-18HR5FWATE AS-22CR5FFBTE AS-22HR5FFBTE AS-36CT2FDKVQ AS-36HR5FDKVQ AS-09CR4SVDDF5 AS-12CR4SVEDA3 AS-18CR4SXADA AS-30HR4SQBDK AS-36HR4SDKDK AS-22CR4SXBDA AS-09HR4SVDTE5 AS-12HR4SVETE2...
  • Page 3 Contents 1. Safety Considerations ......................... 4 2. Product Specifications ......................... 6 3. Product Picture and Drawing ......................14 3-1. Product Pictures ........................14 3-2. Product dimensions ......................... 16 4. Installation Instruction ........................18 4-1. Installation Place and Condition ....................20 4-2.
  • Page 4 1. Safety Considerations IMPORTANT! Please Read Before Starting This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of your job to install or service the system, so it operates safely and efficiently.
  • Page 5 fire hazard. When Transporting Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioner can cut your fingers.
  • Page 6 2. Product Specifications Model No. AS-12CR5FVETE1 AS-12HR5FVETE1 AS-12CR5FFDA AS-12HR5FFDA T1, COOLING-ONLY T1, HEAT PUMP T1, HEAT PUMP Type COOLING-ONLY Ratings Cooling Capacity 3520 3520 3370 3370 Heating Capacity 3600 3400 Rated Input-Cooling 1215 1225 1170 1170 Rated Input-Heating 1200 1165 Moisture Removal High m Air Circulation...
  • Page 7 800×260×335 800×260×335 Packing Dimensions WxHxD (mm) Outdoor Unit 830x315x530 830x315x530 830×530×315 830×530×315 Indoor Unit Gross Weight (Kg) Outdoor Unit 27.5 29.5 AS-09CR4SVDTD5 AS-12CR4SVETE3 AS-09CR4SVDDF5 AS-09HR4SVDTD5 AS-12CR4SVEDA3 Model No. AS-09HR4SVDTE5 Type T1, COOLING-ONLY T1, COOLING-ONLY T1, HEAT PUMP Ratings Cooling Capacity...
  • Page 8 System Compressor Compressor type Rotary Rotary Rotary Compressor Model No. 44B263DK&FJKC ASM99V1VDZ ASM99V1VDZ RECHI Compressor MFG GMCC GMCC Connecting Pipe Diameter Liquid Pipe inch Gas Pipe inch Features Display on Front Panel LCD Wireless Remote Controller Removable and washable Panel Washable PP Filter 24 Hours Timer 3 Speed and Auto Indoor Fan Control...
  • Page 9 Refrigerant R410A Refrigerant charge volume （5M） Additional ref. Volume High(dB (A)) Indoor Unit Noise Level Mid(dB (A)) Low(dB (A)) Outdoor Unit Noise Level dB (A) Power Supply Voltage, Frequency, Phase 115V~,60Hz,1P 115V~,60Hz,1P 1, 220-240, 50 Cooling 10.5 Rated Current Heating ——...
  • Page 10 Unit Indoor 830×335×260 830×335×260 900×260×335 Unit Packing Dimensions WxHxD (mm) Outdoor Unit 830×530×315 830×530×315 830×530×315 Indoor Unit Gross Weight (Kg) Outdoor Unit 31.5 AS-18CR4SXATE AS-18HR4SXATE AS-18HR5FWATE AS-18CR5FWATE Model No. AS-18CR4SXADA Type T1, Cooling T1, Heat-pump T1, Heat-pump T1, Cooling Ratings Cooling Capacity 5200 5200...
  • Page 11 Liquid Pipe inch Gas Pipe inch Features Display on Front Panel LCD Wireless Remote Controller Removable and washable Panel Washable PP Filter 24 Hours Timer 3 Speed and Auto Indoor Fan Control Vertical Auto Swing Louver Manual Adjustable Horizontal Swing Louver Sleep Operation Smart Function Super Function...
  • Page 12 Outdoor Unit Noise Level dB (A) Power Supply Voltage, Frequency, Phase 1, 230~, 60 1, 230~, 60 220-240V~,50Hz,1P 220-240V~,50Hz,1P V, Hz, ph Cooling (A) 10.2 10.2 14.5 Rated Current —— Heating (A) 10.2 System pressures in cooling rated conditions Max suction pressure Max discharge pressure 4.15 4.15...
  • Page 13 Rated Input-Cooling 2720 T1:3190/T3:3870 3225 Rated Input-Heating 2490 3115 Moisture Removal L/H.r 1200 High m 1680 1680 Air Circulation Mid m 1300 1300 Low m EER for Cooling 3.01 T1:2.85/T3:2.08 2.91 COP for Heating 3.21 3.01 Refrigerant R410A Refrigerant charge volume （5M） 1920 2060 2080...
  • Page 14 1080×315×230 Indoor Unit 1350×364×266 1350×364×266 Net Dimensions WxHxD (mm) 860×310×650 Outdoor Unit 884×365.5×793 884×365.5×793 Indoor Unit 19.5 19.5 Net Weight (Kg) Outdoor Unit 1170×390×315 Packing Dimensions WxHxD Indoor Unit 1425×435×325 1425×435×325 995x420x720 (mm) Outdoor Unit 1050×890×500 1050×890×500 Indoor Unit Gross Weight (Kg) Outdoor Unit Model No.
  • Page 15 LCD Wireless Remote Controller Removable and washable Panel Washable PP Filter 24 Hours Timer 3 Speed and Auto Indoor Fan Control Vertical Auto Swing Louver Manual Adjustable Horizontal Swing Louver Sleep Operation Smart Function Super Function Auto Restart Dimmer Other Indoor Unit 1131×315×230 1350×364×260...
  • Page 16 View Front Panel View Front Panel View Front Panel View Outdoor Units: V（W1M） X（W1P） Unit View F（W2M） D（W5F） Unit View...
  • Page 17 W（W2F） B（W2N） Unit View Q（W3A） Unit View Remote controller: Model View 3-2. Product dimensions Indoor units:...
  • Page 18 Model W (mm) H (mm) D (mm) AS-09CR4SVDTD5 AS-09CR4SVDDF5 AS-09HR4SVDTD5 AS-09HR4SVDTE5 AS-12CR4SVETE3 AS-12CR4SVEDA3 AS-12HR4SVETD2 AS-12HR4SVETE2 AS-18CR4SXATE AS-18CR4SXADA AS-18HR4SXATE AS-22CR4SXBTE 1130 AS-22CR4SXBDA 1085 AS-22HR4SBBTE 1130 AS-30HR4SBBTG00 1220 AS-12CR1FVDTD1 AS-12HR1FVDTD1 AS-12CR5FVDDA AS-12HR5FVDDA...
  • Page 19 AS-12CR5FVETE1 AS-12HR5FVETE1 AS-18CR5FWATE AS-18HR5FWATE AS-22CR5FFBTE 1130 AS-22HR5FFBTE 1130 AS-36CT2FDKVQ 1350 AS-36HR5FDKVQ 1350 AS-30HR4SQBDK 1130 AS-36HR4SDKDK 1350 Outdoor units: Model (mm) (mm) (mm) (mm) (mm) (mm) (mm) AS-09CR4SVDTD5 AS-09CR4SVDDF5 AS-09HR4SVDTD5 AS-09HR4SVDTE5 AS-12CR4SVETE3 AS-12CR4SVEDA3...
  • Page 20 AS-12HR4SVETD2 AS-12HR4SVETE2 AS-18CR4SXATE AS-18CR4SXADA AS-18HR4SXATE AS-22CR4SXBTE AS-22CR4SXBDA AS-22HR4SBBTE AS-30HR4SBBTG00 AS-12CR1FVDTD1 AS-12HR1FVDTD1 AS-12CR5FVDDA AS-12HR5FVDDA AS-12CR5FVETE1 AS-12HR5FVETE1 AS-18CR5FWATE AS-18HR5FWATE AS-22CR5FFBTE AS-22HR5FFBTE AS-36CT2FDKVQ 365.5 AS-36HR5FDKVQ 365.5 AS-30HR4SQBDK AS-36HR4SDKDK 365.5 4. Installation Instruction To prevent abnormal heat generation and the possibility of fire, do not place obstacles, enclosures and grilles in front of or surrounding the air conditioner in a way that may clock air flow.
  • Page 21 △ Allow room for operation and maintenance as well as unrestricted air flow around the unit. (See b) △ Install the unit within the maximum elevation difference (H) above or below the outdoor unit and within a total tubing length (L) from the outdoor unit as detailed (See table 1 and c) table 1 Standard Max.
  • Page 22 △ Use lug bolts or equal to bolt down unit, reducing vibration and noise. Recommended Wire Diameter:...
  • Page 23 4-2. Electric Wiring Diagram Model Indoor unit Size Indoor unit Diagram Outdoor unit Diagram AS-09CR4SVDTD5 1565602 1413452 1565602 1413452 AS-09CR4SVDDF5 AS-09HR4SVDTD5 1565602 1406947 AS-09HR4SVDTE5 1565602 1406947 AS-12CR1FVDTD1 1565602 1413452 AS-12CR4SVETE3 1565602 1413452 1565602 1413452 AS-12CR4SVEDA3 AS-12CR5FVDDA 1565602 1413452 AS-12CR5FVETE1 1565602...
  • Page 24 1080 1565602 1413452 AS-22CR4SXBDA AS-22CR5FFBTE 1080 1565602 1413452 AS-22HR4SBBTE 1080 1565602 1855386 AS-22HR5FFBTE 1080 1565602 1406947 AS-30HR4SBBTG00 1080 1565602 1855386 AS-30HR4SQBDK 1080 1562566 1817256 AS-36HR4SDKDK 1280 1517225 1849131 AS-36CT2FDKVQ 1280 1517225 1849131 AS-36HR5FDKVQ 1280 1517225 1849131 Indoor： 1517225 1565602...
  • Page 25 1562566 Outdoor： 1406947...
  • Page 26 1413452 1849131...
  • Page 27 1855386 1817256...
  • Page 29 4-3. Refrigerant Flow System NOTE: In different models, the throttle assembly may be Capillary or Electronic expansion valve.
  • Page 30 4-4. Air Purging and Leakage Test 1. Connect charging hose of manifold valve to charge end of low pressure valve (both high/low pressure valves must be tightly shut). 2. Connect joint of charging hose to vacuum pump. 3. Fully open the handle of Lo manifold valve. 4.
  • Page 31 4-5. Test Running △ Check after Installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient Have you done the refrigerant leakage test? cooling(heating)capacity Is heat insulation sufficient? It may cause condensation and dripping.
  • Page 32 5. Function Operation 5-1. Operation Range (cooling and heating） Argentina Model ： Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp Maximum 43 ℃ COOLING Minimum 16℃ 16℃ Maximum 30℃ 24℃ HEATING Minimum -10℃ Mexico Model ： Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp 46 ℃...
  • Page 34 Function Instruction △ 1．Major general technical parameters 1-1 Remote receiver distance（front of the air conditioner）: 8 m. 1-2 Remote receiver angle: Less than 60 degrees. 1-3 Temperature control accuracy: ±1℃. 1-4 Time error: Less than 1%.、 2. Functions of the controller 2-1 Display panel I.
  • Page 35 flash for 5 seconds while displayed. Running LED：It is on during operation. It is flashing when the unit defrost. TIMER LED：When the timer mode works, the LED will be lighted. Sleep LED：When the sleep mode works, the LED will be lighted, and after 10s, the LED will be off. Compressor LED：It lights up when compressor is running.
  • Page 36 OFF-Timer setting less than 8 hours, it will keep the Sleep mode till the OFF-Timer setting; if the OFF-Timer setting more than 8 hours, it will cancel the OFF-Timer setting after the Sleep mode OFF. （3）When the Sleep mode is select with Cooling mode, if the room temperature not less than 26℃, the setting temperature will not be adjusted, otherwise, the setting temperature will be raised by 1℃...
  • Page 37 3-6-2 Indoor fan operation (1）When the indoor fan keep in running condition, this operation state could be controlled by the remote control with High, Median, Low and Automatic setting. (2）When the appliance is set Automatic condition in the Cool mode for the first time, the fan speed will run at Low setting.
  • Page 38 When the appliance run in Heat mode condition, the indoor fan motor operation is shown as following to prevent the cooling air come out during the appliance operation. When the appliance turn in the anti-cold air system in the Extra-LOW (Tapped motor set in LOW, sic passim) during the compressor operation, the louver swang to the Cool air protection position, the louver recovers to the original position after the air volume change to LOW.
  • Page 39 position plus 5º . 4-3-8-4 Outdoor fan The outdoor fan speeds except single speed motor can be changed according to outdoor ambient temperatures. 3-7-6 4-way valve State: It is electrified in heating. Switchover: When initially powered on for heating, the 4-way valve is activated immediately. In the change from cooling to heating, it needs an interval of 50 seconds for the 4-way valve to change over from being interrupted to being activated.
  • Page 40 ≥2 Dehumidifying area II: The compressor stops for 5 minutes and operators for 5 minutes at the lowest frequency. Dehumidifying area III: The compressor stops. 3-10 Fan Only Mode Operation During the appliance run in this mode, the compressor and outdoor fan stop, the indoor fan operate under the pre-setting of air volume, and the louver swing, and the indoor fan speed same as the Heating Mode.
  • Page 41 The compressor stops, and 50 seconds later the four-way valve opens, and another 10 seconds later the compressor and outdoor fan restart and begin normal operation. 6. Electrical Characteristics 6-1. Print Circuit Board (Indoor & Outdoor) Model Indoor unit Size AS-09CR4SVDTD5 IU-PCB-1 IU-PCB-1 AS-09CR4SVDDF5 AS-09HR4SVDTD5 IU-PCB-1...
  • Page 42 IU-PCB-1 AS-18CR4SXADA AS-18CR5FWATE IU-PCB-1 AS-18HR4SXATE IU-PCB-1 AS-18HR5FWATE IU-PCB-1 AS-22CR4SXBTE 1080 IU-PCB-7 1080 IU-PCB-7 AS-22CR4SXBDA AS-22CR5FFBTE 1080 IU-PCB-7 AS-22HR4SBBTE 1080 IU-PCB-7 AS-22HR5FFBTE 1080 IU-PCB-7 AS-30HR4SBBTG00 1080 IU-PCB-7 AS-30HR4SQBDK 1080 IU-PCB-6 AS-36HR4SDKDK 1280 IU-PCB-3/OU-PCB-03 AS-36CT2FDKVQ 1280 IU-PCB-3/OU-PCB-03 AS-36HR5FDKVQ 1280 IU-PCB-3/OU-PCB-03 1、FM:FAN MOTOR POWER WIRES 2、FMF:FAN MOTOR FEEDBACK 3、FMC:FAN CAPACITOR 4、SEN:PIPE&ROOM TEMPERATURE SENSOR...
  • Page 43 IU-PCB-1 IU-PCB-3...
  • Page 44 IU-PCB-7 IU-PCB-6...
  • Page 45 OU-PCB-3...
  • Page 46 6-2. Fan Motor Drawings attached: INDOOR AC FAN OUTDOOR AC FAN Test in resistance. TOOL: Multimeter. Test the resistance of the main winding. The indoor fan motor is fault if the resistance of main winding 0(short circuit)or∞（open circuit）. Test in voltage TOOL: Multimeter.
  • Page 47 Indoor DC Fan Motor Outdoor DC Fan Motor 6-3. Temperature Sensor Parameter table attached: THE PARAMETER OF THE INDOOR COIL AND INDOOR ROOM SENSOR （R(0)=15k B(0/100)=3450） Model AS-30HR4SQBDK AS-36HR4SDKDK AS-36CT2FDKVQ AS-36HR5FDKVQ Temperature(℃) Resistance(k) Voltage(V) Temperature(℃) Resistance(k) Voltage(V) 38.757 0.58143512 4.292 2.715076661 36.844 0.60795346...
  • Page 48 31.719 0.69257720 3.711 2.894109636 30.196 0.72246147 3.58 2.937788018 28.755 0.75321223 3.455 2.980713033 27.392 0.78480857 3.335 3.023117961 26.103 0.81722911 3.219 3.065272268 24.882 0.85051031 3.108 3.106725146 23.727 0.88458737 3.001 3.147759536 22.632 0.91951536 2.899 3.187898487 21.594 0.95527085 2.801 3.227439565 20.611 0.99179340 2.706 3.266717909 19.678 1.02913875 2.615...
  • Page 49 Note: the AD value in the table is calculated on the basis of the pull-down resistor is 5.1K. （R(25)=15k B(25/50)=3950） Model AS-09CR4SVDTD5 AS-09CR4SVDDF5 AS-09HR4SVDTD5 AS-09HR4SVDTE5 AS-12CR1FVDTD1 AS-12CR4SVETE3 AS-12CR4SVEDA3 AS-12CR5FVDDA AS-12CR5FVETE1 AS-12HR1FVDTD1 AS-12HR4SVETD2 AS-12HR4SVETE2 AS-12HR5FVDDA AS-12HR5FVETE1 AS-18CR4SXATE AS-18CR4SXADA AS-18CR5FWATE AS-18HR4SXATE AS-18HR5FWATE...
  • Page 50 AS-22CR5FFBTE AS-22HR4SBBTE AS-22HR5FFBTE AS-30HR4SBBTG00 Temperature(℃) Resistance(k) Voltage(V) Temperature(℃) Resistance(k) Voltage(V) 152.5 4.5522388 11.99 2.221193 143.9 4.528005 11.47 2.1666037 135.8 4.5026525 10.98 2.113164 128.3 4.4766225 10.51 2.0599765 121.1 4.4489346 10.06 2.0071828 114.5 4.4208494 9.634 1.9554275 108.2 4.3912338 9.229 1.9045359 102.3 4.3606138 8.842 1.8542907 96.73...
  • Page 51 21.76 2.9597388 2.713 0.7658217 20.75 2.9020979 2.618 0.7429901 19.79 2.8442081 2.524 0.7201552 18.88 2.7863046 2.436 0.6985547 18.03 2.729337 2.36 0.6797235 17.21 2.6715306 2.268 0.656706 16.44 2.6145038 2.189 0.6367444 15.7 2.5570033 2.114 0.617623 2.041 0.5988498 14.33 2.4428912 1.971 0.5806965 13.7 2.3867596 1.905 0.5634428 13.1...
  • Page 52 7.Trouble Shooting 7-1. Error Code Table 7.1 The LED of indoor display board will show the error sequence automatically when the unit has the following trouble. Remark： Light o Flash x OFF Error ★ code Content Remark The root cause is may be one of the following It is normally for protection, When the indoor pipe temperature between 53℃<T<63℃, the outdoor fan motor will stop running.
  • Page 53 The failure for The indoor coil temperature sensor loose; temperature sensor of The indoor coil temperature sensor is failure; indoor coil temperature The indoor control board is failure. The EEPROM chip loose; Indoor EEPROM failure The indoor control board is failure There are something block the indoor fan motor;...
  • Page 54 编制： 审核： 批准：...
