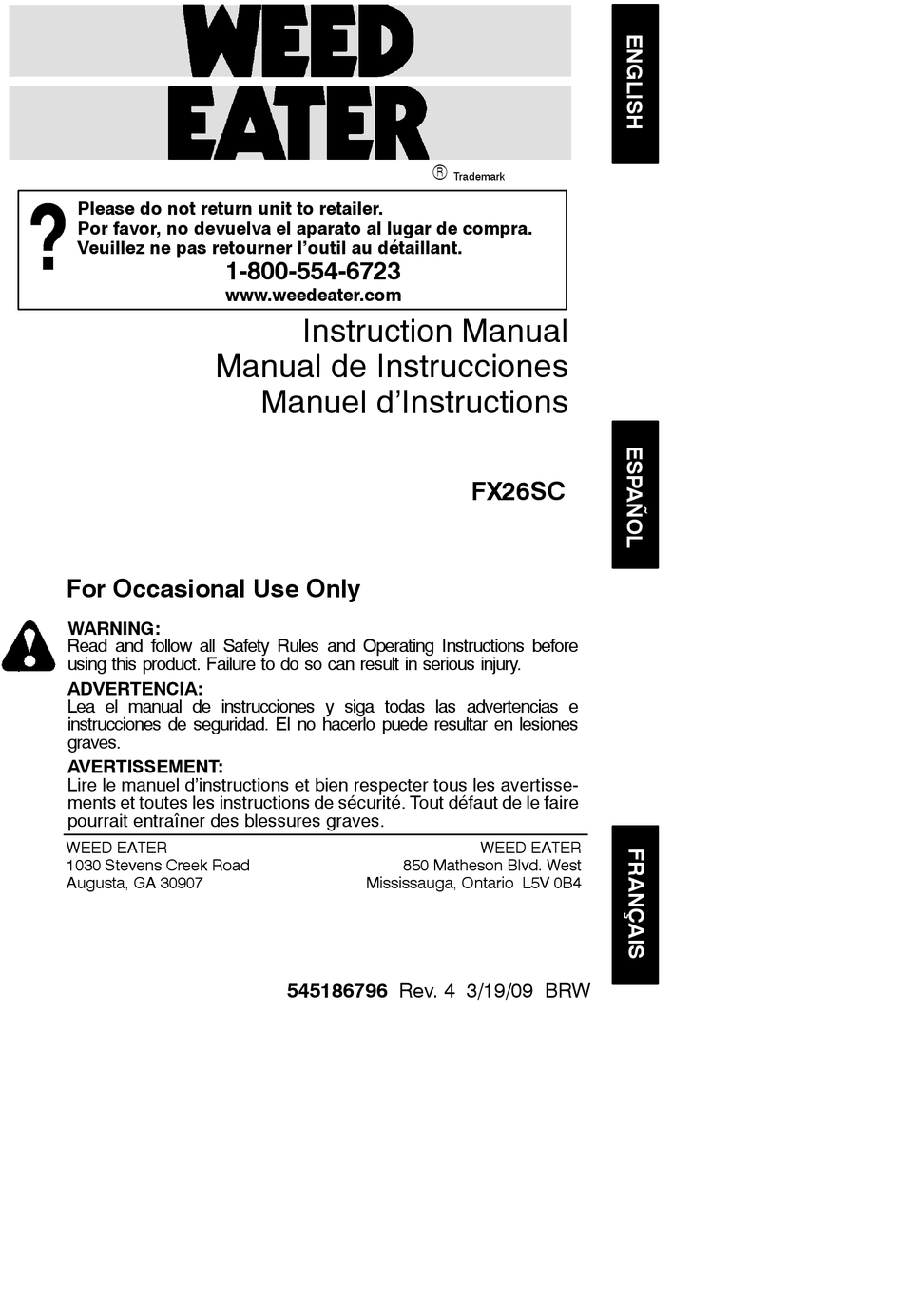

Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
WEED EATER
1030 Stevens Creek Road
Augusta, GA 30907
Instruction Manual
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
545186796 Rev. 4 3/19/09 BRW
R
Trademark
FX26SC
WEED EATER

Advertisement

Table of Contents
loading

Related Manuals for Weed Eater 545186796

Summary of Contents for Weed Eater 545186796

  • Page 1 Tout défaut de le faire pourrait entraîner des blessures graves. WEED EATER 1030 Stevens Creek Road Augusta, GA 30907 545186796 Rev. 4 3/19/09 BRW Trademark Instruction Manual FX26SC WEED EATER 850 Matheson Blvd. West...

  • Page 2: Identification Of Safety Symbols

    IDENTIFICATION OF SAFETY SYMBOLS DANGER: spool, and 0.080 inch (2 mm) recommended trim- mer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trimmer use only. Failure to follow these instructions may result in serious injury. WARNING: This unit can be dangerous! Careless or improper use can cause serious injury.

  • Page 3: Safety Rules

    IDENTIFICATION OF SAFETY SYMBOLS Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replace- ment parts. Always stop unit and disconnect spark plug before cleaning or servicing. WARNING: Fire hazard. Never mix, pour, or store gasoline or use the unit near a flame or sparks (including smoking, open flames, or work that can cause sparks).

  • Page 4: Fuel Safety

    S Keep others away when making carburetor adjustments. S Use only recommended WEED EATER ac- cessories and replacement parts. S Have all maintenance and service not ex- plained in this manual performed by an autho- rized service dealer.

  • Page 5: Adjusting The Handle

    ASSEMBLY WARNING: If received assembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure. Examine parts for damage. Do not use dam- aged parts. NOTE: If you need assistance or find parts missing or damaged, call 1-800-554-6723. It is normal for the fuel filter to rattle in the empty fuel tank.

  • Page 6: Know Your Trimmer

    Bracket Slot OPERATION KNOW YOUR TRIMMER READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Locking Sleeve Shaft Trimmer...
  • Page 7 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil with 1...

  • Page 8: Operating Position

    CHOKE position), move the choke lever to the FULL CHOKE position and press the primer bulb 6 times. Squeeze and hold the throttle trigger and pull the starter rope 2 more times. Move the choke lever to the HALF CHOKE position and pull the starter rope until the engine runs, but no more than 6 pulls.

  • Page 9: Maintenance

    If any dealer other than an authorized service dealer performs work on the product, WEED EATER may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance.

  • Page 10: Service And Adjustments

    2. Clean entire surface of hub and spool. 3. Replace with a pre-wound spool, or cut two lengths of 12-1/2 feet of 0.080 inch (2 mm) diameter WEED EATER brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile.
  • Page 11 Dust Cup 2. Remove trimmer head by turning counter- clockwise (looking from bottom of unit). 3. Thread replacement trimmer head onto the shaft by turning clockwise. Only tighten hand tight! CARBURETOR IDLE SPEED ADJUSTMENT WARNING: Keep others away when making idle speed adjustments. The trimmer head will be spinning during this procedure.
  • Page 12 WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.

  • Page 13: Limited Warranty

    WEED EATER, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrants to the original consumer purchaser that each new WEED EATER brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase.
  • Page 14 COVERED: REPAIR OR REPLACEMENT OF PARTS. Repair or replacement of any warranted part will be performed at no charge to the owner at an approved WEED EATER servicing center. If you have any questions regarding your warranty rights and responsi-...
