Page 1

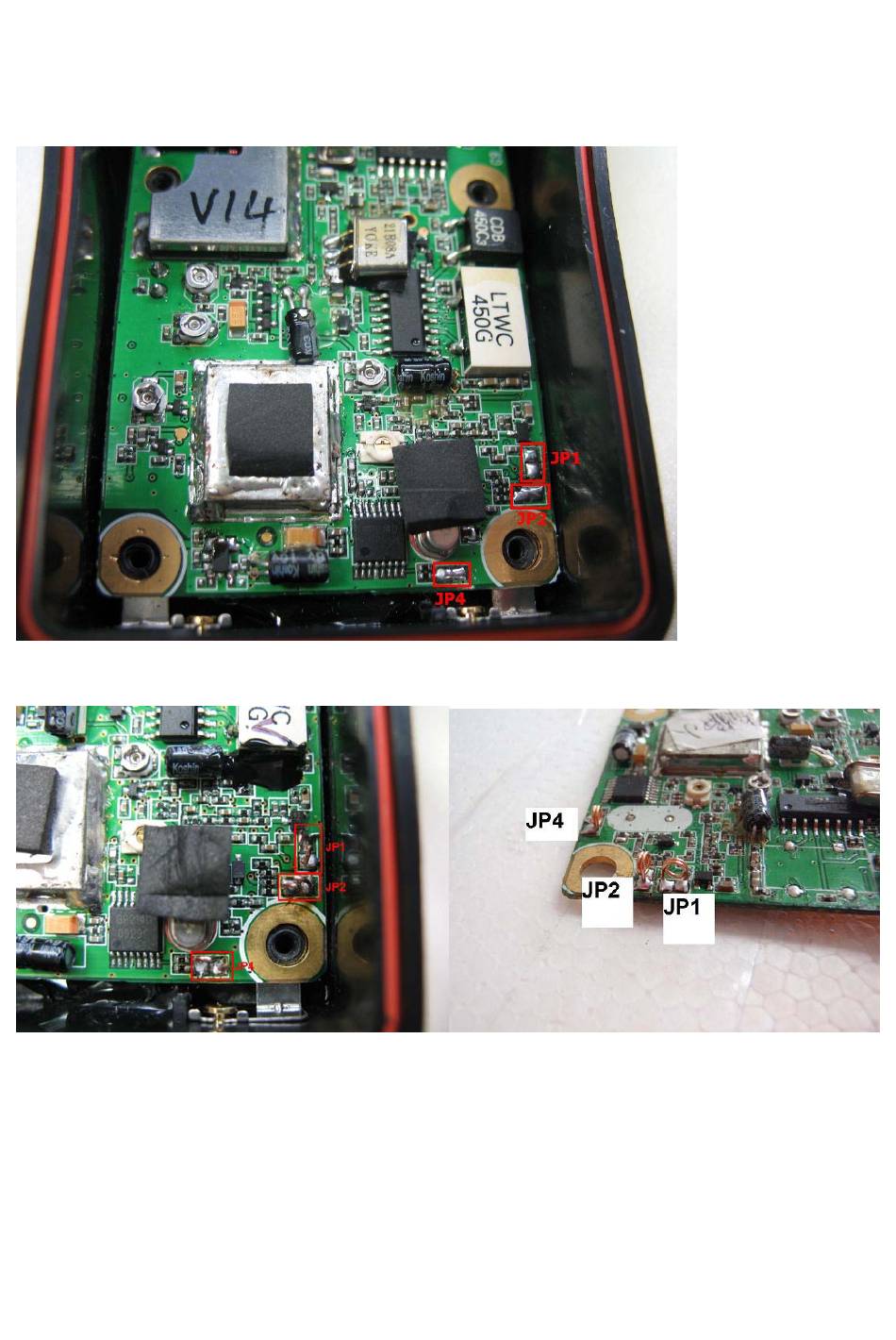

LINK SETTING FOR MIDLAND G9 Fig 1 Fig 2 If you have the radios as configuration Fig 2, make more attention when you cut the jumper, verify and remove the part in excess of coil’s, otherwise whether the one remain inside the radios, can bring about a short-circuit.
Page 2
‐ Open the radio and follow below table for link setting: default setting for default setting for PMR version only dual band version PMR/LPD J_POWER1 Short open open Open Short Short J_POWER2 Short Short open Open Short open J_POWER4 Short Short Short Open Open ...
