Weber Summit 400 Step-By-Step Manual

Weber Summit 400 Step-By-Step Manual

Weber lp gas barbecues step-by-step guide
Hide thumbs Also See for Summit 400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
WARNING: Follow all leak check procedures
carefully in this manual prior to barbecue
operation. Do this even if barbecue was
dealer assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this appliance
without reading "Lighting" instructions
section of this manual.

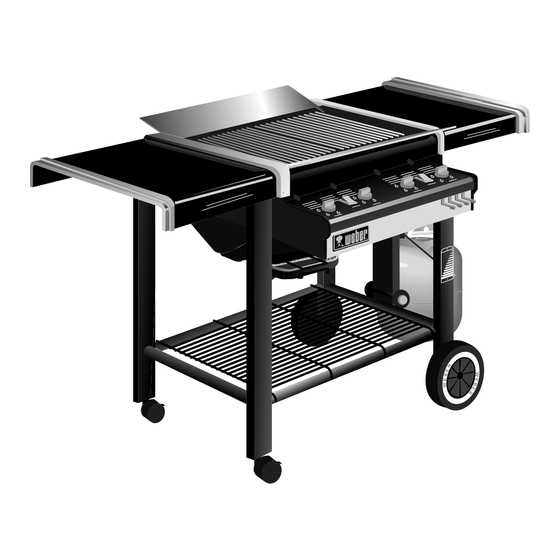

SUMMIT
LP Gas Barbecues
Step-By-Step Guide
National
PROPANEGAS
Association
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
400
TM
CANADIAN GAS ASSOCIATION
®
A P P R O V E D
R
97462
10/97

Advertisement

Table of Contents
loading

Related Manuals for Weber Summit 400

Summary of Contents for Weber Summit 400

  • Page 1 WARNING: Follow all leak check procedures carefully in this manual prior to barbecue operation. Do this even if barbecue was dealer assembled. NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use. THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

  • Page 2: Tools Needed

    While we give much attention to our products, unfortunately an occasional error may occur. If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-888-33-SUMMIT (1-888-337-8664) to receive immediate assistance.
  • Page 3 INSTALL FLAVORIZER BARS You will need: seven flavorizer bars. Set the Flavorizer bars front to back over the burners in the slots of the Flavorizer Bar/cooking grill support. Figure 1(a). Flavorizer Bar/cooking grill support Flavorizer Bar Slot Figure 1 REINSTALL SPLASH GUARDS You will need: two splash guards The splash guards are already in place.

  • Page 4: Add Cooking Grates

    REINSTALL SPLASH GUARDS (CONTINUED) Splash guards open for use. Figure 3. Figure 3 Splash guards closed for storage. Figure 4. Figure 4 ADD COOKING GRATES You will need: two cooking grates. The cross-rail of the cooking grate goes down. Set the cooking grates in place next to each other.

  • Page 5: Install Bottom Tray

    INSTALL BOTTOM TRAY You will need: Bottom tray, catch pan holder, catch pan, and one drip pan. Figure 6 Note: It may be easier to install the catch pan holder by removing the catch pan from the holder. Hook the ends of the catch pan holder into the hole in the bottom tray.
  • Page 6 ADD ACCESSORY RACK You will need: accessory rack. Set the bottom rack between the two bottom connectors. Figure 10. Figure 10 INSTALL TOOL HOLDERS You will need: four tool holders. Place the tool holder under the control panel and over the front panel.
  • Page 7 SET LP FUEL SCALE You will need: LP tank (empty). Note - For accuracy, the fuel scale must be set with an empty tank. We utilize various LP tank manufacturers. Some of the tanks we receive have differing top collar assemblies. (The top collar is the metal protective ring around the valve.) One series of tanks mounts with the valve facing front.
  • Page 8 This vent should be free of dirt, grease, bugs etc. The LP tank and connections supplied with your Weber Gas Barbecue have been designed and tested to meet government, American Gas Association and Underwriters Laboratories requirements.
  • Page 9 CONNECT FILLED LP TANK WARNING: Make sure that the LP tank valve is closed. Close by turning clockwise. Hook the LP tank onto the fuel scale. Loosen the tank lock wing nut. Swing the tank lock down. Tighten the wing nut.

  • Page 10: Check For Gas Leaks

    CHECK FOR GAS LEAKS WARNING The gas connections of your Weber Gas Barbecue have been factory tested. We do however recommend that you leak check all gas connections before operating your Weber Gas Barbecue. Remove control panel and front panel Take off all 4 burner control knobs.
  • Page 11 CHECK FOR GAS LEAKS (CONTINUED) DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. This will result in a fire or explosion which can cause serious bodily injury or death and damage to property.
  • Page 12 Figure 21 REINSTALL FRONT PANEL You will need: control panel, front panel, and four burner control knobs. With the Weber logo to the left, slide front panel down into place. Figure 22. Figure 22...
  • Page 13 INSTALL CONTROL PANEL Pull igniter buttons up until they stay in the up position. Place the control panel into the grooves on either side of the front of the cooking box. Push the control panel into place, using even pressure while pushing. Figure 23 (a). Use your fingers to lift the front edge of the control panel slightly and set it into the recess on both sides of the cooking box.
  • Page 14 EXPLODED VIEW FOR SUMMIT 400 LP 8-12 39-40 45-48...
  • Page 15 While we give much attention to our products, unfortunately an occasional error may occur. If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-888-33-SUMMIT (1-888-337-8664) to receive immediate assistance. Have your owner’s manual and serial number of the barbecue...
