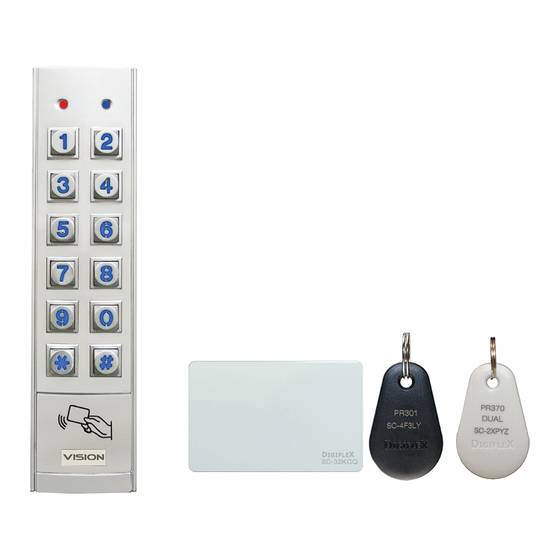

- Page 1 CP156B External Metal Keypad with Smart Card Reader Security Systems Installer Reference Guide Security System...
-
Page 2: Keypad Addressing
IP65 making it ideal for external installations. The CP156B includes red, green and blue indicators which are used to show area or door lock status. Backlit buttons make it easy to operate in all lighting conditions. -
Page 3: Installation
CP156B Installer Reference Guide Installation CP156B Mounting Template The keypad should be installed onto a solid surface using suitable mount- ing fixtures. Wiring should only be performed while the control panel is powered down. 4.50mm (11/64”) maximum hole Step 1) Mark out the location of the mounting holes and the cable exit hole before drilling out all points as necessary. - Page 4 See the Devices-Keypads & Readers-Emergency Keys menu option in panel programming to disable these The CP156B also includes an egress input and lock out- features. put which can be used to control door access if required. Using the on board lock output is not recommend-...
- Page 5 The CP156B keypad emits several distinct tones to alert you to particular system events. The keypad volume lev- Home Area and Door As- el cannot be adjusted on the CP156B however it can be signment not programmed Red/Green turned off via panel programming by setting the keypad...
-
Page 6: Configuration Examples
The Egress input [Green Wire] on the CP156B keypad al- lows you to simplify the wiring required to implement an egress button on the inside of the door. The egress input triggers the lock output on the keypad by operating the associated door that has been assigned to the keypad. - Page 7 Smart Card Format and want to use the same tokens across both sites. PR301 PR350 Smart Card Token Smart Card PR370 PR365 Dual Smart Card Adhesive Sticker Token Bosch Security Systems 01/19 CP156BIRG FTR1.1...
-
Page 8: Connection Diagram
45mm(W), 23mm(D), 162mm(H). CM444B = 46mm(W), 12.5mm(D), 12mm H) Environment: -30˚ to 55˚C RH 5 to 85% at 30˚C non-condensing. The CP156B should be mounted on a sturdy vertical wall using fixtures appropriate for the wall Fixing Method: construction type. - Page 9 CP156B Installer Reference Guide This page left intentionally blank Bosch Security Systems 01/19 CP156BIRG FTR1.1...
- Page 10 Installer Reference Guide CP156B This page left intentionally blank Bosch Security Systems 01/19 CP156BIRG FTR1.1...
- Page 11 CP156B Installer Reference Guide This page left intentionally blank Bosch Security Systems 01/19 CP156BIRG FTR1.1...
- Page 12 Bosch Security Systems Level 2, 21 Solent Circuit Baulkham Hills, NSW 2153 Australia Phone: 1300 026 724 www.boshsecurity.com.au © 2019 Bosch Security Systems CP156BIRG Issue FTR1.1...
