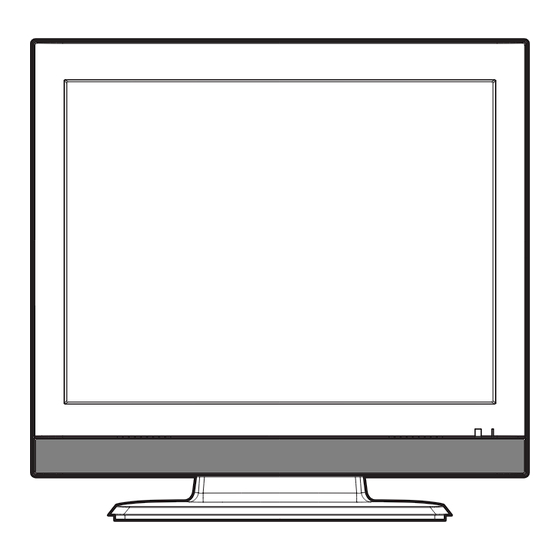

- Page 1 Operating Instructions Digital LCD Colour Television TV20RN10D Before operating the unit, please read this manual thoroughly. 32W0146A_ENG.indd 1 32W0146A_ENG.indd 1 6/6/07 10:53:59 AM 6/6/07 10:53:59 AM...
-
Page 2: Features
Features • LCD MONITOR Resolution: 640 x 480 pixels Aspect ratio 4:3 • On-Screen Language Display in 13 languages (English, Spanish, German, French, Italian, Swedish, Dutch, Russian, Portuguese, Turkish, Greek, Finnish or Polish) • NICAM/German A2 STEREO Hyperband cable DVB-T Combi-Tuner •... -
Page 3: Table Of Contents
Contents Features ..........2 Remarks on DVB-T system ..... 25 Contents ........... 3 Language Setup ......26 Important safety information....4 Auto Scan ........27 Location of controls ......7 Manual Scan ........28 Remote Control ......... 8 Carrier Setup ........29 Antenna connection ...... -
Page 4: Important Safety Information
Important safety information This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. • Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as with all electrical appliances it is possible for problems to develop. - Page 5 Important safety information Avoid placing the unit on any surfaces that may be subject to vibrations or shocks. To protect the unit during a thunder storm unplug the AC power cord and disconnect the antenna. Caution: Do not touch the antenna connector. When you leave your home for a long period of time, unplug the AC power cord for safety reasons.
- Page 6 Important safety information Moving the unit or carrying by hand When the unit is moved a long way, unplug the power cord and disconnect the antenna, con- necting cables and any fall-prevention apparatus. • Moving without doing so could result in damage to the power cord, a fire, electric shocks or injuries from dropping the unit.
-
Page 7: Location Of Controls
Location of controls Front Side Description of Indicators and Controls 1. Loudspeakers 2. Remote sensor (Standby/Timer/On) indicator: The LED indicator lights up red in standby mode, orange in standby mode when the timer is activated, and green in the power ON mode. (Volume) +/–... -
Page 8: Remote Control
Remote Control Function Page Enter standby mode or turn on the power Display program position number 40,42 Teletext time display Activate the analogue menu Activate the digital menu Select channel Select Teletext page Enter password Activate the channel organizer function Select an input source 12, 44, 45 Switches between the analogue TV and... - Page 9 Remote Control Install the batteries Use batteries type UM3 (AA-Size). Do not use old or weak batteries. The remote control may not work properly with a weak voltage from such batteries. Replace exhausted batteries with new ones. Never try to recharge normal batteries - this could cause an explosion.
-
Page 10: Antenna Connection
Antenna connection Note: Before you connect other appliances: • To avoid potentially damaging your set, make sure all items are switched off and disconnected from the mains power when you make the connections. • Arrange the desired connection. • When you have finished making the connections, reconnect the mains power to the unit and switch it back on. -
Page 11: Auto Setup
Auto setup Your unit has an Automatic Preparation: installation which makes installation Press (Power) on the right hand side of the unit or press in your unit easy. When you turn (On/Standby) on the remote. on the unit for the first time, the AUTO INSTALLATION menu will Automatic installation routine is appear. -
Page 12: Quick Guide For Analog Menu Operation
Quick guide for ANALOG MENU operation/Selecting the video input source/On-screen Language Selection Quick guide for ANALOG MENU operation Make sure the antenna connection and power supply are connected Call ANALOG MENU and for example: Select AUTO as per the description on previous TUNING. -
Page 13: Automatic Station Presetting With The Built-In Tuner
Automatic station presetting with the built-in Tuner Perform this feature to search for and store new analogue TV programmes after the Automatic installation. (P.11) Preparation: Make sure your antenna is connected to the antenna input (see P.10). Press 1 to switch to channel1 to begin with. Select AUTO TUNING, then press ENTER. -
Page 14: Manual Tv Station Presetting
Manual TV station presetting If you like, you may manually tune a certain station into a selected memory-cell, without deleting or modifying other memory-cell’s contents. Example: Store the ZDF into memory-cell 2. Preparation: connect analog rf-cable-supply. Select memory-cell 2. Press key 2 (see page 17). OSD will indicate in right upper corner. -
Page 15: Changing The Order Of Stored Channels
Changing the order of stored channels The Automatic station presetting Select CH ALLOCATION. stores the stations in a specific Then press ENTER. order. However, this order can be AUTO TUNING changed if you wish. MANUAL TUNING CH ALLOCATION LANGUAGE ENGLISH AV1 OUTPUT AV COLOUR AUTO... -
Page 16: Connection To Satellite Receiver
Connection to Satellite Receiver Connect with Satellite receiver as shown below. Select the TV-Program at the satellite receiver. To do this, use the remote control of the satellite receiver. You can not store the same station once again additionally in LCD-Monitor which already stored in satellite receiver. -
Page 17: Basic Operation
Basic Operation Channel selection With the numbered buttons. CH LIST Example: The CH LIST shows a list of all receivable • No. 2: Press 0 and within 2 seconds, press 2. programmes. They are located in channels 1 to 99. •... -
Page 18: Teletext
Teletext Teletext is sent page by page. This unit is able to automatically store up to 256 pages, but they can only be accessed once they have been stored. This can take a few moments. Fastext/TOPtext The Fastext/TOPtext is teletext with a special directory. On the lower part of the screen there are four different coloured fields (red, green, yellow and blue). -
Page 19: Sub Page Selection
Teletext Hold Pages Some pages are divided up into subpages by the channel. Subpages are automatically shown in turn, as they are transmitted. In order to hold the page, press . Press again in order to display the next subpage. Directly Select Subpages You can directly select the subpages if required. -
Page 20: Stereo Reception With The Built-In Analogue Tuner
Stereo reception with the built-in analogue tuner NICAM stereo sound reception: The built-in Tuner can detect and receive NICAM stereo broadcasts automatically. Select NICAM, then press ENTER. Press to select AUTO or OFF. NICAM AUTO BASS Select OFF if you do not want to TREBLE receive NICAM sound. -
Page 21: Bass, Treble And Balance
Bass, Treble and Balance/Using the surround sound feature/ Brightness, Contrast, Colour and Sharpness Bass, Treble and Balance Select BASS, then press ENTER. Then press to adjust the bass. NICAM AUTO BASS TREBLE If you wish to set the treble or BALANCE balance, press SURROUND... -
Page 22: Dnr
DNR/Blue back/Rec screen status (LCD Power on/off) Sometimes it is not possible to input a high-quality TV signal. The actually inputted signal is noisy, e.g. a noisy, analogue cable TV signal. DNR can somewhat improve any interference caused by the faulty input signal. Select DNR, then press ENTER. -
Page 23: Selecting The Colour Temperature
Selecting the colour temperature/ Selecting the picture preference Selecting the colour temperature Change the picture quality by selecting from three preset colour temperatures - cool, medium and warm - as described in the following table; Select COLOUR TEMPERATURE, then press ENTER. COLOUR TEMPERATURE MEDIUM BLUE BACK... -
Page 24: Picture Format
Picture format You can select the picture size. Selectable picture size varies with the type of signal received. This is a 4:3 broadcast. Picture 1 This is a letterbox broadcast. Picture 2 You selected the wrong setting for this 4:3 broadcast. Press PICTURE SIZE to set the 4:3 size. -
Page 25: Remarks On Dvb-T System
Remarks on DVB-T system DVB-T is at present still being developed. You can get information regarding the current stage of development on http://www.ueberall-tv.de or from your specialist retailer. As a digital service DVB-T basically works differently to previous analogue TV reception. Reception Possibilities: In contrast to cable TV, DVB-T is received via room or roof antennas. -
Page 26: Language Setup
Language Setup Preparation: Switch on appliance. Press TV/DVB-T. The appliance switches over to DVB-T-mode. Menu languages supported are English, French, German, Italian, Spanish, Russian, Portuguese, Dutch, Polish, Swedish, Turkish, Finnish and Greek. (Welsh and Gaelic are available only for Digital Service Language.) Press DIGITAL MENU, the menu will appear on the screen. -
Page 27: Auto Scan
Auto Scan Preparation: Please ensure that all the connections have been made correctly (see page 10). Press DIGITAL MENU, the menu will appear on the screen. Press to select Installation option. Press to select ‘Auto Scan’ from the sub menu tab, then press ENTER. -
Page 28: Manual Scan
Manual Scan With the Manual Scan option, you Press DIGITAL MENU, the menu will appear on the screen. can tune one carrier at a time, by Press to select Installation option. entering the carrier parameters Press to select ‘Manual Scan’ from the sub menu manually. -
Page 29: Carrier Setup
Carrier Setup The Carrier setup option menu lists Press DIGITAL MENU, the menu will appear on the screen. all the carriers (multiplexes) that Press to select Installation option. are currently available and allows Press to select ‘Carrier Setup’ from the sub menu you to Rename, Delete or Rescan tab, then press ENTER. -
Page 30: Channel Organizer
Channel Organizer The Channel Organizer feature Press DIGITAL MENU, the menu will appear on the screen. provides options to organise the Press to select Channel Organizer option, then channels. The following options are press ENTER. supported: Favourite, Lock, Skip, Go To, Delete, Rename, Move, Move to, View. -
Page 31: Favourite
Favourite The Channel Organizer menu lists Preparation: all the stored channels in the Call the Channel Organizer menu (see page 30 for further database. If you wish to add a details) in the digital TV mode. specific channel to the ‘Favourite’ In the Channel Organizer menu, press group, follow the steps on this page. -
Page 32: Lock
Lock/Skip From the service list, you can lock Preparations a particular service (for example • You must set your own password first for digital TV mode (see to prevent children from viewing page 37). certain channels). • Call the Channel Organizer menu (see page 30 for further You can skip unwanted channels so details) in the digital TV mode. -
Page 33: Go To
Go To/Delete Preparations Call the Channel Organizer menu (see page 30 for further details) in the digital TV mode. Go To You can jump or move easily to a specific service within the service list. Press number ‘4’ on any channel in the list - the S.No (Service No.) column will be highlighted. -
Page 34: Rename
Rename You can name a service as per your Preparations preference. Call the Channel Organizer menu (see page 30 for further details) in the digital TV mode. In the Channel Organizer menu, press to select the specified service you want to rename. Then press number ‘6’. -
Page 35: Move
Move/Move to/View Preparations Call the Channel Organizer menu (see page 30 for further details) in the digital TV mode. Move You can sort the order of the selected service by moving the service position or the service number. In the Channel Organizer menu, press to select the specified service you want to move. -
Page 36: Display Setup
Display Setup This feature allows you to change the Display Setup settings as per your preference. In this menu the following options are available. Banner timeout: This option changes the banner timeout period (how long the OSD information stays on the screen in the digital mode). -
Page 37: Password Setup (Parental Lock)
Password Setup (Parental lock) This feature allows you to have Press DIGITAL MENU, the menu will appear on the screen. a parental control of the service Press to select System Configuration option. viewing as per your preference. Press to select ‘Password Setup’ from sub menu Once a service is protected with tab, then press ENTER. -
Page 38: Version
Version/Software Upgrade Version You can check the software and hardware versions. Press DIGITAL MENU, the menu will appear on the screen. Press to select Technical Information option. Press to select ‘Version’ from sub menu tab, then press ENTER. Version information banner will appear. Main menu Technical Information Version... -
Page 39: Common Interface
Common Interface You can access the Common Preparations Interface module information from Insert CAM into the DVB Common Interface slot on the backside this menu option. of the TV (see page 10). Press DIGITAL MENU, the menu will appear on the screen. Press to select Common Interface option, then press ENTER. -
Page 40: Channel List
Channel list/Channel banner Channel list Press CH LIST to display the Channel list menu. Channel group Zoom window Channel group S.No Services BBC ONE Carrier BBC TWO DVB-T 64 QAM BBC THREE List of the Tuning Freq CBBC services 177500 kHz parameters BBC News 24 BBCi... -
Page 41: Multi Audio
Multi audio/DVB-Subtitle Multi audio You can select your preferred Audio mode and DVB (digital TV) subtitle Language. The Multi audio menu will display the Audio mode and Language options available with the current broadcast. Press AUDIO I/II to display the Multi audio menu. The Audio mode and Language code will be displayed if available. -
Page 42: Epg (Electronic Program Guide)
EPG (Electronic Program Guide) The Guide menu shows the Press GUIDE to display the Guide menu. available programme listings for the next 8 days only, including today. However, the guide menu will show Guide 16:50 Sun 20/08/2007 ‘No Event Name’ for programmes Programme 16:30-17:00 The Wild Thornberrys CBBC which are more than 8 days ahead,... -
Page 43: Epg Timer
EPG Timer You can choose whether or not the screen switches on when the timer event begins - please see page 22 (Rec screen status (LCD Power on/off)). This is so that if you are using the timer to make a recording to your VCR or other device, the TV screen will not switch on unless you want it to. -
Page 44: Connection To Other Equipment
Connection to other equipment 1. Connecting other units to your TV Caution. Before connecting: • Make sure to disconnect the appli ance from the power supply in order TV (Back side view) to avoid any potential damage from occurring. • Make sure to establish the required connection. - Page 45 Connection to other equipment 3. Connecting an audio system You can supply the TV sound to the stereo equipment (A) with the scart socket. Use a special scart cable for the connection which sold at the accessory shop. (please consult your hi-fi instructions for details). If you have a surround sound amplifier/decoder (B) with a coaxial digital input, you can connect the Coaxial Digital Audio Output to it, using a suitable coaxial digital lead.
-
Page 46: Av Colour Adjustment
Connection to other equipment 5. Setting of Scart socket , select AV1 OUTPUT, then press ENTER. This determines whether the AV1 outputs the signal from the internal tuner or whatever input is shown on the screen. AUTO TUNING Press to select TV or MONITOR. MANUAL TUNING CH ALLOCATION LANGUAGE... -
Page 47: Troubleshooting Table
Troubleshooting table/Specifications Troubleshooting table Please check the following list before requesting service. Symptom Possible solution Page No picture, no sound Switch on the set. Check that the mains power outlet is properly connected. Select appropriate input mode. 12, 44,45 No reception Have you tuned in the TV stations? Press 1 on the remote control. - Page 48 J32W0146A SH 07/06 32W0146A_ENG.indd 48 32W0146A_ENG.indd 48 6/6/07 10:54:02 AM 6/6/07 10:54:02 AM...
