Vision Fitness T9300 Assembly Manual
Platform treadmills
Hide thumbs
Also See for T9300:
- Owner's manual (68 pages) ,
- Service manual (56 pages) ,
- Assembly manual (8 pages)
Related Manuals for Vision Fitness T9300
Summary of Contents for Vision Fitness T9300

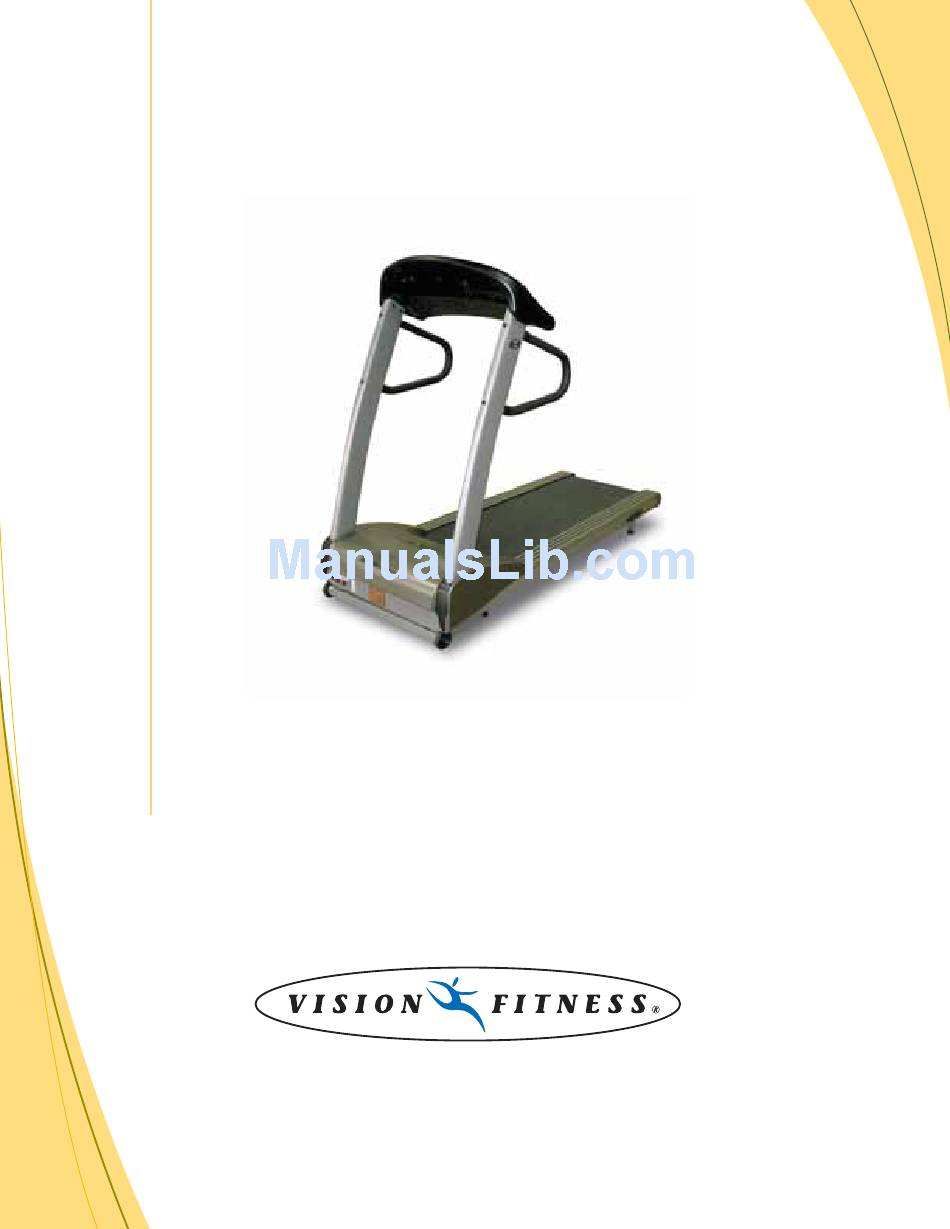

- Page 1 A s s e m b l y G u i d e T9200, T9300, T9500HRT, AND ALL T9600HRT T9700 Series PLATFORM TREADMILLS...
- Page 2 T9200, T9300, T9500HRT, To avoid possible damage to this Platform Treadmill, please follow these assembly steps in the correct order. Before proceeding though, find your new Platform Treadmill’s serial number, located on the underside of the main frame, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 5mm Allen Wrench PARTS BOX Heart Rate Chest Strap, Qty: 1 ( Except Models T9200 and T9300 ) Color-coded Hardware Bags Water Bottle, Qty: 1 Owner’s Guide Assembly Guide Warranty Card Allen Wrench Screwdriver...
-
Page 4: Hardware Included
HARDWARE INCLUDED BLUE BAG ORANGE BAG M8 x 15L Bolts M8 x 20L Bolts Quantity: 4 Quantity: 2 M8 x 55L Flathead Bolts Quantity: 4 YELLOW BAG M4 x 12L Panhead Screws Quantity: 4 M8 x 135L Bolts Quantity: 4... - Page 5 Make sure that the data (1 large ribbon cable) goes through the large hole in the lower part of the console upright. T9200, T9300, T9500HRT & T9600HRT Series: Slide the data cables down the right console support using the white wire tie as a guide.
-
Page 6: Data Cables
(M8 x 135L). Repeat this on the left-hand side. STEP STEP MODELS T9200, T9300, T9500HRT, T9600HRT & T9600HRT Comfort: Plug in the small data cable into the small plug connection on the lower control board. Plug in the large data cable into the large plug connection on the lower control board. -
Page 7: Auto Calibration
STEP Once the treadmill is plugged in, you need to perform an Auto Calibration to assure maximum performance. MODELS T9300, T9500HRT, T9600HRT & T9600HRT Comfort: DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION • You need to access User Engineering Mode to run the Auto Calibration. To access this mode, please hold down SPEED DOWN and SELECT for 5 seconds. -
Page 8: Belt Tension
500 South CP Avenue • P.O. Box 280 • Lake Mills, WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 4.04 Part #Z92TM49-AG AG18.12PRD REV4 Allen wrench to...
