Vision Fitness X6600HRT/DA Assembly Manual

Dual-action elliptical trainer
Hide thumbs Also See for X6600HRT/DA:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Owner's Manual
A s s e m b l y
G u i d e
X 6 6 0 0 H R T / D A
D U A L - A C T I O N E L L I P T I C A L T R A I N E R

Advertisement

loading

Related Manuals for Vision Fitness X6600HRT/DA

Summary of Contents for Vision Fitness X6600HRT/DA

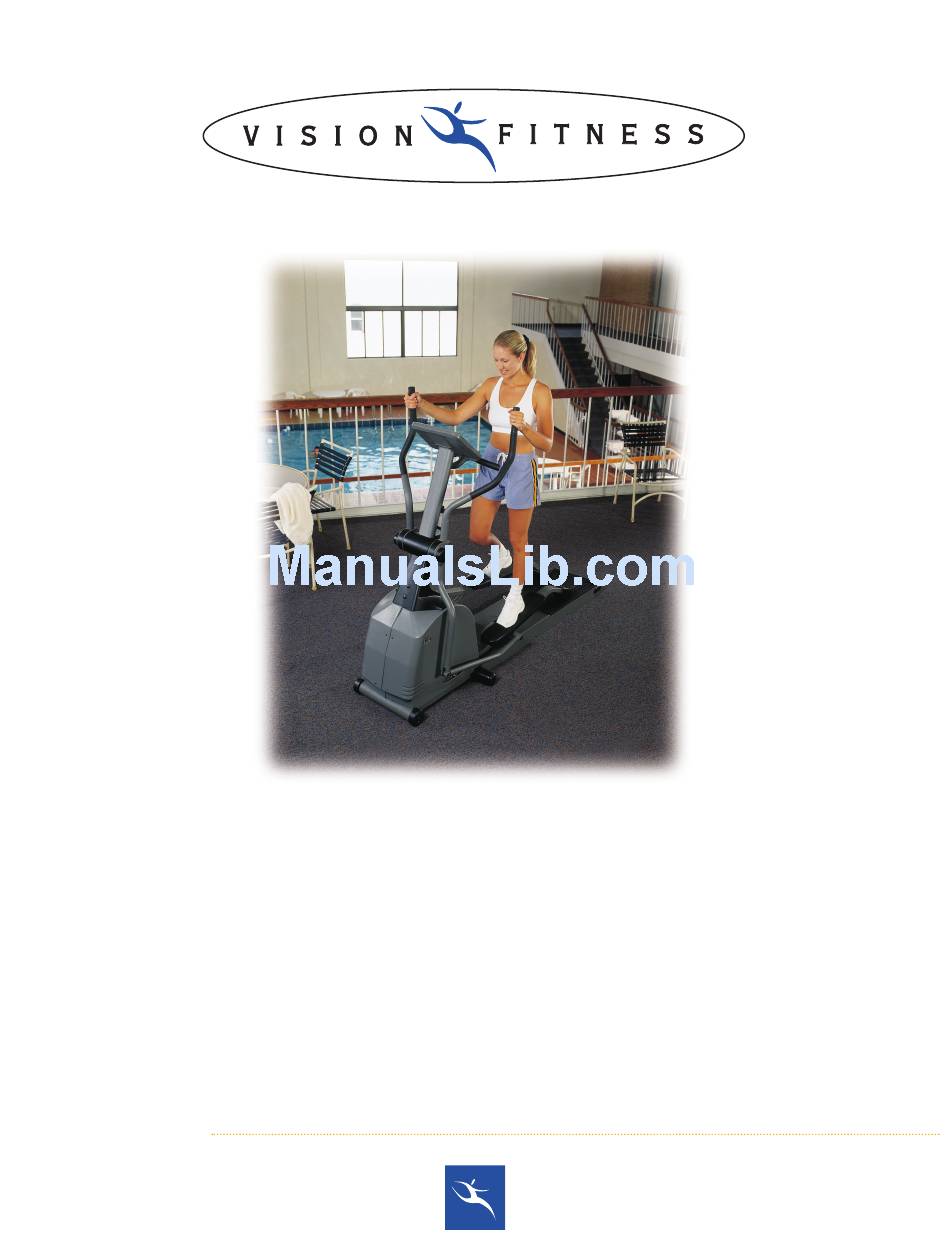

  • Page 1 A s s e m b l y G u i d e X 6 6 0 0 H R T / D A D U A L - A C T I O N E L L I P T I C A L T R A I N E R...
  • Page 2 X 6 6 0 0 H R T / D A dual-action elliptical trainer To avoid possible damage to this Elliptical Trainer, please follow these assembly steps in the correct order. Before proceeding though, find your new Elliptical Trainer’s serial number located below the power switch, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
  • Page 3 TOOLS & PARTS INCLUDED Allen Wrench Screwdriver L-Shaped Wrench PARTS BOX Heart Rate Chest Strap, Qty: 1 Power Supply, Qty: 1 Arm Bracket Covers, Qty: 2 Logo Endcaps, Qty: 2 Stabilizers, Qty: 2 Stabilizer Covers, Qty: 2 Water Bottle and Holder, Qty: 1 Console Mast Cover Plate, Qty: 1 Assembly Guide Owner’s Guide...

  • Page 4: Hardware Included

    HARDWARE INCLUDED ORANGE BAG M4 x 12 Screw Quantity: 4 M8 Arc Washer Quantity: 4 BLUE BAG M4 x 12 Screw Quantity: 4 M3 x 10 Screw Quantity: 1 M8 x 75 Bolt Quantity: 2 PINK BAG M8 x 12 Bolt Quantity: 2 M30 Teflon Washer...
  • Page 5 ORANGE BAG STEP • Install left stabilizers with the four arc-shaped washers (M8) and four bolts (M8 x 20), using the Blue 5 • Cover both stabilizers with the included rubber boots. BLUE BAG STEP • Slide the console mast cover onto the console mast.
  • Page 6 PINK BAG STEP • Slide a small spring washer (M20) onto the lower pedal arm support, followed by the right lower arm. Attach with a white Teflon washer (M30), a flat washer (M30), and bolt (M8 x 12), using Blue-han- dled 5 Allen wrench.
  • Page 7 GREEN BAG STEP • Slide right upper arm into right STEP upper handlebar bracket. • Tighten the top bolt (M8) on the arm bracket connection block, using the L-shaped Allen wrench. • Attach plastic arm bracket cover to the front of the arm bracket connection block.
  • Page 8 Do not pinch the cable! 621-D East Lake Street • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com  2001 Vision Fitness. All Rights Reserved. 3.01 Part #Z66EP09-AG1803PRD AG18.03PRD REV1 STEP...
