Summary of Contents for Viper 1100.5

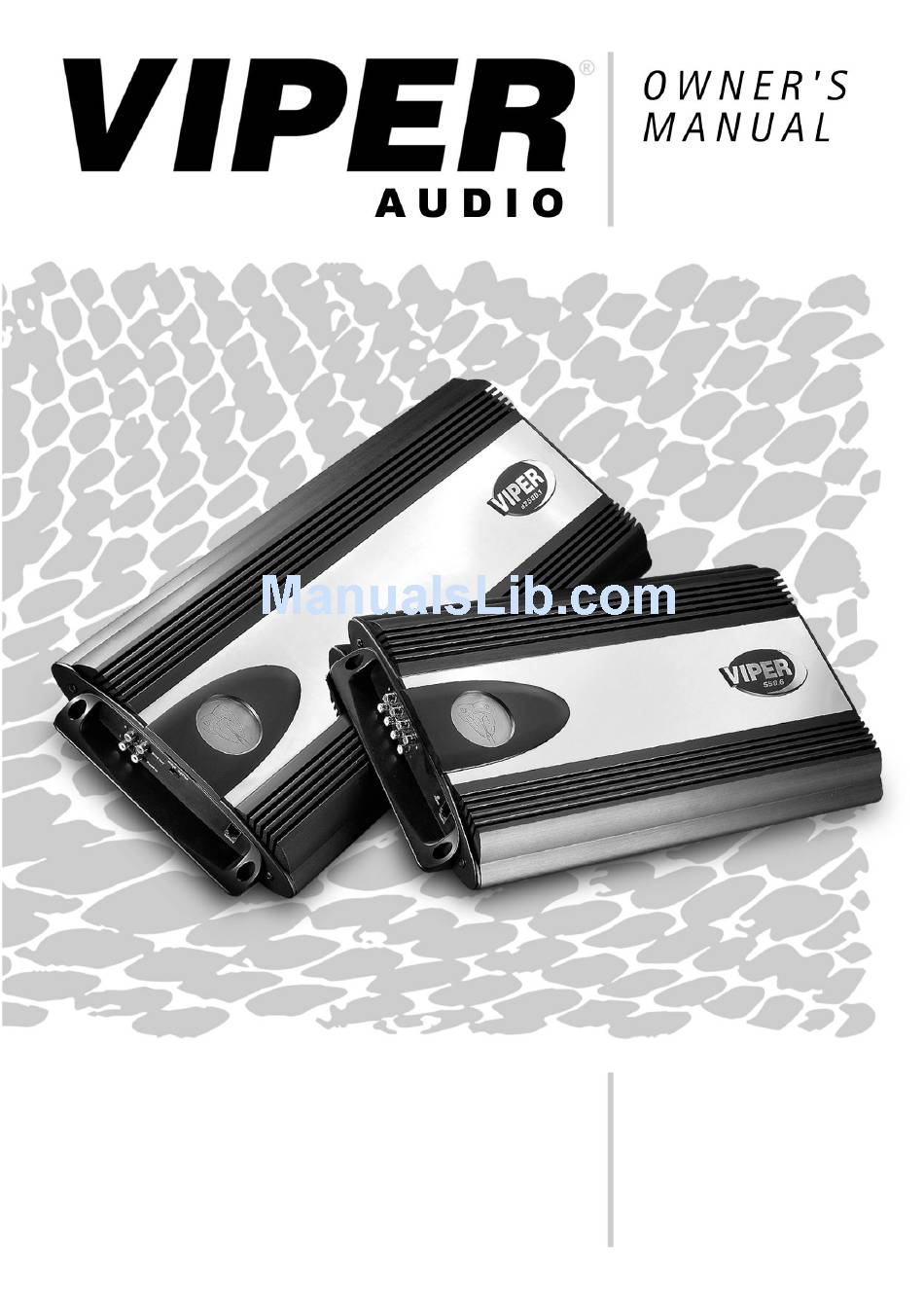

  • Page 1 1100...
  • Page 2 © 2002 Directed Electronics, Inc...

  • Page 3: Table Of Contents

    Featuring high-efficiency MOSFET power supplies, flexible on-board crossovers, and state of the art audio design, Viper Audio power amplifiers will excite and TABLE OF CONTENTS Limited Two-Year Consumer Warranty ......4 Features .

  • Page 4: Limited Two-Year Consumer Warranty

    LIMITED TWO-YEAR CONSUMER WARRANTY Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workman- ship or material under normal use, for a period of two years from the date of purchase by the dealer as indicated by the date code marking of the product PROVIDED the product was installed by an...

  • Page 5: Features

    Thermal, DC offset, reverse polarity, and short circuit protection with status LED. Top-mounted controls located under illuminated Viper snake logo trim piece. Dual continuously variable 12 dB/octave two-way crossovers (ch 1-4). Continuously variable 24 dB/ octave low-pass crossover (sub channel).

  • Page 6: Installation Guidelines

    INSTALLATION GUIDELINES 1. Please read this owner’s manual carefully before installing this ampli- fier. 2. Disconnect the battery ground terminal prior to making any elec- trical connections. 3. Check for any hazards or obstruc- tions such as gas tanks, fuel or brake lines, and wiring harnesses before mounting the amplifier.

  • Page 7: Wire Connector Plugs

    WIRE CONNECTOR PLUGS Power and speaker wire connections on Viper Audio power amplifiers are performed with the use of specially designed connectors that allow for ease of wire termination and installation convenience.

  • Page 8: Front Panel Connections/Status Led

    W W a a r r n n i i n n g g : : DO NOT connect a level control knob from other manufacturers to the Remote Sub Level Control of any Viper amplifier. Even though the connectors fit properly, the control knob and connector pin posi- tions may be different and the amplifier will be damaged.

  • Page 9: Rear Panel Connections

    FIGURE 2—AMPLIFIER CONNECTIONS 1100.5 REAR © 2002 Directed Electronics, Inc 5. ( ( + + ) ) 1 1 2 2 V V o o l l t t P P o o w w e e r r - Connect this...

  • Page 10: Top Panel Controls

    TOP PANEL CONTROLS 1. I I n n p p u u t t G G a a i i n n A A d d j j u u s s t t m m e e n n t t - Controls amplifier sensitivity and is used to match the input level of the ampli- fier to the output level of the signal...
  • Page 11 FIGURE 3—AMPLIFIER CONTROLS TOP © 2002 Directed Electronics, Inc...

  • Page 12: Top Panel Features

    Viper Badge Mounting The Viper Badge can be rotated in 90- degree increments to accommodate the amplifier’s final mounting position. 1. Determine the final mounting posi- tion of the amplifier.

  • Page 13: Speaker Wiring Diagrams

    Three channel operation (bottom view) N N O O T T E E : : The dual + and -- subout terminals of the 1100.5 are paralleled internally and the combined load impedance should be taken into consideration when connecting multiple subwoofers.

  • Page 14: Combined Amplifiers

    They are the Parallel Synced Gain and External Synced Bridged combi- nations. NOTE: The Viper 1100.5 is always the master amplifier in these combinations. Parallel Synced Gain The Parallel Synced Gain combination includes a master amplifier (1100.5) and a slave amplifier (d600.1).

  • Page 15: Parallel Synced Gain Connections/Settings

    3. S S i i g g n n a a l l C C o o n n n n e e c c t t i i o o n n - Connect an RCA cable between the SYNC OUT RCA jack of the 1100.5 and the SLAVE IN RCA jack of the slaved d600.1 as shown in Figure 5.
  • Page 16 Speaker Wiring (bottom view) N N O O T T E E : : The dual + and -- subout terminals of the d600.1/1100.5 are paralleled internally and the combined load impedance should be taken into consideration when connecting multiple subwoofers.

  • Page 17: External Synced Bridged Connections/Settings

    3. S S i i g g n n a a l l C C o o n n n n e e c c t t i i o o n n - Connect an RCA cable between the BRIDGE OUT jack of the 1100.5 and the SLAVE IN jack of the slaved d600.1 as shown in Figure 6.
  • Page 18 Speaker Wiring (bottom view) N N O O T T E E : : The dual + and -- subout terminals of the d600.1/1100.5 are paralleled internally and the combined load impedance should be taken into consideration when connecting multiple subwoofers.

  • Page 19: Crossover Settings And Gain Adjustment

    CROSSOVER SETTINGS AND GAIN ADJUSTMENT Your Viper Audio power amplifier needs to be adjusted carefully to achieve maximum performance. These are some guidelines to follow when fine-tuning the amplifier. For full-range and simultaneous stereo/mono bass applications, the crossover selection switch should be set to FLAT. If the amplifier is driving your subwoofers, set the switch to LPF, and for mid-bass/midrange output, set to HPF.

  • Page 20: Specifications

    SPECIFICATIONS Viper model 1100.5 RMS continuous power per channel, Channels 1-4 driven into 4 ohms from 20 to 20,000 Hz, with less than 0.08% total Harmonic Distortion @ 14.4 VDC. Channel 5 driven into 4 ohms from 20-250 Hz, with less than 0.4% THD @ 14.4 VDC.
  • Page 22 Directed Electronics, Inc. Vista, California 92083 www.directed.com Quality Directed products are sold and serviced throughout North America and around the world Call 800 274 0200 for more information about our products and services © 2002 Directed Electronics, Inc. - All rights reserved - G46058 02/02 The company behind this system is Directed Electronics, Inc.
