Viking DCH Specification Sheet

Standard Features & Accessories
All models include
• Heavy-duty construction
o Virtually seamless stainless steel
design with no visible screws
• Heat sensor turns the ventilator on full
power when cooking temperatures
reach uncomfortable levels
• Recommended for 24"W., 30"W. &
36"W. non-griddle/grill ranges,
rangetops, and cooktops
• 460 CFM interior-power ventilator
comes standard with product
o Variable speed controls for custom
venting—separate on/off switch
allows you to leave ventilator at
favorite/most-used setting
• Two 50-watt halogen lights with
dimmer control
o Power switch and dimmer control
are separate, allowing you to leave
dimmer at favorite position
• Easy cleanup
o Design of low-profile filter system
means less interior hood space to
be cleaned
o Canopy interior is completely lined
in stainless steel for increased
rigidity, seamless appearance, and
easy cleaning
Model Options
FINISH DETAILS FOR PROFESSIONAL MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish designates front and sides.
• Accessory Rail Option—Front of hood.
(Must be ordered factory installed)
o Stainless Steel/Chrome (CR)—
Stainless steel rail with chrome
ORDERING INSTRUCTIONS
First specify model number, followed by color code (VWH2410SS). If ordering optional decorative rail, specify code at end
(VWH2410SSCR).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
Built-In 10"H. Wall Hood w/Ventilator/
12"H. Chimney Wall Hood w/Ventilator
Professional 10"H. hoods include
• Commercial-type size, design, and styling
• Allow replacement of most older
hoods with minimal cabinet alteration
• Commercial-type baffle filter system
efficiently removes grease and heated
vapors from the air; especially
designed for use with commercial-
type products
Designer 12"H. hoods include
• Professional-type size, design, and
styling
• Delay function—can be set to shut off
from 10 – 30 minutes later (10 min.
increments)
• 12-hour timer built into controls
• Two dishwasher-safe stainless steel
mesh filters are easily removed for
quick cleaning (frame and mesh are
stainless steel)
Model numbers
PROFESSIONAL WALL HOODS, 10"H./21"D.
• VWH2410—24"W.
o Recommended for use with 24"W.
non-griddle/grill ranges (for larger
equipment, use 18"H. hood)
• VWH3010—30"W.
o Recommended for use with 30"W.
VWH Professional
Wall Hood
supports/brackets and hooks
(included).
o Brass Trim Option (BR)—nameplate,
rail, supports/brackets, and hooks
(included). Brass components have a
durable protective coating for
maintenance-free normal use.
FINISH DETAILS DESIGNER MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
• 1 - 8 8 8 - V I K I N G 1
VENTILATION
ranges, 30"W. non-griddle/grill
rangetops, and 30"W. cooktops
• VWH3610—36"W.
o Recommended for use with 36"W.
non-griddle/grill ranges, 36"W. non-
griddle/grill rangetops, and 36"W.
cooktops
DESIGNER CHIMNEY WALL HOODS,
12"H./24"D.
• DCH3042—30"W.
o Recommended for use with 30"W.
ranges, 30"W. non-griddle/grill
rangetops, and 30"W. cooktops
• DCH3642—36"W.
o Recommended for use with 36"W.
ranges, 36"W. non-griddle/grill
rangetops, and 36"W. cooktops

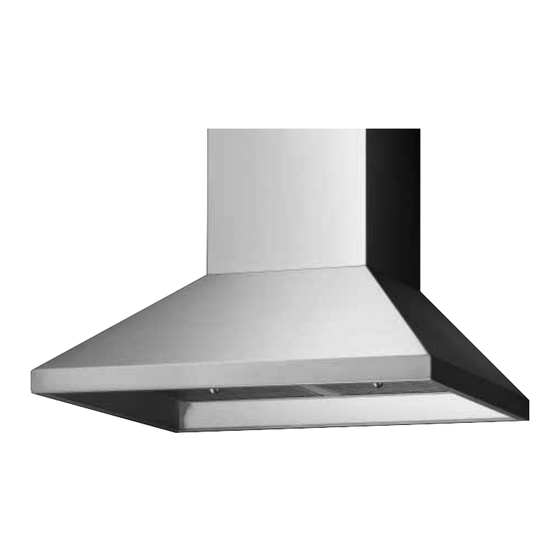

DCH Designer Chimney
Wall Hood
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish designates front and sides.
• Accessory Rail Option—Front of hood.
(Must be ordered factory installed)
o Stainless Steel/Chrome (CR)—
Stainless steel rail with chrome
supports/brackets and hooks
(included).
o Brass Trim Option (BR)—rail,
supports/brackets, and hooks
(included). Brass components have a
durable protective coating for
maintenance-free normal use.
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
R E L E A S E D 1 2 / 1 / 0 7
