Cover Page Graphic
Place the graphic directly on the page, do not care about
putting it in the text flow. Select Graphics > Properties
and make the following settings:
•
Width: 15,4 cm (Important!)
•
Height: 11,2 cm (May be smaller)
•
Top: 5,3 cm (Important!)
•
Left: -0,3 cm (Important!)
This text should then be hidden.

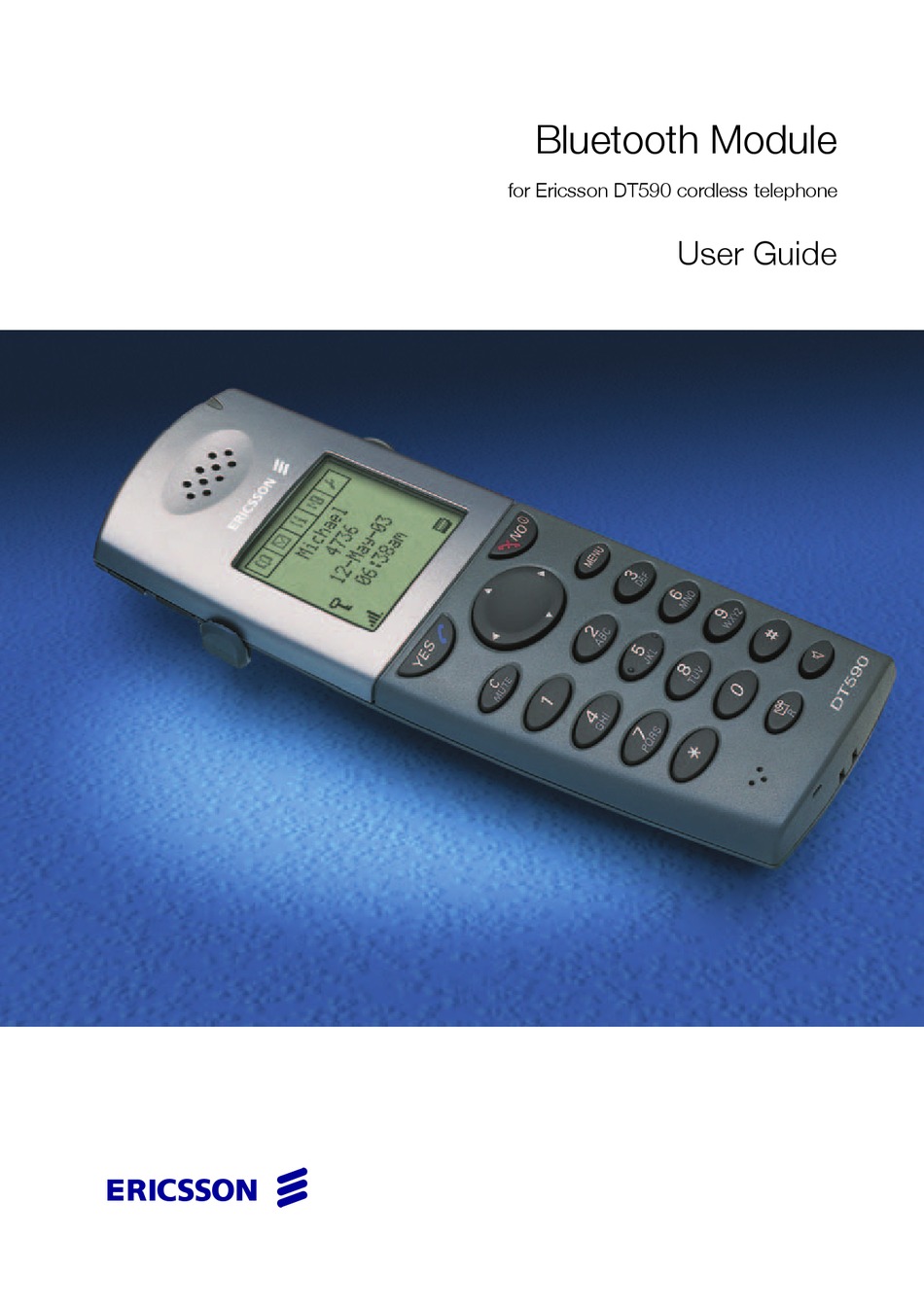

Bluetooth Module
for Ericsson DT590 cordless telephone
User Guide
Advertisement
Related Manuals for Ericsson DT590
Summary of Contents for Ericsson DT590
- Page 1 Bluetooth Module for Ericsson DT590 cordless telephone User Guide Cover Page Graphic Place the graphic directly on the page, do not care about putting it in the text flow. Select Graphics > Properties and make the following settings: • Width: 15,4 cm (Important!) •...
- Page 2 User Guide EN/LZT 103 017 R1A © Ericsson Enterprise AB 2006 Cordless DT590 Bluetooth...
-
Page 3: Table Of Contents
Table of Contents Table of Contents page Welcome ............4 Description ............6 Installation ............7 Operation ............16 Maintenance ..........19 Cordless DT590 Bluetooth... -
Page 4: Welcome
Welcome This User Guide shows you how to install the Bluetooth module in the Ericsson DT590 cordless phone and how to pair and operate the telephone with a Bluetooth headset. The Bluetooth module is placed in the battery compartment and connected with a connector. - Page 5 No parts of this publication may be subject to alteration, modification or commercial use. Ericsson will not be liable for any damages arising from use of an illegal modified or altered publication.
-
Page 6: Description
The minimum hardware version is R2A. The hardware version is found on the label under the battery (next to the article number 1/DPNANB 240 01/1). For further details please contact your system administrator. Cordless DT590 Bluetooth... -
Page 7: Installation
Bluetooth module. Place the Bluetooth module so that it is centred on the battery and the support at the end of the battery. Close the battery lid. Turn on the phone by pressing NO until the display starts. Cordless DT590 Bluetooth... - Page 8 Installation Cordless DT590 Bluetooth...
- Page 9 For optimal performance wear the Bluetooth headset and the phone on the same side of your body. The best audio quality in the headset is achieved when there are obstructions, including your body, between the headset and the cordless phone. Cordless DT590 Bluetooth...
- Page 10 Press. º º Ü Û Select the “Toolbox” tab. Select the menu item ”Bluetooth” and confirm. º Ü Û Select the menu item ”Headset” and confirm. º Ü Û Select the menu item ”Add new” and confirm. Cordless DT590 Bluetooth...
- Page 11 To switch between the paired headsets please refer to chapter “Activate a Bluetooth headset” on page 12. A paired headset will be indicated by a symbol ( ) in the info row of the display. Cordless DT590 Bluetooth...
- Page 12 • Edit name º Ü Û • Remove Select the menu item ”Connect” and confirm. The headset is now active and ready to be used. Note: A previously activated headset is deactivated automatically, however it remains paired. Cordless DT590 Bluetooth...
- Page 13 The following options are available: • Disconnect • Edit name º Ü Û • Remove Select the menu item ”Disconnect” and confirm. The headset is now deactivated but remains paired and can be found in the headset menu. Cordless DT590 Bluetooth...
- Page 14 Select the menu item ”Headset” and confirm. º Ü Û Select the desired headset and confirm. The following options are available: • Disconnect or Connect • Edit name º Ü Û • Remove Select the menu item ”Remove” and confirm. Cordless DT590 Bluetooth...
- Page 15 The following options are available: • Disconnect or Connect • Edit name º Ü Û • Remove Select the menu item ”Edit name” and confirm. To enter a text please refer to chapter “Write Text” in the DT590 user guide. Cordless DT590 Bluetooth...
-
Page 16: Operation
Press the button on the headset, if the call shall be answered on the headset. Ü Û Press to answer the call on the phone. End a call To end the call press the button on the headset. Ú Ù Press. Cordless DT590 Bluetooth... - Page 17 Select the menu item “Audio transfer” and press. º Ü Û Select the headset name and press. It is also possible to transfer a call to the Bluetooth headset by pressing the button on the Bluetooth headset. Cordless DT590 Bluetooth...
- Page 18 If the Bluetooth headset and the phone become out of range from each other the connection is temporarily lost. When the phone and the headset are in range again, the connection is automatically established when a call is made or received. Cordless DT590 Bluetooth...
-
Page 19: Maintenance
Replace the Battery (see chapter “Replacing the battery” on page 125) and fasten the Bluetooth module again (see chapter “Installation” on page 7. Replace the Bluetooth module The Bluetooth module is not reparable. Ensure that it is properly disposed of. Cordless DT590 Bluetooth... - Page 20 Headset is already Disconnect headset connected to from the other another phone phone Too close to a Shut down WLAN WLAN area and equipment or move headset does not out of range. support the Bluetooth standard v1.2 Cordless DT590 Bluetooth...
- Page 21 Repeat pairing in either headset or procedure phone. Too close to a Shut down WLAN WLAN area and equipment or move headset does not out of range. support the Bluetooth standard v1.2 *) see headset manual for details Cordless DT590 Bluetooth...
- Page 22 Notes Notes Cordless DT590 Bluetooth...
- Page 23 Notes Cordless DT590 Bluetooth...
