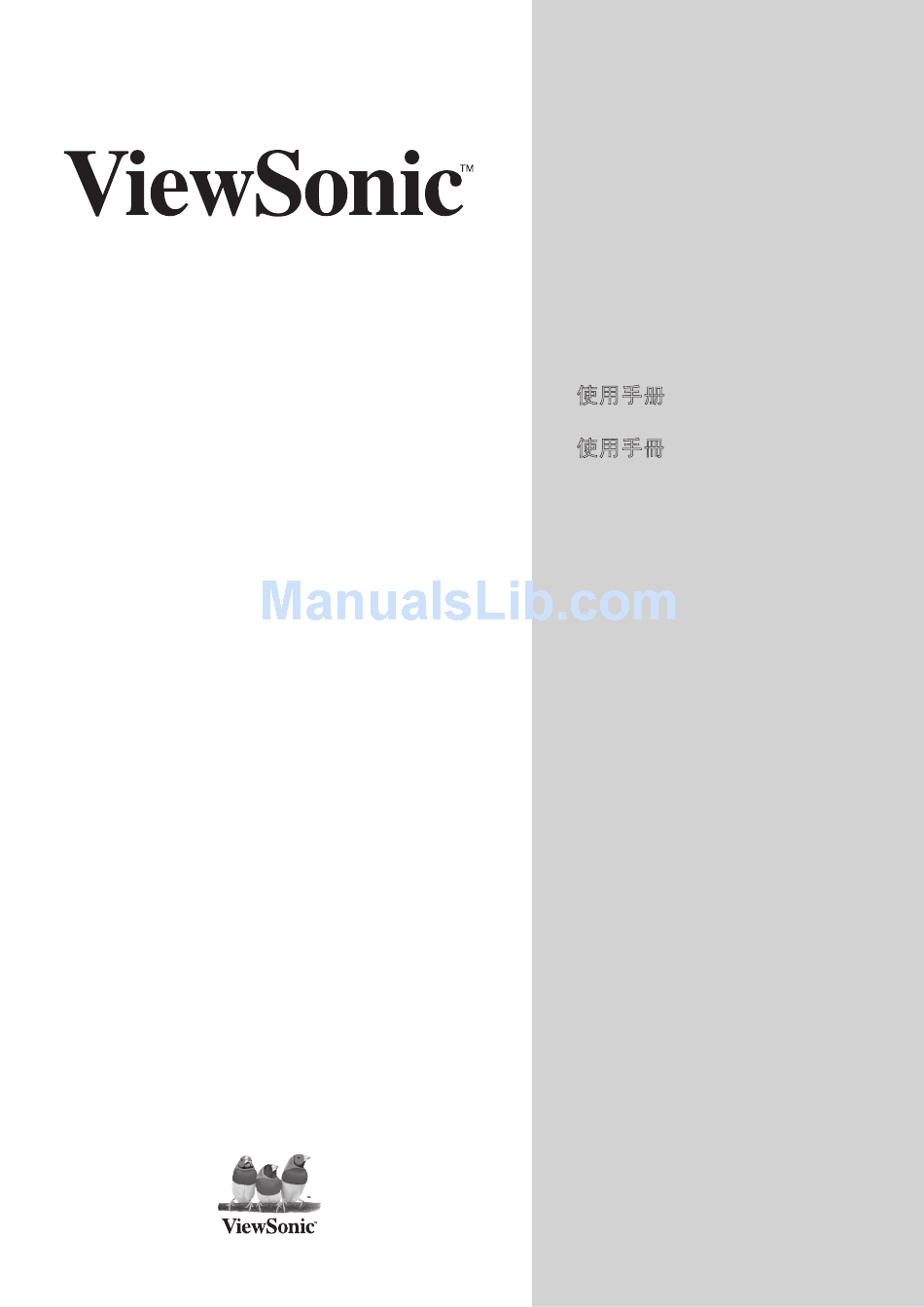

- Page 1 VT2430-G LCD TV - 使用手册 - 使用手冊 - User Guide Model No. : VS12464-1G...
-
Page 2: Table Of Contents
Antenna Installation Instructions ... 3 Cleaning the LCD TV ... 3 Getting Started Package Contents ... 4 Mounting ViewSonic LCD TV to the wall ... 4 Front View of the Product ... 6 Rear View of the product ... 7 Remote Control ... 8 Installation ... -
Page 3: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic VT2430... -
Page 4: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 5: Antenna Installation Instructions
LCD TV screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 6: Getting Started
• Do not install near heat source, or strong magnetic fields. • Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight. • Before attaching the wall mount plate to the back cover, ensure the product is working. - Page 7 • Install the wall mount plate to the LCD TV using screws NO LONGER than 10mm, as longer screws found in universal (non-ViewSonic) wall mount kits may damage the power supply causing the unit to fail. The wall-mount screw type is M4 x L10.
-
Page 8: Front View Of The Product
MENU CH - CH + INPUT ViewSonic Description Turn the power on from standby mode or turn the power off to return to the standby mode. Lights up in blue when the TV is turned on. Lights up in orange when the TV is in standby mode. -
Page 9: Rear View Of The Product
YPbPr Audio input (left/ right) 10 Audio output 11 PC Audio input 12 Headphone Jack ViewSonic Description Plug-in the supplied AC Power cord and connect to the AC input power source. Connect this port to the HDMI/HDMI-DVI jack of the compatible equipment. -
Page 10: Remote Control
For Hong Kong area 9 菜单 10 频道▲/▼ 11 静音 12 显示 13 休眠 14 MPX ViewSonic Description Select the TV, AV, S-Video, YPbPr, HDMI, PC INPUT inputs as the video source signal. Press to confirm the selection in the OSD menu, ENTER or to enter the OSD menu you select. -
Page 11: Installation
TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV channels into memory with Auto Scan function when using an antenna or cable TV system without a cable connecter box (See page 15). ViewSonic RF Cable or Adapter VT2430... - Page 12 Connect Video / Audio cables from compatible devices into the back panel of your LCD TV. 1) With AV cable: 2) With S-Video cable: 3) With YPbPr cable: ViewSonic RCA A/V Cable (not supplied) VCD or DVD Player S-Video Cable (not supplied) Audio in Cable...
-
Page 13: Connecting To A Computer
Connect the VGA cable from VGA output of the computer to the VGA terminal input of your LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the audio input terminal (green) of the LCD TV. ViewSonic VCD or DVD Player HDMI Cable (not supplied) -
Page 14: Connecting With The Power Cord
Connect the power cord to the AC inlet at the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket Power Cord ViewSonic HDMI-DVI Cable (not supplied) VT2430... -
Page 15: Basic Operation
Press ◄► to enter the menu you select. t Use ▲▼ to appoint your desired optional item. t Press ◄► to adjust the settings. t Press 菜单 (MENU) to finish adjustment and press 菜单 (MENU) again to exit the OSD menu. ViewSonic VT2430... -
Page 16: Osd Functions
• Mid Bass: To adjust the mid bass. • Middle: To adjust the middle. • Mid Treble: To adjust the mid treble. • Treble: To adjust the treble. ViewSonic ＊ For China area ＊ For Hong Kong area: ＊ For China area ＊... -
Page 17: Setup Menu
Note: After auto scan all the channels, you need not to do it again when turning on your TV next time. *China TV system: PAL D/K and I. ViewSonic When input source is PC/ HDMI-DVI: ＊ For Hong Kong area:... - Page 18 You may press “3” to add the erased channels or use Auto Scan function to re-present them. 3. To exchange one channel with another: Press “2” to enter the function of “Sort,” and the following screen will show. ViewSonic ＊ For China area ＊ For Hong Kong area: E x i t...
- Page 19 (the default password is 0000) to display the submenu. Change Password: To change password. Press ► to enter new password. Child Lock: To turn ON/OFF child lock function. ViewSonic ＊ For China area ＊ For Hong Kong area:...
-
Page 20: Pc Menu
2. Some timings with close frequencies can not be well fine-tuned by using auto adjust. You can press “Menu” and “CH -” keys on the front panel control simultaneously to switch to display a better image. ViewSonic When input source is HDMI(PC mode): VT2430... -
Page 21: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV. Note: Product Specifications are subject to change without notice. ViewSonic 23.6” TFT Active Matrix RGB 0.2715 (H) x 0.2715 (V) mm pixel... -
Page 22: Troubleshooting
• Press MENU button on the remote control to see if there is a MENU shown on the screen. • Press only one button at a time and it is the correct one for the operation you want to perform. ViewSonic Troubleshooting Possible Solution VT2430... - Page 23 • Is the image positioned correctly? off/with sidebar • Are screen mode adjustments such as picture size set correctly? screen • Select “Aspect Ratio” from the “Setup” Menu to see if you can get the picture you prefer. ViewSonic VT2430...
-
Page 24: Customer Support
For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/ Web Site Region China www.viewsonic.com.cn Hong Kong www.hk.viewsonic.com Declaration of RoHS Compliance The toxic and hazardous substances or elements of this product are shown as below: Name of... -
Page 25: Limited Warranty
How long the warranty is effective: ViewSonic LCD TV are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.
