QUINCE
™
SINGLE CONTROL
PULL-DOWN BAR FAUCET
Thank you for selecting American-Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Regular Screwdriver
1

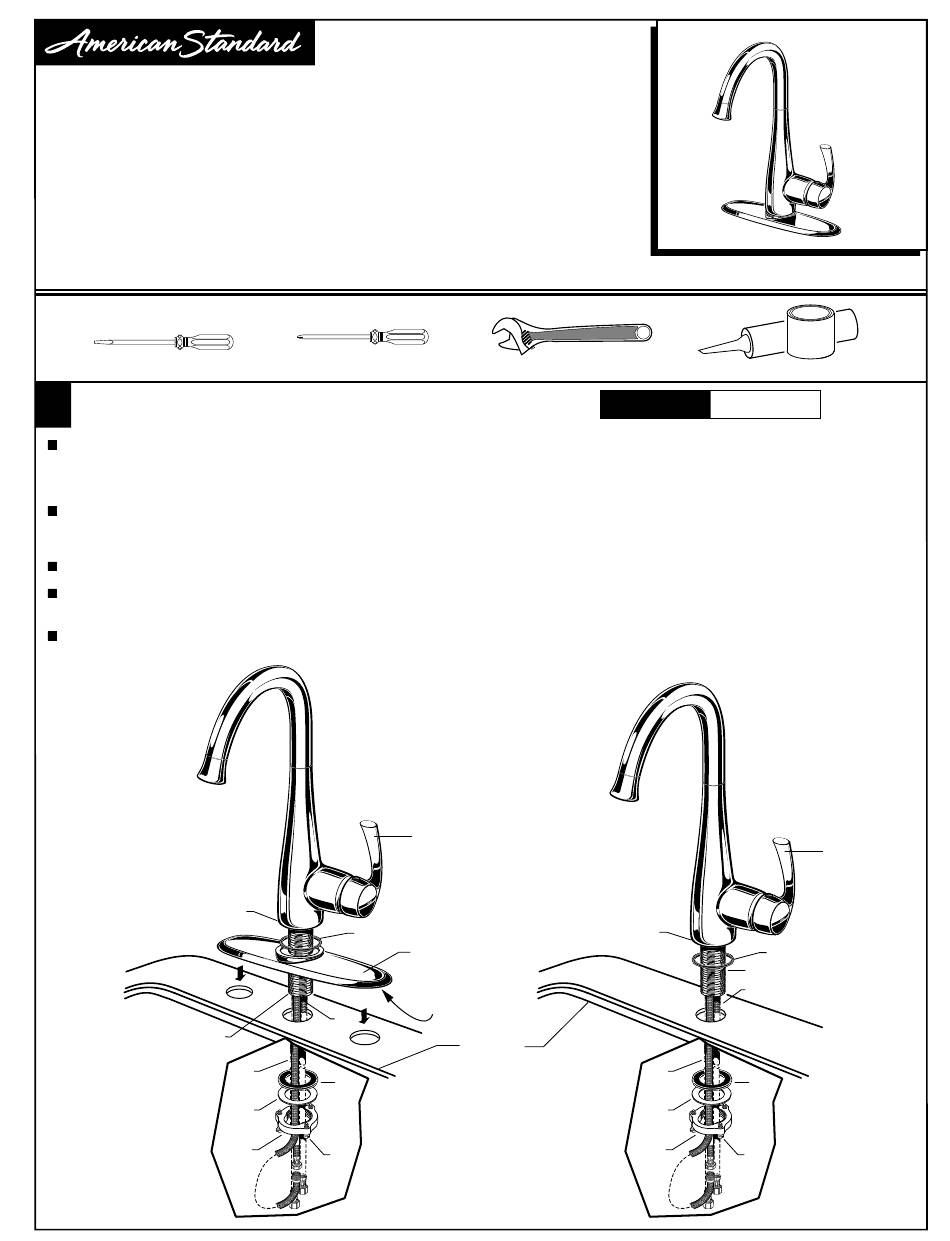

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Make certain the SEAL (9) is properly seated in recess of faucet body. Insert SUPPLY HOSES (2), SPRAY HOSE (7)
and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting surface. Follow mounting instructions
below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1). Discard ESCUTCHEON with PUTTY PLATE (1). Make certain the SEAL (9)
is properly seated in recess of faucet body.Insert supply HOSES (2), SPRAY HOSE (7) and SHANK (3) through mounting
hole and seat SPOUT BASE onto sink or mounting surface. Do not use putty.
Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6).
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
SPOUT BASE
3
Phillips Screwdriver
7
9
1
2
7
4
5
6
8
Installation
Instructions
4433.410
4433.410F15
Adjustable Wrench
B
SPOUT BASE
PUTTY
SINK OR
MOUNTING
SURFACE
Certified to comply with ANSI A112.18.1M
M965243 REV. 1.8 (4/19)
Plumbers' Putty or Caulking
Turn off water at
CAUTION
main supply.
9
3
2
7
4
5
6
8
7
Advertisement
Related Manuals for American Standard QUINCE 4433.410
Summary of Contents for American Standard QUINCE 4433.410
- Page 1 Installation Instructions 4433.410 QUINCE ™ 4433.410F15 SINGLE CONTROL PULL-DOWN BAR FAUCET Thank you for selecting American-Standard... the benchmark of fine quality for over 140 years. To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1M M965243 REV.
- Page 2 MAKE WATER SUPPLY CONNECTIONS Turn off hot and cold water supplies before beginning. Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply (Marked with a Red Stripe) to Hot and right supply (Marked with Blue Stripe) to Cold wall supply.
- Page 3 CHECK CONNECTIONS FOR LEAKS. Move HANDLE into "off" position. Turn on water supplies and check connections for leaks Operate HANDLE up and down, left and right to flush water lines thoroughly. Operate HAND SPRAY and check connections for leaks. CHECK CONNECTIONS FOR LEAKS SERVICE If faucet drips, operate HANDLE several times from "off"...
- Page 4 QUINCE ™ SINGLE CONTROL PULL-DOWN BAR FAUCET MODEL NUMBER 4433.410 4433.410F15 M922367-007220A SPRAY HOSE 2.2gpm/8.3L/min. M922367-007150A SPRAY HOSE 1.5gpm/5.7L/min. M964178-YYY220A (2.2 GPM) M964175-0070A SPOUT BUSHING & O-RING KIT SPRAY ASSEMBLY M964178-YYY150A (1.5 GPM) SPRAY ASSEMBLY M917147-0070A SPOUT SET SCREW A951470-0070A CARTRIDGE M964176-YYY0A HANDLE KIT...
