Vitek Transcendent Series Quick Start Manual

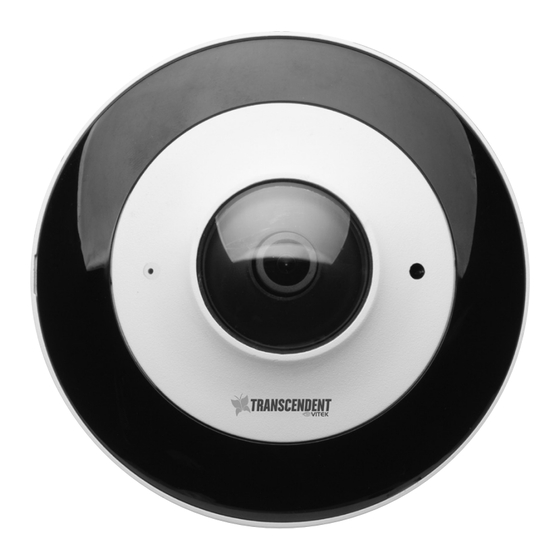

6 megapixel h.265 ip vandal 360 degrees fisheye camera w/6 ir leds
Hide thumbs Also See for Transcendent Series:
Table of Contents

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
FEATURES
• 1/2.9" 6.0 MegaPixel CMOS Image Sensor
• Up to 30fps live view @ 6 MegaPixel
• Multiple Views: 360° Overview, Double 180° Panorama View, Overview
+ 3 Views, and Single View
• 1.07mm @ F2.5 Fisheye Lens with 180° horizontal field of view (wall
mounted) / 360° (ceiling mounted)
• 6 High Power Covert IR LEDs with 50' IR Range
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• ROI Encoding
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD memory card slot for Local recording supporting up to 128GB
MicroSDXC cards
• IK10 Impact Resistance Rating
• Two Way Audio
• 12VDC & PoE (Power over Ethernet) Operation
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
VTD-TND6FP
Transcendent Series 6
Megapixel H.265 IP Vandal 360°
Fisheye Camera w/6 IR LEDs

Advertisement

Table of Contents
loading

Related Manuals for Vitek Transcendent Series

Summary of Contents for Vitek Transcendent Series

  • Page 1 VTD-TND6FP Transcendent Series 6 Megapixel H.265 IP Vandal 360° Fisheye Camera w/6 IR LEDs QUICK START GUIDE FEATURES • 1/2.9” 6.0 MegaPixel CMOS Image Sensor • Up to 30fps live view @ 6 MegaPixel • Multiple Views: 360° Overview, Double 180° Panorama View, Overview + 3 Views, and Single View •...

  • Page 2: Components And Accessories

    Components and Accessories Camera Drill Template Quick Guide Plastic Wall Anchors Screws Waterproof Cap Hex Wrench Overview RJ-45 Ethernet RS-485 Audio In Power Cable MicroSD Card Slot Audio Out CVBS Output Reset Alarm I/O...
  • Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. ALM-COM ALM-OPEN ALM-INA ALM-GND...

  • Page 4: Sd Card Installation

    SD Card Installation 1. Remove the fixed ring from the camera. Fixed Ring 2. Loosen the screws of the cover of the SD card and then insert the SD card. Then reinstall the cover ring.

  • Page 5: Installation

    Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: ∅5.12” 1. Remove the fixed ring from the gap of the 3.31”...

  • Page 6: Lan Configuration

    LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. Locate the IP-Tool installer on the included Product Documentation CD, then install on the PC.
  • Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.

  • Page 8: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
  • Page 9 NOTES:...
  • Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR TRANSCENDENT IP CAMERAS NVRs INTRODUCING OUR NEW INTRODUCING OUR NEW ADVANCED LEARNING A Standalone Solution with FULL Analytic Support • 8MP (4K) HDMI Output • H.265 / H.264 Compression • Full Analytic Support Including Face Detection •...
  • Page 11 OPTIONAL MOUNTS AVAILABLE VT-TJB-F1 Junction Box for Transcendent VTD-TND6FP Fisheye Dome Camera VT-TWM-F Wall Mount for Transcendent VTD-TND6FP Fisheye Dome Camera VT-TPDM-F Pedestal Mount for Transcendent VTD-TND6FP Fisheye Dome Camera...
  • Page 12 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
