Page 1

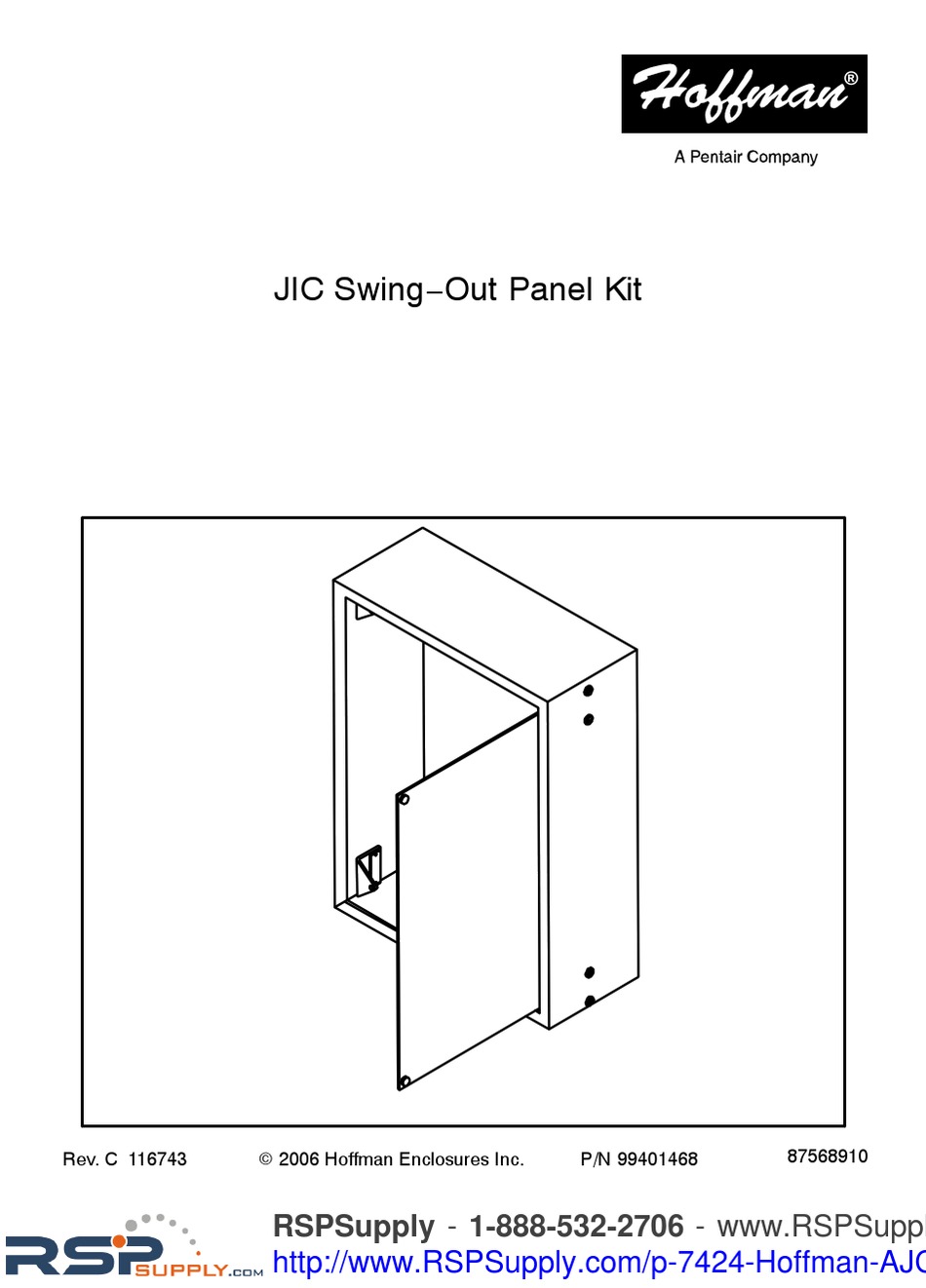

® JIC Swing−Out Panel Kit 87568910 Rev. C 116743 E 2006 Hoffman Enclosures Inc. P/N 99401468 RSPSupply - 1-888-532-2706 - www.RSPSuppl http://www.RSPSupply.com/p-7424-Hoffman-AJC...
Page 2
WARNING To avoid electric shock and equipment damage, disconnect any power supplies to the enclosure before drilling mounting holes. Do not energize any circuits before all internal and external electrical and mechanical clearances are checked to assure that all assembled equipment functions safely and properly.
Page 3
10−32x.375 6−32x.375 (8x) (8x) (2x) (2x) 8−32x.75 (2x) (2x) (2x) (2x) (1x) This accessory maintains UL/CSA Type 12,4,4X when installed per these instructions. This accessory is covered by UL file E61997 and CSA file LR42186. E 2006 Hoffman Enclosures Inc. 87568910 −...
INSTALLATION STEPS Step 1 − Swing panel may be hinged on any side. Determine mounting position desired and drill eight .172 (4mm) diameter holes as shown. Step 2 − Mount hinges and brackets using pan head screws with nylon washers under the screw heads.
Page 5
E 2006 Hoffman Enclosures Inc. 87568910 − 5 − RSPSupply - 1-888-532-2706 - www.RSPSuppl http://www.RSPSupply.com/p-7424-Hoffman-AJC...
Page 6
E 2006 Hoffman Enclosures Inc. − 6 − 87568910 RSPSupply - 1-888-532-2706 - www.RSPSuppl http://www.RSPSupply.com/p-7424-Hoffman-AJC...
Page 7
E 2006 Hoffman Enclosures Inc. 87568910 − 7 − RSPSupply - 1-888-532-2706 - www.RSPSuppl http://www.RSPSupply.com/p-7424-Hoffman-AJC...
