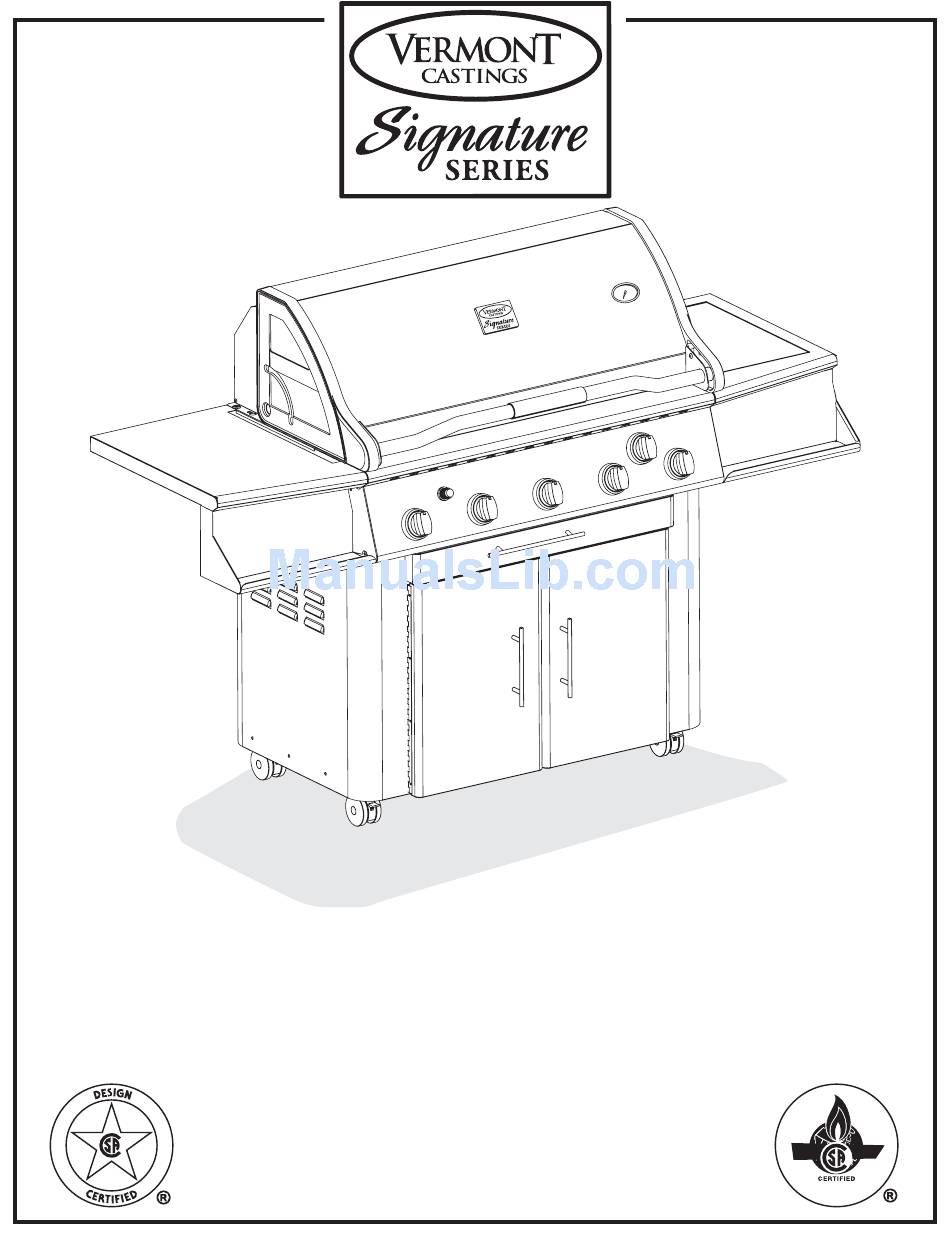

- Page 1 Model VCS5007 Shown USER’S MANUAL for Models VCS5017 as Barbecue Grill (Propane & Natural Gas) 50004060 12/06 Rev.1 En...
- Page 2 Warnings DANGER If you smell gas: 1. Shut off gas to the appliance; 2. Extinguish any open flame; 3. Open lid; 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
-
Page 3: Signal Words
The Signal Words used in this Manual, and their intended meanings, are as follows : Indicates that a failure to observe the safety instructions could result in death or DANGER: catastrophic bodily injury. WARNING: Indicates that a failure to observe the safety instructions could result in serious bodily injury. -
Page 4: Safe Locations For Use Of This Outdoor Grill
Warnings A. SAFE LOCATIONS FOR USE OF THIS OUTDOOR GRILL Never use this outdoor Grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. - Page 5 B. SAFE USE OF LP (PROPANE) GAS Never install a propane cylinder that is more than 80 % full, as the contents may lack adequate room for expansion when exposed to heat. Propane vapor may then be vented through the pressure release valve, which could accumulate in a pool and later result in a fire or explosion.
-
Page 6: Prevention Of Burns
Safety Always promptly shut off the gas supply and immediately extinguish all flames if you smell gas. Always seek assistance from your gas supplier or local Fire Department if the gas smell persists, because of the danger of fire or explosion. Always confirm that there are no gas leaks before lighting this Grill. -
Page 7: Additional Warnings
Safety FUELS WARNING: Never use Natural Gas in a Grill that has been configured to burn Propane Gas, and never use Propane Gas in a Grill that has been configured to use Natural Gas, to avoid possible bodily injury. Always consult the Rating Label on the back of your Grill to confirm which fuel must be used with the Grill. - Page 8 DANGER: a) Do not store a spare LP - Gas Cylinder under or near this appliance b) Never fill the cylinder beyond 80% full; and c) If the information in a) and b) is not followed exactly, a fire causing death or serious injury may occur. WARNING: Always confirm that the openings in the cylinder compartment of the Grill are free of any obstructions that would restrict the circulation of ventilation air.
-
Page 9: Gas Hook-Up
Gas Hookup Hooking Up to the LP (Propane) Gas Supply FOR YOUR SAFETY WARNING: Never store or use gasoline or any other volatile substance in the vicinity of this Grill. WARNING: Never store a spare propane cylinder in the vicinity of this Grill, or in the vicinity of any other potential heat source. -
Page 10: Natural Gas Supply Connection
NATURAL GAS SUPPLY CONNECTION TO CONNECT: Push back the Sleeve on the Socket as shown below (see Fig. 6a). Insert Plug and release the Sleeve (see Fig. 6b). Push the Plug until Sleeve snaps forward to lock the Plug in the Socket. WARNING: Always conduct the following safety tests before lighting the Grill, to prevent a possible fire or... -
Page 11: Operation
On Models VCS4007, VCS4017, VCS4027, & VCS4037, there are four independent control valves for the main burners, and a separate control valve for the rotisserie burner. On Models VCS5007, VCS5017, VCS5027, VCS5037, & VCS5007BI, there are five independent control valves for the main burners, and a separate control valve for the rotisserie burner. -
Page 12: Lighting The Main Burners
LIGHTING THE MAIN BURNERS a. Always open the Hood completely and always inspect the Grill and burners to confirm that all components are properly positioned before lighting the main burners. b. Make sure the grease cup is empty and grease tray is clean. c. -
Page 13: Turning The Burners Off
Operation TURNING THE BURNERS OFF Always turn the burner control knob(s) to the OFF position when cooking has been completed. Promptly turn OFF the gas supply valve at the propane cylinder or at the main natural gas supply line. Close the Hood of the Grill. FLARE-UPS “Flare-ups”... -
Page 14: Match Lighting The Rotisserie Burner
LIGHTING THE ROTISSERIE BURNER The Rotisserie burner provides the steady, even heat required to cook poultry and roasts to self-basted perfection. TO START THE ROTISSERIE BURNER: Always open the Hood completely before attempting to light the Grill. WARNING: Never stand with your head directly over the Grill when preparing to light the Rotisserie burner, to prevent possible bodily injury. -
Page 15: Rotisserie Setup
Operation ROTISSERIE SETUP (if equipped) The Rotisserie burner is intended to be used for rotisserie cooking only. WARNING: Never use the main burners while using the Rotisserie burner, as that could result in igniting the drippings, or overheating your Grill, which could result in damage of the Grill. The Rotisserie assembly includes a counter-weight for large or irregular food items ;... -
Page 16: Lighting The Side Burner
LIGHTING THE SIDE BURNER WARNING: Never stand with your head directly over the Grill when preparing to light the side burner, to prevent possible bodily injury. Turn the side burner control knob to HIGH (see Fig. 13). Turn the Igniter Knob clockwise until the burner ignites. The burner should light within four clicks of the igniter. -
Page 17: Troubleshooting Guide
Troubleshooting Guide PROBLEM POTENTIAL CAUSE Burner will not Gas supply turned off light Out of propane Blockage in the gas system Misalignment of the gas valve to the venturi tubes of the burner. Improper attachment of the propane hose and regulator Unit won’t heat Control knob left open at startup, up (LP) - Page 18 PROBLEM POTENTIAL CAUSE Uneven burn Blockage in the burner or gas system pattern Flashback fire Corroded burner Excessive yellow Improper air shutter opening flame Flare-up Excessively fatty foods Grease buildup Igniter does not Electrode fouled spark Electrode improperly gapped Electrode cracked Lead wire is disconnected Lead wire is cracked Battery dead or installed wrong...
- Page 19 VCS4007 / VCS4017 / VCS4027 / VCS4037 VCS5007 / VCS5017 / Tools Required: knife or scissors, Phillips or Robertson (square head) screwdriver.. Model VCS4007 Shown Step 1: Unpack Carton and Verify Contents Use a sharp cutting tool to cut the straps on the packaging and then lift off the carton top. The sleeve surrounding the barbecue can be removed by lifting it straight up and over the top of the unit.
- Page 20 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / VCS50 / VCS50 37 Assembly Step 2: Install the Casters Parts Required: (4) Casters, (1) Block (not included) Casters (wheels) may differ from those shown in Note: the illustration depending on the model you purchased.
- Page 21 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 4: Install the Side Shelf Supports Parts Required: (1) Left Side Shelf Support (1) Left Condiment Tray (1) Right Side Shelf Support (1) Right Condiment Tray (8) 1/4-20 x 1-1/2“ Bolts Only the right side assembly is shown in Fig.
- Page 22 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 6: Secure Shelves Parts Required: (4) 10-24 x 1/2” Bolts (black) Secure each Shelf by inserting (2) 10-24 x 1/2” bolts through the U-Clip fasteners as shown in the diagram.
- Page 23 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 9: Attach Side Burner Lid Parts Required: (1) Side Burner Lid (S/B-Single) (2) #10-24 x 3/4” ( 1/4” Shank)* Included with the Side Burner Kit Attach the lid marked (S/B-Single) to the Shelf Right top marked VM-S/B using two #10-24 x 3/4”...
- Page 24 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 12: Attach the Handle to the Door Parts Required: VCS4007/VCS4017/VCS4027/VCS4037: (1) Handle VCS5007/VCS5017/VCS5027/VCS5037: (3) Handles Handles may not appear exactly as shown in Note: diagram Attach the Door handle(s) to the door(s) by aligning the...
- Page 25 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 15: Install the Internal Components Parts Required: VCS4007 / VCS4017 : (4) Sear Plates VCS4027 / VCS4037 (3) Cooking Grates (1) Warming Rack VCS5007 / VCS5017 :...
- Page 26 VCS4007 / VCS4017 / VCS4027 / VCS4037 / VCS5007 / VCS5017 / Step 17: Install the LP Cylinder (LP Models Only) Parts Required: (1) LP Gas Cylinder (not included) Check your user’s manual for the cylinder filling Note: requirements, how to attach the regulator and how to test for leaks before you try lighting the grill.
- Page 27 CFM Corporation 410 Admiral Boulevard Mississauga, Ontario L5T 2N6 Canada (800) 668-5323 www.cfmcorp.com Service Note: If you are experiencing difficulties or are dissatisfied with your purchase, please contact CFM at the telephone number listed above prior to returning your grill to the store. Page 12...
